Analog CCTV RJ45 BNC to UPT passive video balun transceiver
- Category: >>>
- Supplier: Shenzhen Dijiean Technology Co. Ltd.
Share on (62055905418):
Product Overview
Description
Product Description

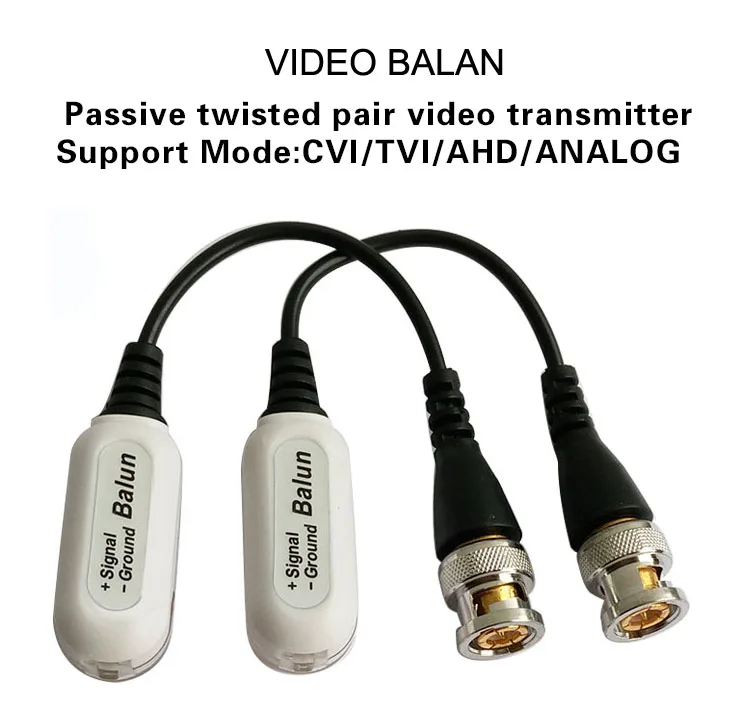

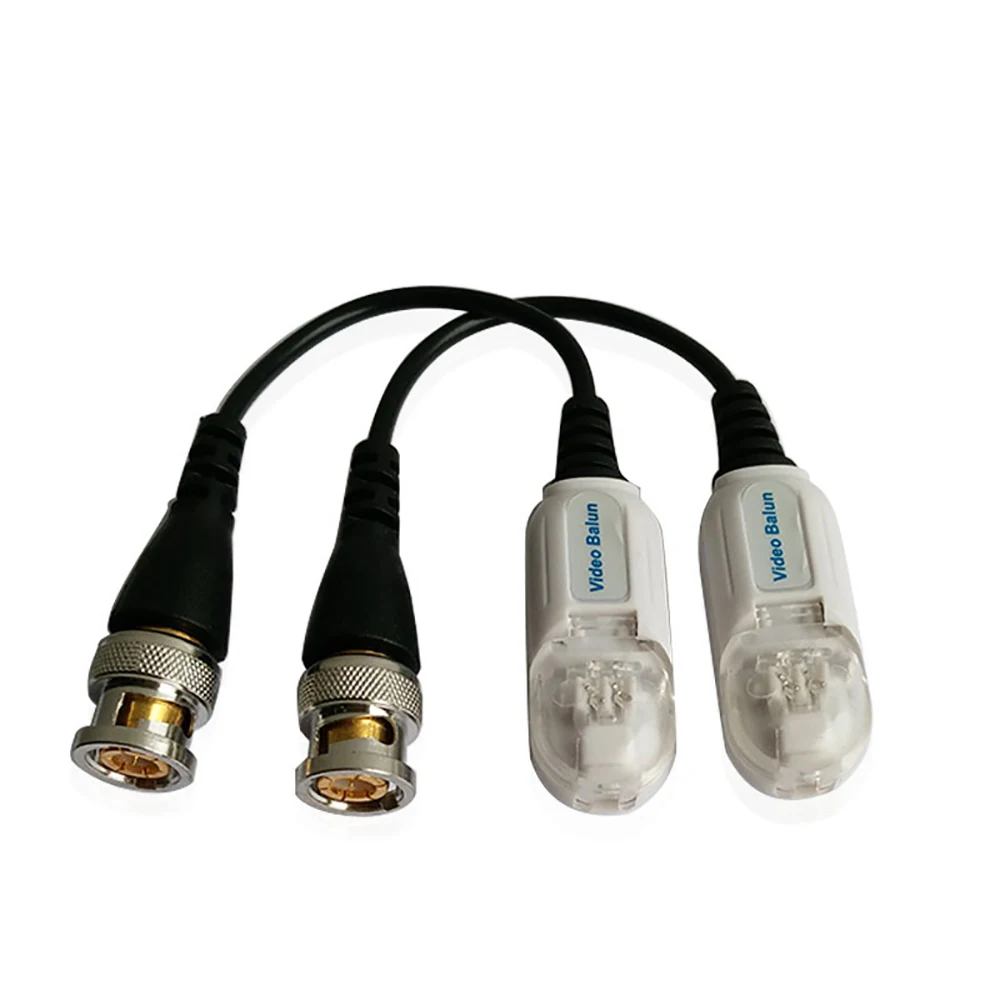

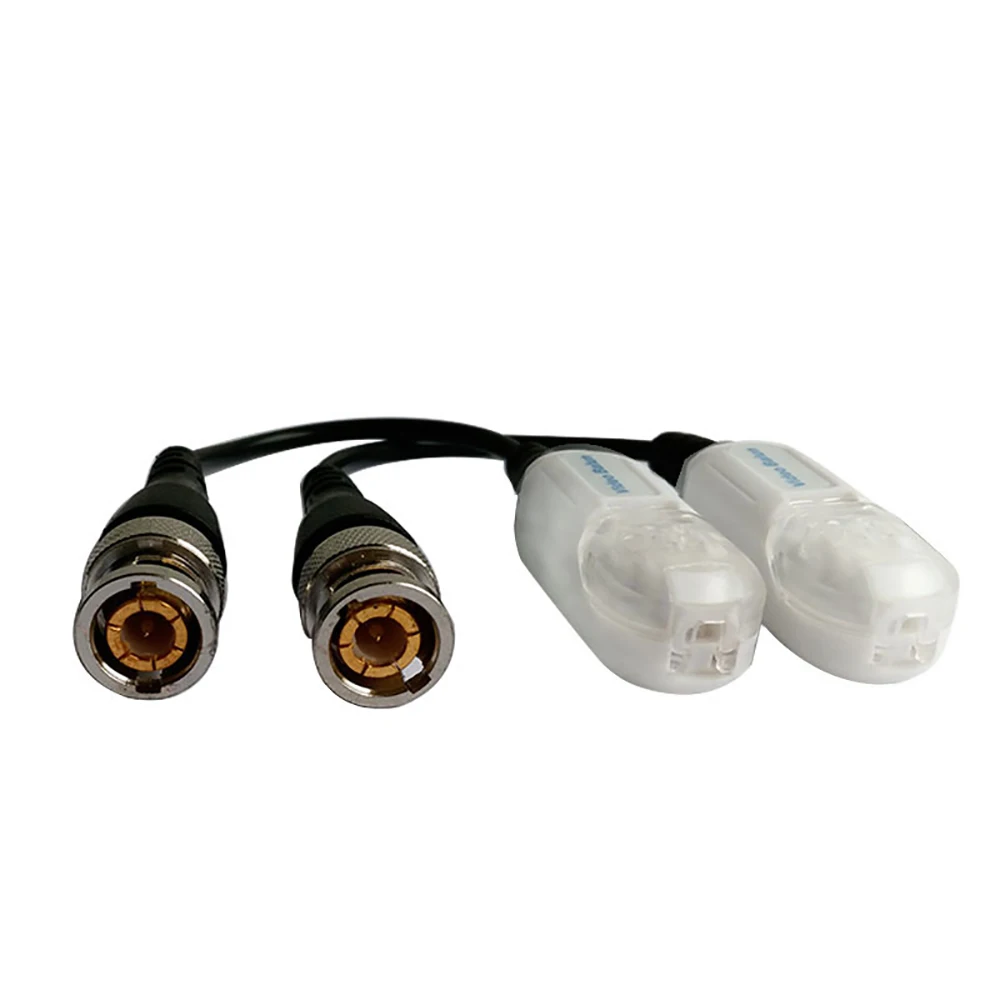

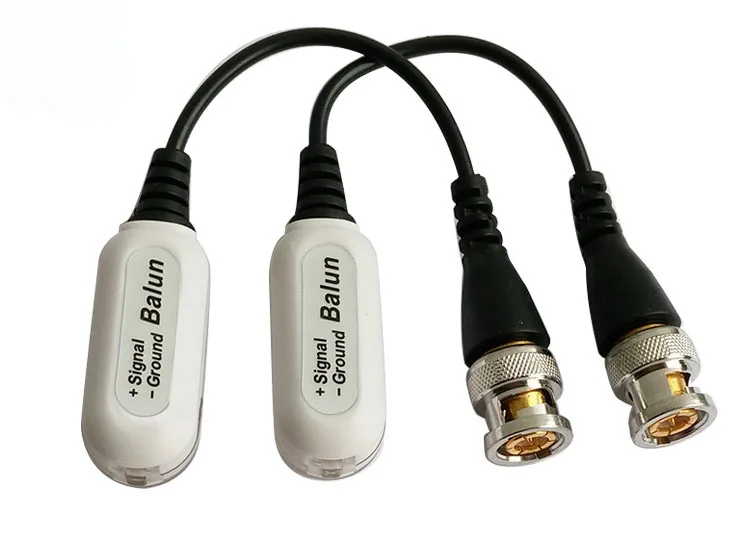

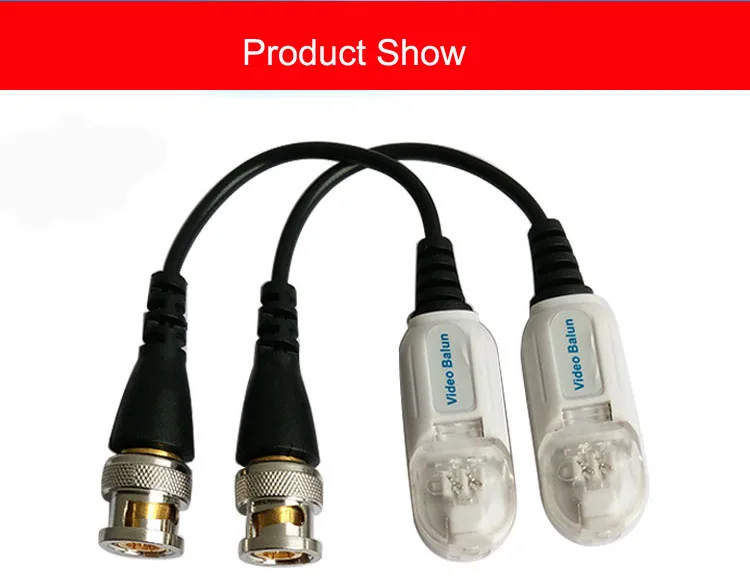

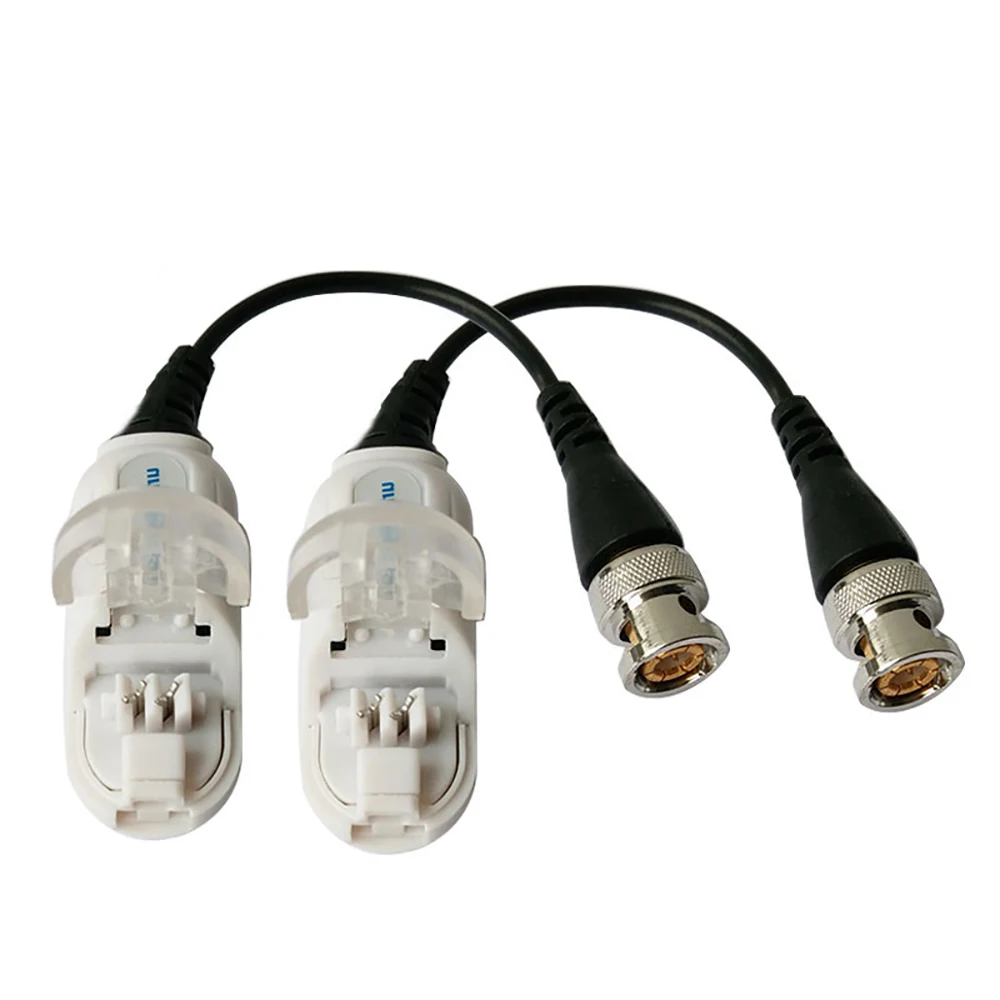

Analog CCTV RJ45 BNC to UPT passive video balun transceiver

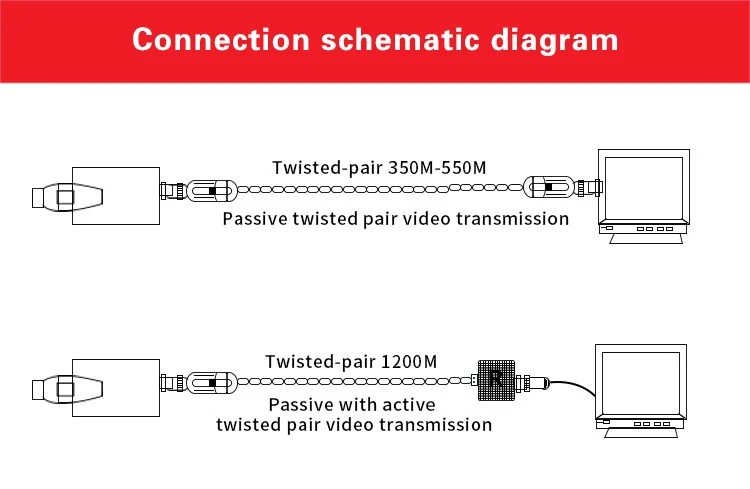

CCTV video baluns, also known as UTP baluns, allow traditional coax cable to be replaced by category 5 and other forms of twisted pair wire in CCTV video camera & surveillance installations. Video baluns allow installers to use more cost effective structured cabling techniques to wire security cameras. By using video baluns, UTP wire such as cat-5 can be run over longer distances easier than coax cable and for less money. Active balun transceivers enable UTP wires for cameras to be run distances up to 5,000 feet.
Features:
1. CCTV Passive UTP Video Balun,cctv video balun
2. good quality gold plated BNC connector

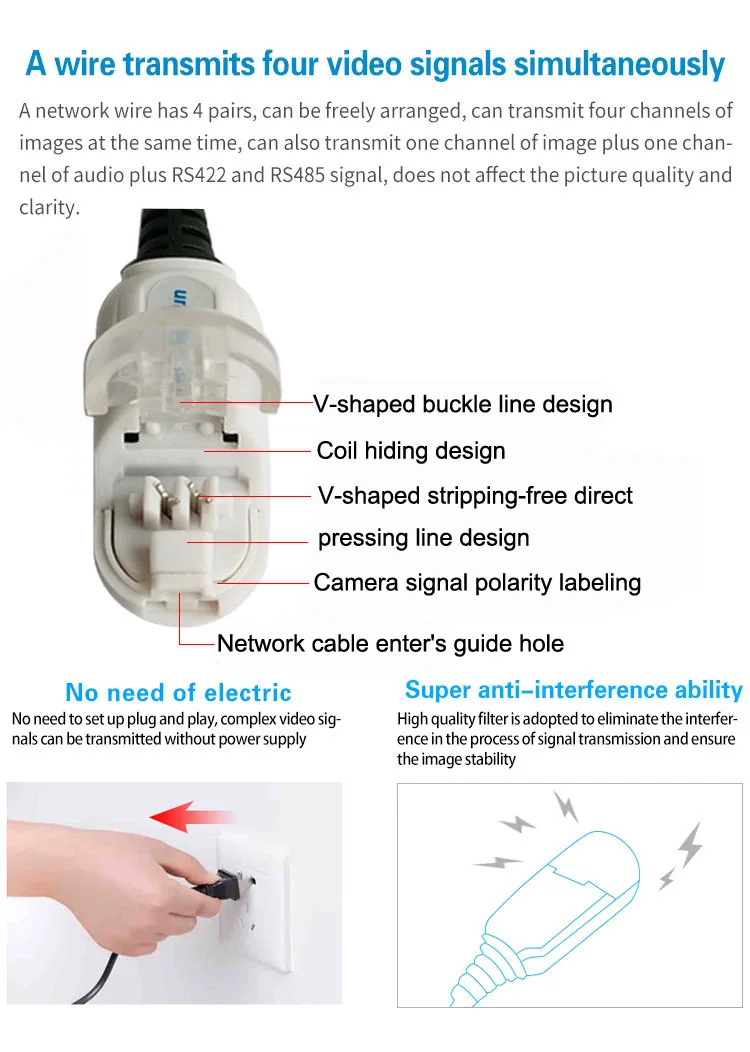

3. Can transmit and receive Video , Audio, Power, Data video balun
4. Cheap price, good quality, long time warranty
5. Support all of HD video signal, include HDCVI / AHD / HDTVI /CVBS
6.Compact size and easy installation
7.Surge/Lighting Protection
8.Interference Suppression/ Noise Filtering
9.Long-distance transmission and high-quality image
7.Surge/Lighting Protection
8.Interference Suppression/ Noise Filtering
9.Long-distance transmission and high-quality image
Specifications:
| Transmission Distance | |||
| HDCVI | 720P:600m | AHD | 960H/1080P:300m |
| HDTVI | 720P/1080P:200m | Compatible Format | AHD/CVI/TVI |
| Resolution | 720P/960H/1080P | Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ | Attenuation | 1.5dB typ Max |
| Impedance | Male BNC:75Ω Terminal:100Ω | Network Wiring | One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) |
| Category Type | 5 or better | Impedance | 100±20ohms |
| DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) | DC Loop Resistance | Different Capacitance |
| External power required | No | Surge Protection | Renewable solid state surge protection |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) | Video Output | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Video input/output | Male BNC / Push terminal | Body Color | Black |
| Housing | ABS engineering plastic | Operating Temperature | -20°C-70°C |
| Relative Humidity | 0-95%(non-condensing) | Storage Temperature | -40°C-80°C |

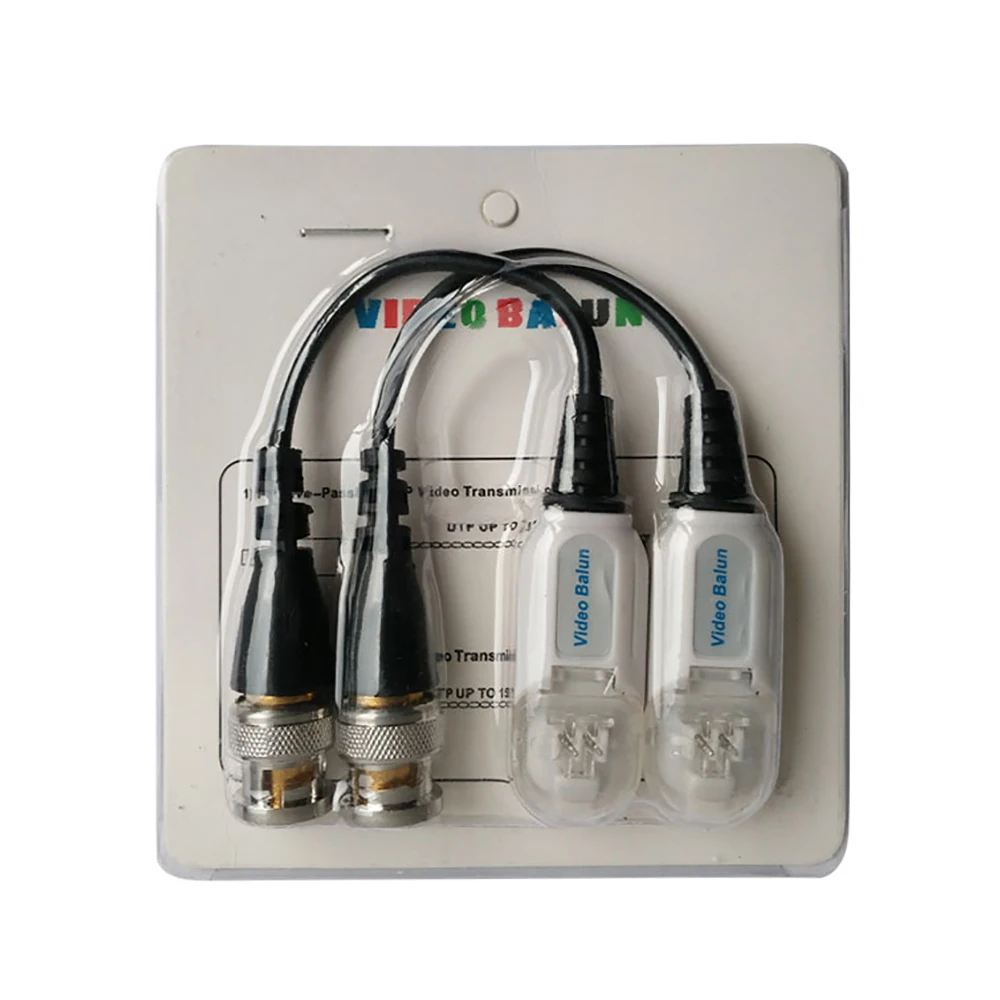

Packaging & Shipping
Our Services
We offer OEM,ODM and Customized services to meet your requirements,and also welcome you to be our DJA brand sales agent in your country.
Company Information
Shenzhen Dejiean Technology Co.,Ltd. is a high-tech enterprise of network and security monitoring equipment R&D,production and sale of one-top services,and now its a one of the leading manufacturer of security transmission equipment in China.our company mainly focuses on POE switch, POE splitter,network extender, passive(active)twisted-pair transmitter, video balun, video multiplexer, video exclude interference device and network cable hub etc products with more than 10 years production and after-sales experience.
Our DJA branded products through sales agents at worldwide,and we places great importance on users' needs and ceaselessly pursues perfection in product design and manufacturing, to supply users with the best security products at the best prices.
FAQ
Q1 . What your MOQ?
A1 .1 pcs is ok,whatever how many you need,and we will also give you the best service.
Q2.What certification did you get?
A2 : Our product strictly operate the ISO9001:2008 quality control system and we passed the CE,CCC,ROHS,
you can trust us.
Q3 :What about your package and delivery,will it broke during shipping?
A3:You don't need to worry about the package,we will use shockproof case for delivering.
Q4.What your common delivery way?
A4:By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Q5.Can we get a sample?
A5:Yes,but we need to charge for samples,we will return sample fee in later order.
Q6.OEM,ODM Severice is available?
A6:Yes,DJA provide good OEM/ODM service to our customers.
Q7.How about the payment terms?
A7:T/T,L/C at sight,western union(30% deposit and 70% T/T or L/C at sight before shipment.
Q8.Lead time?
A8:Sample order, 3-6 works days,bulk order, 10-30 work days after geting deposit.
Q9.What is your warranty period?
A9:We are real factory, so the warranty period is 1 years..
This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
Q10: Why we choose DJA?
A10:We have professional R & D staff and a complete set of product testing process. All the producing procedures are operated under strict ISO quality management system. our factory staffs are experienced and responsible on work. So we have the ability to ensure the quality of your products.
