New CITD for MA5600T Universal Interface Board H801CITD
New CITD for MA5600T Universal Interface Board H801CITD
New CITD for MA5600T Universal Interface Board H801CITD

New CITD for MA5600T Universal Interface Board H801CITD

Share on (62055933906):


Price:

Quantity:


Product Overview

Description


Product Description

 GPIO Boards Comparison

Table 1 Major differences between universal interface boards

Board

BITS Clock

ESC

H801BIUA

  • Supports two inputs of 2 Mbit/s or 2 MHz BITS clock signals.
  • Supports one output of 2 Mbit/s or 2 MHz clock signals.
  • Provides E1 clock ports.

No

H801CITA

No

Provides an ESC port for receiving and reporting the ESC alarm information to the control board.

H801CITD

  • Supports two inputs of 2 Mbit/s or 2 MHz BITS clock signals.
  • Supports two inputs of 1 PPS+TOD time signals.
  • Supports one output of 2 Mbit/s or 2 MHz clock signals.
  • Supports one output of 1 PPS+TOD time signals.
  • Provides RJ45 clock ports.

Provides seven inputs of alarm digital parameters and one output of alarm digital parameters



The H801BIUA board supports the following functions:

  • Two standard BITS clock inputs and one standard BITS clock output
  • Input and output of 2 MHz and E1 signals
  • Tracing the input clock source of the two channels of BITS clock or tracing the output clock source of the control board
  • Multiple working modes, such as tracing, holdover, and free-run



The H801CITA board supports the following functions:

  • Provides an ESC port for reporting various monitored information to the control board.
  • Provides indicators for system alarms.



The H801CITD board supports the following functions:

  • Seven inputs of alarm digital parameters and one output of digital controlling parameters
  • External monitoring Ethernet port to transparently transmit monitored data
  • When configured with the BITSB clock daughter board, the CITD board also provides the following functions:
    • Two inputs of 2 Mbit/s or 2 MHz BITS clock signals
    • Two inputs of 1 PPS+TOD time signals(supported in V800R013C10 and later versions)
    • One output of 2 Mbit/s or 2 MHz clock signals
    • One output of 1PPS time signals (supported in V800R013C10 and later versions)



Packaging & Shipping

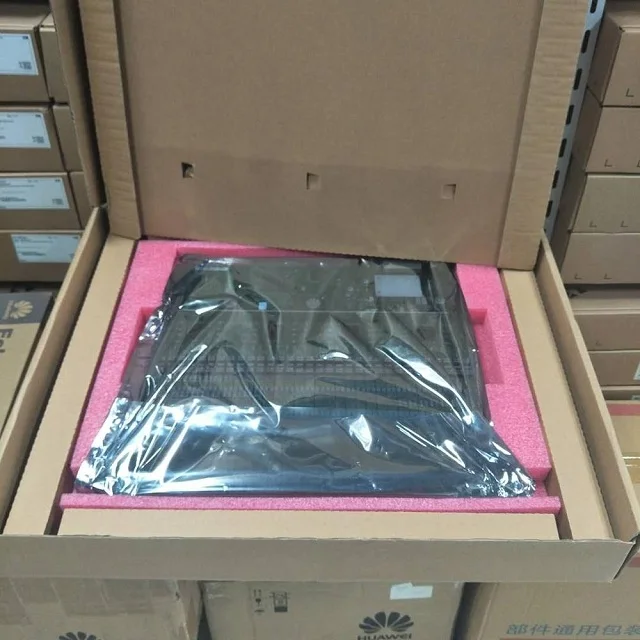

Packing Detail : Huawei orignal packing

Port : Shenzhen
Lead Time : 7days



Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.



Warranty



warranty.pngReturn Material Authorization (RMA) Process



Standard Hardware Warranty Policy:



Original new sealed Huawei product: 1 Year



The Support Contacts:



If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Information


      Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking  products with more than 5000 customers.



      We provide original new Huawei Routers, Switches,Firewalls, Wireless APs & controllers, OLTs,GPON modems, optical transceivers. Our company have more than $5million Huawei products in stock.



      Most of our technical engineers had work exprience in Huawei company, we can provide network design&planning, configration, troubleshooting, maintenance and training service in world wide.
