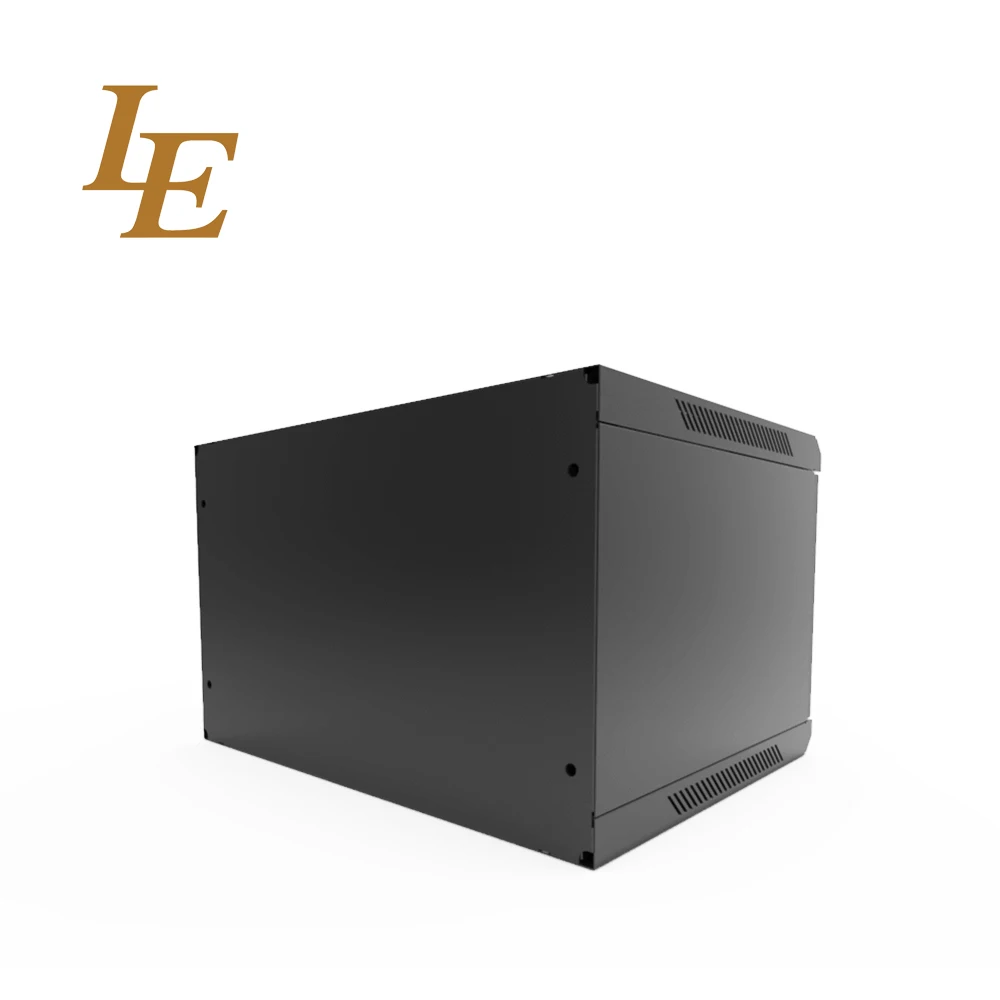

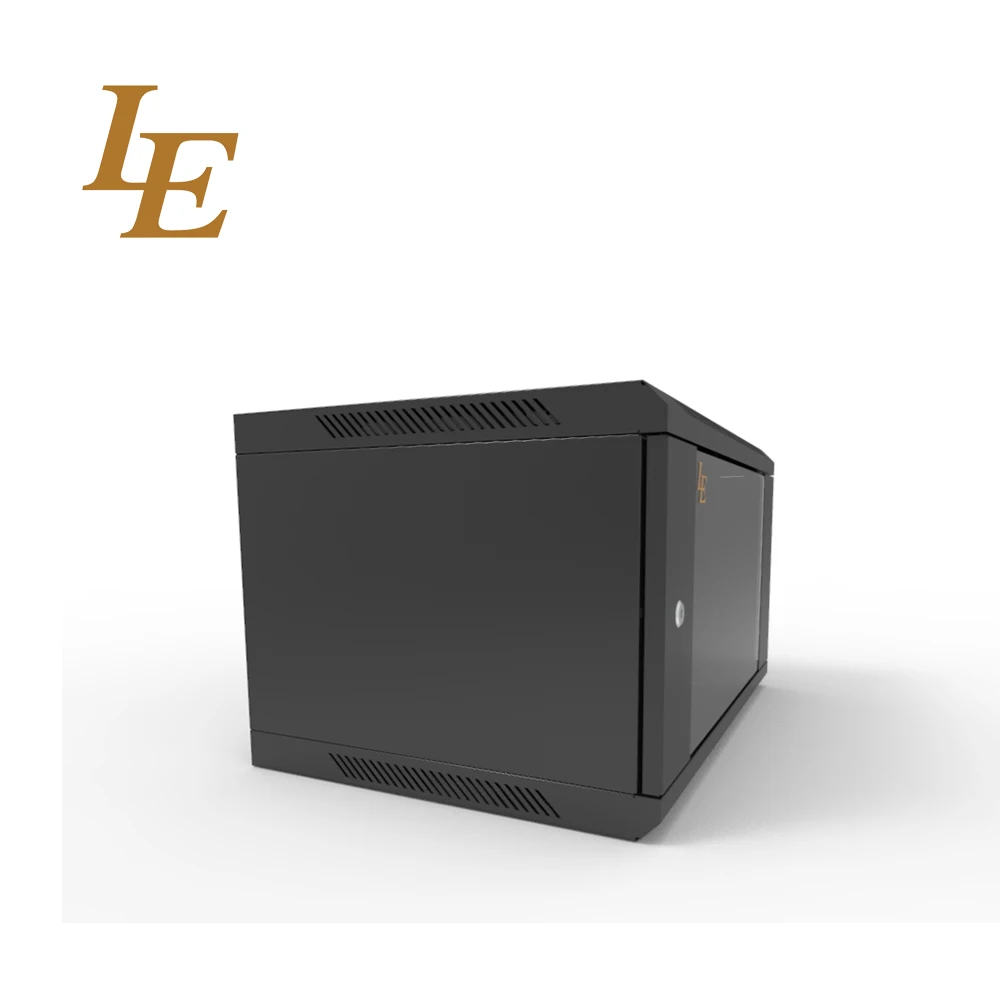

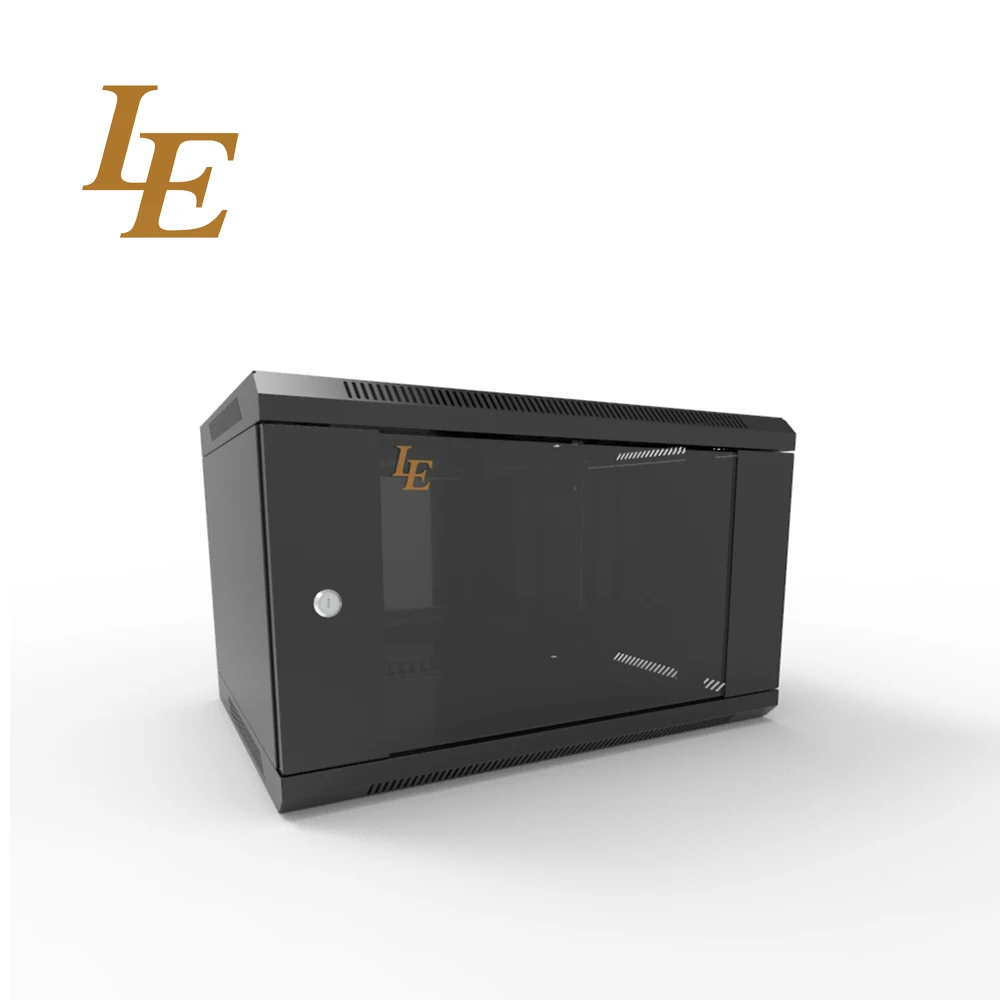

4U Network Rack Cabling Cabinet Server Data Case

Product Overview

Description

General description of 4U Network Rack Cabling Cabinet Server Data Case

  1.Steel frame with assistant profile unassembled structure;
  2.Single section,compatible with 19" standard equipments;

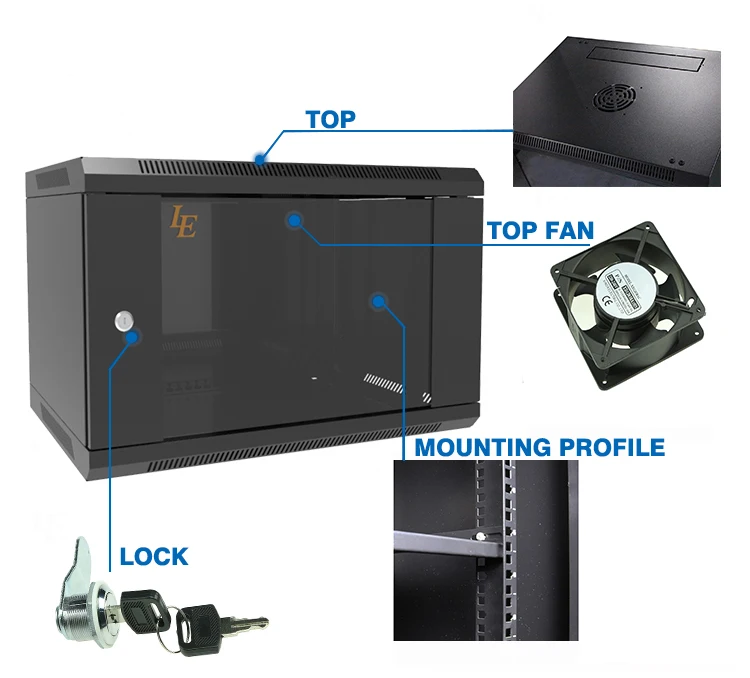

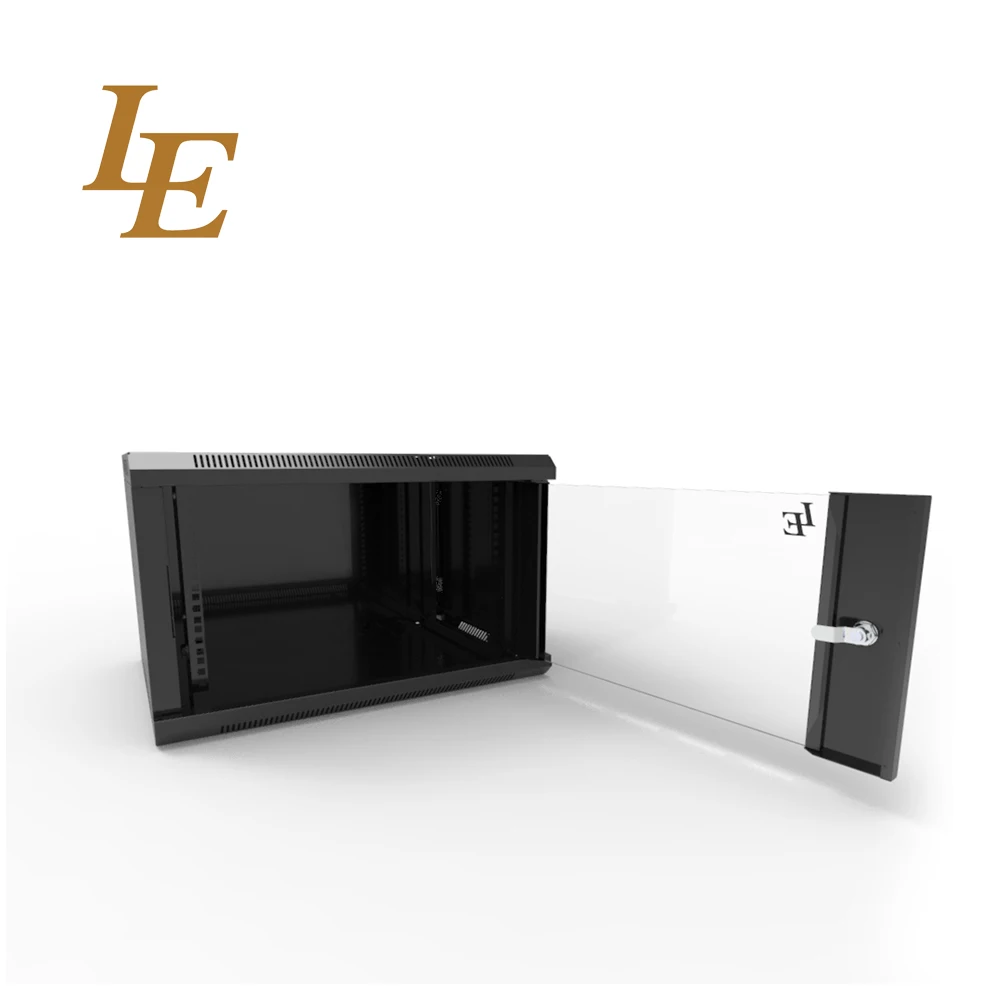

  3.5mm tempered glass front door with over 180 turning degree;Cable entry on the top and bottom
  4.L-shaped mounting profile,easy to adjustable on the mounting rail

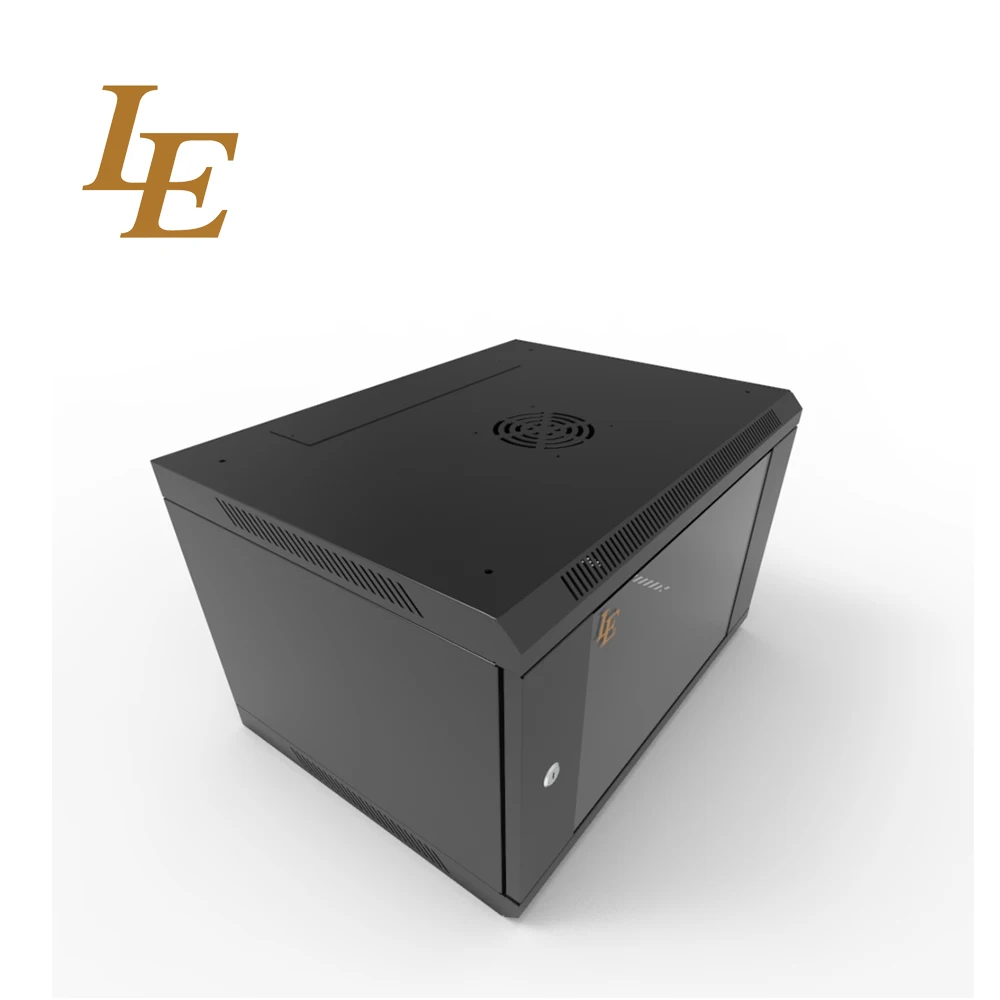

  5.Fan cutout on the top,easy to install fan;
  6.Back panel with four mounting holes,easy to fix on the wall;
  7.Various accessories for option;
  8.Flat packing,save the container space,easy to transport;

Standard	ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard
Material	SPCC quality cold rolled steel Thickness: 1.2mm Tempered glass Thickness:5mm
Loading Capacity	Static loading: 60kg(on the adjustable feet)
Degree of protection	IP20
Surface finish	Degreasing,Pickling,Phosphating,Powder Coated
Product specification	4U-18U
Width	600mm
Depth	550mm,600mm
color	Ral9004; Ral9005; Ral7035



Our Advantages:
1. 100% MANUFACTURER.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
