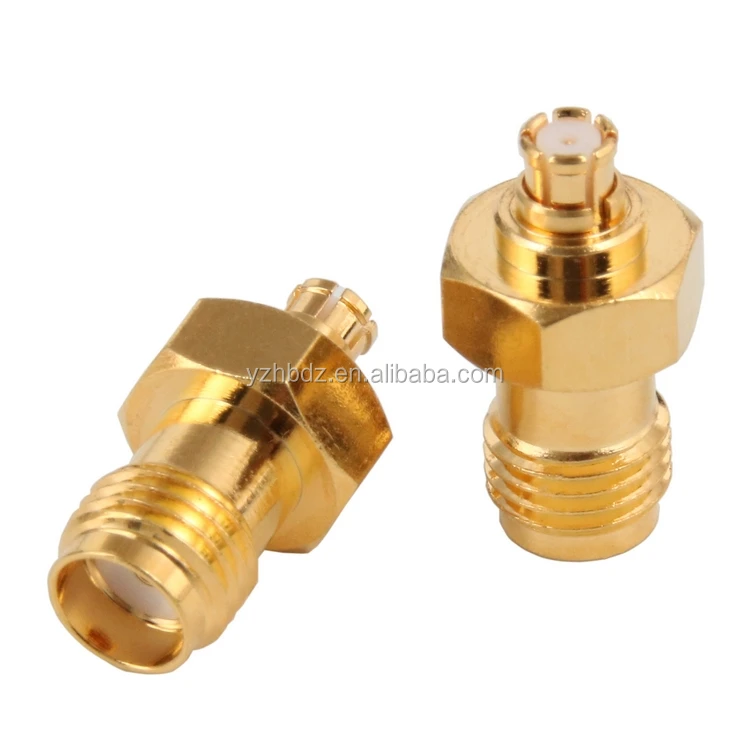

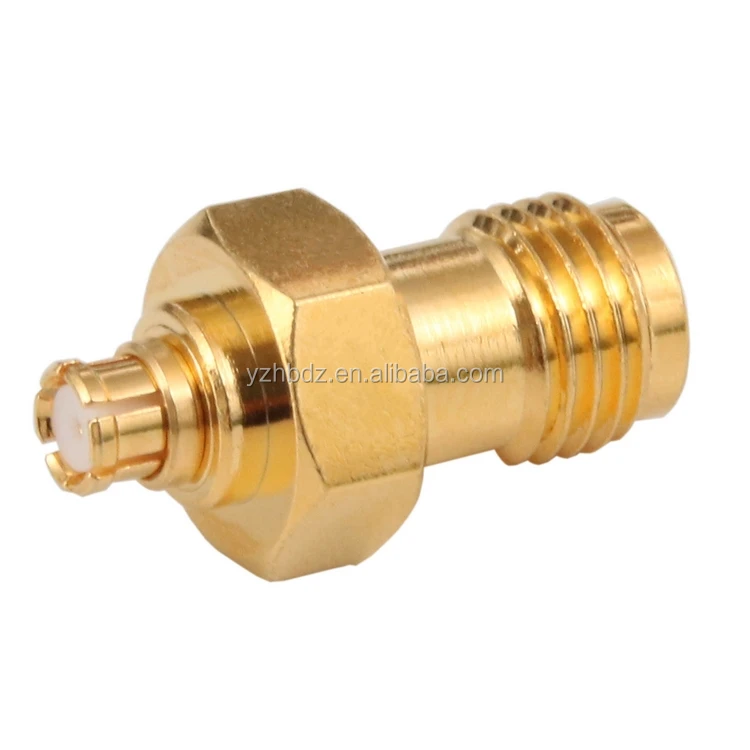

Hongbo RF Coaxial Connector SMP Female To SMA Female Adapter

Product Overview

Description





     Adaptor is the basic product that used in the connection between the instrument cables with different interface. There are two kinds of them: within-type adaptor and inter-type adaptor. It has the same technical special characteristic with same class product. Within-type adaptor is listed in the catalogue of that product. Our company designs and produces various adaptors with all kinds of specifications. They have wide frequency range and low VSWR characteristics. Welcome to visit and choose.



Major Technical Characteristics		MATERIAL & PLATING
Temperature  Range:	-55~+155°C
Impedance:	50Ω	Body	brass	nickel or gold plated
Vibration	98m/s²(10-500Hz) 10g
Frequency Range:	DC~3GHz
Working Voltage:	335V r.m.s  at sea level	Pin contact	Tin bronze	Gold plated
Withstanding Voltage:	1000V r.m.s  at sea level
Contact resistance:	a)Center Contact   ≤3m Ω b)Outer  Contact  ≤2.5m Ω	Socket  contact	Beryllium -copper	Gold plated
Insulation resistance:	≥5000MΩ	insulator	PTFE
Center Conductor retention force:	≥0.28N	Crimp ferrule	Copper alloy	nickel or gold plated
Voltage Standing Wave Ratio:	≤1.07+0.10f(GHz)	O-ring  sealing	6146silicone rubber
Coupling nut retening force	≥180N
Durability(mating):	≥500times(cycles)



Applicable Standard: MIL-C-39012; CECC 22170; IEC 60169-19.

Q1.How can I get some samples?
A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.

Q2.What is your delivery time?
A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS

Q3.Can you do OEM or ODM?
A: Yes, we can do OEM and ODM products.

Q4.How does your factory do regarding quality control?
A1: In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.

Q5. What's your payment way?
A1.We accept Alipay/West Union/TT. All major credit cards are accepted through secure payment processor ESCROW.
A2.Payment must be made within 3 days of order.
A3.If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.

Q6. How abort the shipping?
A: For small orders, we will send the goods by international Express like Fedex, DHL, TNT , UPS or SF, usually it takes 3-5 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.
