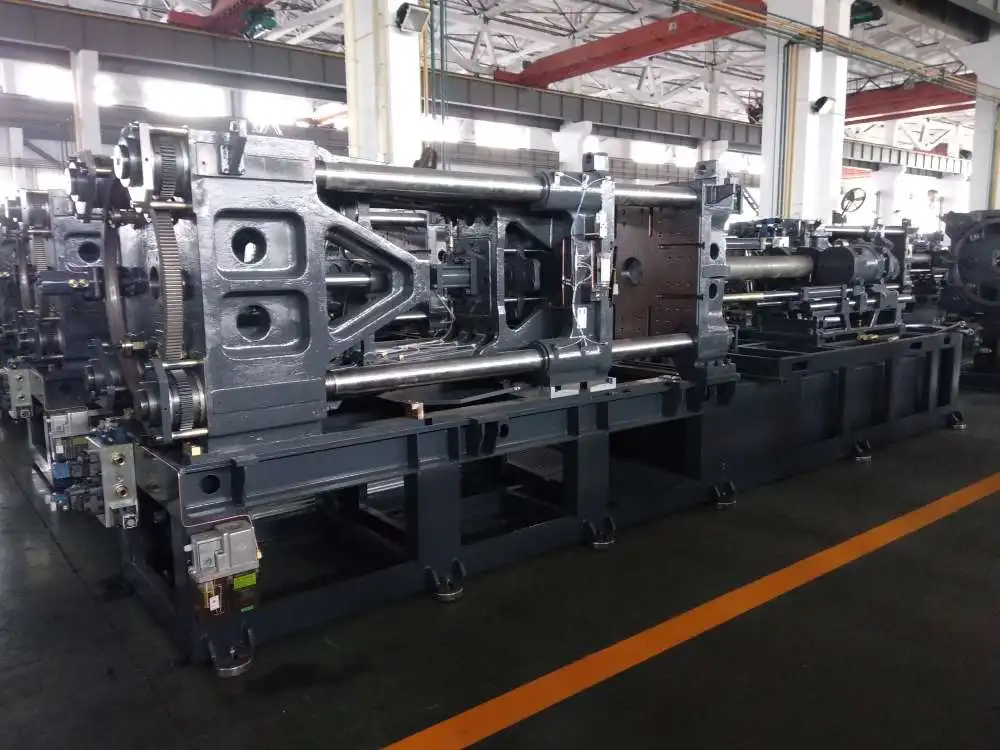

HD680L High Precision Servo Energy-Saving Plastic Injection Machine
Number Item
HD680L
Category
HDL Series
OEM
Available
Warranty
1 Year
Factory
Yes

Application>>

Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.

Technical Parameters >>

MODEL
HD680L
ITEM
UNIT
DATA




INJECTION UNIT
Screw Diameter
mm
90
95
100
Screw L/D Ratio
L/D
22.7
21.5
20.4
Injection Volume
CM3
2957
3294
3650
Shot Weight
g
2691
3000
3322
Injection Pressure
Mpa
177
159
143




CLAMPING UNIT
Clamping Force
KN
6800
Opening Stroke
mm
940
Space Between Tie-Bars
mm
940*920
Mould Thickness(Min-Max)
mm
390-900
Ejector Force
KN
181
Ejector  Stroke
mm
260





GENERAL
System Pressure
Mpa
16
Motor Power
KW
60
Heater
KW
36
Machine Dimension
m
9.6*2.73*2.42
Machine Weight
t
26
Mould Orientation Ring Diameter
mm
Φ200
Nozzle Radius
mm
SR20




Characteristics >>


HAIDA L series high precision Servo Energy-saving Injection Machine

New series model launched on the basis of the original series, to meet higher requirements of customers. Coexisted specificity and generality, screw of multiple diameters are optional for each model ,to realize optimized product quality.


Superior Energy Efficiency. To Save Power Consumption. Cooling phase, the motor does not need to work, power consumption is 0.
Saving Water And Fuel. Compared with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4 ~ 1/3, can achieve without cooling, thus greatly saving water.
