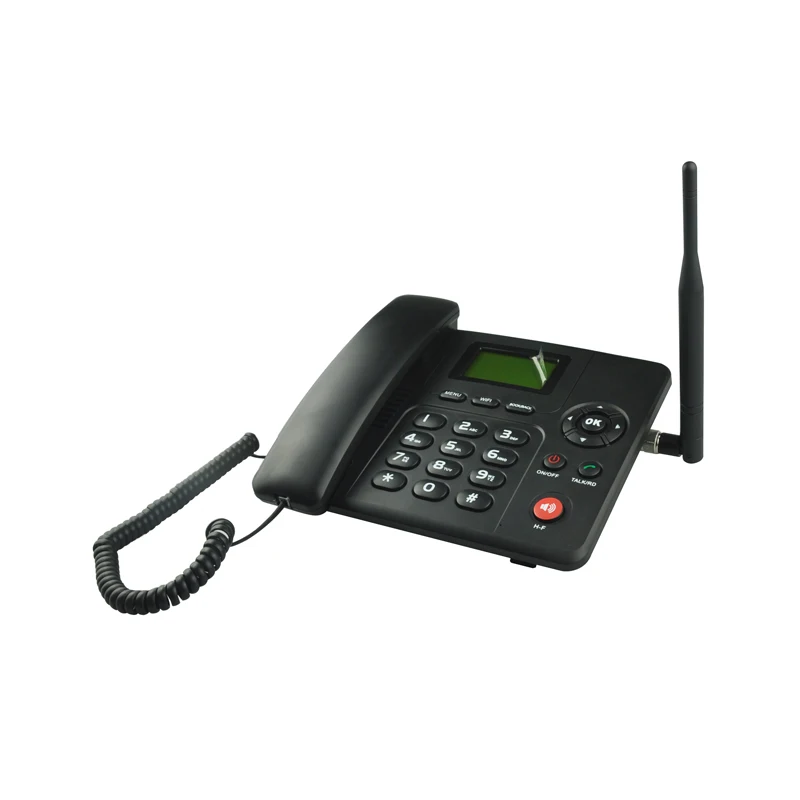

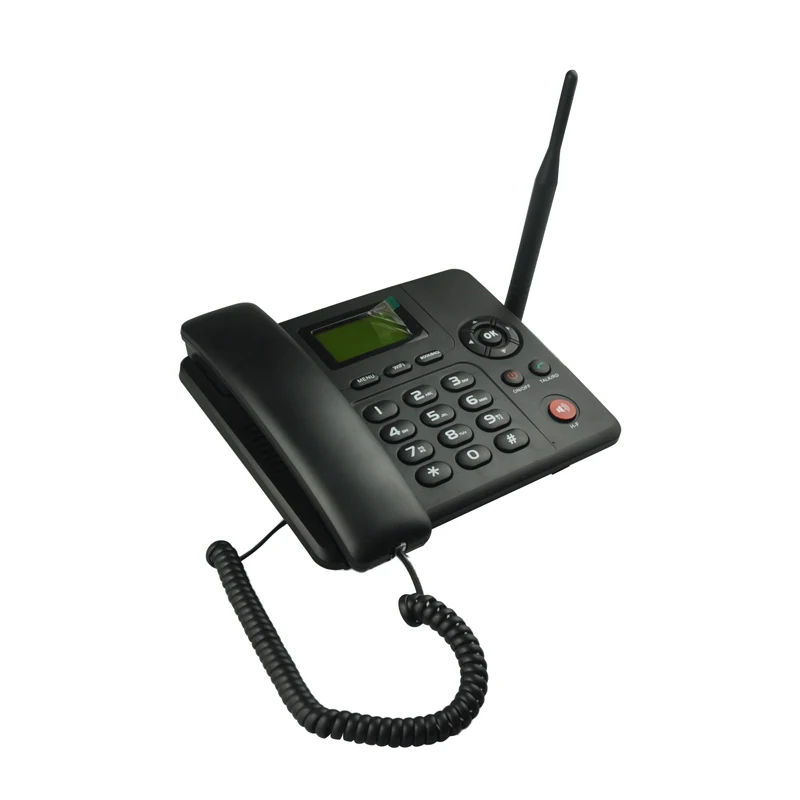

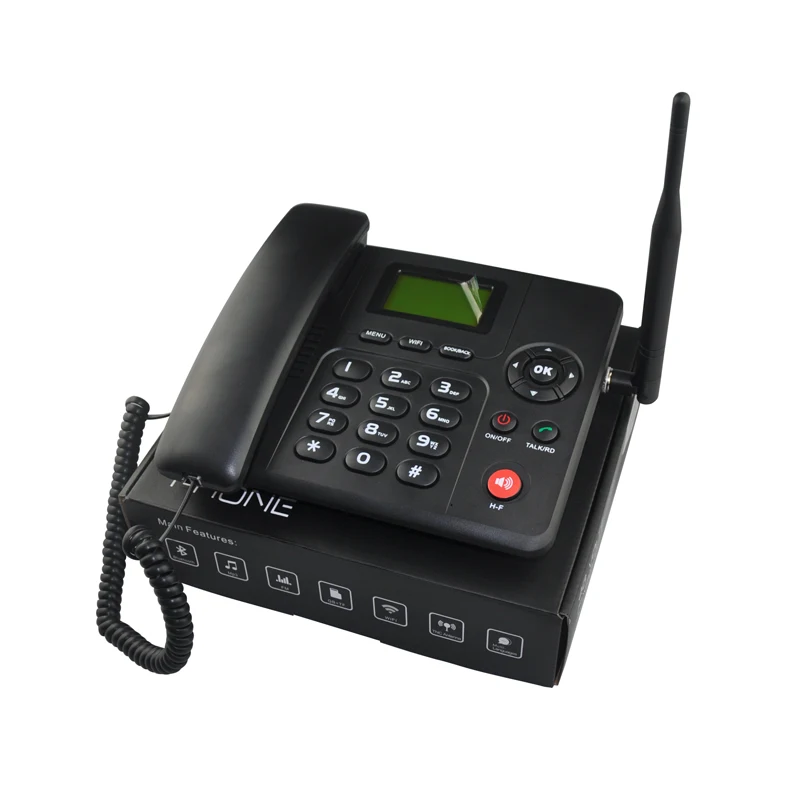

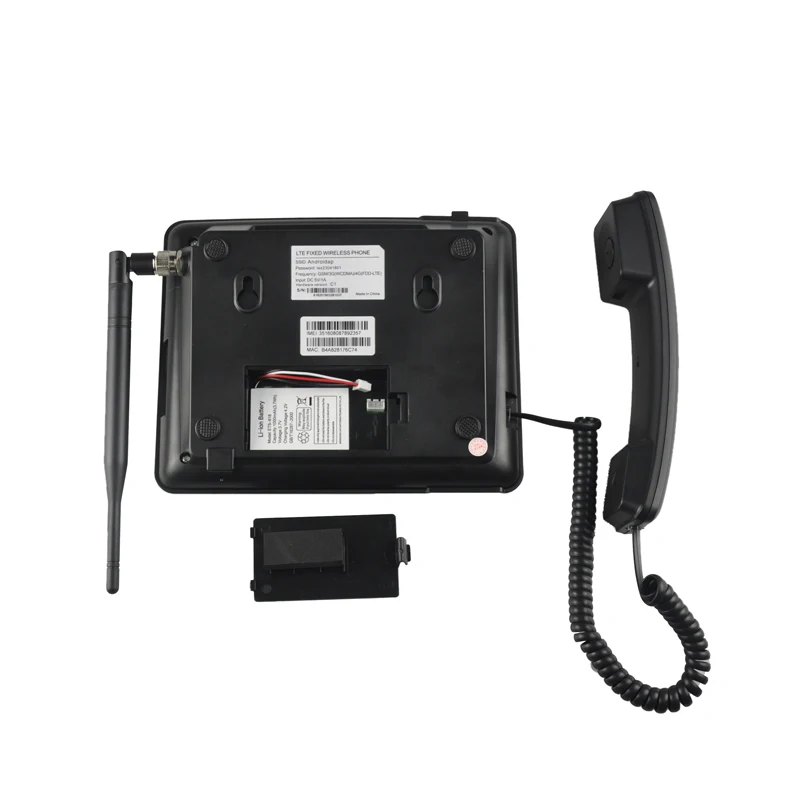

1 sim 4g lte fixed wireless phone with wifi hotspot
Congratulations on your purchase of the 4G Fixed Wireless Phone ETS-6688 (Hereinafter referred to as Phone). The Phone has been designed to operate with the latest wireless communication technology which has many advanced features and provides an excellent voice quality. The Phone has advanced features as follows: 2G Band:2.3.5.8 3GBand:1.2.5.8 4GBand FDD:1.2.3.5.7.8.28a.28b Frequency bands not included can be adjusted as required WIFI Standard:IEEE 802.11b/g/n Dot-matrix LCD with back light Battery LCD display contents include signal strength, battery charging status,missed phone call symbol, new SMS, WIFI hotspot symbol, time, date, operator information SMS, phonebook Speed dial caller ID Memory store 10 incoming, 10 outgoing and 10 missed calls Different chord ringers for incoming call and SMS Hands free, redial, call divert, call waiting, call barred. Ringer volume adjustable Calendar, alarm clock, calculator,FM Rechargeable backup battery, long standby TNC antenna or integrated antenna optional Dual SIM or single SIM selectable
Module
2G
3G
4G-TDD
4G-FDD
A1
3 2 5 8
1 2 5 8
NO
1 2 3 5 7 8 28A 28B
A2
3 2 5 8
2 5 8
NO
4 2 3 5 7 8 28A 28B
B1
3 2 5 8
1 8
1 3 7 8 28A 28B
B2
3 2 5 8
1 5 8
38 40 41
1 3 5 7 8 20
C1
3 2 5 8
1 2 5 8
38 39 40 41
1 2 3 5 8
C2
3 2 5 8
2 5 8
38 39 40 41
4 2 3 5 8
Main Features
FM Radio,SMS,Voice Mail support Caller ID Display with Blacklit Long battery talk time (1000mAh) Support emergency call ,redial,speed dial Support three-way conference call Call in/Call out/Call divert/Call waiting limitation function Laguage phone book :store 300 telephone numbers Save more than 100 SMS on the phone Storage 10 missed call or received calls and the last 10 dial number Hands free Speaker Phone Micro USB interface for charging (5Volt/ 1Amp ) 7-level volume and silence adjustable
Technical Parameters
Module Chipset
Spreadtrum SC9820E ,Cortex A53 Dual-core, Clock: up to 1.3GHz Support DVFS
SIM
Support 3V & 1.8 V SIM card
Memory
MCP(4Gb+2Gb)
Max. power consumption
≤2W
LCD
128x64
Working current
The peak current is less than or equal to 2A The maximum current for GSM calls is no more than 260mA WCDMA communication maximum current is no more than 500mA LTE peak call current is less than 750mA Standby current is less than or equal to 5mA
GSM Band
GPRS/GSM:1900/1800/900/850MHz
WCDMA Band
850MHz/1900MHz or 900MHz/2100MHz (optional)
Max. emission power
FDD/TDD: Power Class 3( 23±2.7dBm) WCDMA : Power Class 3 (+24dBm +1/-3dBm) GSM/GPRS 850MHz/900MHz: Power Class 5 (+33dBm ±2dBm) GSM/GPRS 1800MHz/1900MHz: Power Class 0 (+30dBm ±2dBm)
Reception sensitivity
FDD/TDD LTE:≤-97.3 dBm(QPSK PREFSENS,throughput≥95%)(An antenna has 10M broadband)
