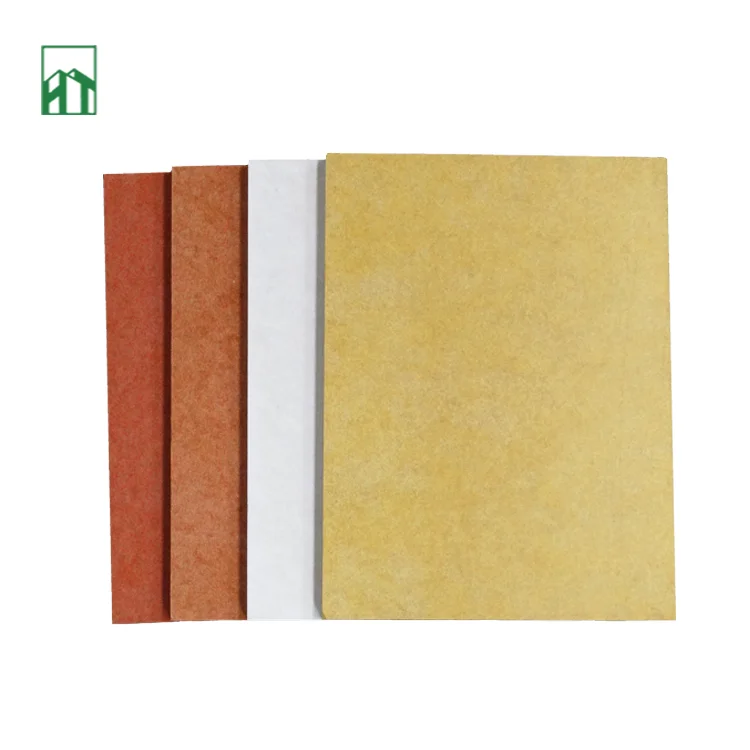

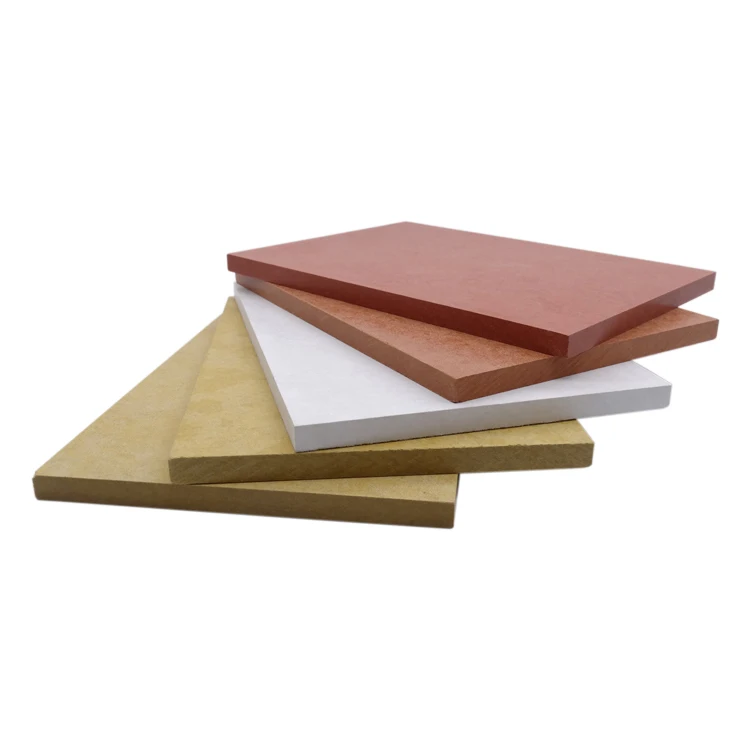

1.100% Asbestos Free 2.Long Service life 3. high strength,high density,Light weight 4. Waterproof Fireproof Moistureproof 5.sound insulation 6.incombustible material 7.Impact resistance 8 Inorganic materials 9.Non-radioactive
Specification
Dimensions

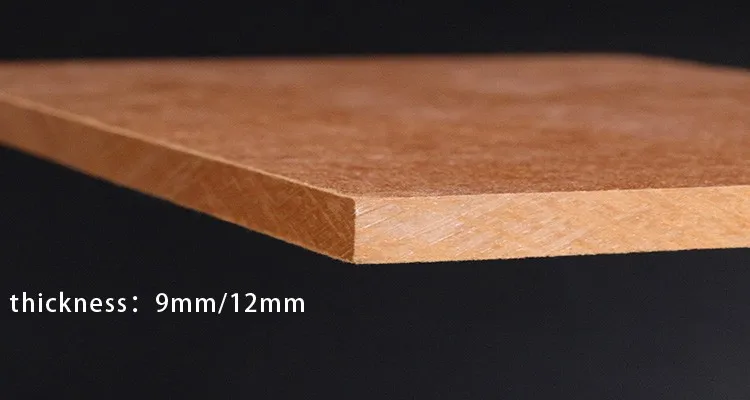

Thickness(mm)
9,12
Length (mm)
24403050
Width (mm)
1220
REMARK
We can also supply other specification as the client's specially requirement but cannot exceed the length and width of regular specification
Physical properties
item
industrial standard
Testing result
Density(g/cm3)
1.4-1.6
1.5
Thermal Conductivity (W/(m•K))
≤0.35
0.22
Water Contain(%)
≤10
5.3
Moisture Movement(%)
≤0.25
0.071~0.082
Bending Strength-Oven dry(MPa)
≥16
19.5
Bending Strength-Saturated(MPa)
--
15.3
Cross and Parallel(%)
≥58
≥78.0
Non-water soaking
wet mark are allowed on the reverse side of the plate but No Water Forms after being tested for 24 hours
Meet the requirements
Freeze-thaw
No cracking or delaminating after 25 times of freeze-thaw cycles
No cracking or delaminating after 50 times of freeze-thaw cycles
elasticity modulus(MPa)
-
cross:8770
Parallel :6640
Impact resistance(J/m2)
-
cross:2700
Parallel :1800
water absorption(%)
≤28
24.4~25.2
Thermal Expansion(x10-6/ 0C)
Condition:300C ~1000C,50C/min
Parallel :0.70
Non-combustibility
A-level
A1(the highest level)
Radioactive
Ira ≤1.0
<0.01
Ir ≤1.0
<0.1
Asbestos content
-
0

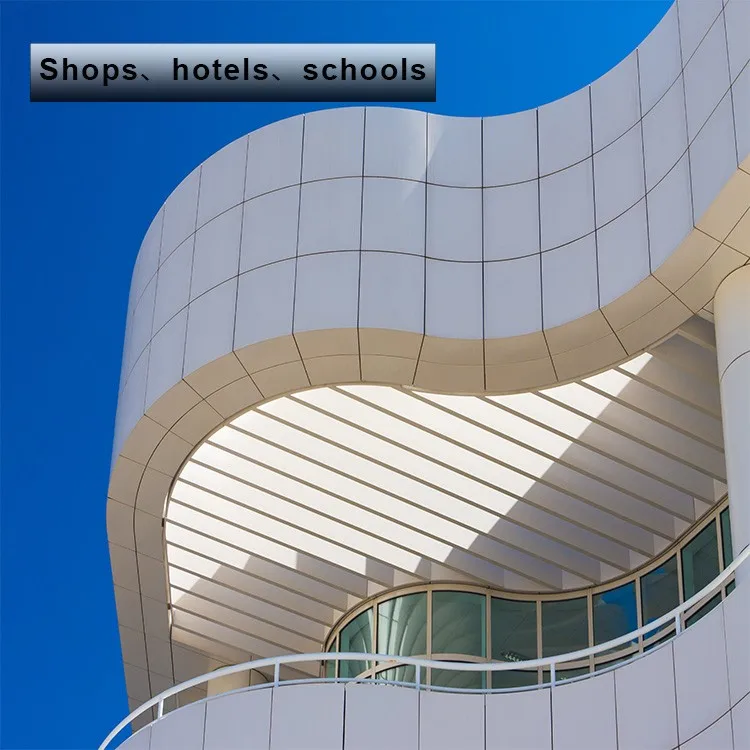

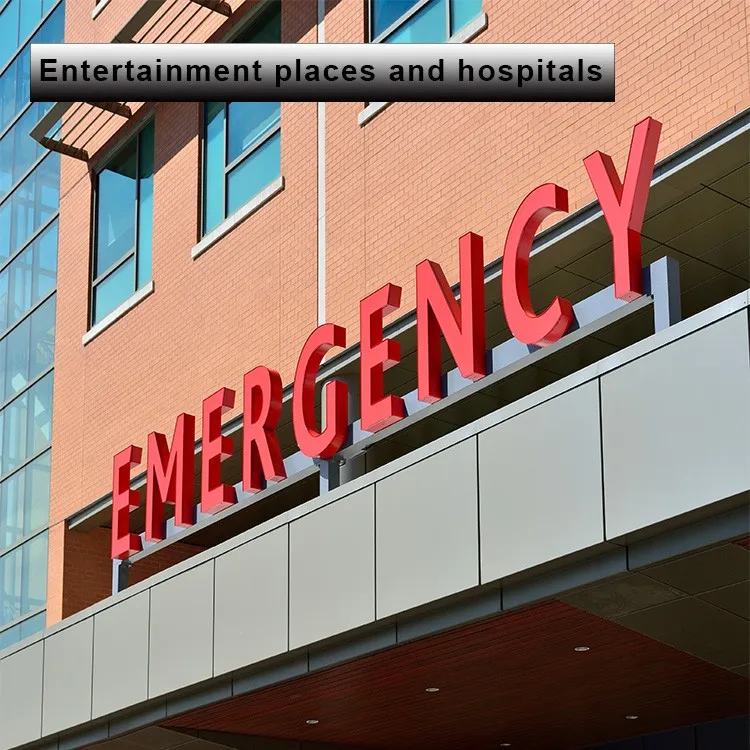

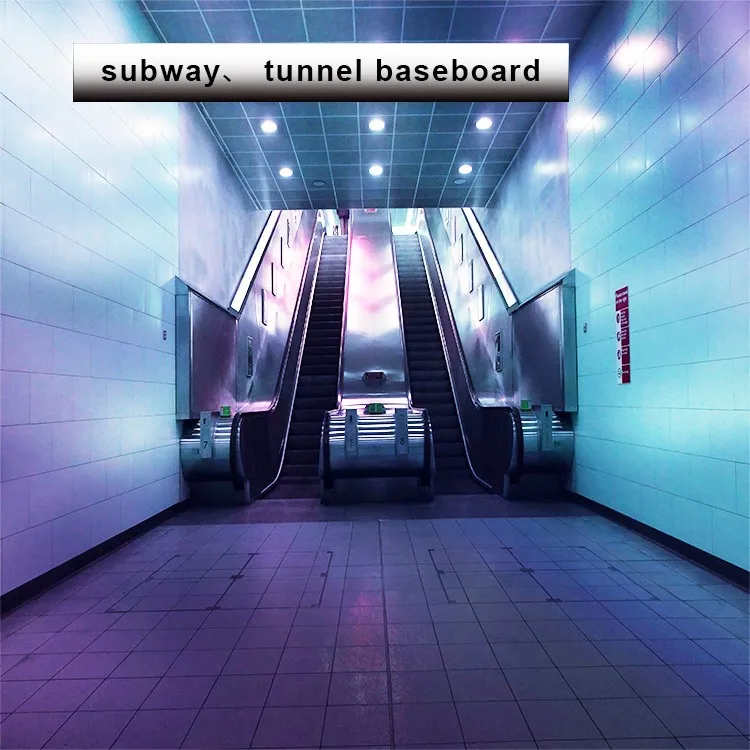

Application

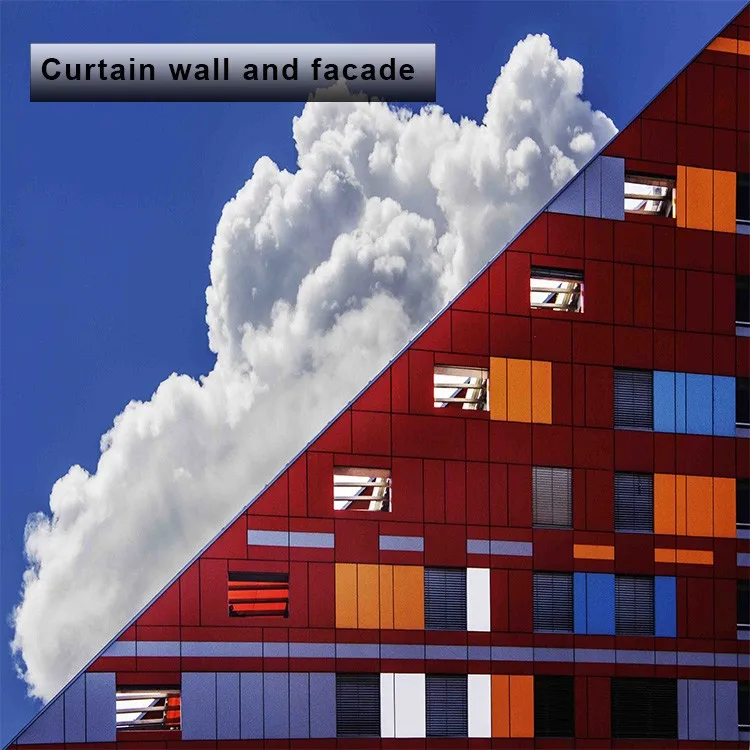

The clad board Suitable fo the use of new buildings, but also suitable for the renovation of the external walls of old buildings.
Other Products
Our Company
Nanning Hongte Construction Materials Co., Ltd. headquartered in the center of Nanning, is located in Natong town,Fuqiao Avenue,Overseas Chinese Districk,Long'an County,Nanning,China.the production base covers an area of more than 40000 square meters and a building area of more than 20,000 square meters. it has 3 calcium silicate plate production lines with an annual output of 5 million square meters and an annual production capacity of 20 million square meters.
Packing&Shipping
Delivery:≤ 1000 pieces ,10 days after receiving deposit;
1000~3000 pieces ,20 days after receiving deposit;
3000~7000 pieces ,30 days after receiving deposit.
FAQ
1: Are you a factory or trading company? Answer: We are a factory with international trade team 2.Which port can you support? Answer:QinZhou Port or any other China port you need. If provided destination port, CFR and CIF can be quoted for your reference. 3. What's your Minimum order quantity(MOQ) of your product? Answer:normally the MOQ of each size is 1×20ft container,Small orders are also accepted. 4. What terms of payment you usually use? Answer:T/T 30% deposit and 70% against document, Western Union, Payment terms are negotiable if large order. 5. What is your delivery time for your goods? Answer:Usually within 10-15 days if stock not available.
