FTTH Fiber Optic Network Router 1GE 1FE WIFI 1POTS Dual Pon Port XPON GEPON EPON GPON ONU
- Category: >>>
- Supplier: Shenzhen Hdv Photoelectron Technology Ltd.
Share on (62056229428):
Product Overview
Description
FTTH Fiber Optic Network Router 1GE+1FE+WIFI+1POTS Dual Pon Port XPON GEPON EPON GPON ONU

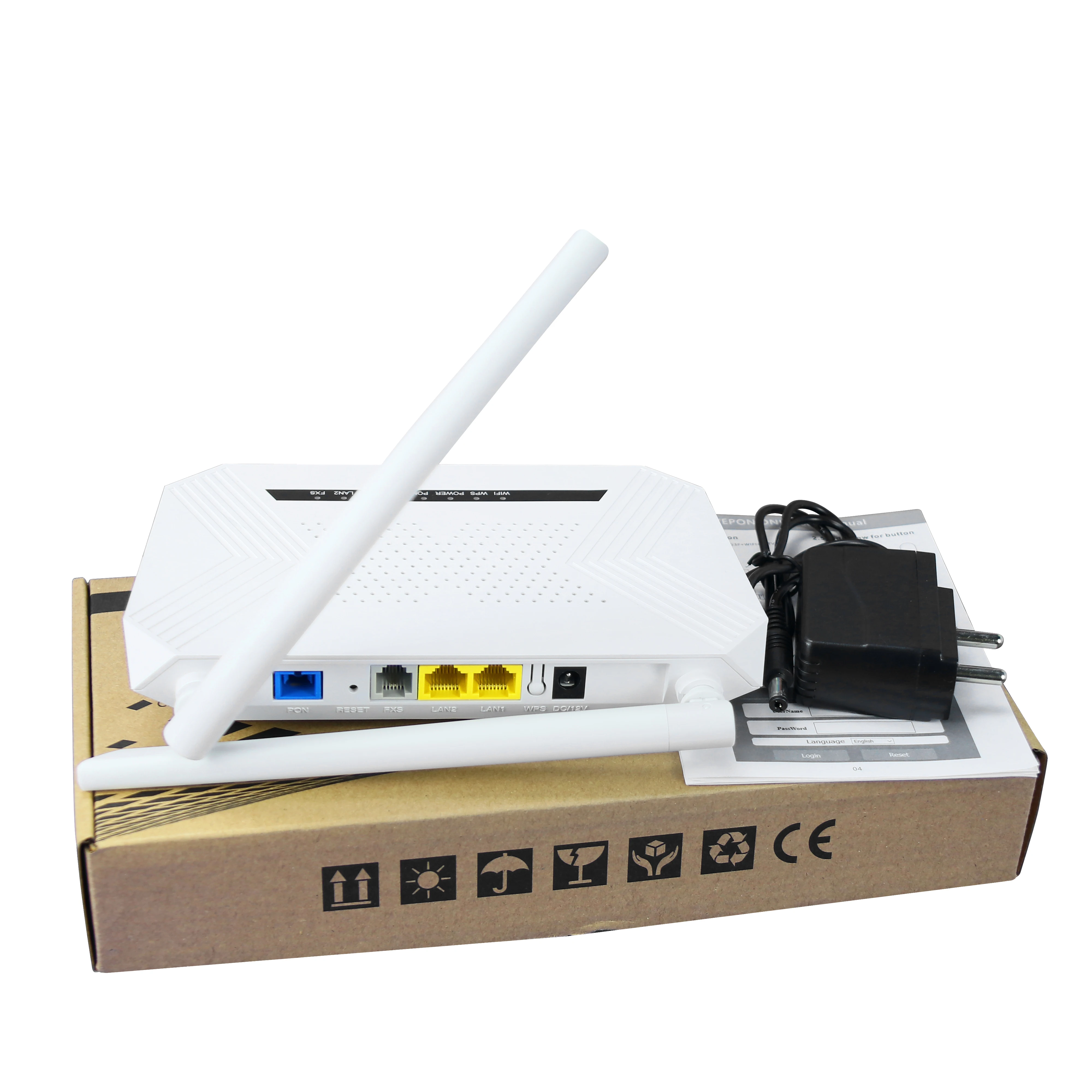

Packing
Power adapter
Product Description
1. Overview
* HUR2201XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR2201XR is based on mature and stable, cost-effective XPON technology.
* HUR2201XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 2.4G WIFI and 2*2 MIMO
* Support SIP Proctolfor Voip Service
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
* HUR2201XR is based on mature and stable, cost-effective XPON technology.
* HUR2201XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 2.4G WIFI and 2*2 MIMO
* Support SIP Proctolfor Voip Service
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system

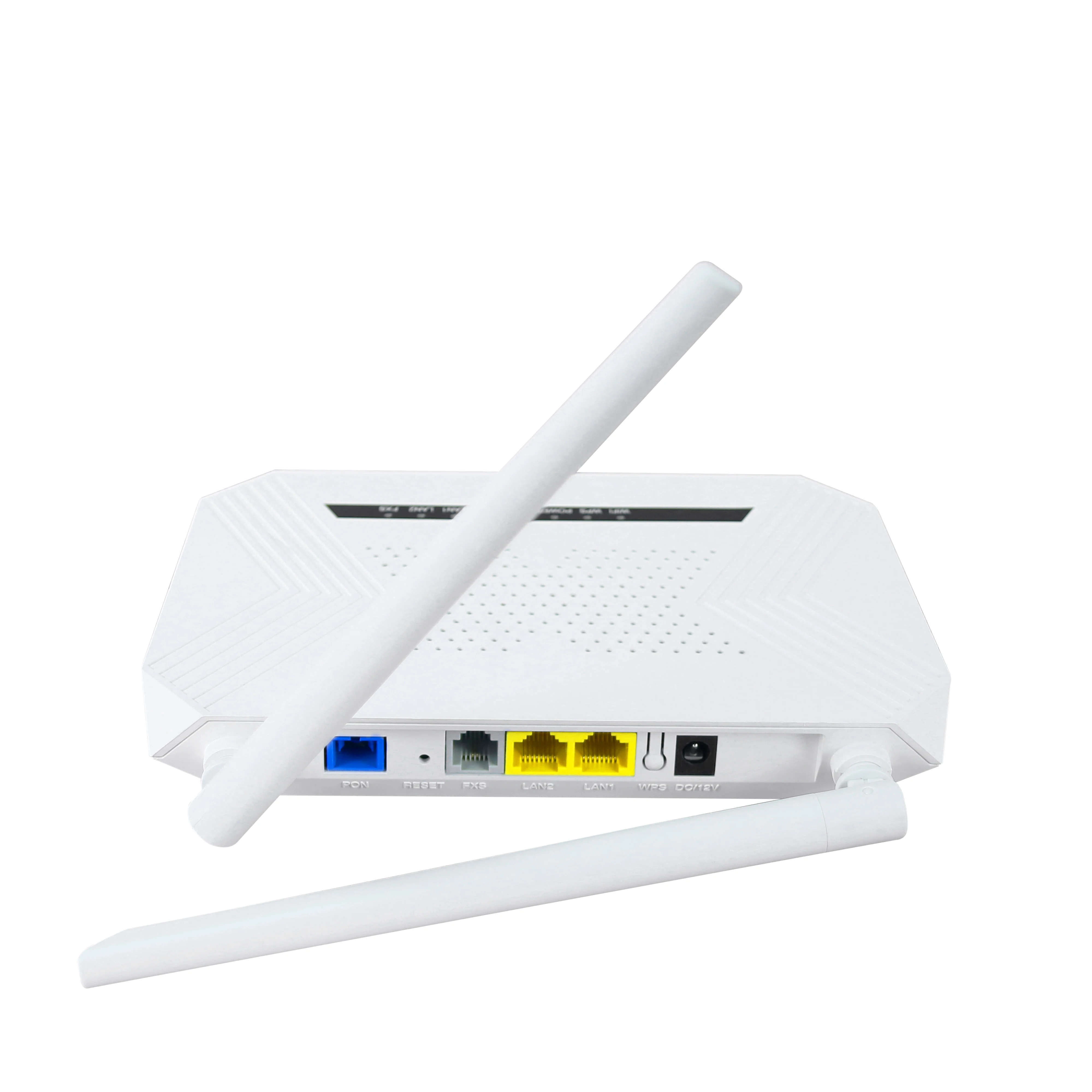

3. Hardware Specification | ||
Technical item | Details | |
PON Interface | 1 GPON BOB （Class B+/Class C+） | |
Receiving sensitivity: ≤-27dBm/≤-29dBm | ||
Transmitting optical power: +0.5~+5dBm/+2~+7dBm | ||
Transmission distance: 20KM | ||
Wavelength | TX: 1310nm, RX: 1490nm | |
Optical Interface | SC/UPC Connector | |
Design Scheme | RTL9602C+RTL8192FR+Si32192 BOB(RTL8290B) | |
Chip Spec | CPU 625MHz,DDR2 512Mbits | |
Flash | SPI Nor Flash 128Mbits | |
LAN Interface | 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector | |
Wireless | Compliant with IEEE802.11b/g/n, | |
Operating frequency: 2.400-2.4835GHz | ||
support MIMO, rate up to 300Mbps, | ||
2T2R,2 external antenna 5dBi, | ||
Support: Multiple SSID | ||
Channel: Auto | ||
Modulation type: DSSS, CCK and OFDM | ||
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | ||
POTS interface | 1 FXS, RJ11 connector | |
Support: G.711/G.723/G.726/G.729 codec | ||
Support: T.30/T.38/G.711 Fax mode, DTMF Relay | ||
Line testing according to GR-909 | ||

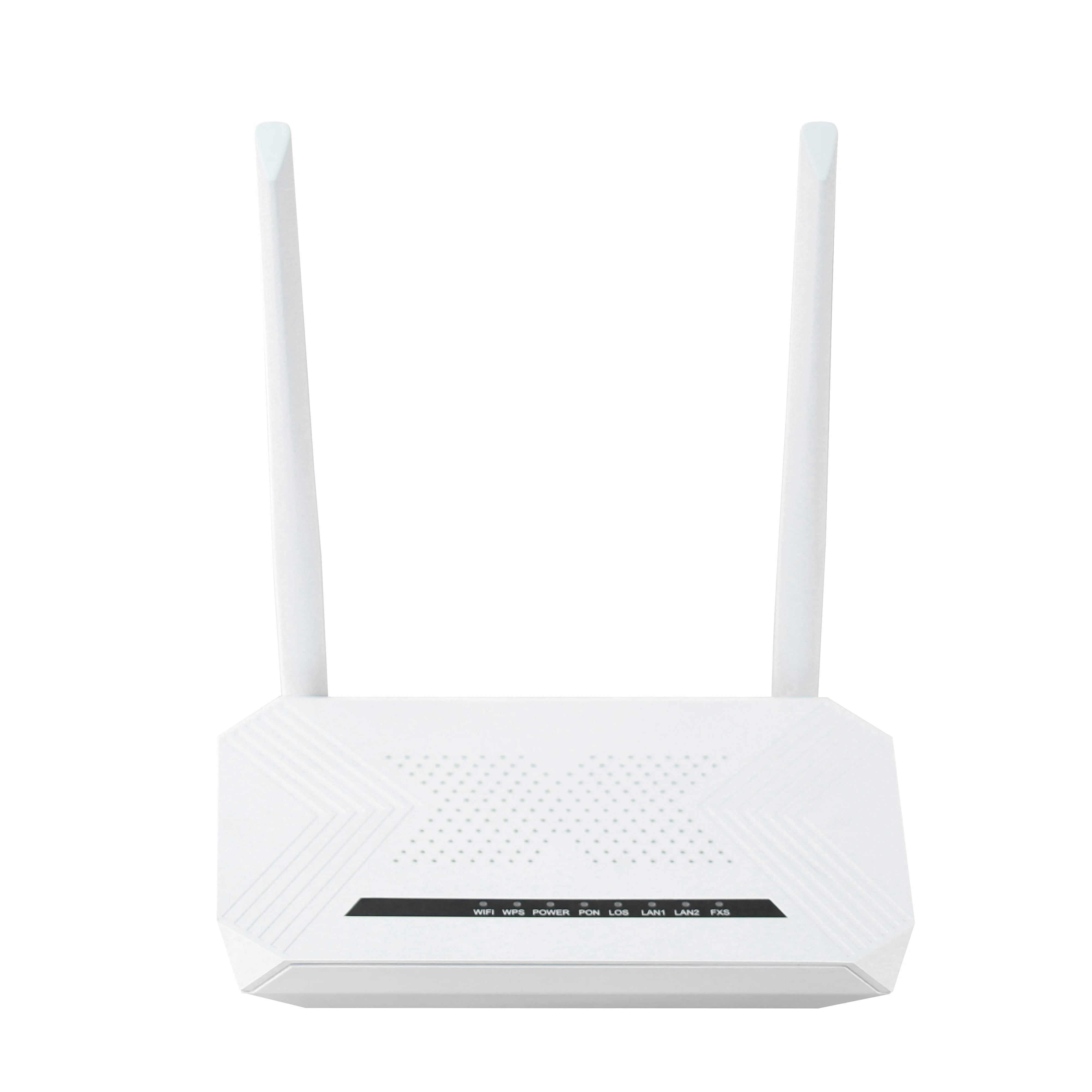

LED | 8 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、FXS | |
Push-Button | 2,For Function of Reset,WPS | |
Operating Condition | Temperature: 0℃~+50℃ | |
Humidity: 10%～90%（non-condensing） | ||
Storing Condition | Temperature: -30℃~+60℃ | |
Humidity: 10%~90%（non-condensing） | ||
Power Supply | DC 12V/1A | |
Power Consumption | ≤6W | |
Dimension | 180mm×107mm×28mm（L×W×H） | |
Net Weight | 0.15Kg | |

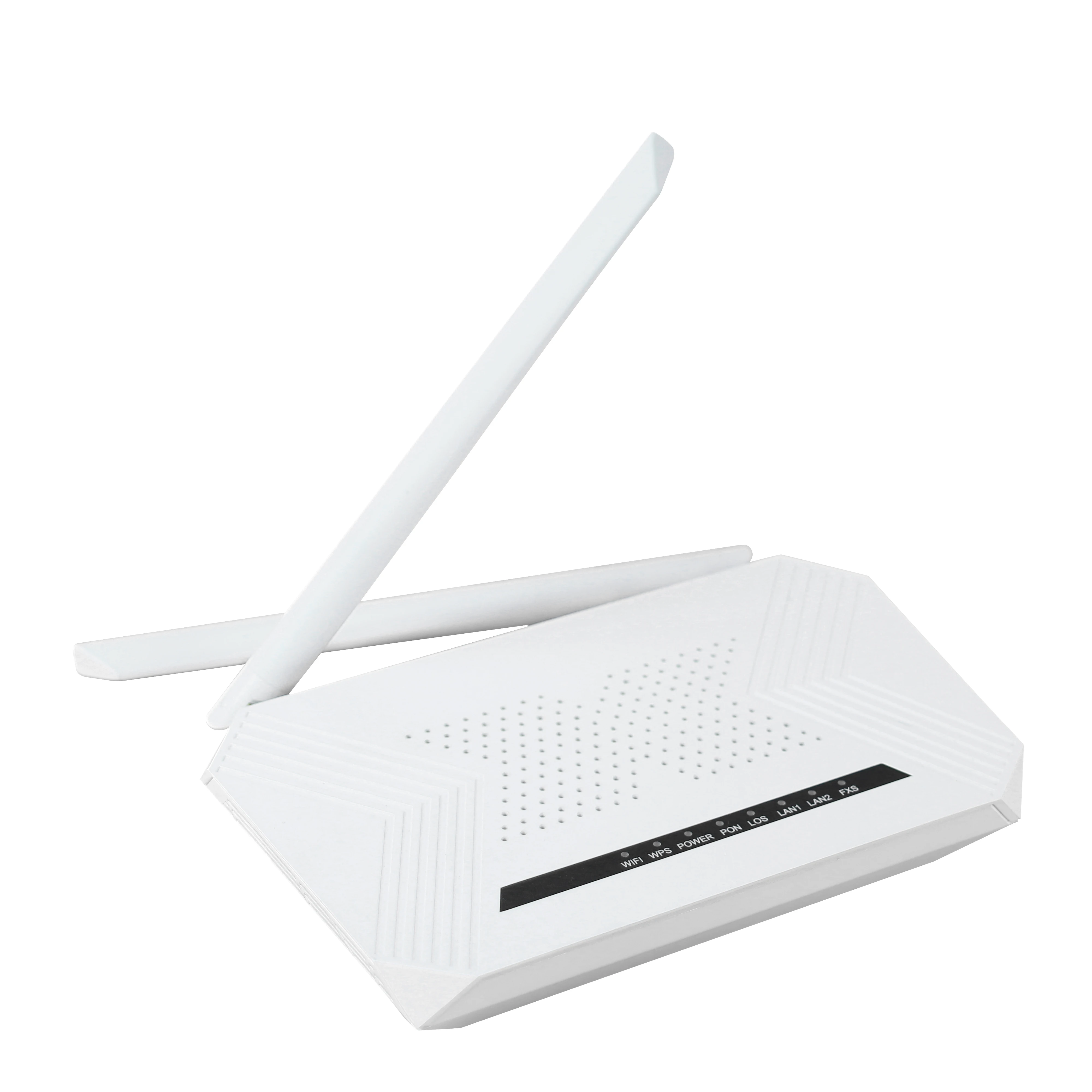

4. Panel lights Introduction | ||||
Pilot Lamp | Status | Description | ||
WIFI | On | The WIFI interface is up. | ||
Blink | The WIFI interface is sending or/and receiving data (ACT). | |||
Off | The WIFI interface is down. | |||
WPS | Blink | The WIFI interface is securely establishing a connection. | ||
Off | The WIFI interface does not establish a secure connection. | |||
PWR | On | The device is powered up. | ||
Off | The device is powered down. | |||
LOS | Blink | The device doses not receive optical signals or with low signals. | ||
Off | The device has received optical signal. | |||
PON | On | The device has registered to the PON system. | ||
Blink | The device is registering the PON system. | |||
Off | The device registration is incorrect. | |||
LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). | ||
Blink | Port (LANx) is sending or/and receiving data (ACT). | |||
Off | Port (LANx) connection exception or not connected. | |||
FXS | On | Phone has registered to the SIP Server. | ||
Blink | Phone has registered and data transmission (ACT). | |||
Off | Phone registration is incorrect. | |||
Off | Phone registration is incorrect. | |||

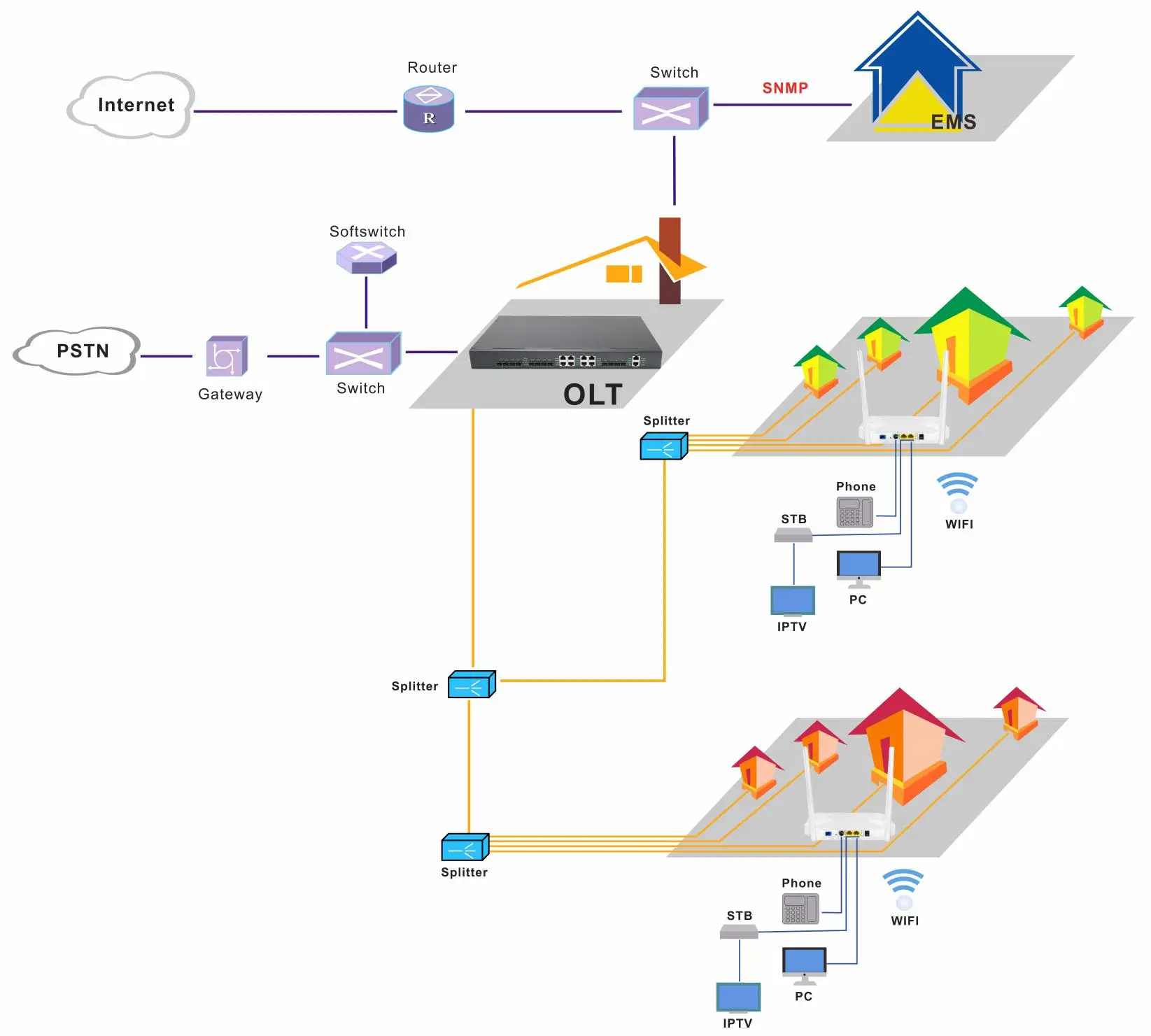

5.Application
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
