100 Inch Smart Interactive Display Monitor For Office, Touch Screen Smart Board, Integrated Projectors, Whiteboard, Screen

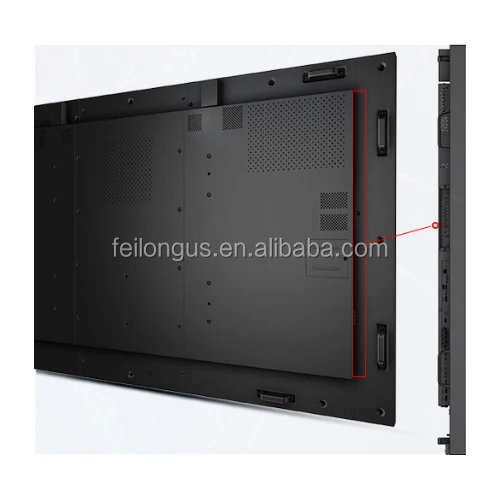

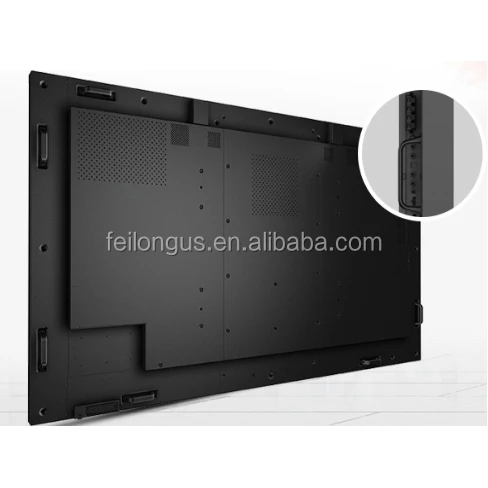

Shell/exterior:

The face frame designed in aluminium alloy, bottom right keyswitch , and back surround speaker

Overall size:

2255.8(Width) ×1338.8(Height) ×98mm(Thickness, not including PC)

Maximum power rate:

<480W

Standby power:

<1W

Screen size:

100 inch(16:9)

Screen manufacturer:

LG

Screen type:

LED

Image display size:

2158.8(L)*1214.4mm(W) (Typ.)

Physical resolution:

3840(H)×2160(V)(Ultra HD)

Display color:

10bit,1.06B color

Line frequency:

30KHz~80KHz

Field frequency:

50Hz~75Hz

Luminance:

500cd/m2

Contrast:

1300:1

Angle of view(degree)

178°

Screen defend:

5mm full tempering and high explosion-proof glass

Backlight lifetime:

30000 hours

Image system:

PAL/SECAM, NTSC(Option)

Sound system:

BG ,DK ,I, (M/N,L,L’ Option)

Channel storage:

256 pieces

Decoding:

3D digital comb filter, 3D image motion noise reduction, 3D motion self-adaption comb filtering, etc

Power amplifier type:

Built-in 2.1 digital audio output

Loudspeaker maximum output power:

10W x2 /8 euro subwoofer speakers

Audio characters:

Balance, automatic volume control(AVC), surround, equalizer

Video input:

TV port: 1 group

AV port: 1 group

VGA PC port: 2 group

HDMI port: 2 group

USB port: 2 group USB 2.0 & 1 group USB 3.0(supports stream media playing, USB for plying image and audio files, and the files format: JPG,BMP,MPEG1,2,3,4,RMVB,MP3, etc)

Video output:

VGA PC port: 1 group

Audio input:

AV Audio port: 1 group(Shared with the video output port AV port)

VGA audio port: 2 group(each has 1 group as the VGA PC Port of audio output port)

Audio output:

VGA audio port: 1 group(each has 1 group as the VGA PC Port of audio output port)

Communication port:

RS232: 1 group

RJ45: 1 group

Name:

Quantity

100 Inch Interactive Smart Flat Panel:

1 piece

Remote:

1 piece

1.5 meters power line:

1 piece

1.5 meters VGA line:

1 piece

Certification of quality:

1 piece

Instruction book(including warranty card):

1 piece

1) Type of embedding touch: Build-in all-in-one

2) Reaction mode of infrared touch screen: Embedded type of infrared touch (no need driver)

3) Transmission speed: 120Mbps

4) Way of writing: Figure, touch pen, or other non-transparent objects no less 5mm (multi-points, 8mm)

5) Positioning resolution of infrared touch screen: 32767*32767

6) Communication port of infrared touch system: Type B USB

7) Computer response: Automatic identification of system ≤15ms

8) Positioning accuracy: Above 90% touch area being ±2mm

1) Processor: I5

2) Chipset: Intel

3) Storage: 4GDDR3

4) Hard Disk: 2.5 inch 500G

5) Graphics card: Intel HD

6) OPS port(for PC): 2 port USB 3.0, 1 port RJ45 network port , 1 port HDMI, 1 port LINE output, 1 port MIC

import, built-in WIFI;

7) C-OPS port(for PC): 2 port USB 3.0, 1 port RJ45 network port, 1 port HDMI, 1 port VGA, 1 port LINE output,

1 port MIC import, build-in WIFI;

8) Operating system: Windows7 in flagship version

Wireless Bluetooth: Yes

Software

Interactive Whiteboard
