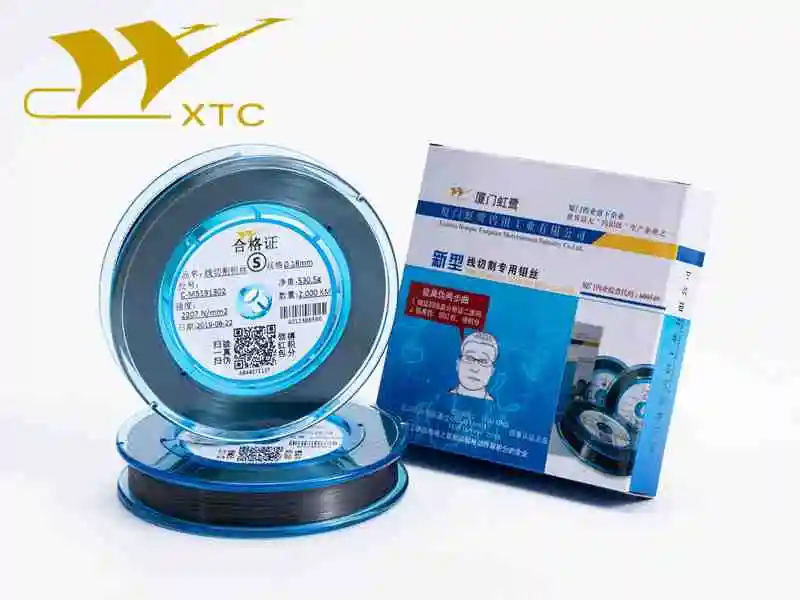

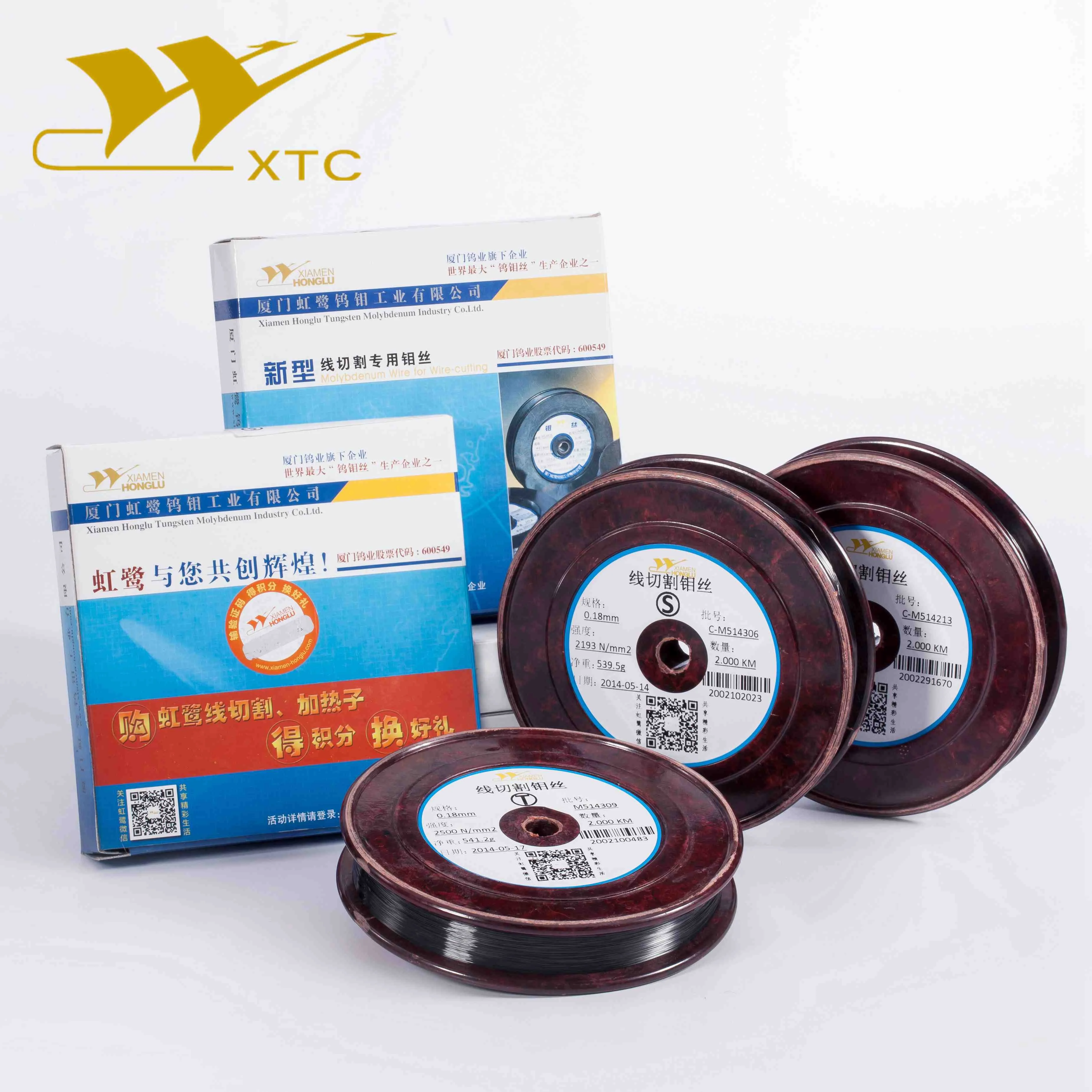

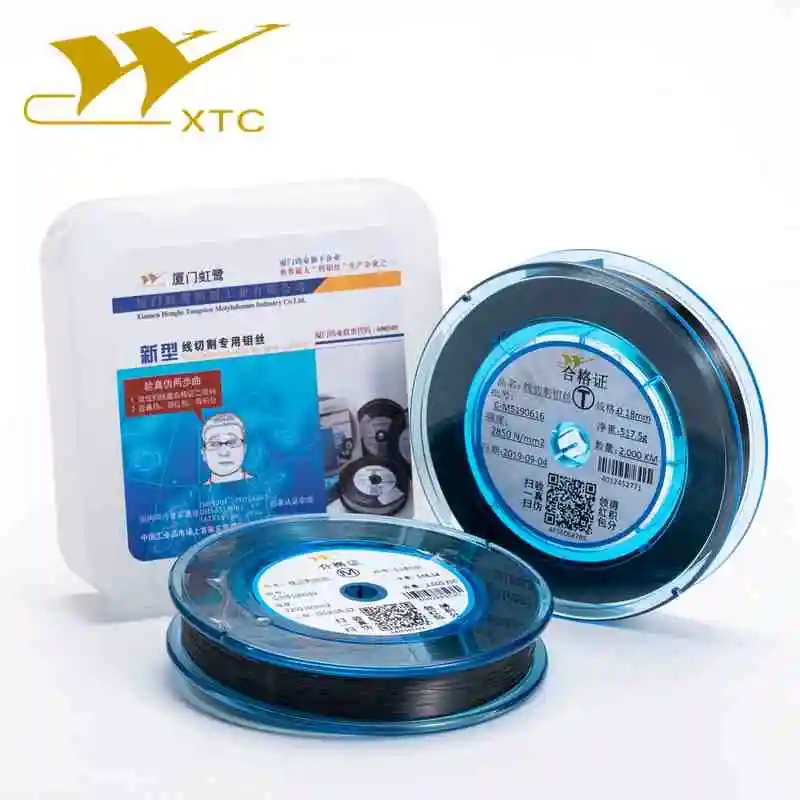

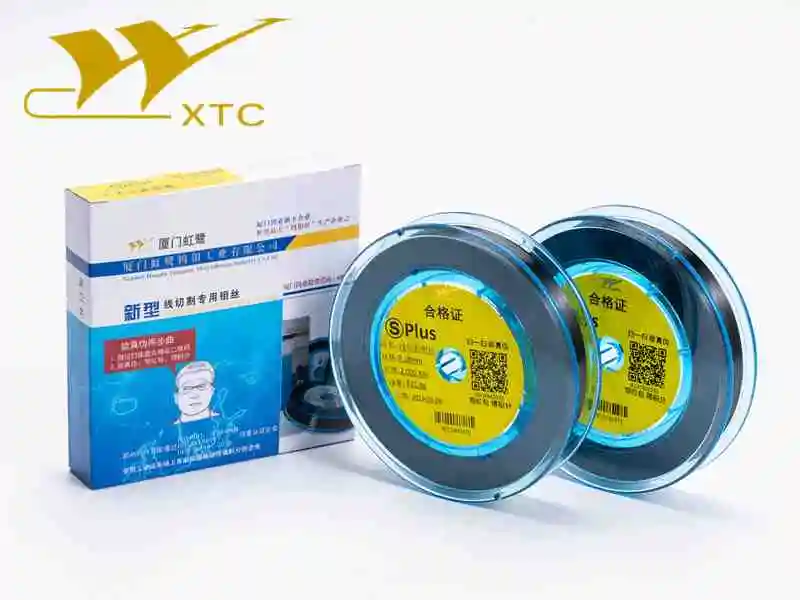

0.18mm edm wire Molybdenum wires for EDM cnc cutting used fanuc wire edm
Application
Molybdenum wires are used to cut various kinds of non-ferrous metals, steel and magnetic materials
Properties and Characteristics
With special production process, molybdenum wires feature in high tensile strength, good discharge property, smooth surface, high cutting speed, long service life and low wire tightening frequency
Size and Tolerance
Regular Size(mm)
Standards Tolerance(mm)
Tensile Strength
Elongation
Standards Spooling
N/mm2
gf/mg
0.08
±0.002
≥2340
≥115
≤2%
3500
0.10
±0.002
≥2340
≥115
≤2%
3400
0.12
±0.002
≥2340
≥110
≤2%
3200
0.14
±0.003
≥2340
≥110
≤2%
3000
0.16
±0.003
≥2340
≥110
≤2%
2500
0.18
±0.003
≥1830
≥110
≤2%
2000
0.2
±0.004
≥1830
≥90
≤2%
1600
Diameter: 0.05mm-0.3mm, Mo≥99.95%, pure moly wire, 2km/spool

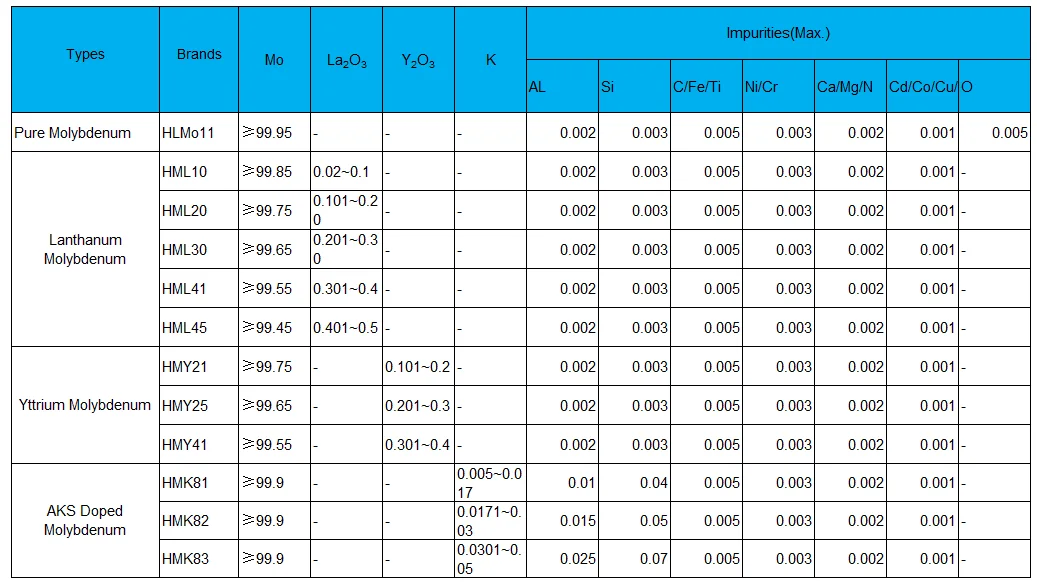

Chemical Composition

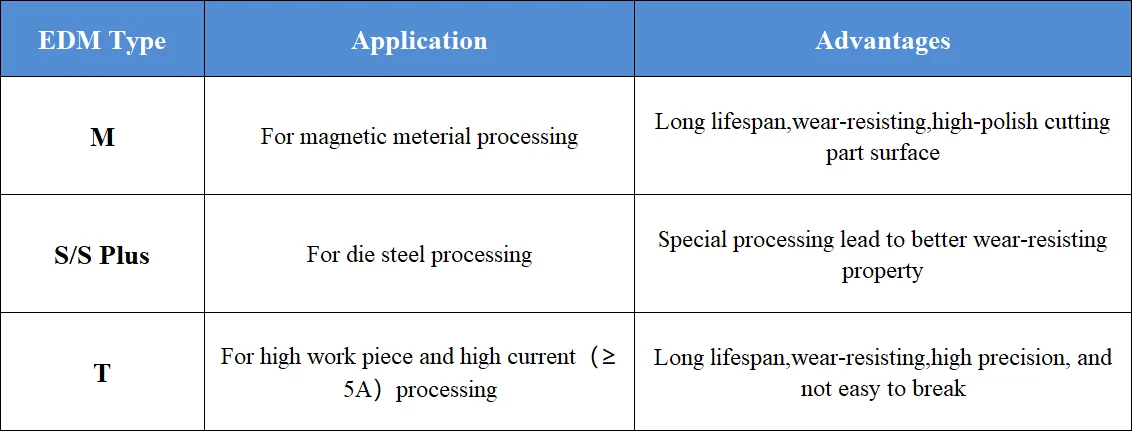

Types
Application Area
Production Process
Company Profile
Established in 1992 and registered capital of 209 million yuan, Xiamen Honglu Tungsten Molybdenum Industry Co., Ltd. is a Sino-Korea joint-venture and the core member of public-listed company Xiamen Tungsten Co., Ltd. We specialized in the production of high-quality W/Mo metallurgical products and components. Built the Rare Metal working Laboratory with the Institute of Metal Research (IMR), Chinese Academy of Sciences (CAS),HONGLU has been devoting to the build-up of China Tungsten Molybdenum pioneer,and become one of the National Key New & High-tech Enterprises. In the past several years,we built three manufacturing plants at a very fast speed.
FAQ
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
