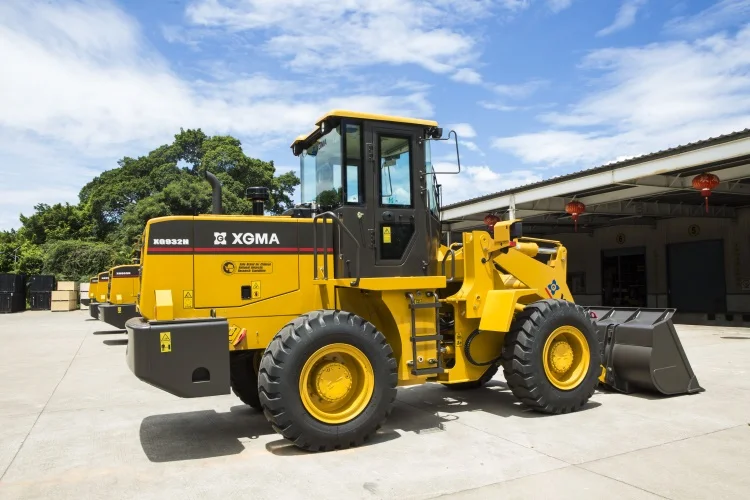

Cheap wheel loader XGMA 3.2 ton front end loader XG932H in Manila
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.
Share on (62056284158):
Product Overview
Description
Company Video
Product Description
Specification
XGMA 3Ton mini Wheel Loader XG932H
01. Operating weight: 10,800kg
02. Bucket capacity: 1.8cbm
03. Engine: YUCHAI YC6J125Z-T20
04. Engine power: 92kW/2200rpm
05. Gearbox: XGMA brand; 4 F & 2 R
06. Axle: XGMA brand
07. Mechanical control
08. A/C
01. Operating weight: 10,800kg
02. Bucket capacity: 1.8cbm
03. Engine: YUCHAI YC6J125Z-T20
04. Engine power: 92kW/2200rpm
05. Gearbox: XGMA brand; 4 F & 2 R
06. Axle: XGMA brand
07. Mechanical control
08. A/C
Model | XG932H | ||
Overall length(mm) | 6970 | ||
Overall height(mm) | 3330 | ||
Overall width(mm) | 2245 | ||
Wheelbase(mm) | 2750 | ||
Ground clearance(mm) | 356 | ||
Tread(mm) | 1800 | ||
Bucket Width (mm) | 2420 | ||
Turn radius(mm) | 5280 | ||
Min.Turn radius outside of bucket (mm) | 5860 | ||
3930 | |||
Max. Dumping Height(mm) | 3060 | ||
Dumping Reach(mm) | 1020 | ||
Digging depth(mm) | 100 | ||
50 | |||
Engine model | YC6J125Z-T20 | ||
Rated power (kW) | 92 | ||
Fuel consumption per hour(g/kW.h ) | 225 | ||
Rated speed (r/min) | 2200 | ||
Max torque(N.m) | 500 | ||
Operating Weight (Tonnes) | 10.8 | ||
Rated Load(Tonnes) | 3.2 | ||
Bucket capacity (m3) | 1.4-3.0 | ||
Lifting time/Lifting, dumping and lowering(s) | 6/10.4 | ||
Max Breakout force(KN) | 100 | ||
Max.drawing force (KN) | 103 | ||
Max. turning angle(°) | ±35° | ||
Climbing ability(°) | ≤ 30 ° | ||
Fuel tank(L) | 140 | ||
Hydraulic tank(L) | 160 | ||
Working pressure of steering hydraulic system(MPa) | 13 | ||
Working pressure of load hydraulic system(MPa) | 16 | ||
Travel speeds(km/h) | FORWARD 1ST | 0~12 | |
FORWARD 2ND | 0~40 | ||
FORWARD 3RD | |||
FORWARD 4TH | |||
REVERSE 1ST | 0~16 | ||
REVERSE 2ND | |||
Gear Box | XG | ||
Axle | XG | ||
Implement pump | 132 | ||
Distributing valve | DF25-2C | ||
Steering Hydraulic system | BZZ5-500 | ||
Steering pump | 90 | ||
Tyre size | 17.5-25-12PR | ||
Air Conditioning/Anti-mist when idling | √ | ||
Heating | √ | ||
Radio/Cassette | √ | ||
Bucket and arm raising (limit height) Device | × | ||
Hydraulic Operation system | √ | ||
Seat Buckle | √ | ||
Head lamp | √ | ||
Reversing Alarm (Back vehicle) | √ | ||
ROPS/FOPS | × | ||
