Wet Mini DIY Tile Saw Cutting Machine
- Category: >>>
- Supplier: Yangzhou Triple Harvest Power Tools Co. Ltd.
Share on (62056322435):
Product Overview
Description

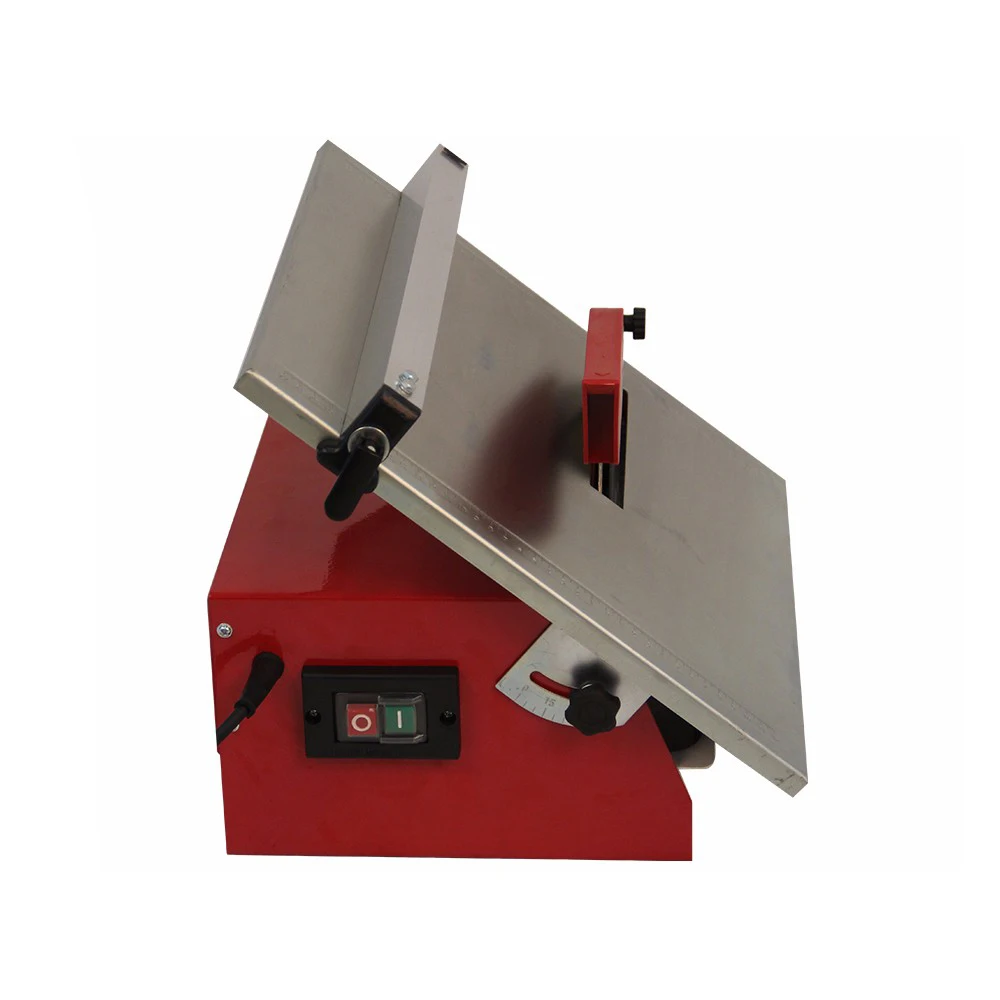

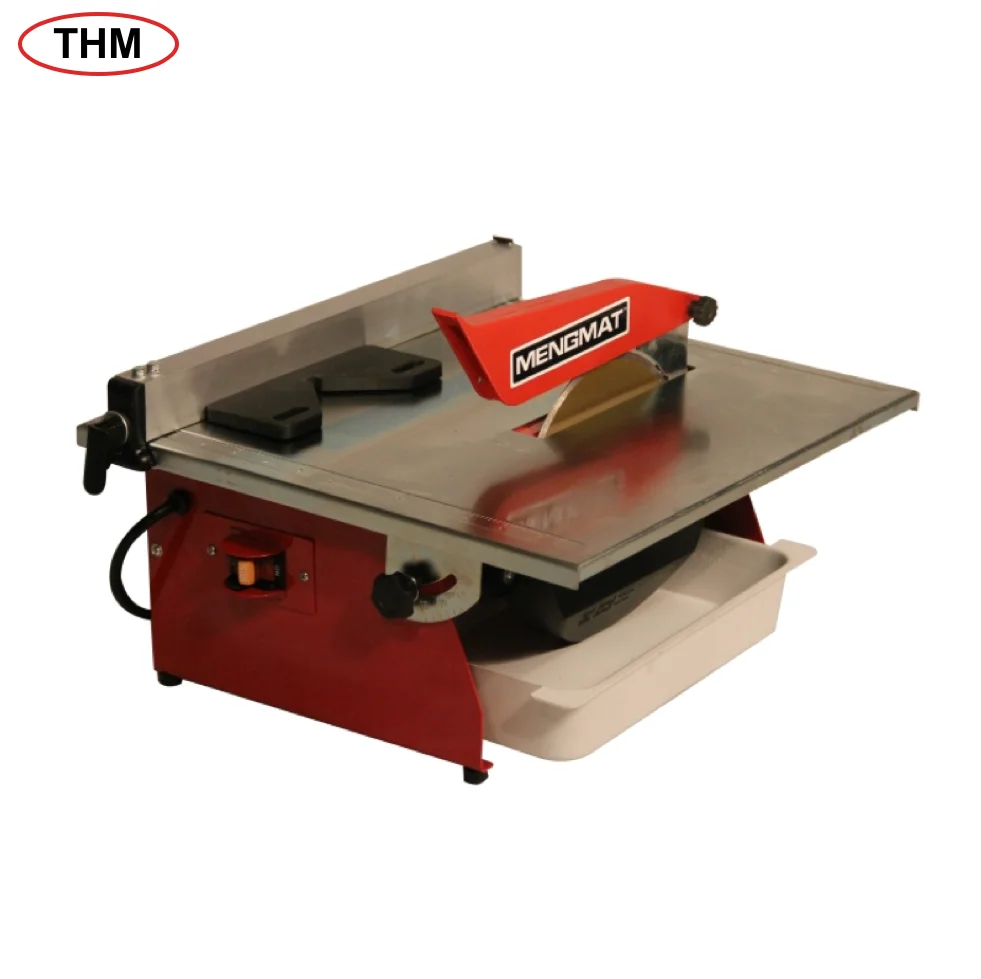

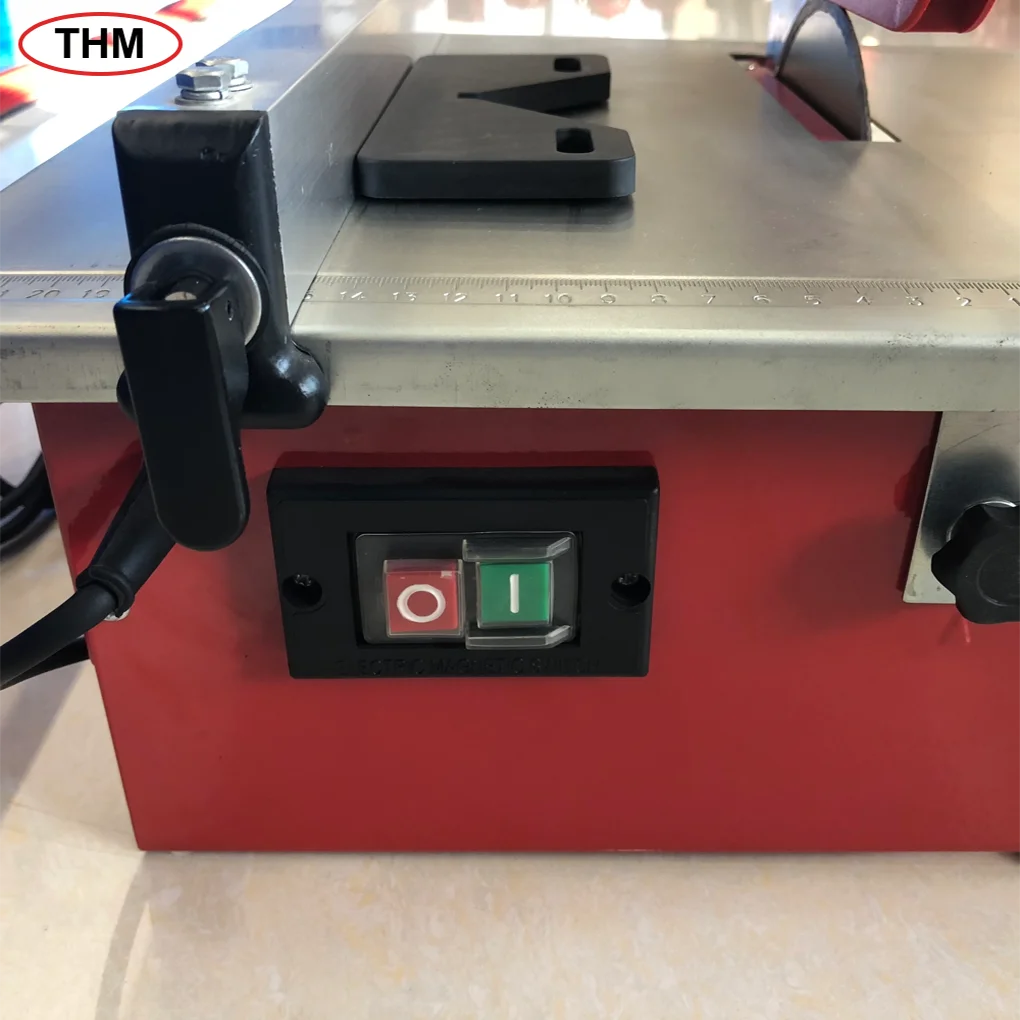

Wet Mini DIY Tile Saw Cutting Machine
Product Description
Description
1.Portable diamond wheel wet saw cuts aIl waII and floor tiles quickly and effortlessly.

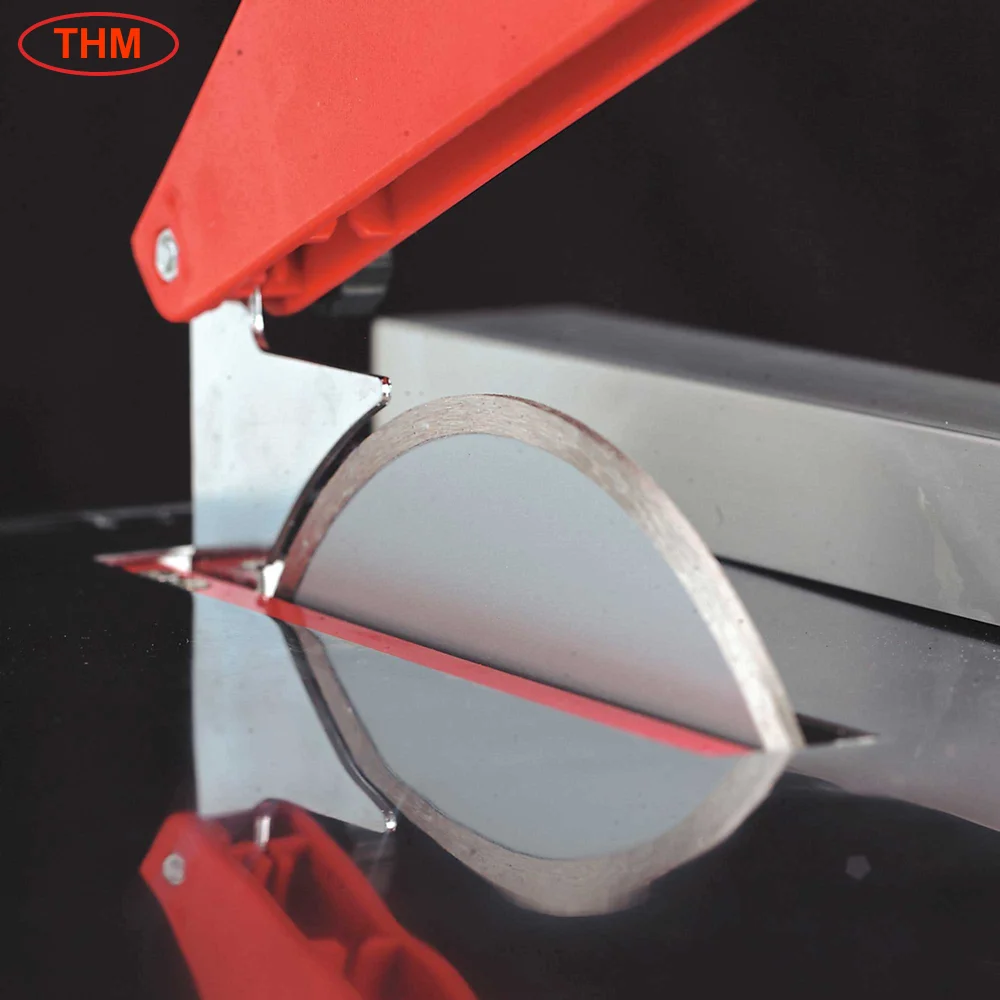

2.180mm diamond tipped cutting wheel will cut tiles of any size up to 34mm thickness .
3.Powerful triple fan motor featuring a direct drive provides cl noise,and is designed for long-term use.

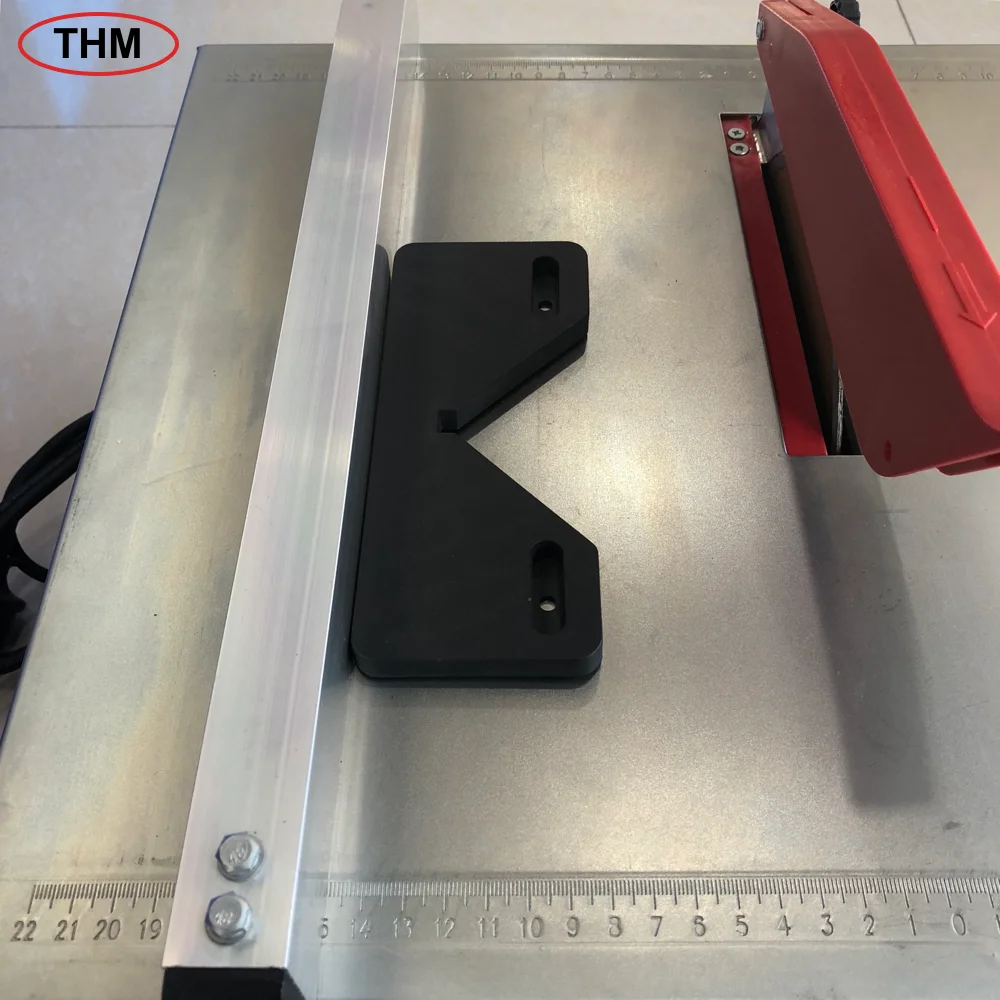

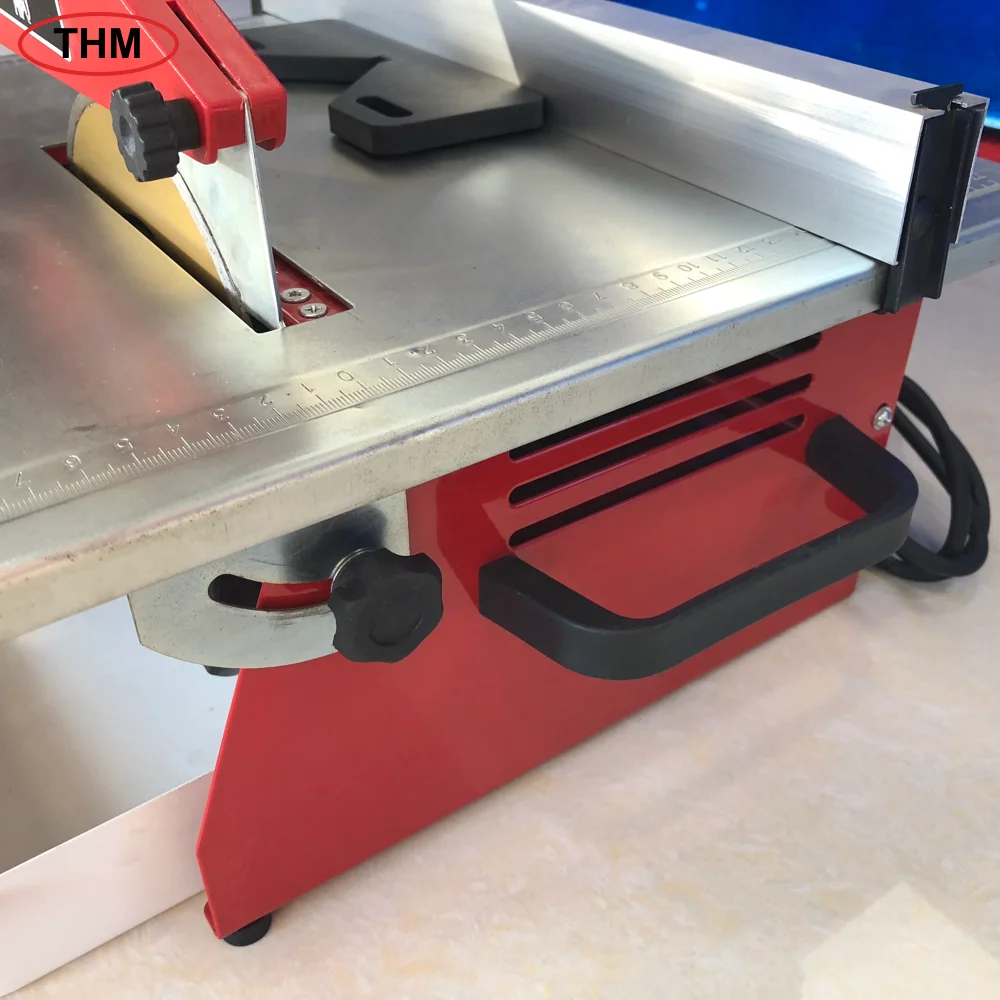

4.The extra wide cast and milled aluminum cutting table will accommodate any size tile.
5.A flip-up mitre guide will cut 45 mitre cuts.
Specification
| Model No: | TC180A |
| Motor | 230V-/50HZ 450W |
| Motor No-load speed | 2950rpm |
| Blade No-load speed | 2950rpm |
| Outer Diameter: | 7''(180mm) |
| Bore | 7/8''(22.2mm) |
| Depth of Cut | 34mm |
| Table Size | 385×395mm |
| Table Tilting Range | 0-45 degree |
| Cardboard Reinforcement | 450×400×245mm |
| Polyfoam Reinforcement | 470×440×260mm |
| Gross/Net Weight | 10/9kg |
| 20'container | 650pcs |
| 40'container | 1300pcs |
| Approvalicture | GS/CE |
Different Models
| Wet Tile Saw Items List | ||||||
| Item | Motor | Power(W) | No-load Speed | Blade Size | Depth of Cut | Table Size |
| TC180A/B/C | 230v-50Hz | 450W/550W/600W | 2950rpm | φ180mm(7") | 34mm | 385*395mm |
| TC180 | 120v-60Hz | 450W | 3550rpm | φ180mm(7") | 34mm | 385*395mm |
| TC180S/3 | 230v-50Hz | 600W | 2950rpm | φ180mm(7") | 35mm | 330*360mm |
| TC1806 | 120v-60Hz | 735W | 3550rpm | φ180mm(7") | 37mm | 550*440mm |
Company Information
Company Introduction

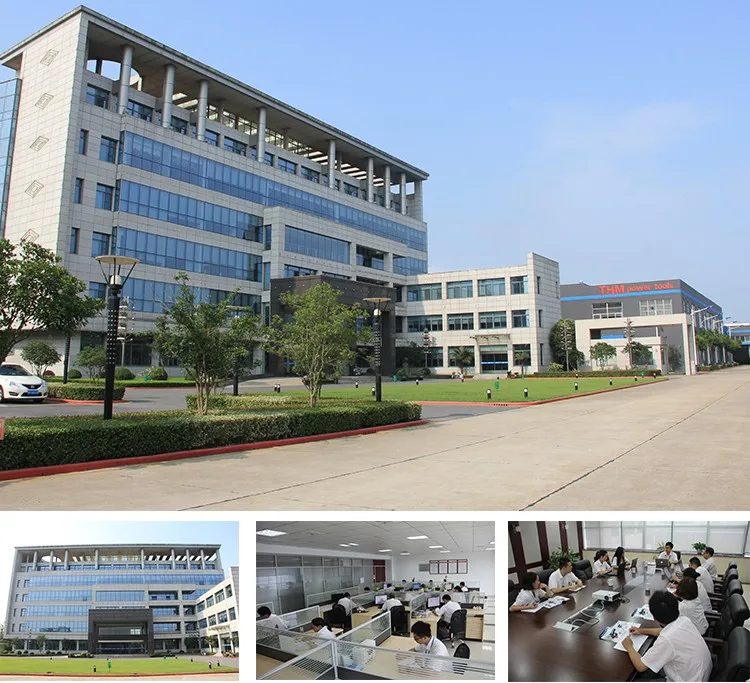

Yangzhou Triple Harvest Power Tools Limited(THM) is one of the leading manufacturers in China, who is specialized in the production of bench-top power tools, such as tile cutting machine, wood working machine, metal working machine, also the log splitter and log saw.
Founded in 2002,THM has achieved great growth in the past ten years. Now THM has two production bases of Yangzhou Triple Harvest Power Tools Limited and Yangzhou Golden Harvest Machinery Limited, and the totally turnover of last year reached USD50 million. Now the company has more than 800 employees, around 180 technical engineers. We have a wide range of global market, such as Mid East,North America,Europe and so on. Customer first is our aim, Quality assurance is our soul, Look forward to cooperating with each other tomorrow.
Our Exhibiton
We attend many exhibitions, such as Canton Fair,International Hardware Fair cologne,Las vegas Hardware Show, etc.
Our Services
Existing Sample Service
If you don’t need to print, you can buy our existing samples for your testing quality.
Customized Sample Service
If you need to print your logo or body paint or both, even if you need to make a mold, we can customized as you like.
Services After Sales
If the items you got are not qualified as per your idea, you can return them to us for replacement for free. You only pay the delivery fee.We also often give regular customers more favorable price and some new hot items for trial test market at our cost price.
FAQ
Question: Why choose our company?
Answer: Our company is one of the top 10 leading manufacturing company,specialised in power tools design and manufacture. Over 15 years, with the aid of highly advanced technology and a team of highly qualified technical and administrative expertise,the company can provide the reliable,safety,durable and precise products to the customers.
