Hualong stone machinery high pressure precision CNC 3 axis watejet 5 axis Water jet Cutting Machine for Marble /Ceramic tile
- Category: >>>
- Supplier: Fujian Province Hualong Machinery Co. Ltd.
Share on (62056469306):
Product Overview
Description

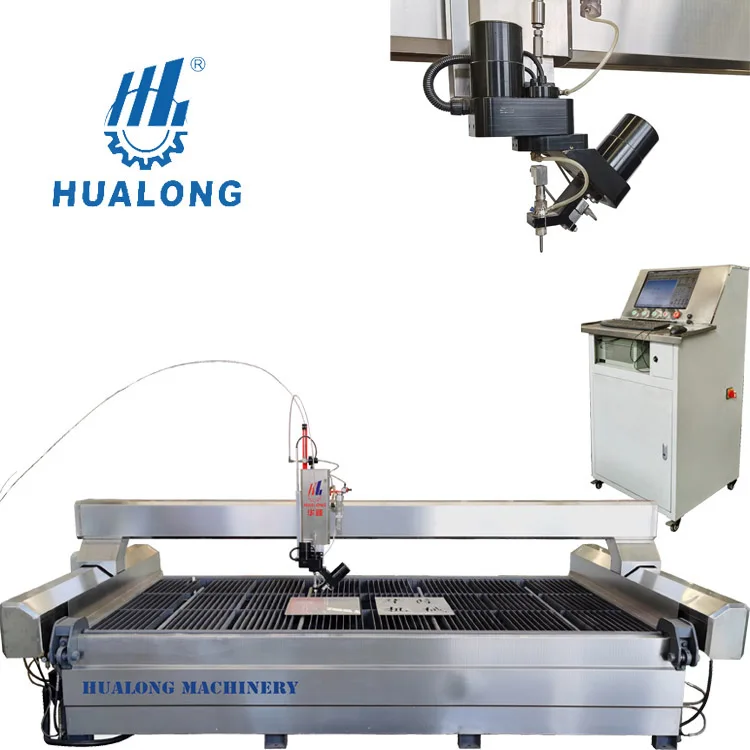

CNC Waterjet Cutting Machine
HLRC-2015, which using a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material, is an industrial tool capable for cutting almost any material while maintaining high precision.
The line cutting accuracy is +0.1mm, angle cutting accuracy is +0.1°.
It is able to cut steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam and many other materials.
Main Features
1) Processable any curve cutting, flexible, convenient and versatile.
2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.
Tension-free processed parts due to minimal cutting force.
2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.
Tension-free processed parts due to minimal cutting force.
3) Narrow kerf – The amount of material removed by the water jet stream is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness.
4) Cut Recovery - Pick back up where Jet stopped.
5) Programmable Z axis height. Z axis retracts between pierces.
6) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.
7) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.
8) Driver system sealed against water,dust and grit. Long working life.
6) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.
7) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.
8) Driver system sealed against water,dust and grit. Long working life.

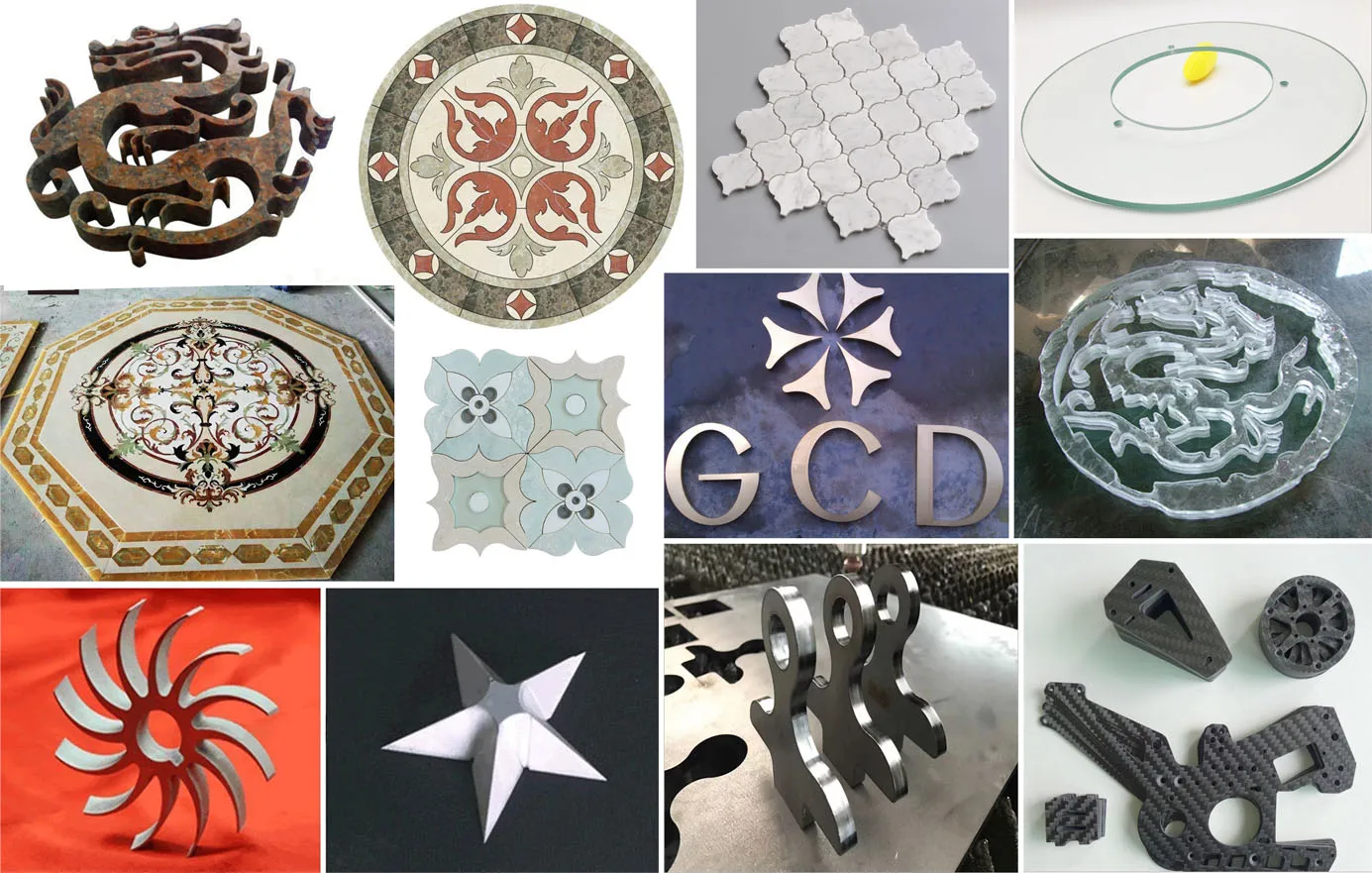

Application:
* Stone/Ceramic industries such as used for countertops, art puzzles, flooring Inlays and mosaics.
* Glass industry , such as bathroom glass, shop window glass, automotive glass and appliance glass.
* Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting, Cutting of metal parts.
* Gasket Cutting
* Foam Product Cutting.
* Foam Product Cutting.
TECHNICAL DATA | ||||||
Model No. | HLRC-3020 | HLRC-2015 | ||||
Working area | cm | 310*210 | 210*160 | |||
X-axis stroke | mm | 3200 | 2000 | |||
Y-axis stroke | mm | 2000 | 1500 | |||
Z-axis stroke | mm | 80-130 | 80-130 | |||
Max. angle of C axis rotation | ° | +/- 360 | 0 | |||
Max. anglel of A axis swing | ° | +/- 60 | 0 | |||
Cutting accuracy | mm | +/- 0.1 | +/- 0.1 | |||
Repeatablbe accuracy | mm | +/- 0.05 | +/- 0.05 | |||
Traverse speed | mm/min | 5000/15000 | 5000/15000 | |||
Main motor power | kw | 37 | 37 | |||
Dimensions (L x W x H) | cm | 443x278x220 | 494x280x222 | |||
High Pressure Pump
Adopt imported core parts, durable and safe, pressurize water and continuously output water, so as to convert into supersonic water jet at cutting head.
Maximum output pressure up to 4137bar(60000psi)400MPa, Sustainable cutting pressure up to 380MPa.
Auto Abrasive Delivery System
Transfers the abrasive to the abrasive regulator.
Air valve to prevent jams and breakages
Auto control with CNC auxiliary function
Self sealing
Slightly adjust the flow.
Auto control with CNC auxiliary function
Self sealing
Slightly adjust the flow.
Automatic Water Cooling Tower
It cool and guarantee the hydraulic system can be used in a circular manner and save waters.

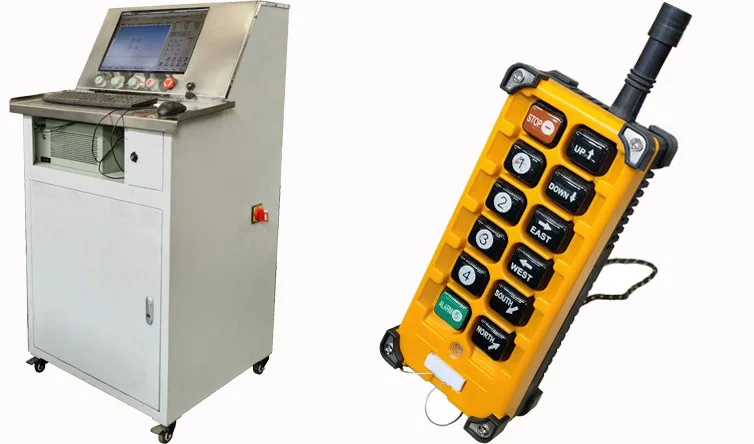

Movable Operator Station
The station comes equipped with NcStudio V10 Waterjet cutting CNC system, 19" LCD, pump interface,keyboard and mouse.
Compatible G code, PLT, DXF file generated by CAD/CAM software of UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw etc.
Remote Control (optional)
For operating the movement of 5 axises conviniently.
Water Jet Software
Brand: Weihong
Original: China
A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize perfect dynamic five-axis cutting,
Easy to operate and to learn.
Main Motor
Produced by: Siemens
Original: China
Power: 37 kw
Power: 37 kw
Efficiency: 92.7%
To generate motion energy throught electtical energy for high pressure pump

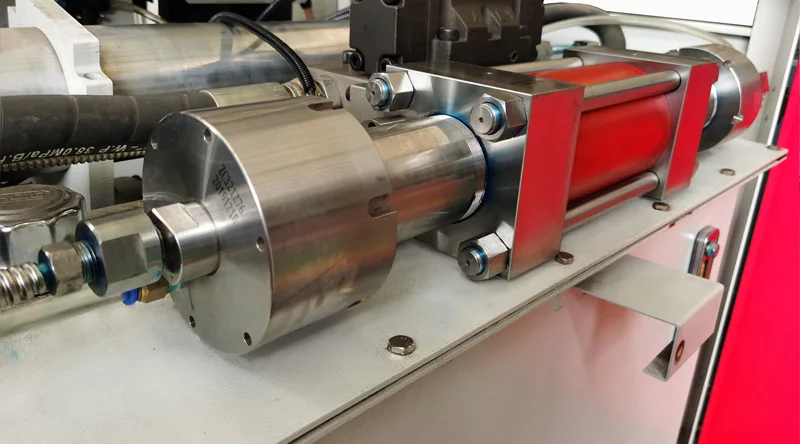

Intensifier
To produce high pressure water continuously.
Main parts come from Ashcroft, USA.
Stable performance and operation

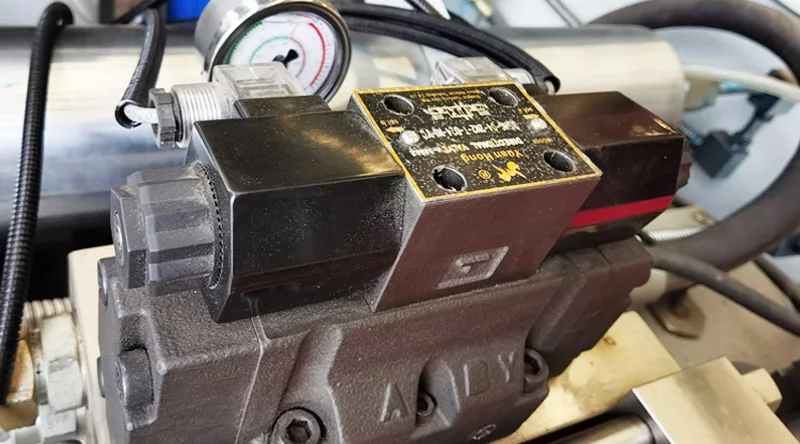

Elec-magnet Valve
Brand: Yuanhong
Origin: China
Indicate and change advantage
Servo Motor
Brand: Weihong
Origin: China
Nr of revolutions: 0-1500 rpm
Drive X axis moving accuracy and reposefully.
Laser Sensor
Brand: Weihong
Original: China
Automatic scanning precision altimeter function, ensure the knife head distance workpiece surface constant
Q: What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
