ZT 100L Reaction agitator kettle/stainless steel tank with mixer/mixer tank coametics liquid/cream/shampoo
- Category: >>>
- Supplier: Yangzhou Zhitong Machinery Co. Ltd.
Share on (62056497958):
Product Overview
Description
product details
product details

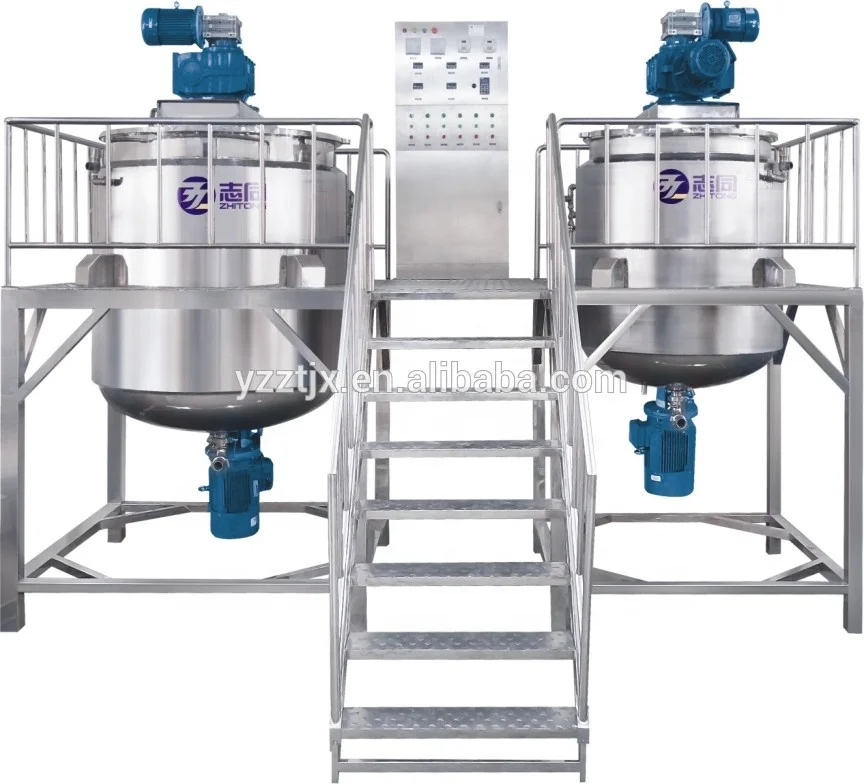

ZT-50L/100L/300L Reaction agitator kettle/stainless steel tank with mixer/mixer tank coametics liquid/cream/shampoo
ZT-A
Performance & Features
- Stepless speed adjustment is adopted during the blending so that the speed of blending line can be randomly adjusted within the range of 0-150m/min to meet different technological requirements.
- The advanced homogenizer adopts technology from USD ROSS Company, featured by unique structure and prominent efficiency.
- The parts that contact the materials are all made of imported stainless steel. The interior surfaced of the vessel is subjected to mirror polishing 300EMSH, which is in accordance with sanitary requirements.
- The whole process including vacuum material suction and vacuum defoaming can be completed under the vacuum status without cellular contaminatoin, and thus, prolonging shelf life of products.
- Beautiful and decent appearence, which adopts special polishing technology so that it is shining like a mirror, displaying luxurious charcter.
Technical parameter
| Model | Capacity | Emulsify | Agitator | Outside Dimension | total power steam/electric heating | limit vacuum | ||||||
| Main Pot | Water pot | Oil pot | KW | r/min | KW | r/min | Length | Width | Height | |||
| 100 | 100 | 80 | 50 | 2.2-4 | 1440/2800 | 1.5 | 0-63 | 1800 | 2500 | 2700 | 8/30 | -0.09 |
| 200 | 200 | 160 | 100 | 2.2-5.5 | 1440/2800 | 2.2 | 0-63 | 2000 | 2750 | 2800 | 10/37 | -0.09 |
| 300 | 300 | 240 | 150 | 3-7.5 | 1440/2800 | 3 | 0-63 | 2300 | 2950 | 2900 | 12/40 | -0.09 |
| 500 | 500 | 400 | 250 | 5.5-8 | 1440/2800 | 3-4 | 0-63 | 2650 | 3150 | 3000 | 15/50 | -0.085 |
| 800 | 800 | 640 | 400 | 7.5-11 | 1440/2800 | 4-4.5 | 0-63 | 2800 | 3250 | 3150 | 20/65 | -0.085 |
| 1000 | 1000 | 800 | 500 | 7.5-11 | 1440/2800 | 4-7.5 | 0-63 | 2900 | 3400 | 3300 | 29/75 | -0.08 |
| 2000 | 2000 | 1600 | 1000 | 11-15 | 1440/2800 | 5.5-7.5 | 0-63 | 3300 | 3950 | 3600 | 38/92 | -0.08 |
| 3000 | 3000 | 2400 | 1500 | 15-18 | 1440/2800 | 7.5-11 | 0-63 | 3600 | 4300 | 4000 | 43/120 | -0.08 |
form
| Vacuum Emulsifying Mixer | Vacuum Emulsifying Mixer |
| Vacuum Homogenizing Emulsifier | |
| Intemal And Extemal Circulation Vacuumhomogenizing Emulsifier | |
| Hydraulic Homogenizer Vacuum Emulsifying Machine(lower Homogenizer) | |
| Hydraulic Homogenizer Vacuum Emulsifying Machine(upper Homogenizer) | |
| Storage Tank | Shampoo Blending Tank (single-tank) |
| Shampoo Blending Tank (portfolio Lp) | |
| Liquid Agitator Kettle (portfolio Lp) | |
| Filling Machine | Horizontal Self-suction Filling Machine |
| Pneumatic Paste Filling Machine | |
| Fully Automatic Soft Tube Filling & Sealing Machine | |
| Automatic Ointment Filling Machine |
ZT

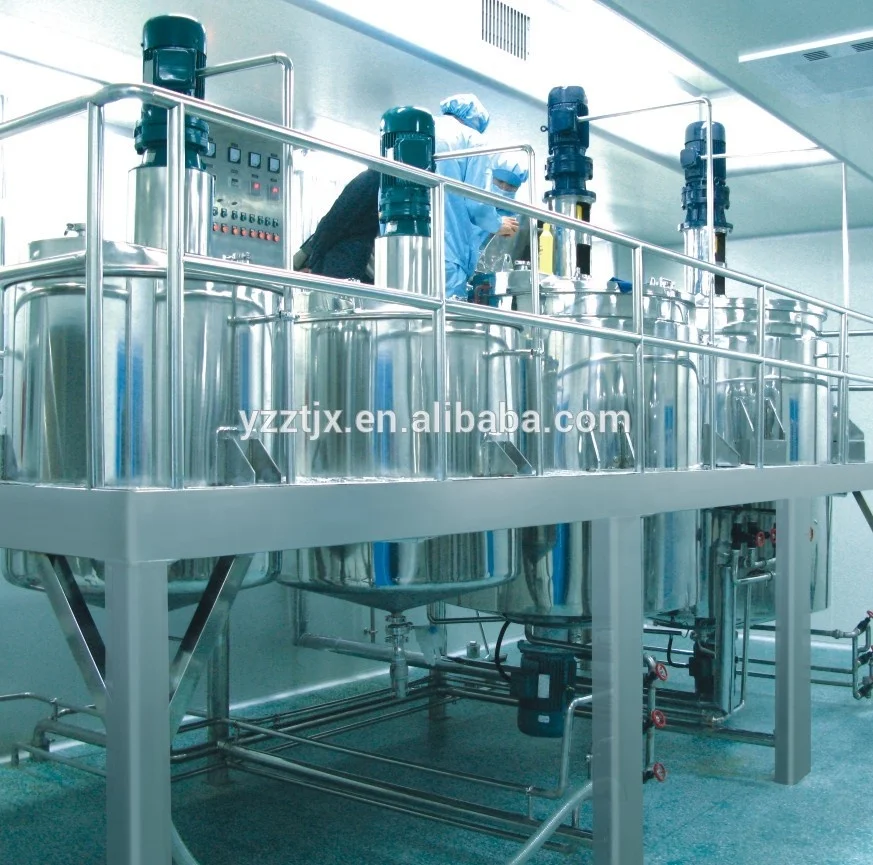

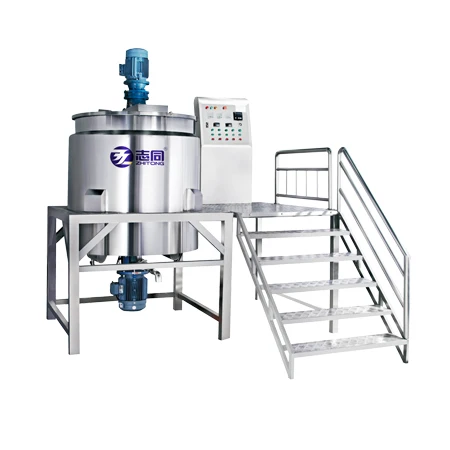

The shampoo blending boiler is an indispensable device for daily chemical industry. It is suitable for mixing and blending various materials, for example: mixing, dissolving and blending of equal mixture etc. of various liquids such as shampoo and bath lotion. It is an ideal device for daily chemical industry.
PMC model (paddle type blending)
- Speed reducer
- Position seat
- Current baffling board
- Oblique paddle
- Suspection support and foot
- Temperature probe
- Material outlet
- Heat preservation layer
- Heating rod
- Homogenizer
Technical parameter
| Specification | Blending Speed (rpm) | Heating Method | Dimension (L X W X H) |
500 | 0 - 100 | Electric heating or steaming heating | 1.1 x 1.1 x2.3 |
| 1000 | 0 -80 | 1.4 x 1.4 x 3 | |
| 2000 | 0 - 70 | 1.6 x 1.6 x 3.4 | |
| 3000 | 0 - 70 | 1.8 x 1.8 x 3.6 |
Process of flowsheet
Guangzhou/Yangzhou Zhitong Machinery Co., Ltd. is a producer and seller specialized in research, development, production of cosmetic, food and distribution of cosmetic, food and pharmaceutical machinery, storage tanks, etc. With a registered capital of RMB 3 million Yuan and a land area of 13,200 m2, our company is a member of China Chemical Industrial Machinery Association. We have complete machining equipment, perfect process flow, powerful technical srength, excellent product development and dedign capability as well as rich production experience. Our company has been certificated to ISO9001:2000 international quality management system. Thanks to our excellent product quality and good afeter-sales service, our products have been exported far to USA, European Union, Asia, Southest Asia and other countries and areas.
1 Q: Are you a factory or trading company?
A: We are a factory.
2 Q: How long is the warranty period?
A: All of our products have one year warranty.
3 Q: What's the main market of your company?
A: We have customers all over the world.
4 Q: What's your delivery time and payment terms?
A: Normally, it need about 10-30 days. The exact time depends on your comoany quality. The payment terms always 70% deposits, 30% to be paid before shipment.
5 Q: Can we visit your machine operation in your company?
A: Welcome to our factory to see the machine operation.
6 Q: Where's your factory located? How can we visit there?
A: We are in Yangzhou industry Zone. Jiangsu province, China. You can take the plane to zhenjiang airport and we will pick you up there.
Please feel free contact us for any question.
