Product Description

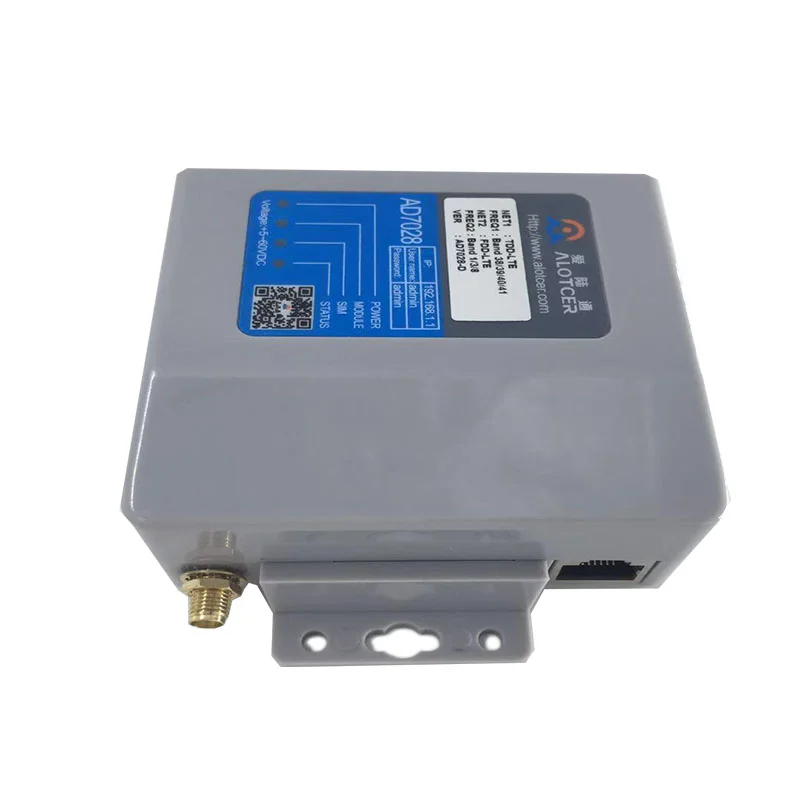

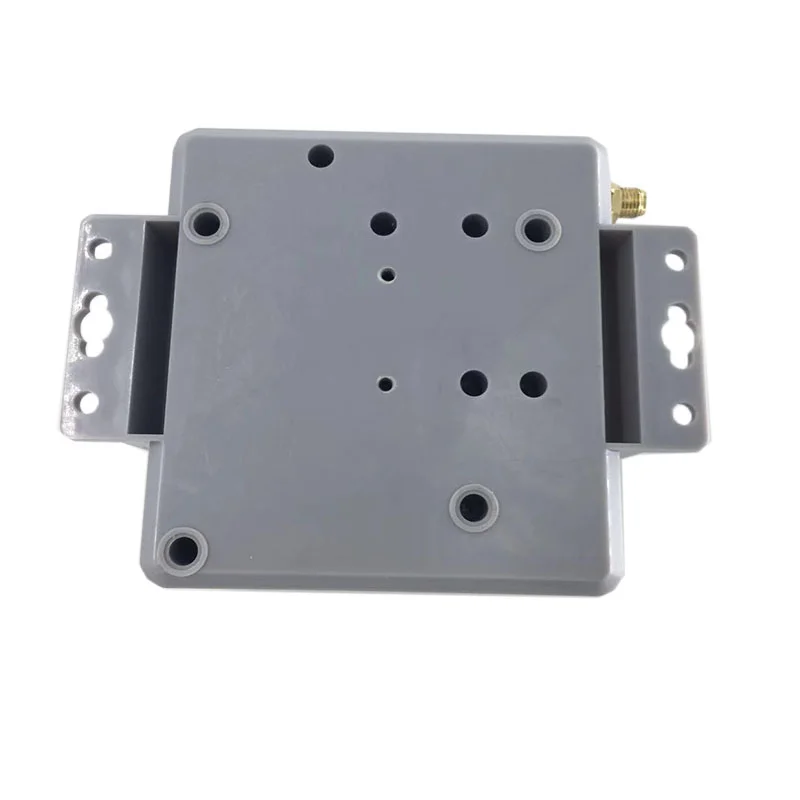

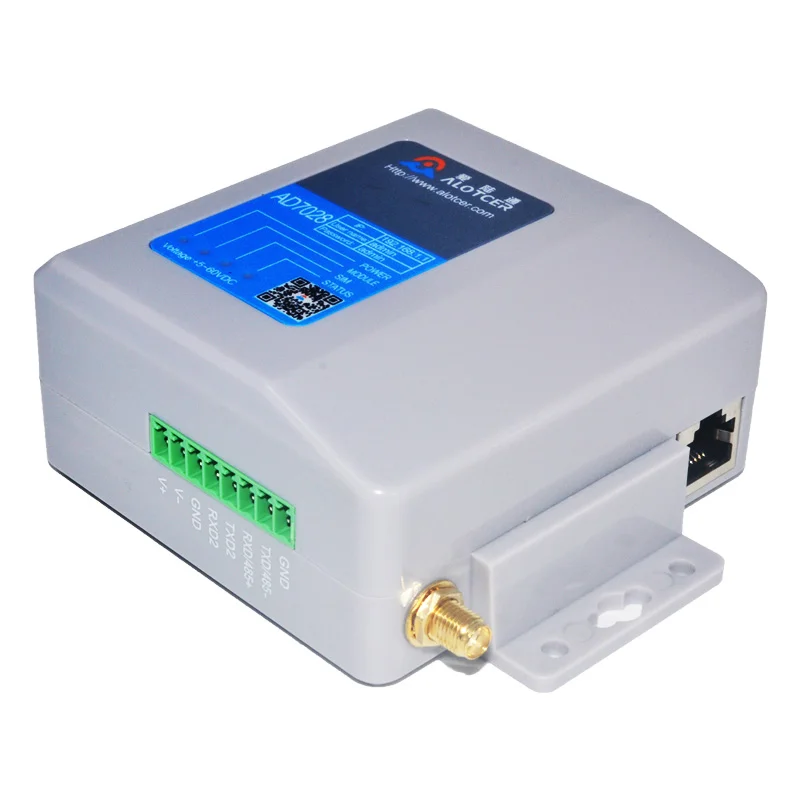

AD7028 4g router modem is a kind of cellular terminal device that developed based on 2G/3G/4G LTE connectivity, VPN client, among other features. It adopts high-powered industrial 32 bits CPU and embedded real time operating system, supports 2 separate RS232 (or 1 RS232 and 1 RS485) and 1 LAN port that can conveniently and transparently connect one device to a cellular network. It support wide power range 5-60V DC. With a compact and robust design, it includes the necessary accessories for Mount kit or DIN rail.

Highlights

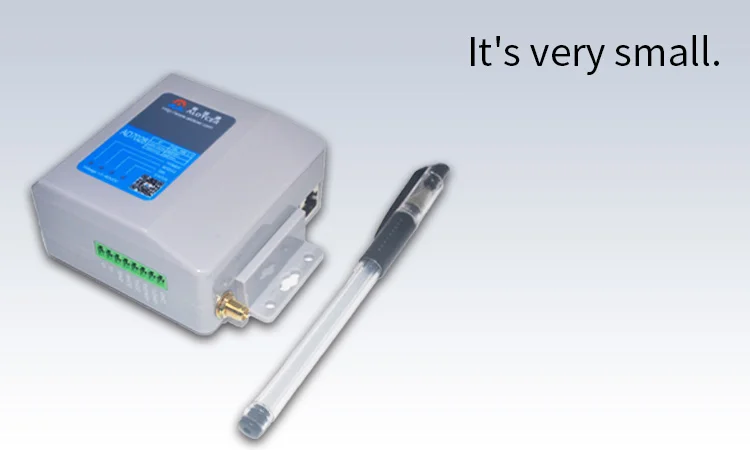

Small volume.

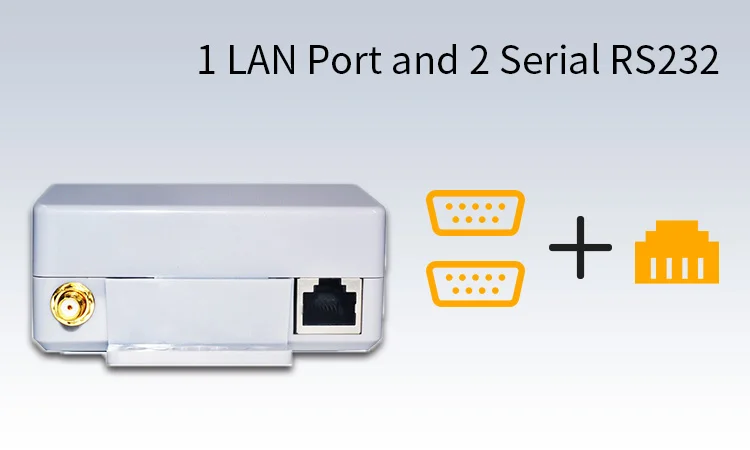

1 lan port and 2 serial port.

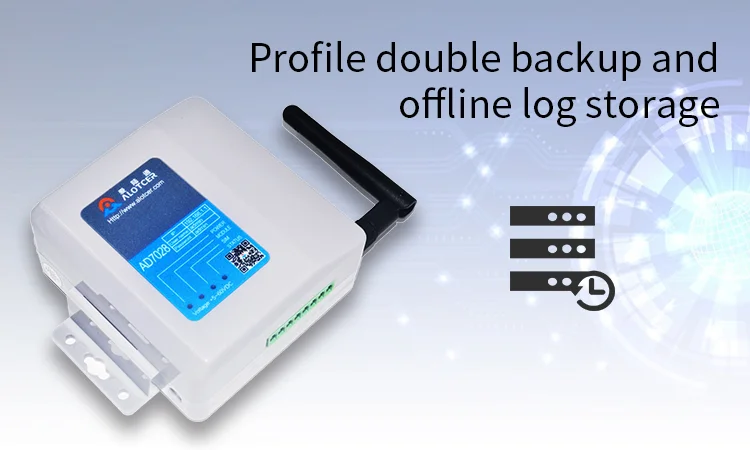

Profile double backup and offline log storage.


World wide LTE FDD band support.

Efficient remote device management, humanize interface.

Detailed Images

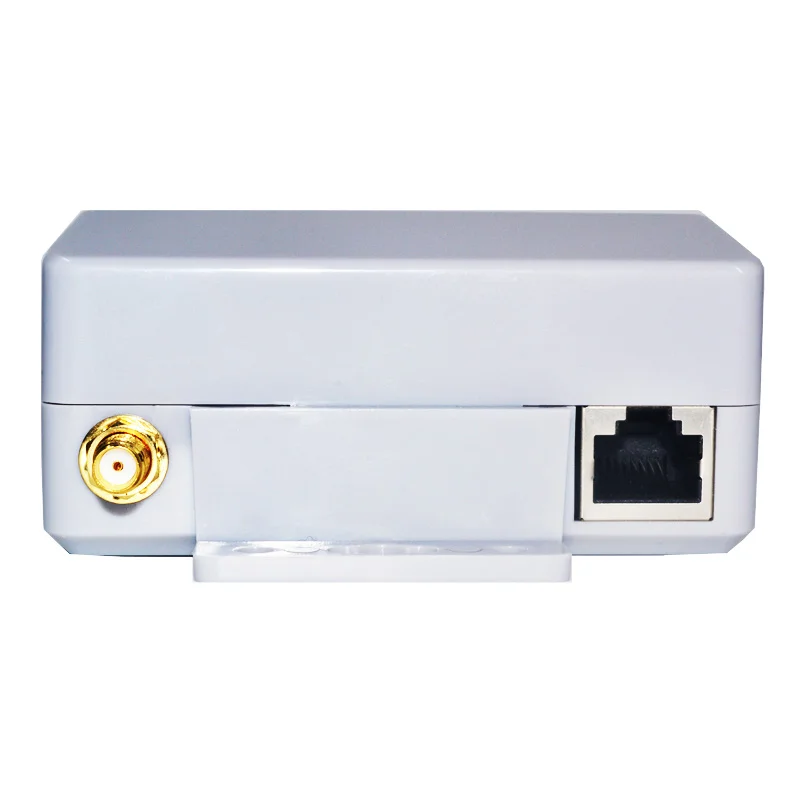

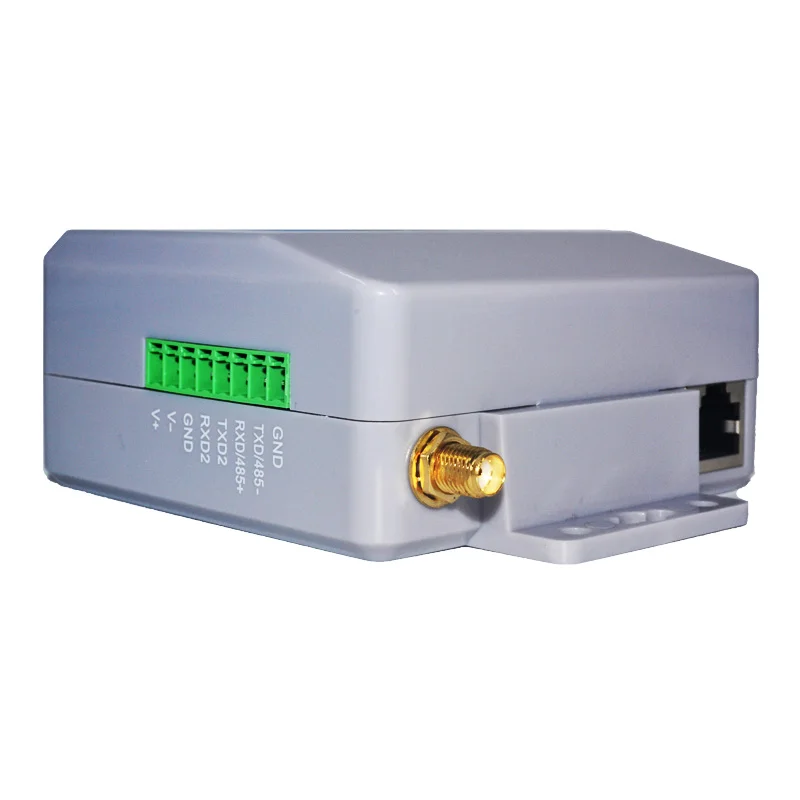

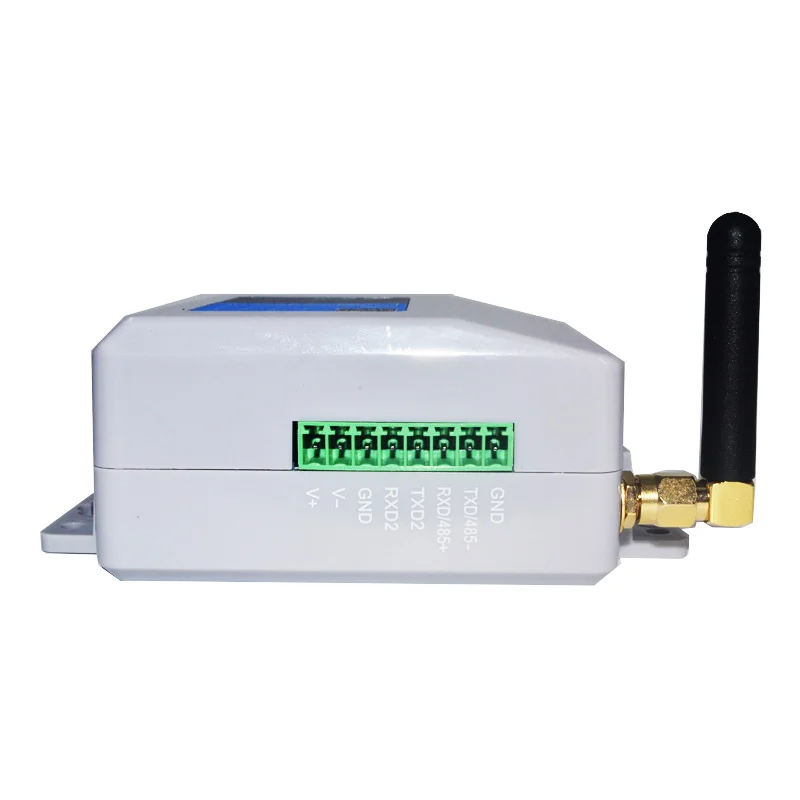

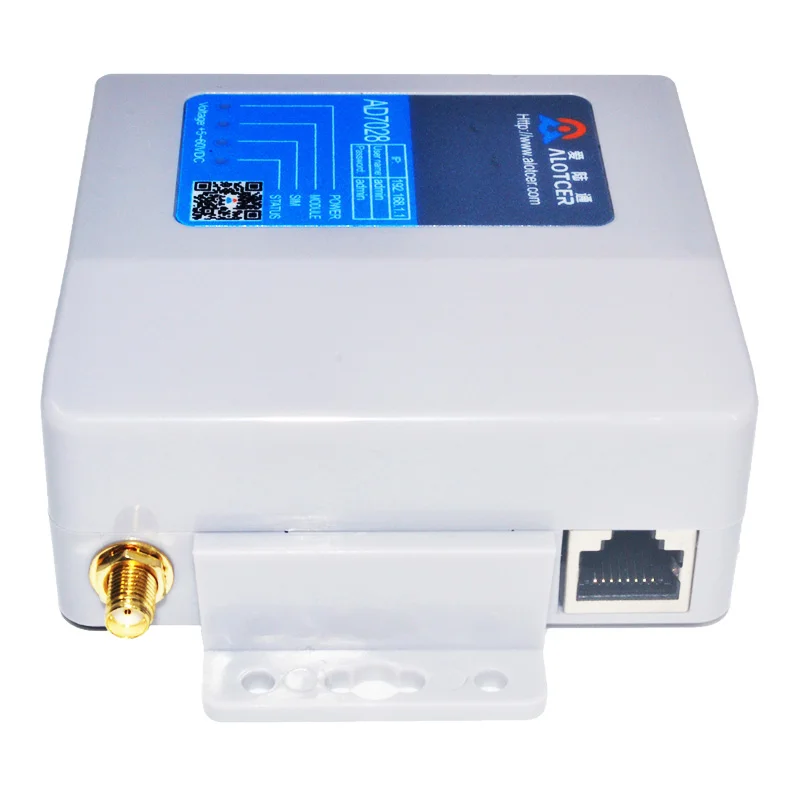

4g router modem

Specifications
\t
Items
\t
Contents
\t


Hardware System
\t
CPU
\t
Industrial 32bits CPU
\t
FLASH
\t
16MB (Extendable to 64MB)
\t
SDRAM
\t
128MB
\t

Interface


\t
LAN
\t
1 10/100Mbps Ethernet ports(RJ45)
\t

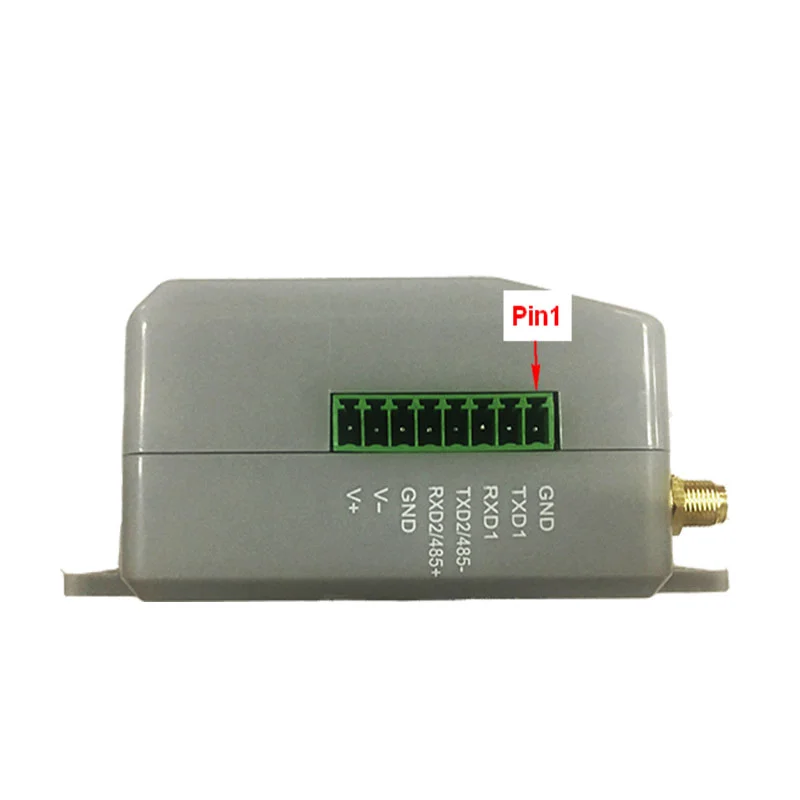

Serial
\t
1 RS232/RS485/RS422 port
\t
Large serial port data cache:10MB
\t
Antenna
\t
Cellular: Standard SMA female
\t



Network
\t



Wireless Network
\t
GSM/GPRS/EDGE: 850/900/1800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz
TDD-LTE: Band 38/39/40/41& Band 61/62
FDD-LTE: Band 1/2/3/4/5/7/8/13/17/20/25/28/66
\t
Power supply
\t
Wide Power range
\t
DC 5~60V
\t
Physical
\t
Small Dimensions
\t
136x99x28mm
\t
Weight
\t
395g
\t
Temperature
\t
Operating Temperature
\t
-35~+75ºC (-31~+167℉)
\t



Package
\t
Industrial package with 8 pcs router in a main box.

\t
1kg/pcs.

\t
Individual package with 1 pcs router, 5 pcs router in a main box.
\t
1.5kg/pcs.

Application

Energy monitoring
Alotcer wireless transmission terminal unit will connect with the intelligent meter and establish the connection, realize the double ways transmission between the meter and data center.

Pollution sources on-line monitoring
Alotcer 4g router modem is responsible for the timing acqui-sition, wireless networking, data transmission in the system, it fully meets requaiments of environmental protection department at all levels.

Substation wireless video surveillance
By using 4g router modem to monitor the wastage and sabotage of power facilities, and send real-time video to data center,the system will issue a pre-alarm message in a variety of ways to inform the staff to respond to the alarm point and take necessaty precautions when exceptional situation occurs.
