600dpi Evolis Avansia Thermal Re transfer PVC PET ID Card Printer Hologram Available

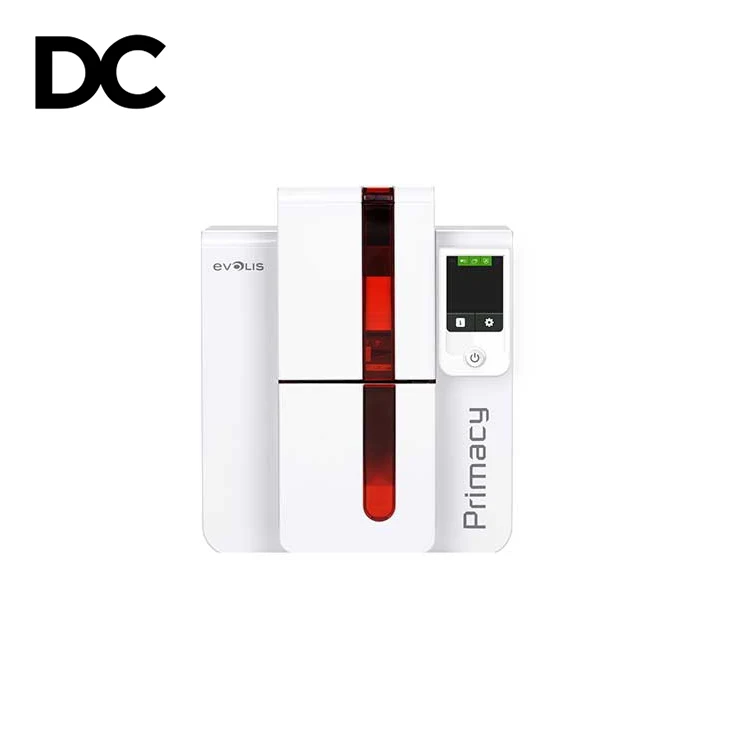

EVOLIS PRIMACY MAIN FEATURES

GENERAL FEATURES

• Direct-to-card dye-sublimation/Resin thermal transfer
• Single-sided printing, edge-to-edge
• Standard 300 x 300 dpi resolution
• Customizable 300 x 600 dpi resolution (color and monochrome printing) or

   300 x 1200 dpi resolution (monochrome printing only)
• 32 MB memory (RAM) standard - optional 64 MB

• Size (H x W x D):

   247 x 205 x 381 mm (9.72’’ x 8.07’’ x 14.99’’)

   With reject tray/output hopper at the back:

   247 x 205 x 487 mm (9.72’’ x 8.07’’ x 19.17’’)
• Weight: 4.02 kg (8.86 lbs)

   With reject tray/output hopper at the back:

   4.11 kg (9.06 lbs)

• Single side:

   - Color (YMCKO): 190 - 225 cards/hour
   - Monochrome: 800 - 1000 cards/hour
• Dual side:
   - Color (YMCKO-K): 140 cards/hour

• USB (1.0, 1.1, 2.0, 3.0), cable supplied
• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
• 802.11b/g wireless connection on the Wireless range

• Feeder capacity: 100 cards (0.76 mm – 30 mil)
• Output hopper capacity: 100 cards (0.76 mm – 30 mil)
• Reject tray/output hopper capacity at the back: 50 cards

   (0.76 mm – 30 mil)
• Card thickness: 0.25 to 1.25 mm (10 to 50 mil), gauge adjustment

   (0.25 mm - 10 mil only for monochrome printing)
• Card types: PVC cards, composite PVC, PET, ABS cards, special varnished cards
• Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)

OPTIONAL FEATURES

OPTIONAL FEATURES

• Colors available: fire red & brilliant blue
• Upgrade kit for dual-sided printing
• Open output hopper for collecting cards one by one
• USB encoding over IP through additional USB Net Server module, upon request
• Locking system
• Wireless range: wireless connection 802.11b/g
• Color touch screen

• Available modules:
   - Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2
   - Smart contact station ISO 7816-2
   - Contact smart card encoder - PC/SC, EMV 2000-1
   - Contactless smart card encoder - ISO 14443A, B, ISO15693, UHF (standard compliance: EPC C1 Gen2 /

     ISO18000-6C ETSI EN 302 208 or FCC part 15.247)
   - Other specific encoders upon request
• Internal USB or IP ports
• Options can be combined
• Factory-installed or installed on site

OTHERS

SAFETY

• Support for Kensington® security lock
• Data encryption for magnetic encoding
• Locking system as an option1

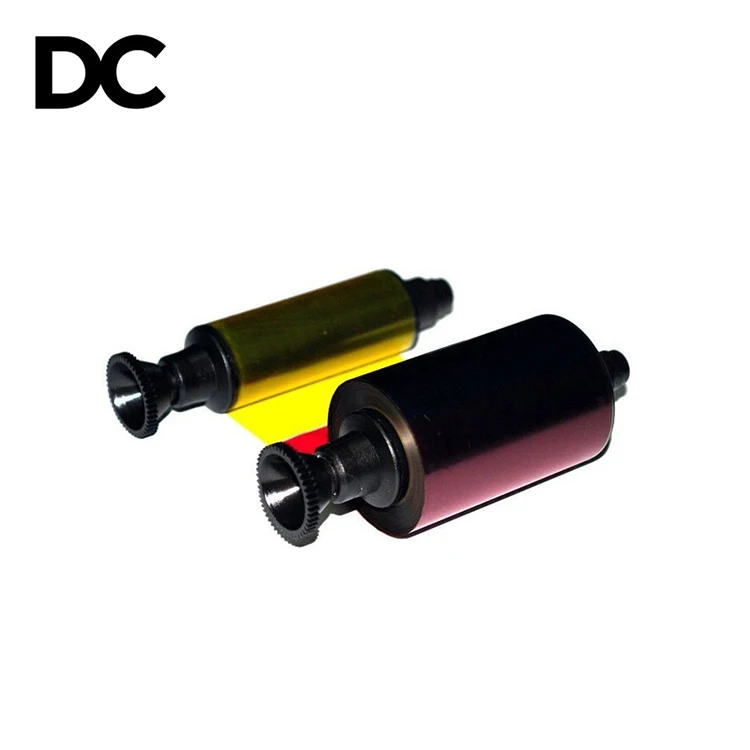

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.
• Automatic identification and setting
• Delivered in a drop-in cassette for easy handling
• Ribbon saver for monochrome printing
List of ribbons available on www.evolis.com

• Delivered with Evolis Premium Suite® for Windows®:
   - Printer driver
   - Evolis Print Center for administration and settings
   - Evolis Printer Manager for graphical notification3
   - 24/7 online support
   - Compatible with Windows® (32/64 bits): XP SP3, Vista, W7, W8, W10

• Delivered with cardPresso XXS for designing and editing badges:
   - Internal database (unlimited records)
   - Windows® (from XP onwards) and Mac OS X

• Delivered with a driver for Mac OS X (from 10.6 onwards)
• Linux OS upon request
• Evolis Premium SDK for remote supervision of the printer, while facilitating and

   speeding up integration into IT systems

• Standby, sleep modes & reduced energy consumption
• CE, FCC, ICES, VCCI, CCC, KC, BIS, EAC
• RoHS

• 3-year warranty (printer and print head)4
• Warranty extension available as an option
