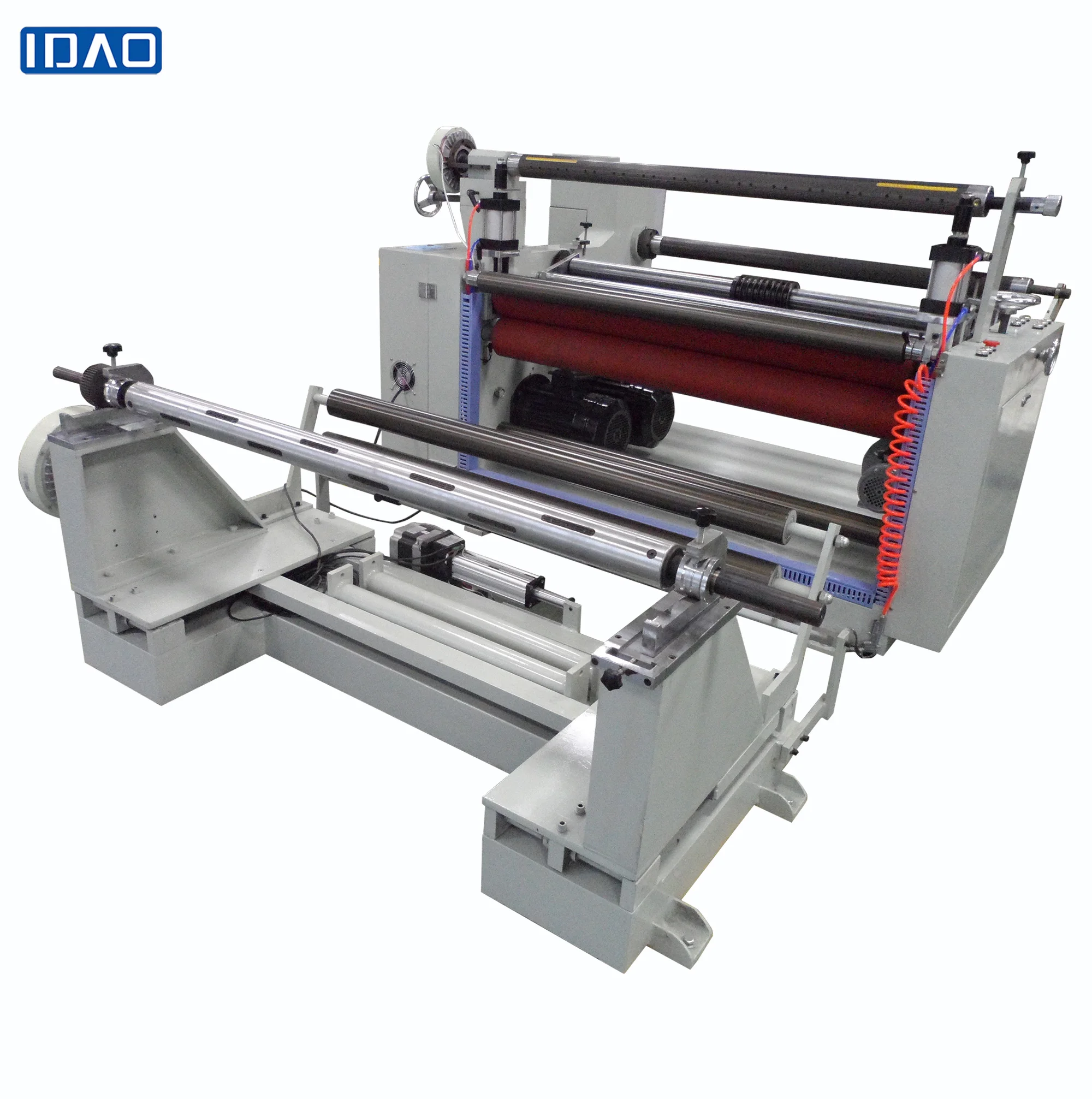

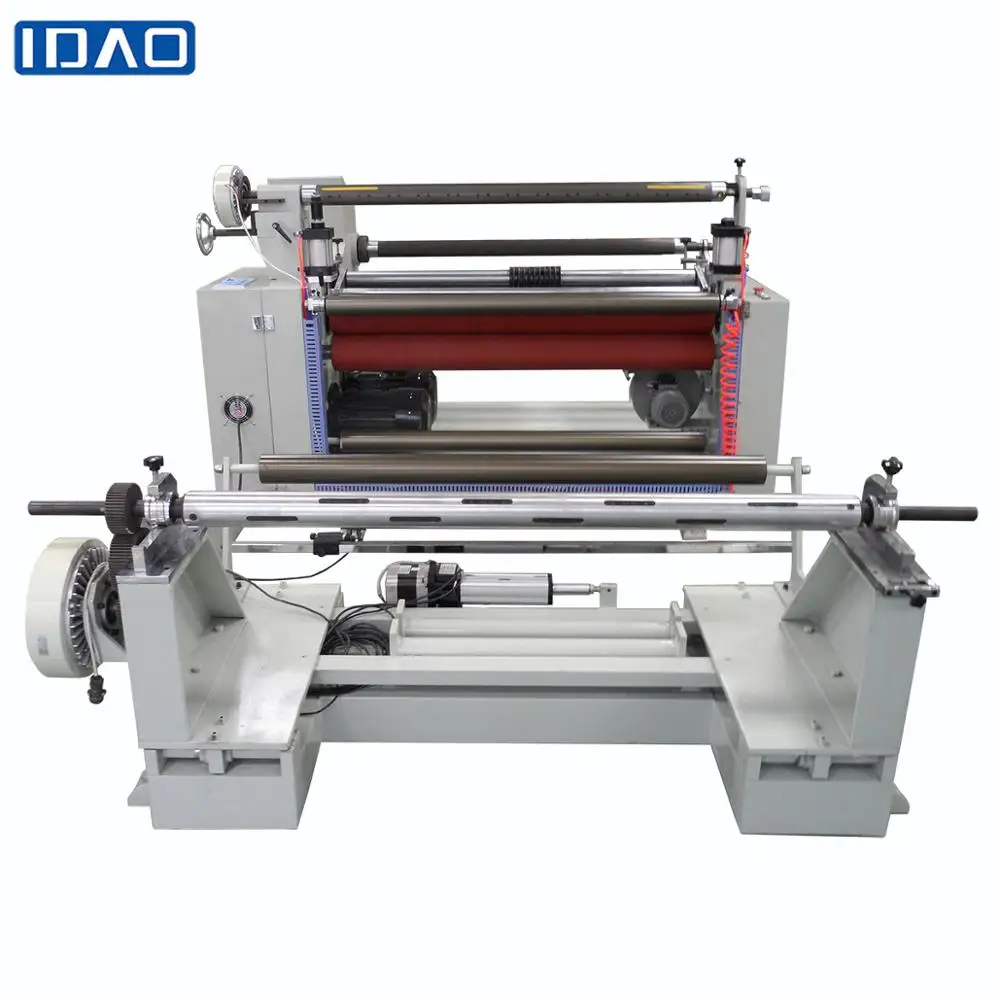

jumbo roll abrasive paper slitting machine

"with us your MONEY in safe ; your BUSINESS in safe"

Machine features:

This machine is slitting equipment of high precision and high sensitivity , with 3 inch inflatable shafts used for feeding and receiving materials. The magnetic powder clutch is adopted to control the tension . The gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection,rectification and metering can be realized. It is characterized that accurate slitting , fast slitting speed, easy operation and maintenance, etc.

Technical parameters:

*the voltage can customize according to your country standards.

Characteristics :

1.Laminating function

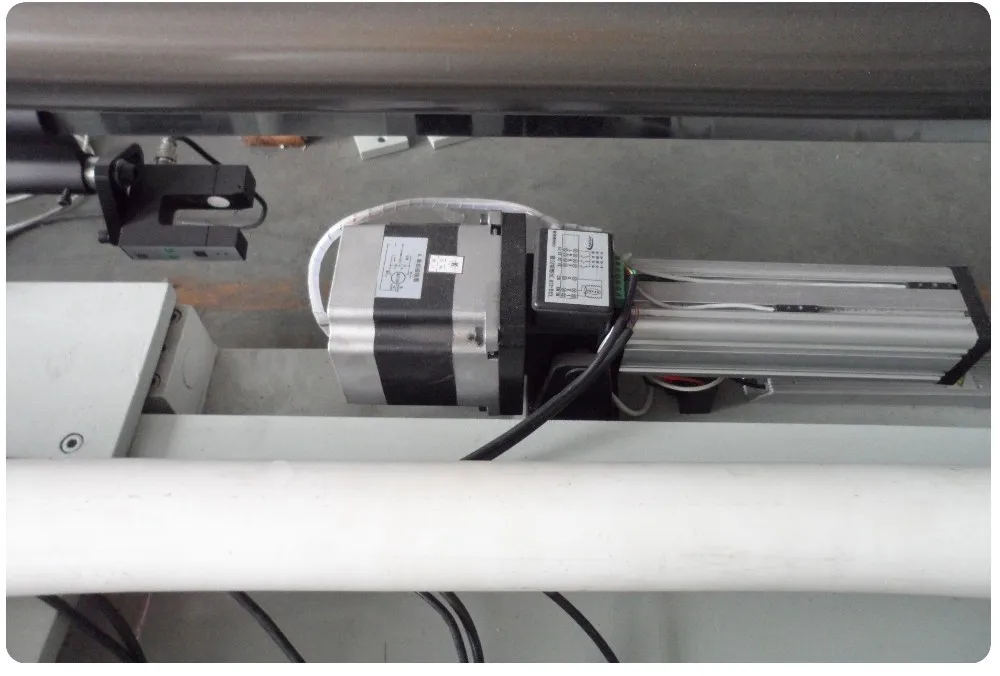

2. EPC (edge positioning control) device:Ultrasonic sensor
3. Waste discharge function

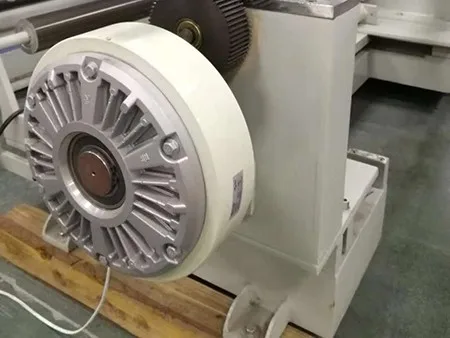

4. Magnetic brake and clutch
5. Length counting function, automatically stop after it reaches the length you set.
6. 2 rewinding inflatable shafts, easy for unloading materials.
7.The minimum slitting width: 8mm
8.Material thickness range: 0.05-3mm

Standard configuration:
1.One slitting station
2.One laminating station
3.With one piece 3'' unwinding shaft,2 pieces rewinding shafts
4.With meter/number counter

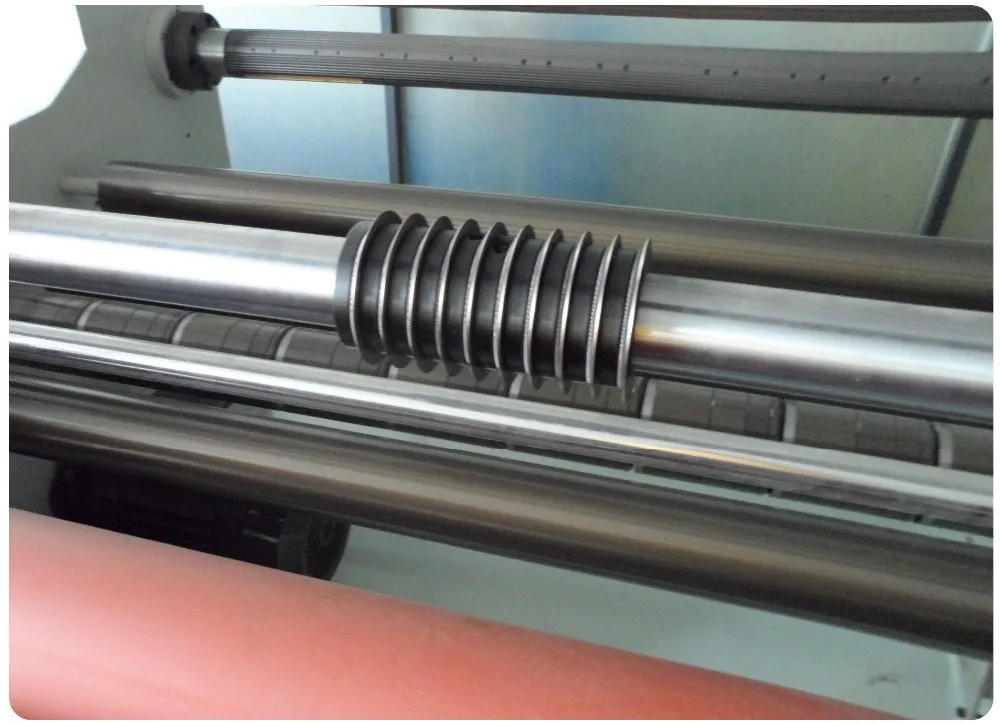

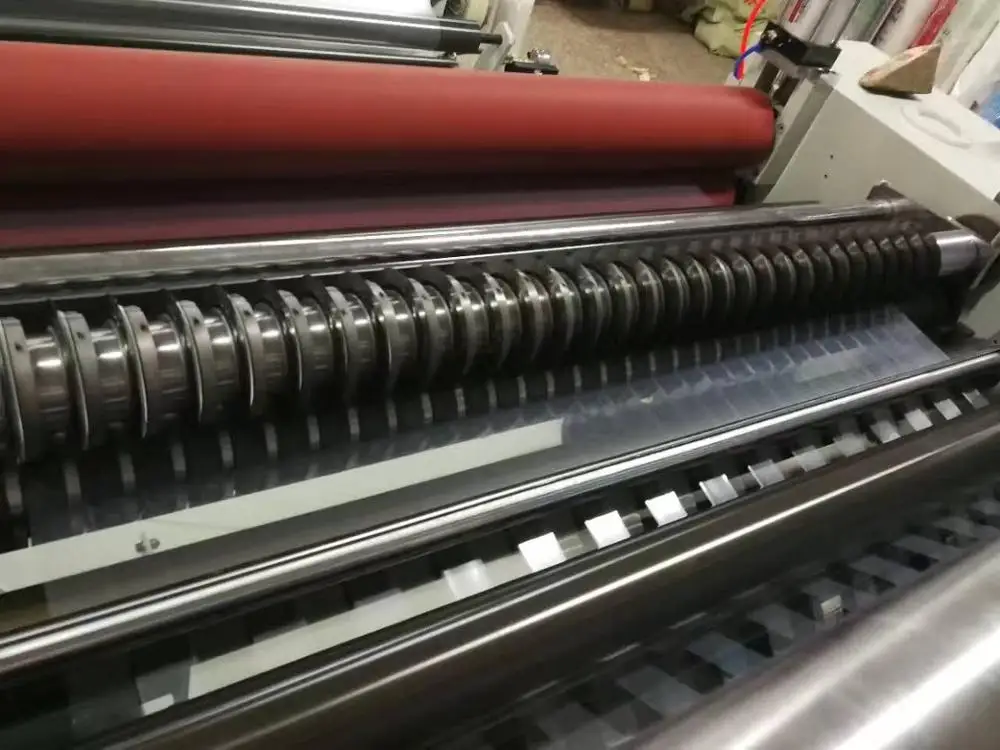

5.With 10 sets of round slitting knives
6.Machine has blower fan to blow away the trimmed edge

Application:

It is applicable for slitting industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, 3C, leather, garment, plastic, etc.
