industrial gas liquid oxygen cryogenic gas cylinder price
- Category: >>>
- Supplier: South China Special Gas Institute Co. Ltd.
Share on (62056862953):
Product Overview
Description
Product Description
The DPL series containers are vacuum insulated, Stainless steel containers designed to store
And transport cryogenic liquid oxygen, nitrogen or argon. Containers may be used for over the road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications.
As rugged, long holding time, self-contained gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h, with a delivery pressure of approximately 100psig (6.9bar/690Kpa)
Product Specification | |||||||||||||||
Product Model | DPL-100 | DPL-175 | DPL-195 | DPL-210 | DPL-410 | DPL-450 | |||||||||
Diameter*Height(mm) | 454*1247 | 508*1500 | 508*1620 | 508*1707 | 750*850*1770 | 750*850*1900 | |||||||||
Working Pressure(MPa) | 1.33 | 1.4 2.01 2.88 | 1.4 2.01 2.88 | 1.4 2.01 2.88 | 1.4 3.17 | 1.4 3.17 | |||||||||
Pressure Relief Valve(MPa) | 1.59 | 1.59 2.41 3.45 | 1.59 2.41 3.45 | 1.59 2.41 3.45 | 1.59 3.45 | 1.59 3.45 | |||||||||
Inner Container Bursting Disc(MPa) | 2.60 | 2.60 3.62 5.17 | 2.60 3.62 5.17 | 2.60 3.62 5.17 | 2.60 5.70 | 2.60 5.7 | |||||||||
Maximum Liquid Capacity(L) | 100 | 175 | 195 | 210 | 410 | 450 | |||||||||
Usable Liquid Capacity(L) | 95 | 166 | 185 | 197 | 389 | 427 | |||||||||
Normal Evaporation Rate ((LN2)) | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ≤1.8% | ≤1.8% | |||||||||
Tare Weight(Kg) | 70 | 110 | 117 | 123 | 282 | 289 | |||||||||
The Filling Quality | Oxygen(kg) | 100 | 172 | 191 | 205 | 443 | 487 | ||||||||
Nitrogen(Kg) | 73 | 121 | 135 | 145 | 315 | 346 | |||||||||
Argon(Kg) | 127 | 208 | 233 | 250 | 548 | 602 | |||||||||
Natural Gas (Kg) | ---- | 70.1 | 76 | 86.3 | 161 | 176 | |||||||||
CO2(Kg) High Pressure only | ---- | 138 | 154 | 164 | 325 | 357 | |||||||||
N2O(Kg) High Pressure only | ---- | 191 | 213 | 227 | 448 | 492 | |||||||||
Main Features
* Mainly used in storage and transportation of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas
* Adopted high multi-layer insulation method to ensure the low evaporation rate.
* Inner vaporizer provides a 9.2Nm3/h stable continuous gas.
* Solar installation use in the priority of gas-pressure and gas space.
* Adopt the international CGA standard tie-in and all the valves installed imported from USA(Rego)
* Unique design of damping ring meets the needs of frequent transportation.
* Suitable for electronics, research, chemical industry, welding, and LNG supply industries.
Detailed Images
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine,
* Engineers available to service machinery overseas.

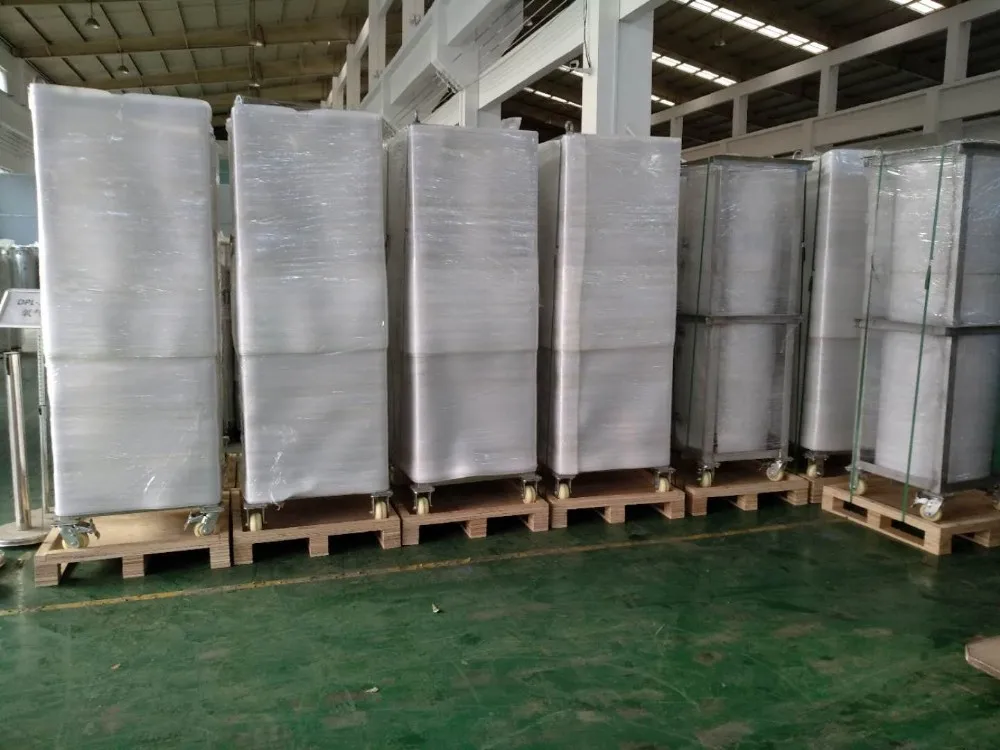

Packing & Delivery
