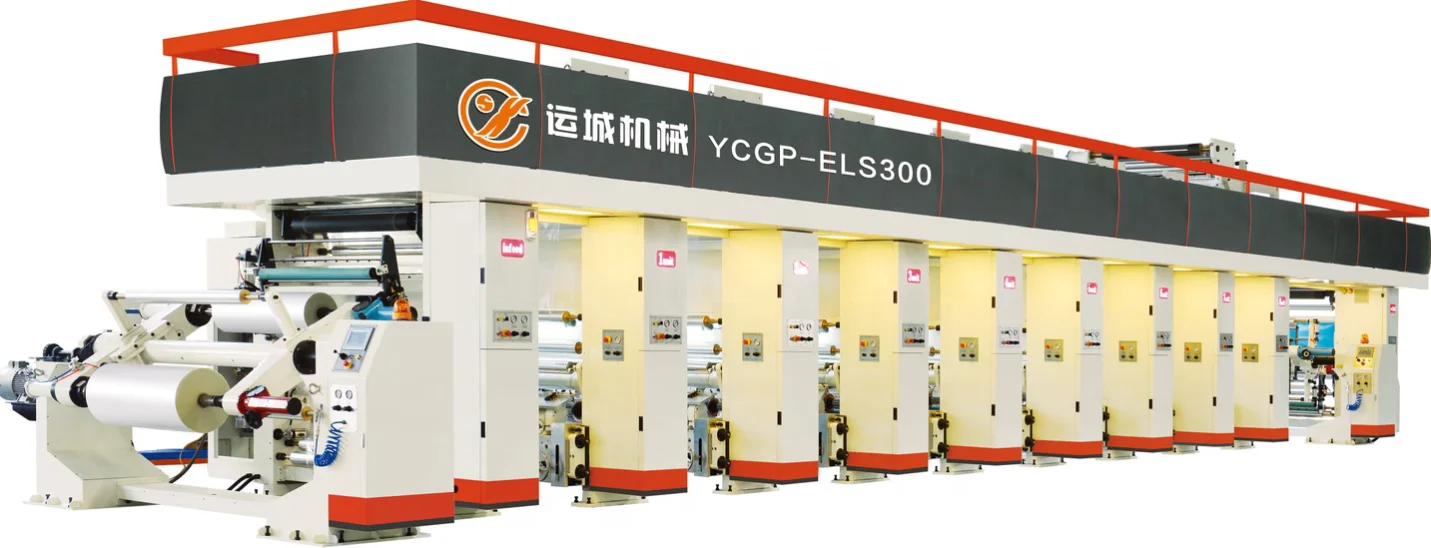

MLS or ELS 8 Color Rotogravure Printing Press 1 2 3 4 5 6 7 8 9 10 11 12 Color Register Printing
- Category: >>>
- Supplier: Yuncheng Plate Making Printing Machinery Co. Ltd.
Share on (62056913050):
Product Overview
Description
Product description
Product description
Application:
Rotogravure printing machine used to print multi-color on different kinds of films like OPP,BOPP,PET,PVC,PE,PAPTER and Aluminum foil etc.One time ,Continuous printing
PET:12~60μm BOPP: 20~60μm
CPP:20~60μm OPP: 20~60μm
cellophane:20~30μm
Main parameters:
| Film running direction from unwind to rewind | From left to right |
| Printing colors | 1-14 |
| Max. material width | 1250mm |
| Maximum printing speed | 200/250/300/350 m/min |
| Unwinding /rewinding diameter | 800mm |
| Rewinding and unwinding reels chucking style | Pneumatic cone top chucking reels |
| Accuracy of registration | Longitudinal/Horizontal ±0.1mm |
| Tension range | 3~28kg |
| Paper core diameter | Φ76mm× Φ92mm |
| Diameters of cylinders | Φ120mm~Φ300mm |
| Length of cylinders | 1000-1350mm |
| Reciprocation of doctor blades | ±5 mm |
| Recycling rate of hot air | 0~50% |
| Heating style | electricity |
| Space between units | 1.7m |
| Power supply | 3-phase,50Hz,380V±10% |
| Machine dimension | 23950x4850x4000mm (10 color) |
| Machine power | 168kw+279kw (10 color) |
| Machine weight | 52T (10 color) |

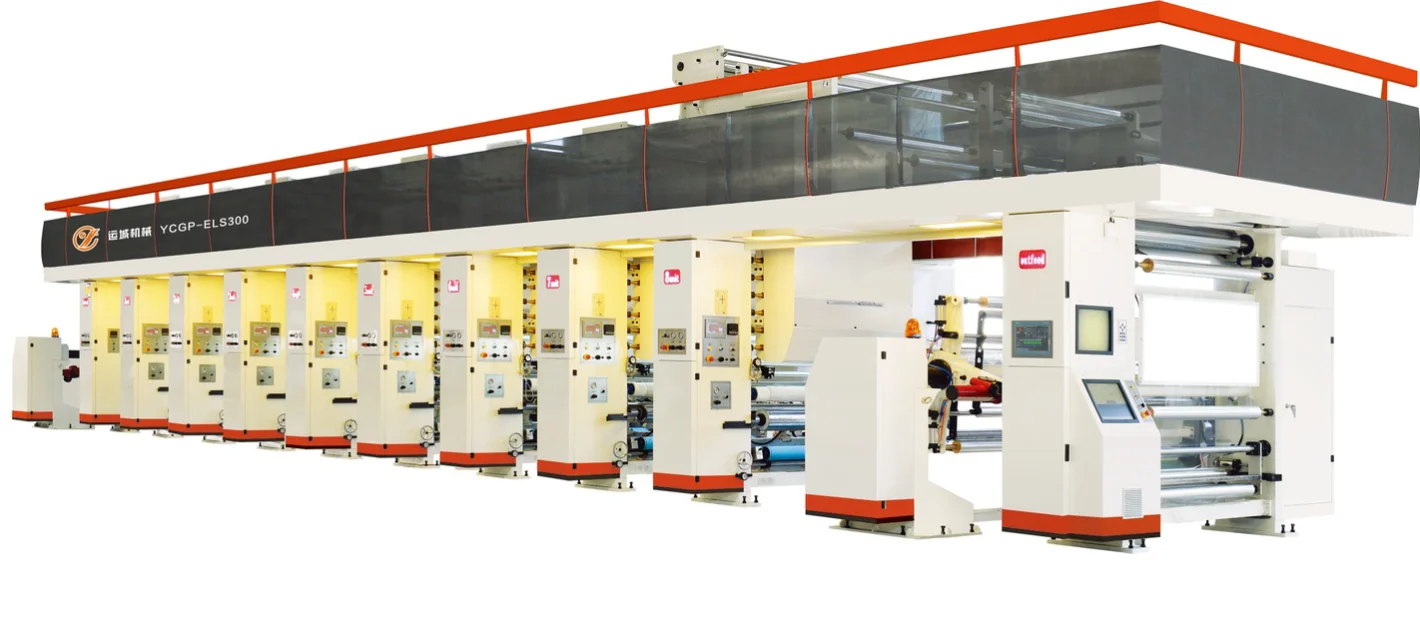

Product display
Product display

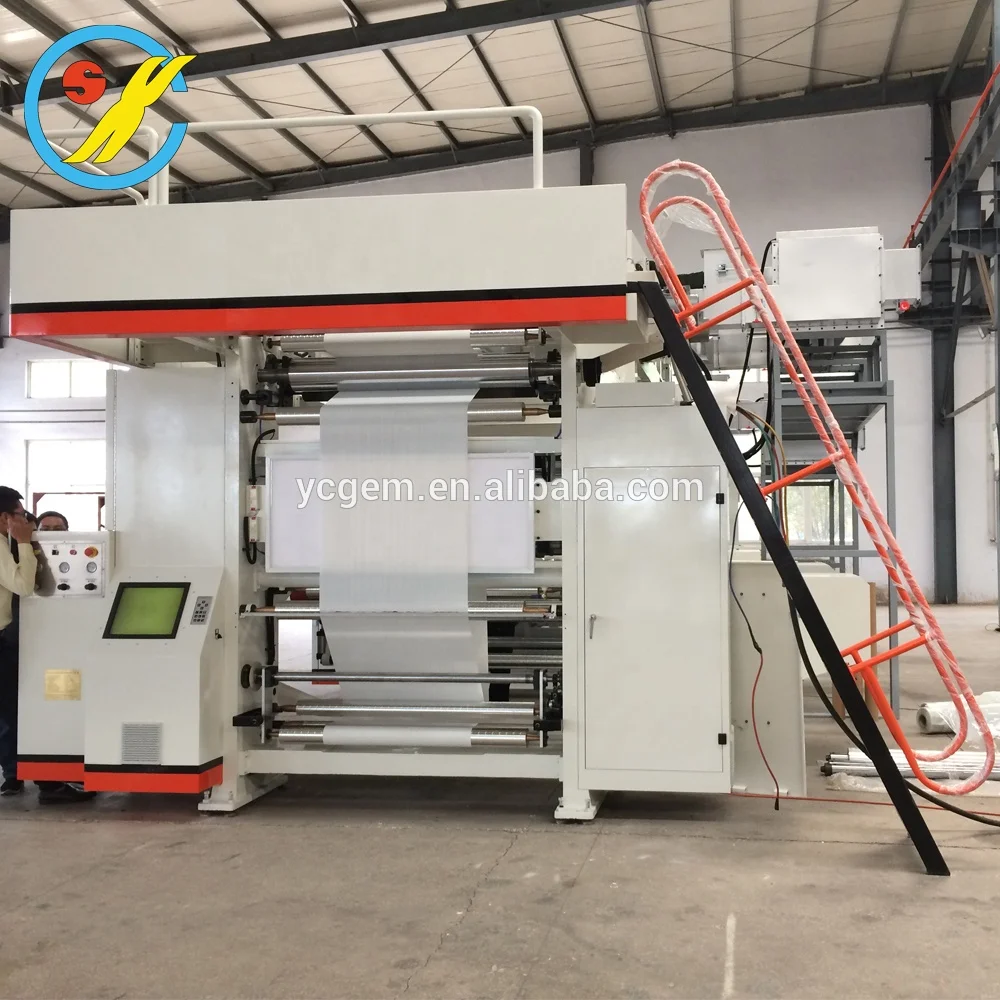

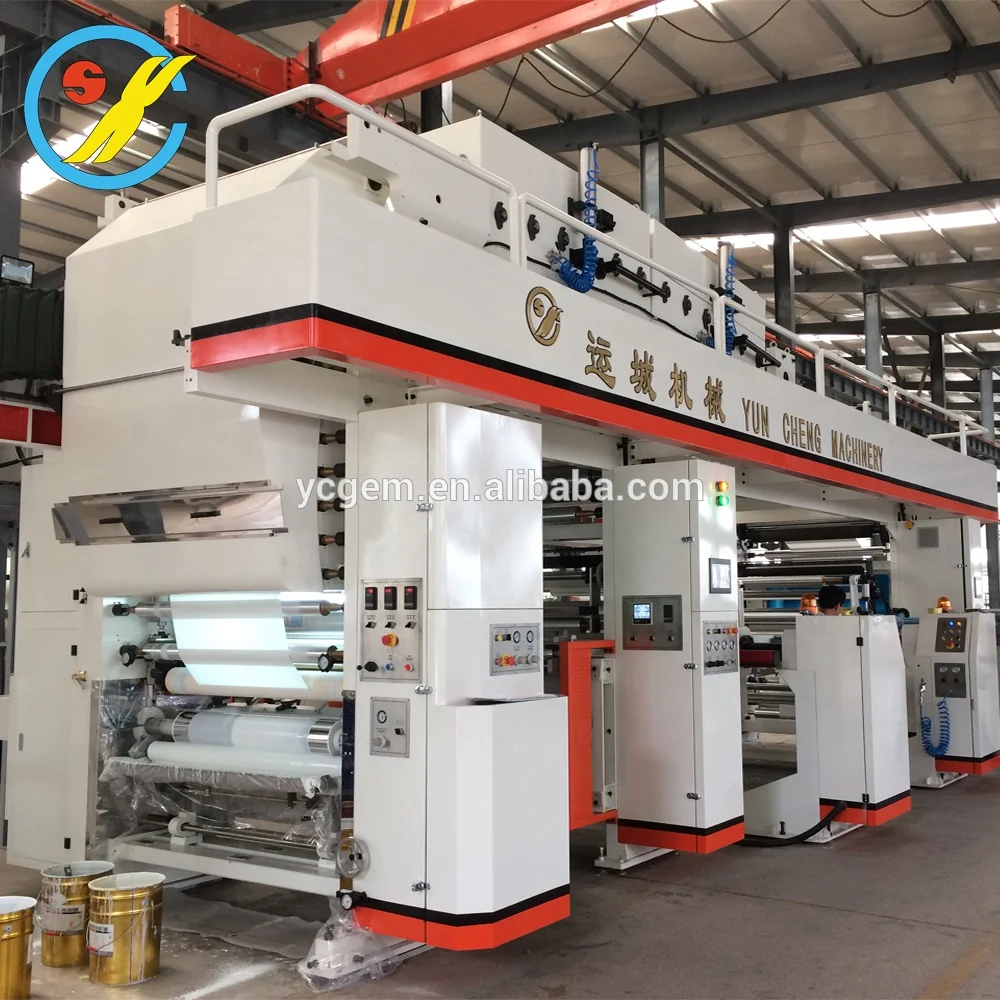

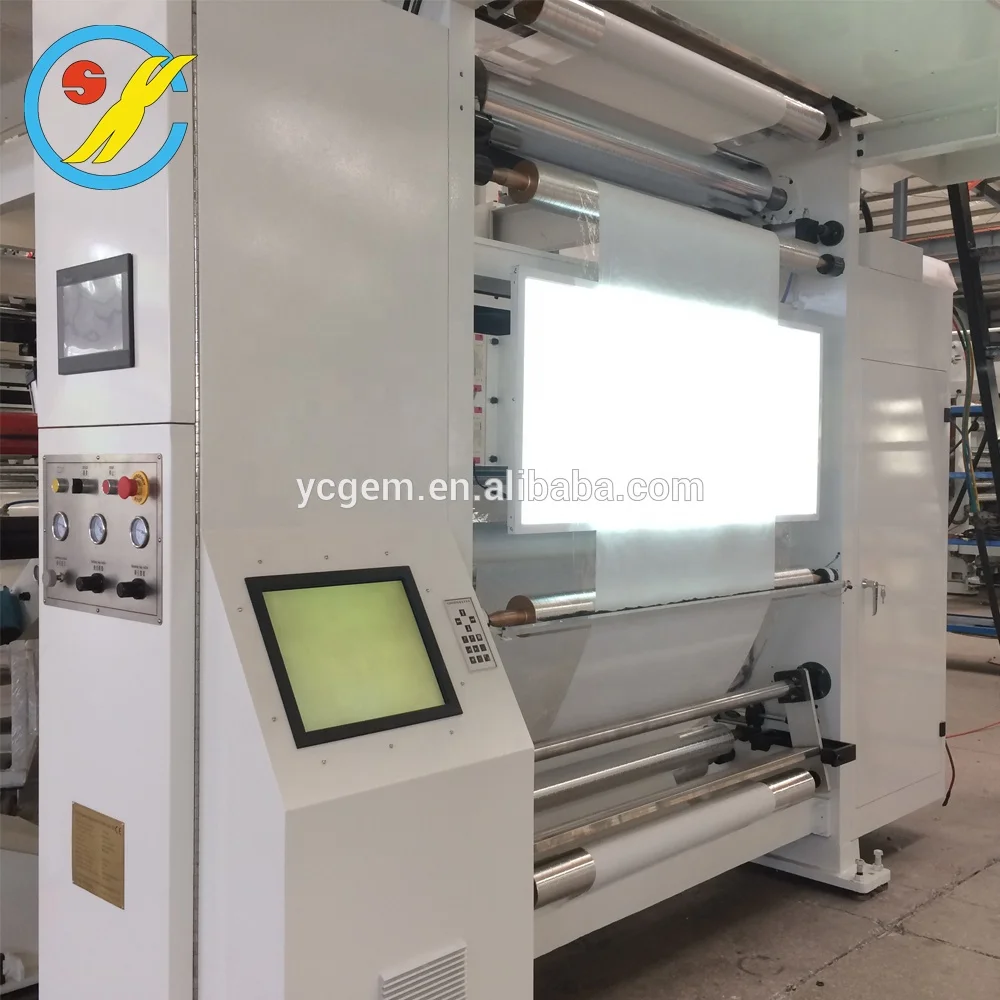

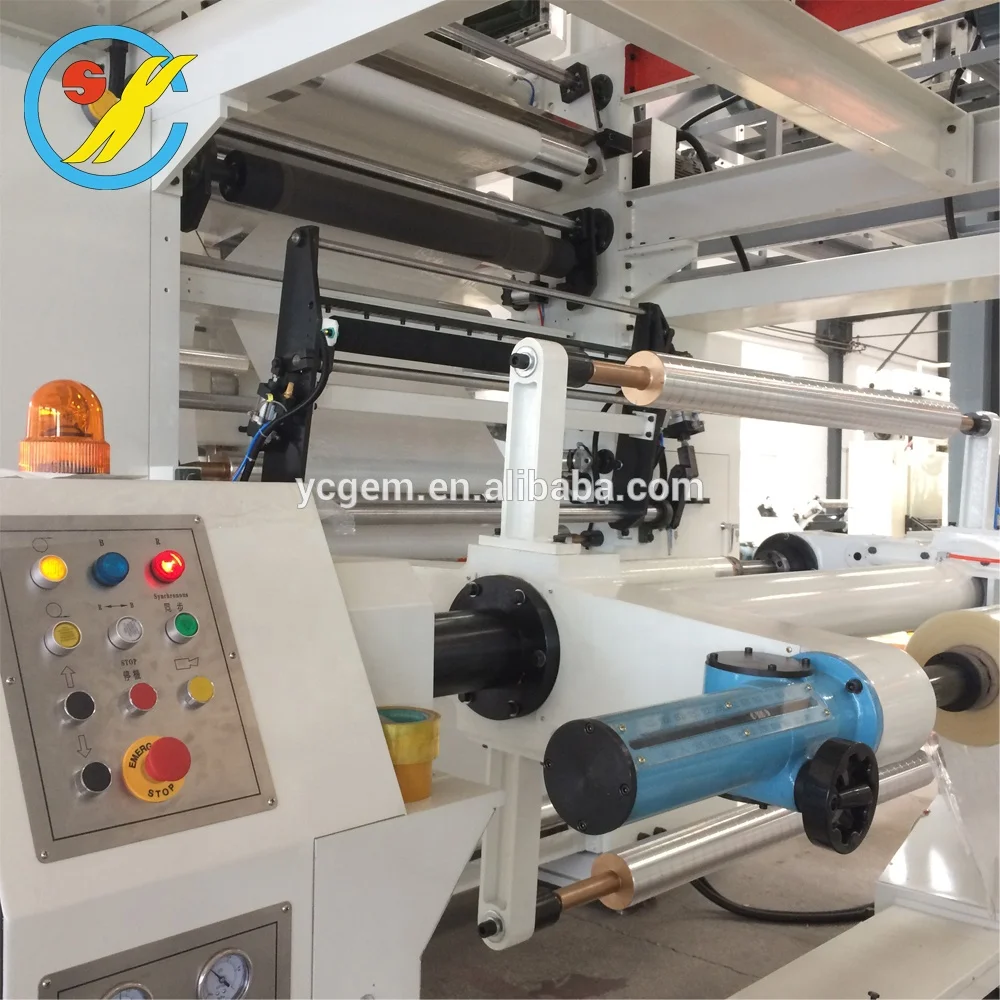

Detailed Images
