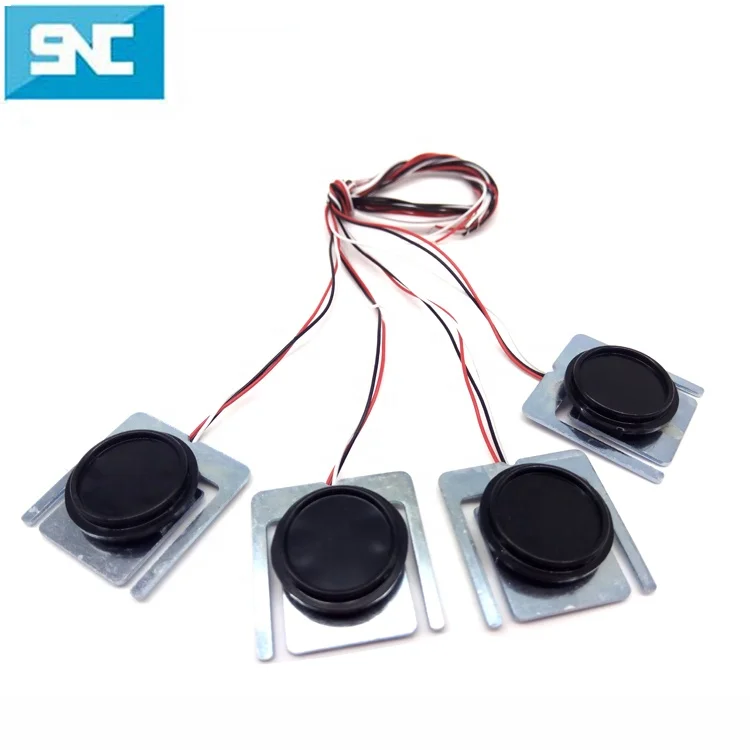

SC913A kitchen scale load cell thin micro load cell 3kg
- Category: Sensors >>>
- Supplier: Shenzhen,Sensor,And,Control,Company,Limited
Share on:
Product Overview
Description
SC913A kitchen scale load cell thin micro load cell 3kg
Product Description

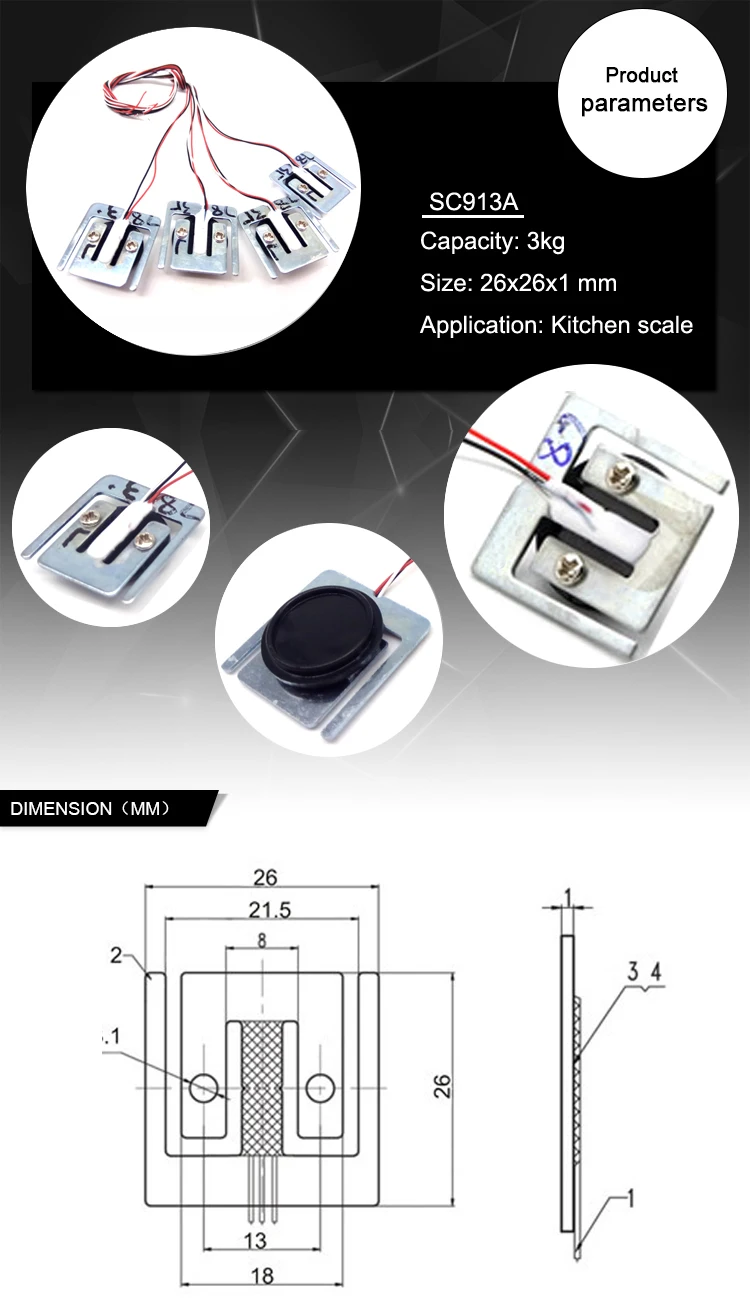

Parameters
| Model | SC913A |
| Capacity: | 3kg |
| Accuracy: | 0.05%FS |
| Rated output: | 1.0±0.15mV/V |
| Non-linearity: | ±0.1%FS |
| Hysteresis: | ±0.1%FS |
| Repeatability: | ±0.05%FS |
| Creep: | ±0.15%FS/3min |
| Zero balance: | ±0.5mV/V |
| Input resistance | 500±10Ω: |
| output resistance: | 500±10Ω: |
| Insulation resistance: | ≥2000MΩ |
| Excitation voltage: | 5~10VDC |
| Operating temperature: | -10~+40ºC |
| temp effect on zero: | ±0.1%FS/10ºC |
| Temp effect on span: | ±0.1%FS/10ºC |
| Ultimate overload: | 150%F.S |
| Application | Kitchen scale, small weight scales, force test |
Load cell Accessorie
Related Products
Packaging & Shipping
Company Information
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
Why Choose Us
FAQ
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
