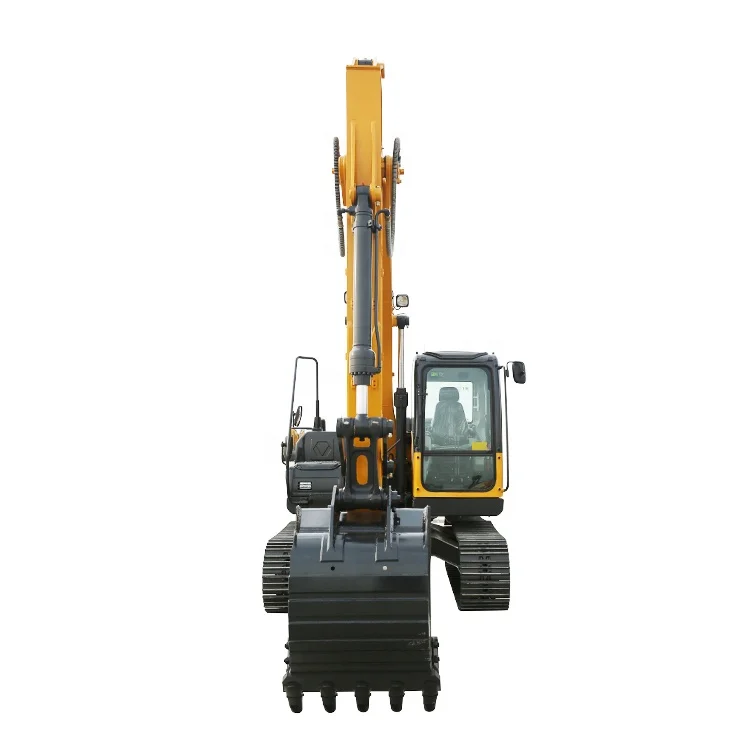

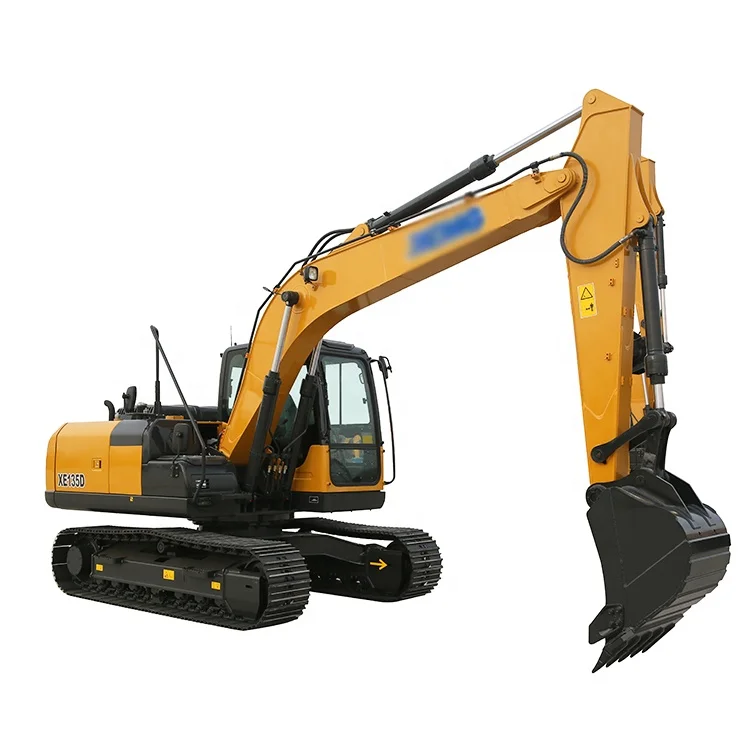

Medium Crawler Excavator 13T Hydraulic Digger 0.52cbm Bucket with Cummis Engine 86kW XE135D
- Category: >>>
- Supplier: Qingdao Sinocentum Machinery Co. Ltd.
Share on (62057076298):
Product Overview
Description
Product Description
Medium Crawler Excavator 13T Hydraulic Digger 0.52cbm Bucket with Cummins Engine 86kW XE135D
The XE135D hydraulic excavator subject to full hydraulic drive has been widely used throughout China and exported to more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators and such characteristics of less fuel consumption and higher flexibility for small-sized excavators, with the sales leading its peers domestically for three consecutive years.
SPECIFICATIONS FOR 13 TON HYDRAULIC CRAWLER EXCAVATOR | ||||||
Engine | Engine model | - | QSF3.8 | |||
Rated power | kw/rpm | 86/2200 | ||||
Max. torque | N.m/rpm | 470/1300 | ||||
No. of cylinders | - | 4 | ||||
Displacement | L | 3.8 | ||||
Main performance | Walking speed | km/h | 5.3/2.9 | |||
Rotary speed | r/min | 11 | ||||
Climbing ability | ° | 35 | ||||
Ground pressure | kPa | 40.4 | ||||
Bucket digging force | kN | 99.1 | ||||
Arm digging force | kN | 68 | ||||
Max. traction | kN | 134 | ||||
Hydraulic system | Main pump rated flow | L/min | 125.4*2 | |||
Main safety valve pressure | MPa | 31.4 | ||||
Travel system pressure | MPa | 34.4 | ||||
Rotary system pressure | MPa | 25 | ||||
Pilot system pressure | MPa | 3.9 | ||||
Oil capacity | Fuel tank capacity | L | 260 | |||
Hydraulic tank volume | L | 105 | ||||
Working dimensions | Max. digging height | mm | 8638 | |||
Max. digging depth | mm | 5546 | ||||
Max. digging radius | mm | 8304 | ||||
Min. turning radius | mm | 2445 | ||||
Boom length | mm | 4600 | ||||
Arm length | mm | 2520 | ||||
Main Features
1) Its working mechanism has a high-strength structure, able to meet the demands of all kinds of earthwork engineering if working together with a reinforced bucket.
2) The reinforced four wheels and tracks can have its service life far longer than its major competitors, and moreover, its high-power driving motor can work freely in a variety of sites.
3) The latest hydraulic components and electromechanical integration control technology can make full use of the engine power and save every drop of fuel to create more value for customers.
4) All kinds of points for daily maintenance and service can be accessible easily on the ground, which can further facilitate the maintenance operation.
Detailed Images
Machine Parts
Name: Engine
Brand: Cummins
Model: QSB3.8

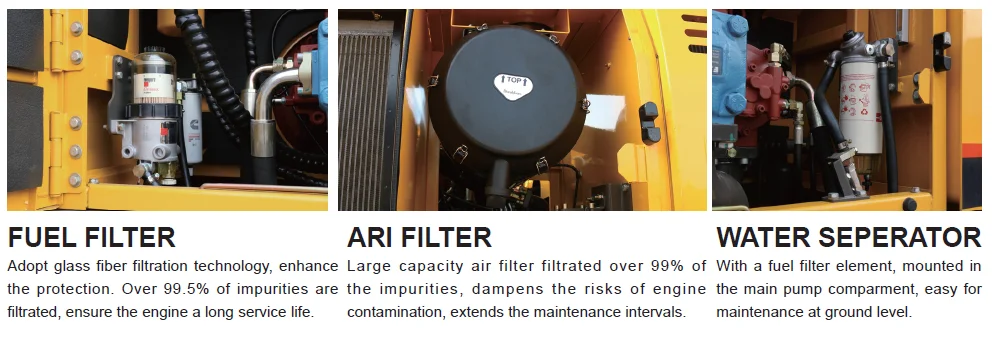

It adopts a new generation of high-pressure common rail engine and is tailored according to the excavator working conditions. It has the characteristics of low speed, high torque, strong power, large power reserve, low fuel consumption and low noise.
Name: Hydraulic system
The key hydraulic components adopts internationally renowned brands, combined with the latest research results, are more efficient, more precise, and more reliable, ensuring long-term reliable and powerful digging forces and excellent work efficiency.

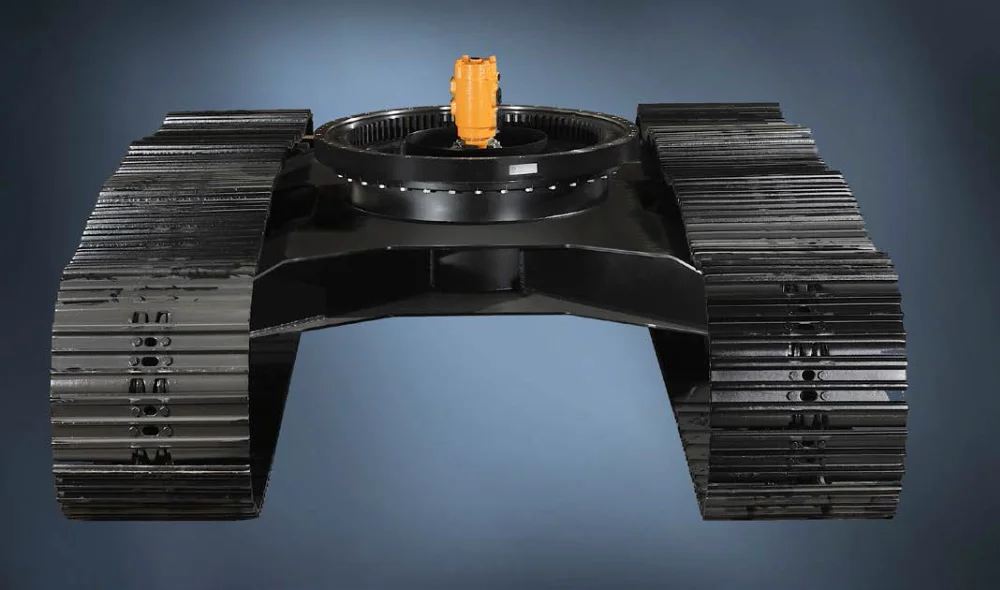

Name: Chasis
Reinforced X-frame, slewing bearing race, drag sprocket bearing and guide seat, stronger resistance to deformation, can adapt to more severe working conditions and ensure operational stability
\t\t\t\t\t\t\t\t\tProduct Categories \t\t\t\t\t\t\t
Our Factory
Certifications
Packing & Delivery
Packaging | ||
Size | 7795 (L) * 2525 (W) * 2880 (D) | |
Weight | 13200kg | |
Packaging Details | Packed and shipped by RO-RO, container or flat rack | |
