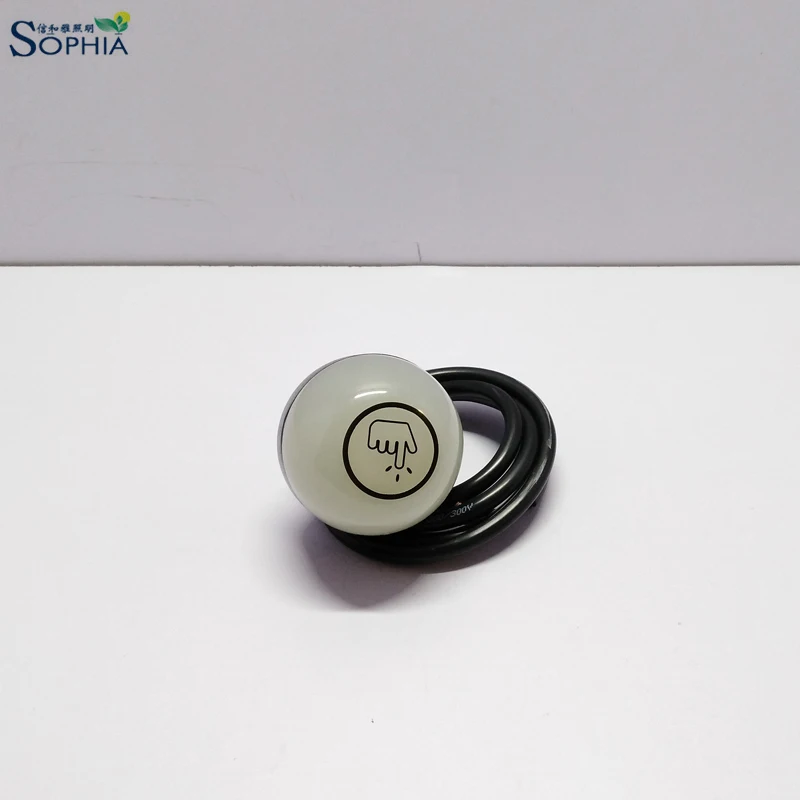

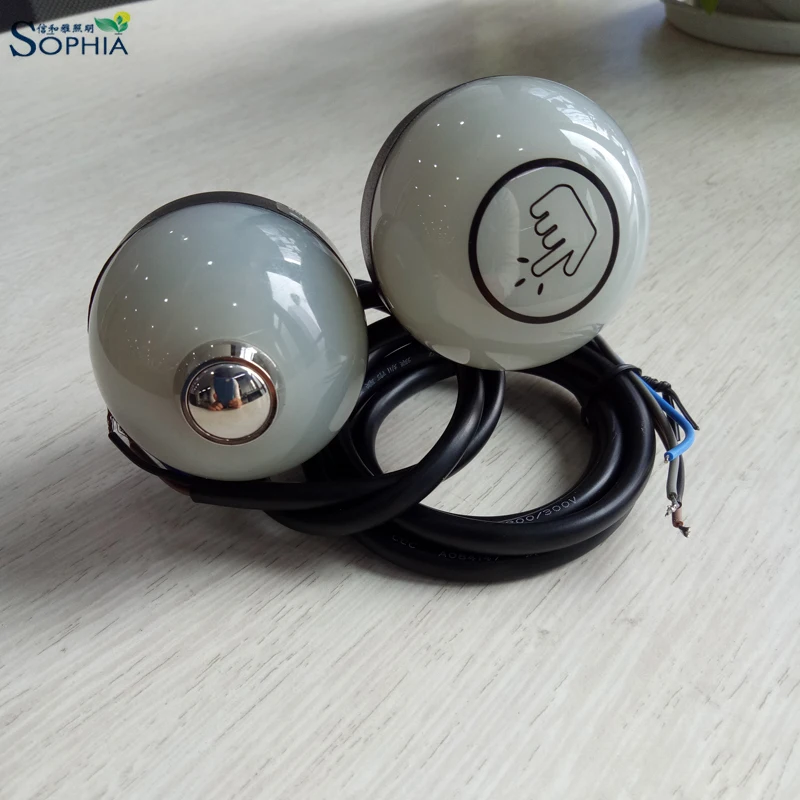

Sophia K50 12v to 30V illuminated push button touch button indicator with IOD control
- Category: >>>
- Supplier: Shenzhen Sophia Lighting Co. Ltd.
Share on (62057155261):
Product Overview
Description

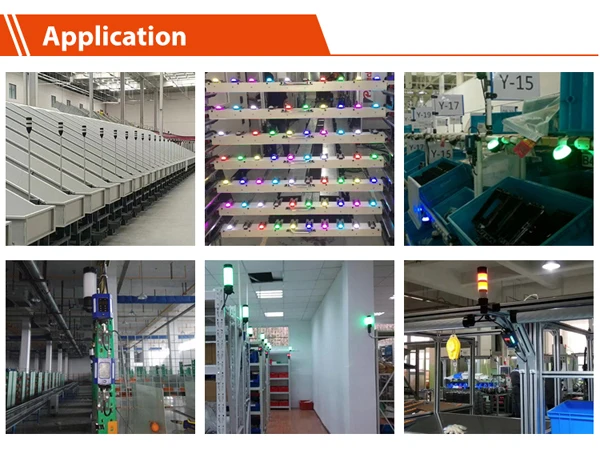

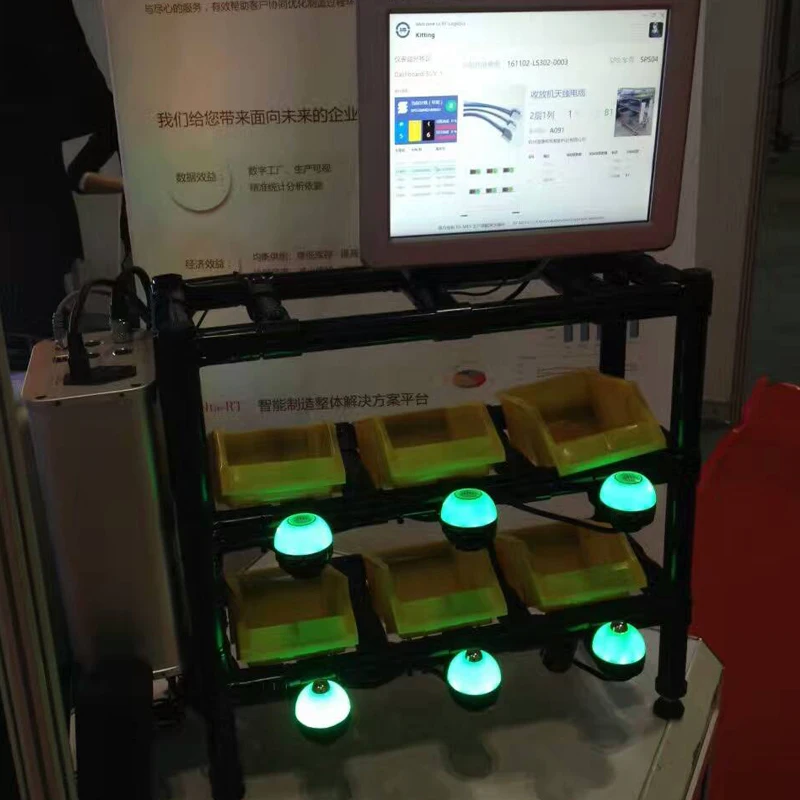

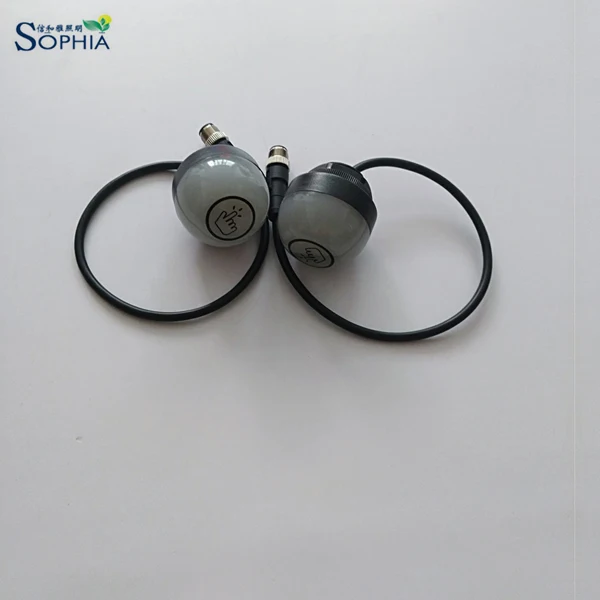

Sophia 50mm diameter 12V-30V illuminated touch button, pick to light used in automation, pharmacy, hospital, WMS system

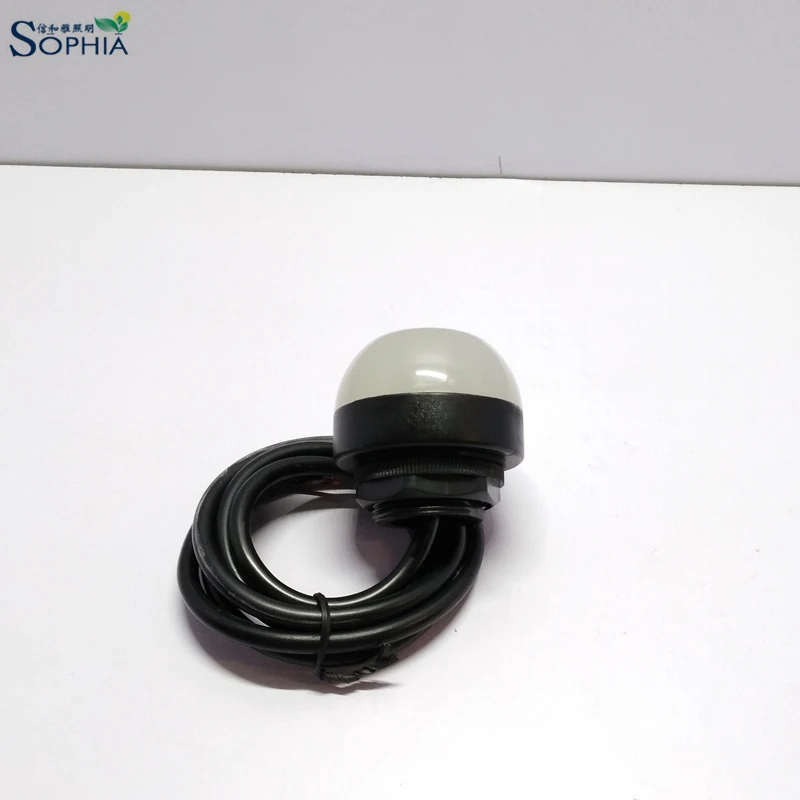

End with cable or M12 quick connector
Item No.: RL50-T Series
Power: Less 5W;
Input: DC12V-30V;
Supply current:
Red, Green, Blue<75mA(12VDC); <40mA(30VDC);
Yellow, Cyan, Pink<140mA(12VDC); <70mA(30VDC);
White<205mA(12VDC); <100mA(30VDC)

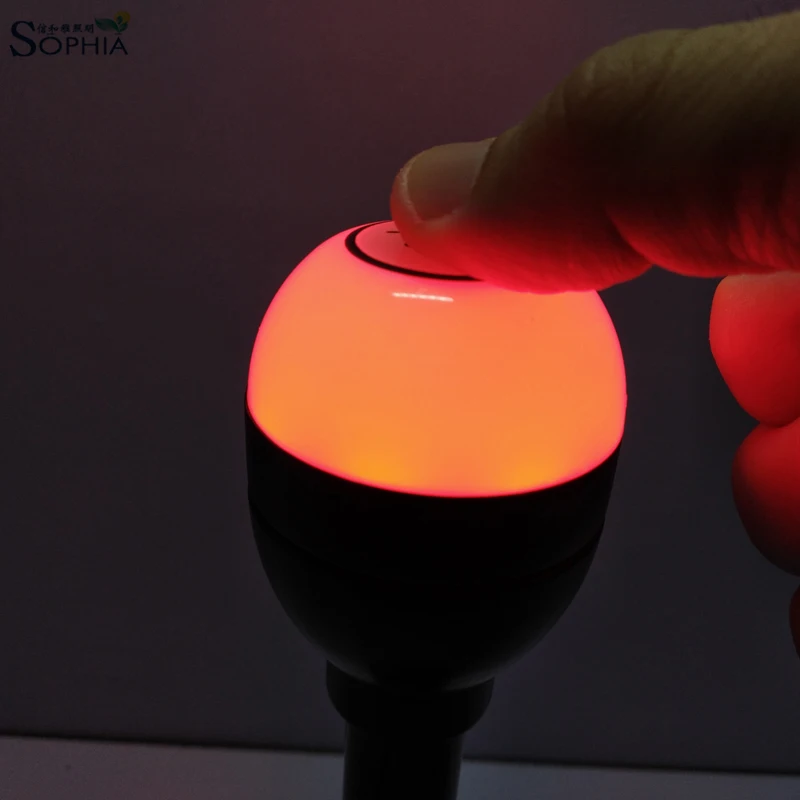

Three colors control individually, touch event doesn't change color
RL50-T Touch button Indicator series | |
Supply Voltage | 12V-30Vdc |
Supply Current | Red, Green, Blue:<75mA@12Vdc; <40mA@30Vdc |
Output Rating: |
|
a, Maximum Load | 150mA |
b, On-State Saturation Voltage | <2V(10mA dc); <2.5V(150mA) |
c, Off-State Leakage Current | <10uA(30Vdc) |
Electronic Protection | Protected against reverse polarity and over current |
Output Response Time | 25 milliseconds(max.) On and Off |
Connections | Integral 5-pin M12 QD wth 0.3m cable, or 1m integral cable |
Working temperature (℃) | -40℃~50℃ |
Humidity | 95% at 50℃ |
IP rating | IP69K |
Dimension | 50mmx5mm(ODxH) |
Mounting thread | M30x1.5mm |
Material | ABS and Polycarbonate |
Approval | CE RoHS FCC |
Feature | Interactive touch button; Actuated with work gloves; Rugged, fully encapsulated IP69K construction; 7 colors available Price is much cheaper than international brand |
More Similar Products

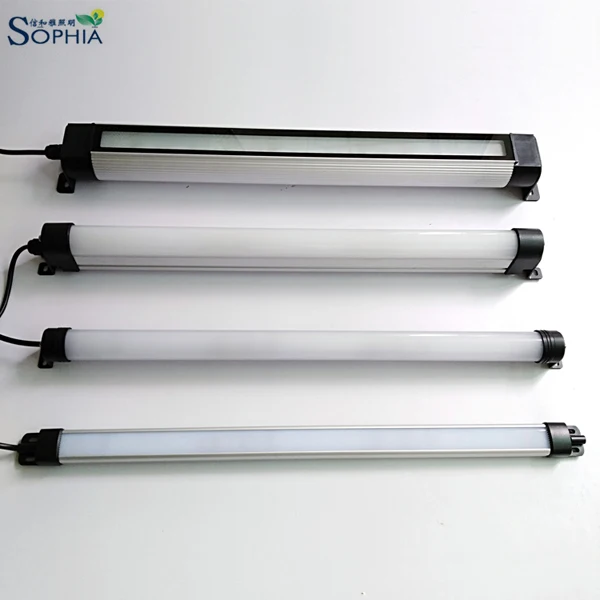

ML18, ML30, ML32, ML60 series Industrial LED light
