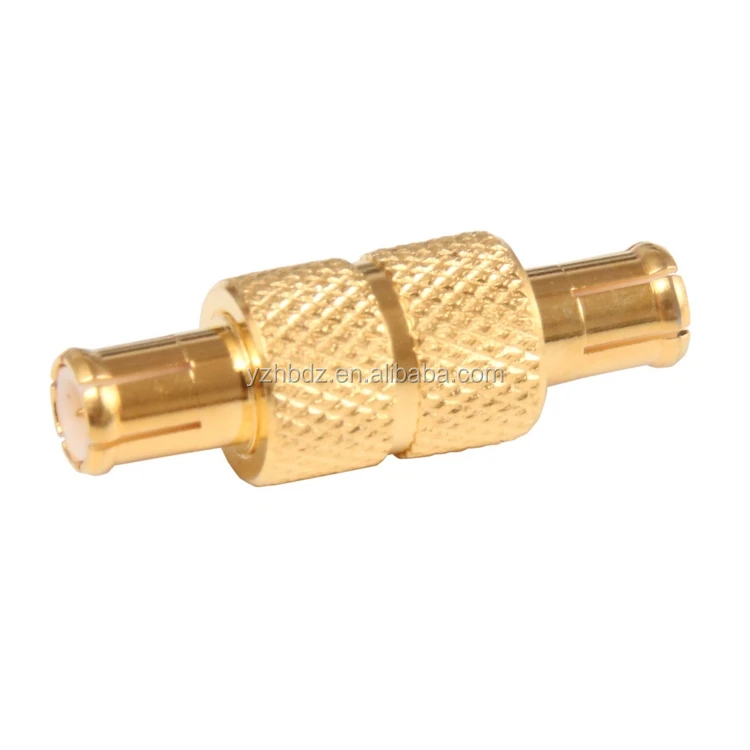

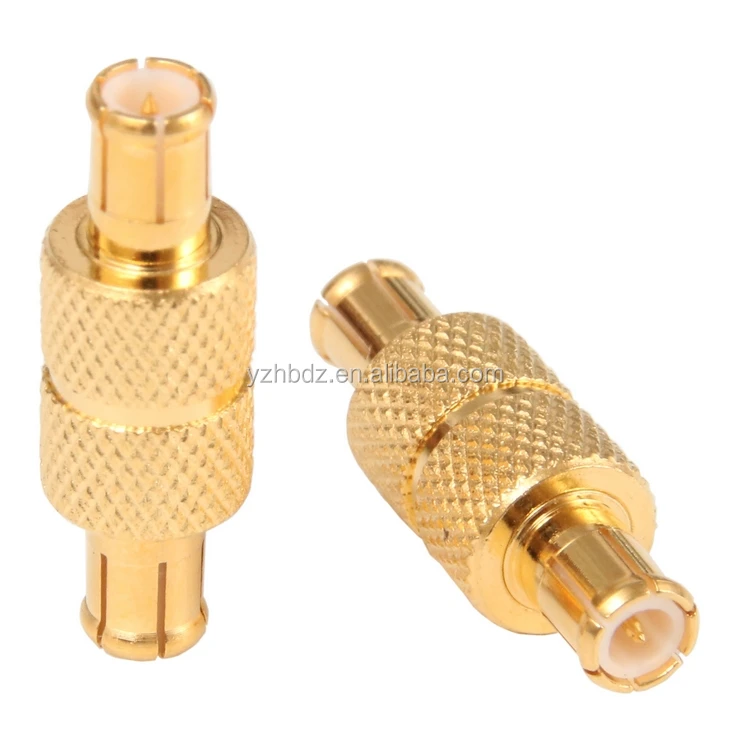

Hongbo Male to Male MCX Male RF coaxial Connector MCX Adapter MCX RF Connectors

Product Overview

Description

TYPE MCX RF coaxial connector is a kind of miniature connectors with snap-on coupling. Characterisitic impedance has two types: 50Ω and 75Ω. The characteristic of  connectors is in small volume, light weight, concise strure, easy to use. They are widely used in the Global position system, Digital personal computer network, all kinds of radio instruments, small-sized electronic equipments and WLAN sysytem.



Major Technical Characteristics		MATERIAL & PLATING
Temperature Range:	-55~+155°C(PECable-40~+85°C)
Impedance:	50Ω,75Ω	Body	brass	Gold plated
Frequency Range:	DC~4GHz(50Ω);DC~2GHz(75Ω)
Working Voltage:	335V r.m.s at sea level	Resilient contact	Beryllium-copper	Gold plated
Withstanding Voltage:	1000V r.m.s at sea level
Contact resistance:	a)Center Contact   ≤6m Ω b)Outer Contact ≤1m Ω	Pin contact	brass	Gold plated
Insulation resistance:	≥1000MΩ	Socket contact	Beryllium-copper	Gold plated
Center Conductor retention force:	≥0.28N	insulator	PTFE
Insertion Loss:	0.30dB/1.5GHz
Engagement force	8~63 N	Crimp ferrule	Copper alloy	Nickel or gold plated
Disengagement force	8~63 N
Voltage Standing Wave Ratio:	Straight  ≤1.35/ 3GHz Right angle ≤1.45/1GHz	O-ring sealing	6146silicone rubber
Durability(mating):	≥500times(cycles)

  Applicable Standard: MIL-C-39012; CECC 22170; IEC 60169-19.



Q1.How can I get some samples?
A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.

Q2.What is your delivery time?
A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS

Q3.Can you do OEM or ODM?
A: Yes, we can do OEM and ODM products.

Q4.How does your factory do regarding quality control?
A1: In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.

Q5. What's your payment way?
A1.We accept Alipay/West Union/TT. All major credit cards are accepted through secure payment processor ESCROW.
A2.Payment must be made within 3 days of order.
A3.If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.

Q6. How abort the shipping?
A: For small orders, we will send the goods by international Express like Fedex, DHL, TNT , UPS or SF, usually it takes 3-5 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.
