Manufacturer high end 300W powerful PA speaker for wholesales
US $66.00-$73.00

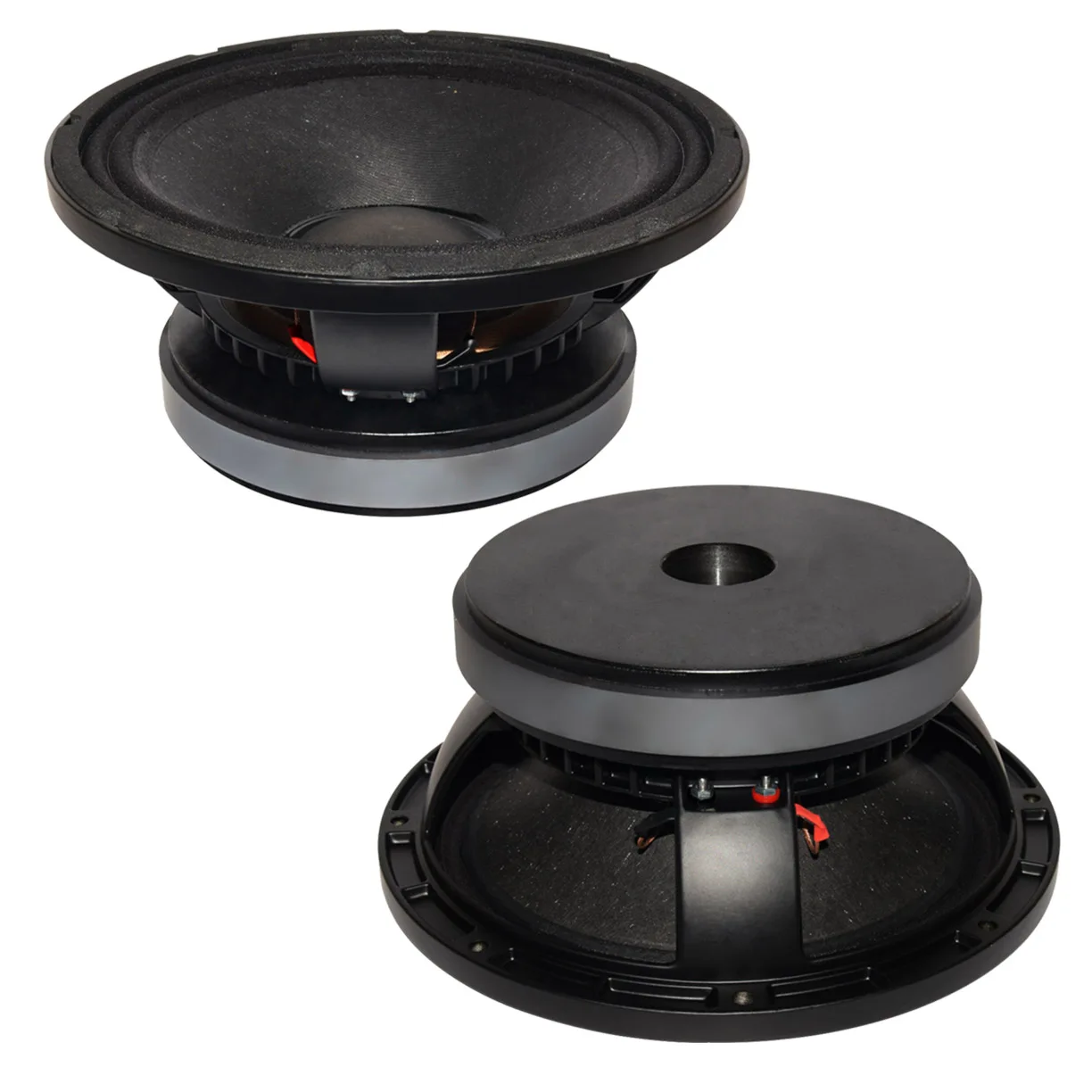

Factory directly woofer 10inch amplifier speaker woofer unit WL10192A
- Category: Professional Audio, Video & Lighting new >>>
- Supplier: GuangZhou Welike Electroacoustic Co. Ltd
Share on (62057292160):
Product Overview
Description
Product Description

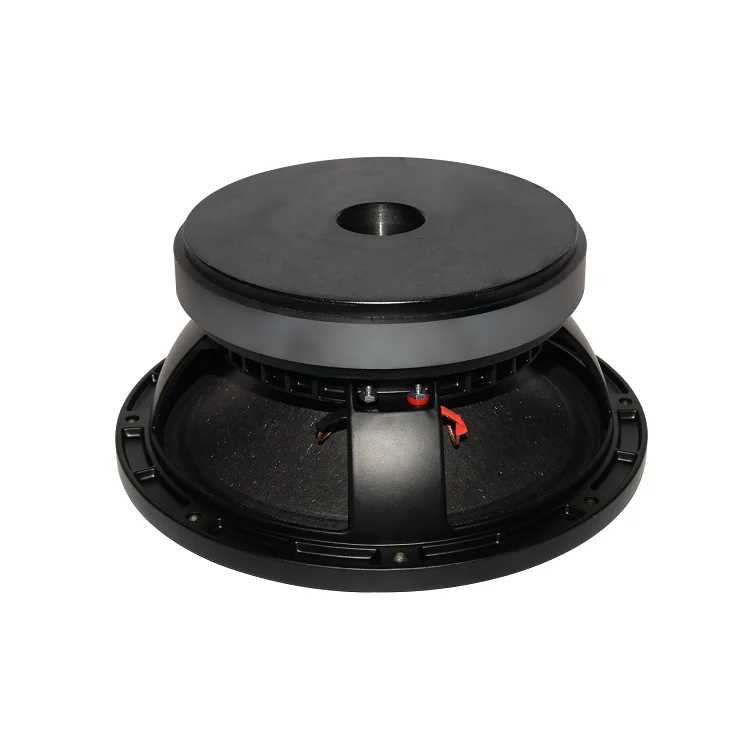

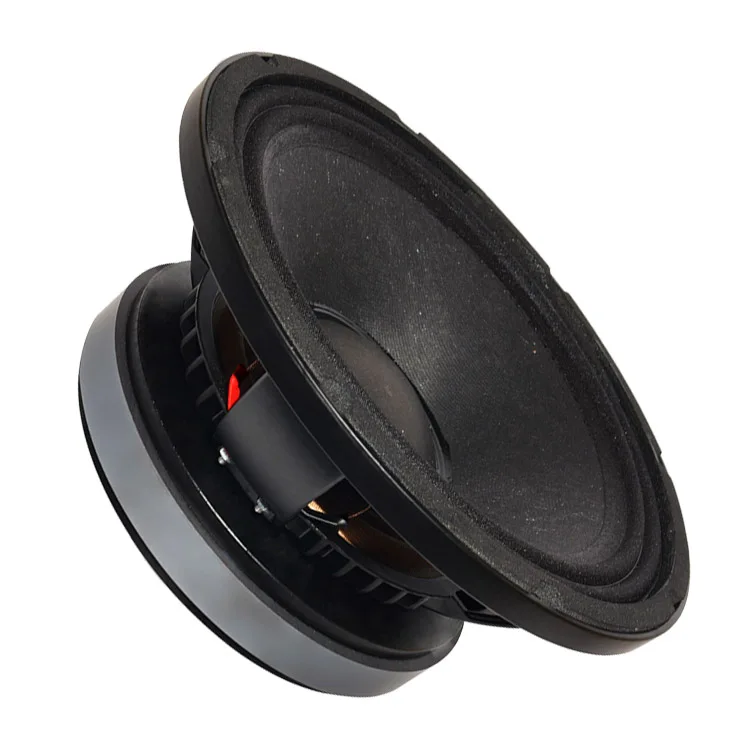

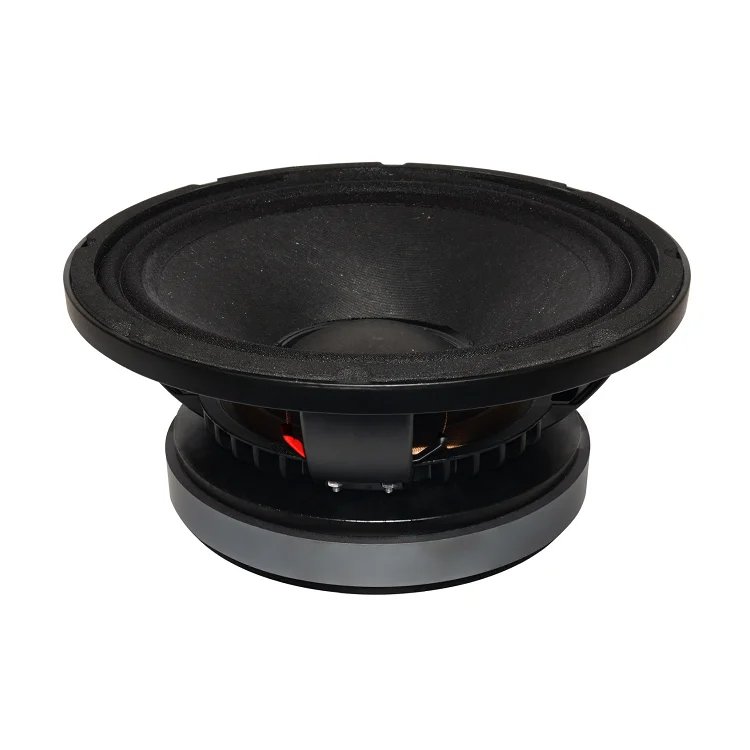

WL10192A 300 Watts 7.2 ohm 10inch speaker woofer
Main Features
1) 10inch stage woofer speaker
2) 300 W continuous program power capacity
3) 56-4KHz response
4) 97.4dB sensitivity
Product Parameter
| Model | WL10192A |
| Product Name | 15inch stage woofer speaker |
| General Specifications |
| Nominal Diameter | 260mm |
| Resonate Frequency fs | 70Hz |
| Resonate Frequency Range | 56-4KHz |
| Sensitivity | 97.4db |
| Nominal Impedance | 7.2 OHM |
| Shortterm Maximum Power | 300W |
| Total Quality Factor,Qts | 0.68 |
| Voice Coil Diameter | 75.5mm |
| Magnet Diameter | 190mm |
| Equivalen Air Volume to Cms,Vas | L |
| Mechanical Quality Factor ,Qms | 5.35 |
| Physical Information |
| Basket(Frame) | Aluminum |
| Cone And Dust Cap | Non-Press Paper |
| Surround(Damper) | Chemical fiber |
| Voice Coil Wire | Copper(PESVW) |
| Voice Coil Bobbin | Aluminium(ASV) |
| Magnet | Ferrite |
| Spider | Cloth-edge |
Packaging & Shipping
Factory Tour
Exhibition
Certifications
FAQ
Q1: What is our warranty for speaker drivers?
For our speaker driver, we have one-year warranty.
Q2:How can i get a sample ?
If you need some samples to test,we can make as per your request .You should pay for the transportation freight of samples and our samples cost,while the samples cost can be refundable after you place the order.Thanks.
Q3:How much the transportation freight of samples?
The freight depends on the weight and packing size and your area.
Q4:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q5:Can you produce according to customers' design?
Yes.we mainly do the OEM/ODM service.
Q6:What's the minimum order quantity(MOQ)?
MOQ is 50pcs-500pcs each model size.
Q7:How about the delivery time?
For sample: 10-15 days
For order: 30-45 days
