Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
t shirt plastic bag punching machine
- Category: Packaging Material Making Machine >>>
- Supplier: Hebei Chengheng Plastic Machinery Technology Co. Ltd.
Share on (62057357194):
Product Overview
Description
Products Description

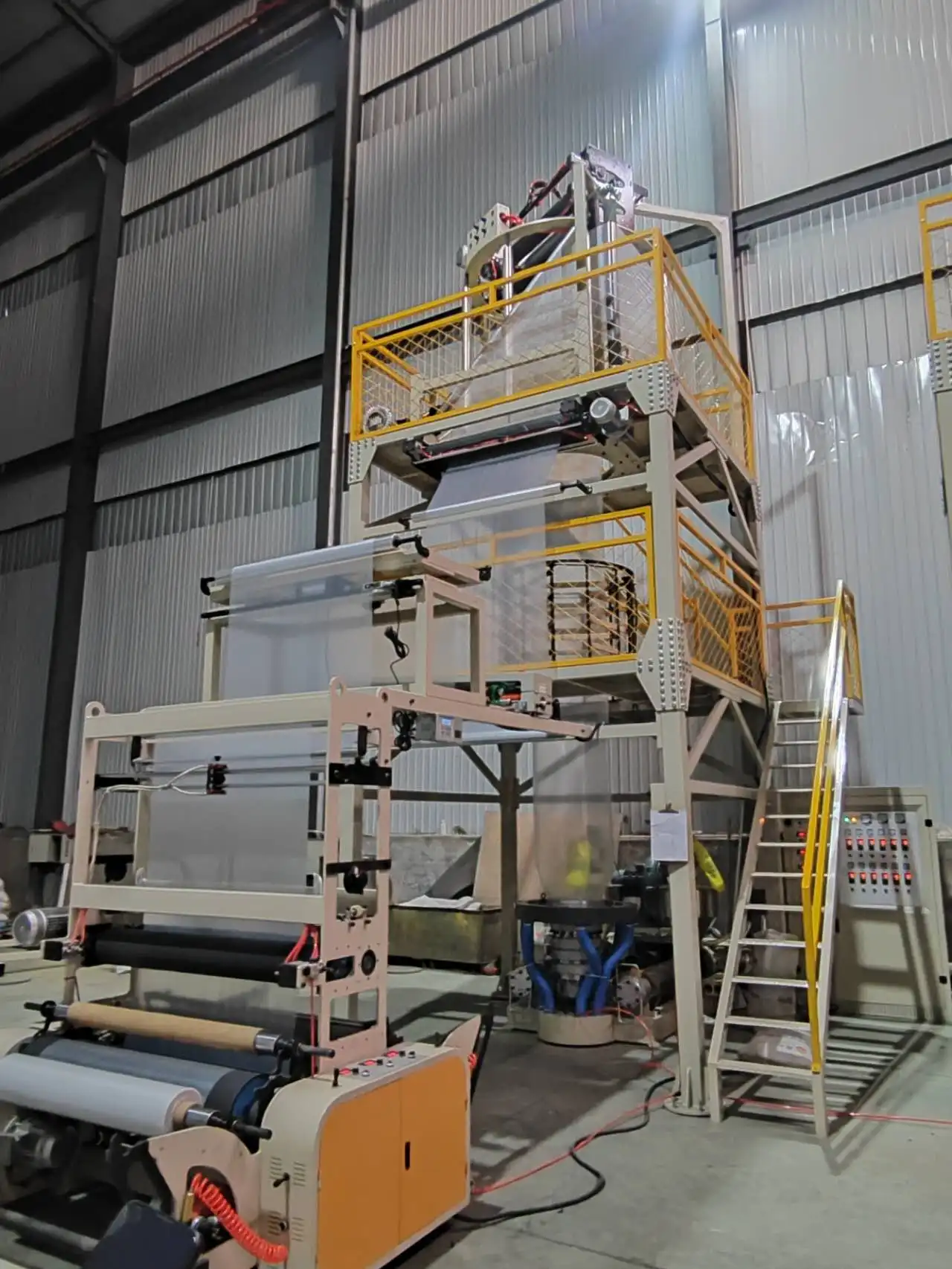

ABA film blowing machine
1. Suitable for HDPE, LDPE, LLDPE, RECYCLE CACO3.
2. The whole machine is square structure.

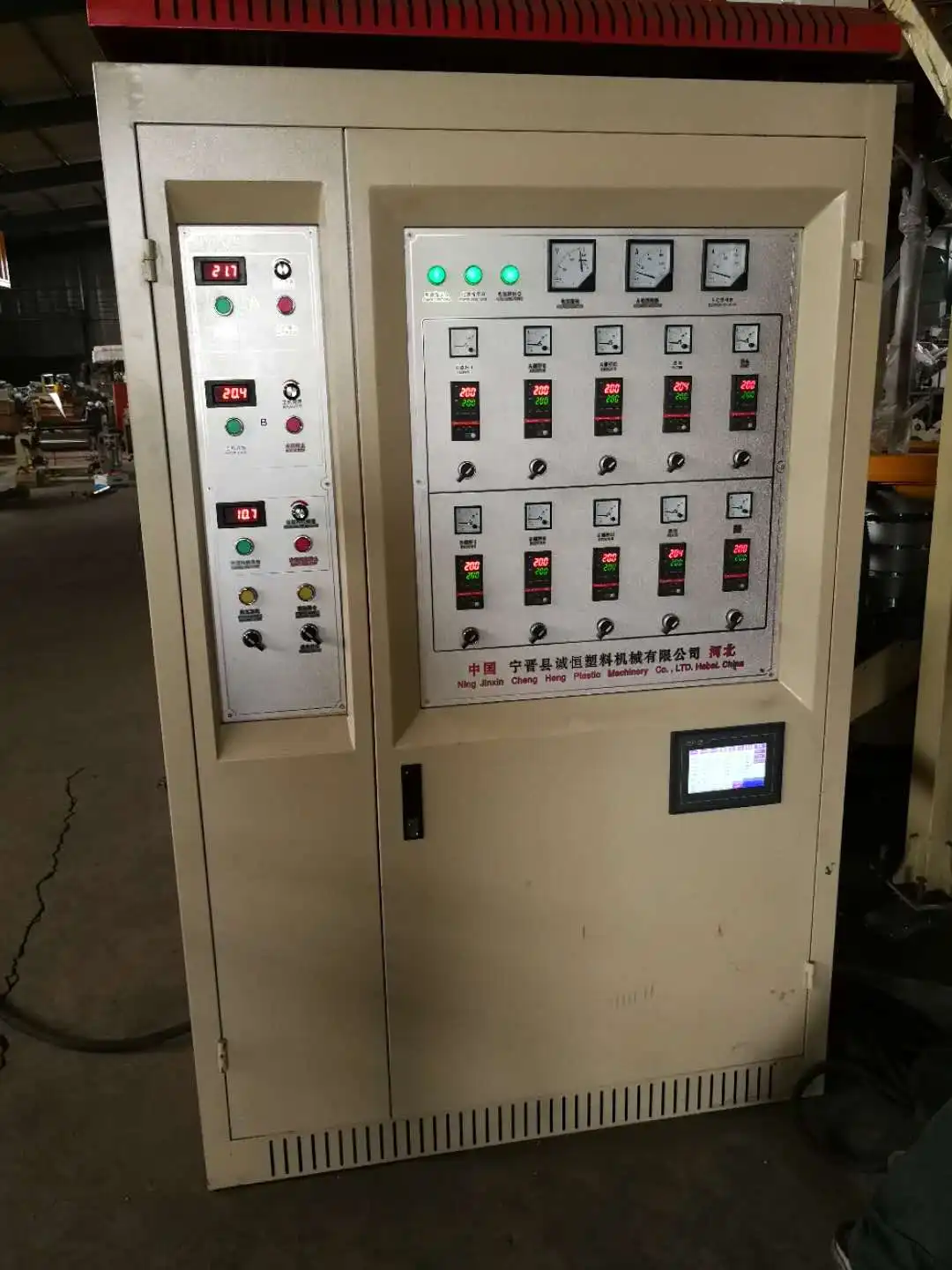

3. Traction inverter control, host frequency inverter control, 100% original three-phase variable frequency motor. Equipped with inverter control.
4. Full enclosed overtemperature cooling device.
5. Aluminum guide shaft Lambdoidal board.
Details Images
Screw
1.Material: SAMC645 or 38CrMoAlA with Nitriding treatment, alloy layers 3mm
2. L/D ratio of screw: 30:1 or 32:1
3. Rotation speed of screw: 10-120r/m
4. Ceramic heater

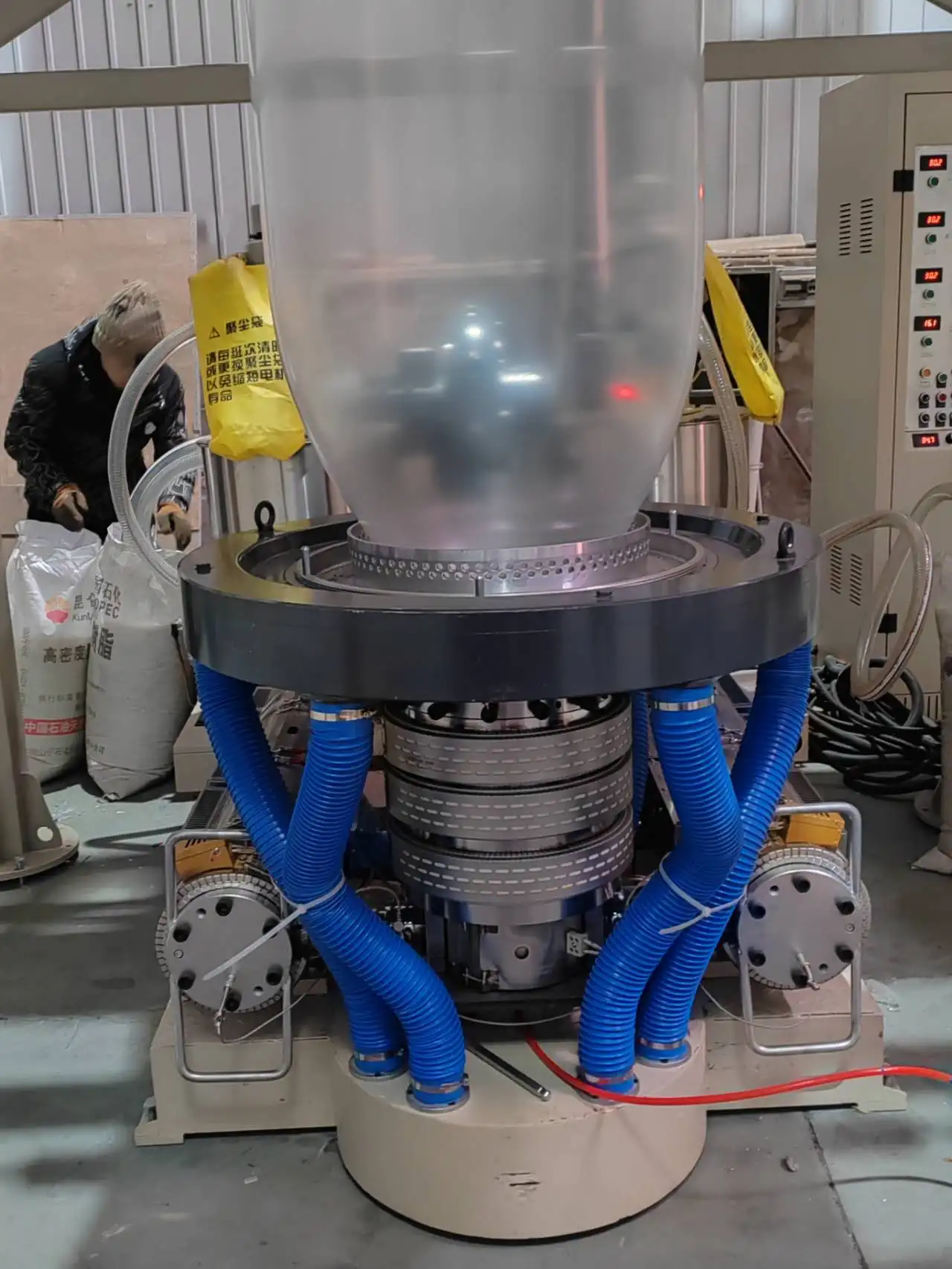

Die head
1. With 40Cr steel, quenched and tempered, hard chrome plated and polished treatment, chrome plating layer uniform,high finish,
wear resistance and corrosion resistance. It is very smoothly inside.
wear resistance and corrosion resistance. It is very smoothly inside.
2. Ceramic heater
Air ring
1. Double Lip air ring
2. High speed blower to cool the film, cooling fast.
3. New type of air ring is optimized and the air volume is adjusted evenly and stably.
3. New type of air ring is optimized and the air volume is adjusted evenly and stably.

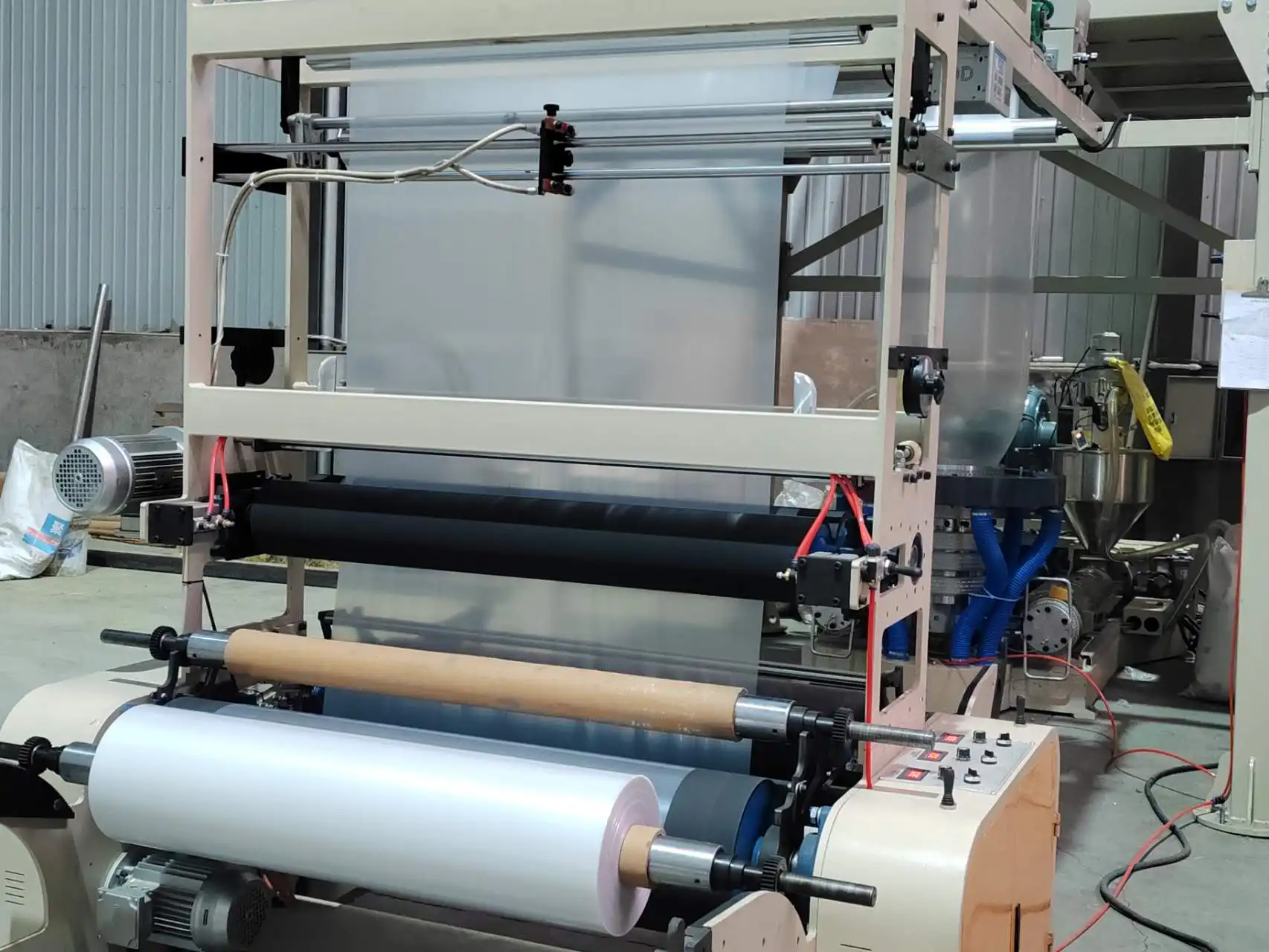

Vertical traction rotary
1. The film is more easier to wrap the roller in traction
2. It can make the film more uniform
3. The function is more better than rotary die head, but the price is cheaper.
Product Paramenters
Model | 45-45/900 | 50-50/1200 | 55-55/1400 | 65-65/1600 | |||
Width of film | 250-800mm | 300-1100mm | 500-1300mm | 550-150mm | |||
Out put | 85kg/h | 125kg/h | 150kg/h | 175kg/h | |||
Raw material | HDPE LDPE LLDPE RECYCLE CACO3 | ||||||
Screw | Φ45 Φ45 | Φ50 Φ50 | Φ55 Φ55 | Φ65 Φ65 | |||
Gear box | #173 #173 | #180 #180 | #200 #200 | #225 #225 | |||
Main Motor | 18.5kw 18.5kw | 22kw 22kw | 30kw 30kw | 37kw 37kw | |||
Overall size L*W*H | 6.5m*3m*5.5m | 6.5m*3.8m*6.2m | 6.8m*4m*6.8m | 6.8m*4m*7m | |||
Weight | 4000kg | 4200kg | 4800kg | 5200kg | |||

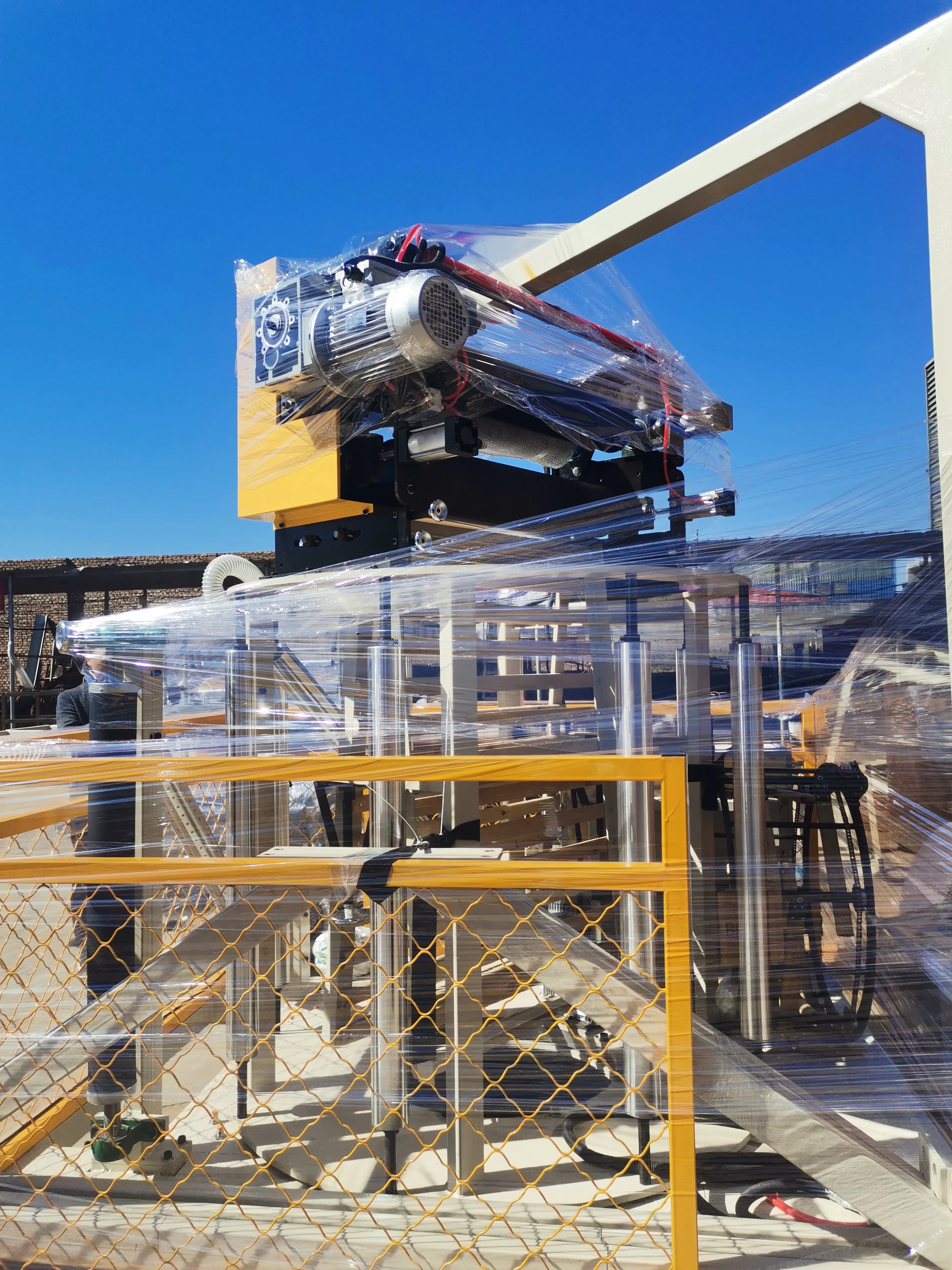

Product packaging
