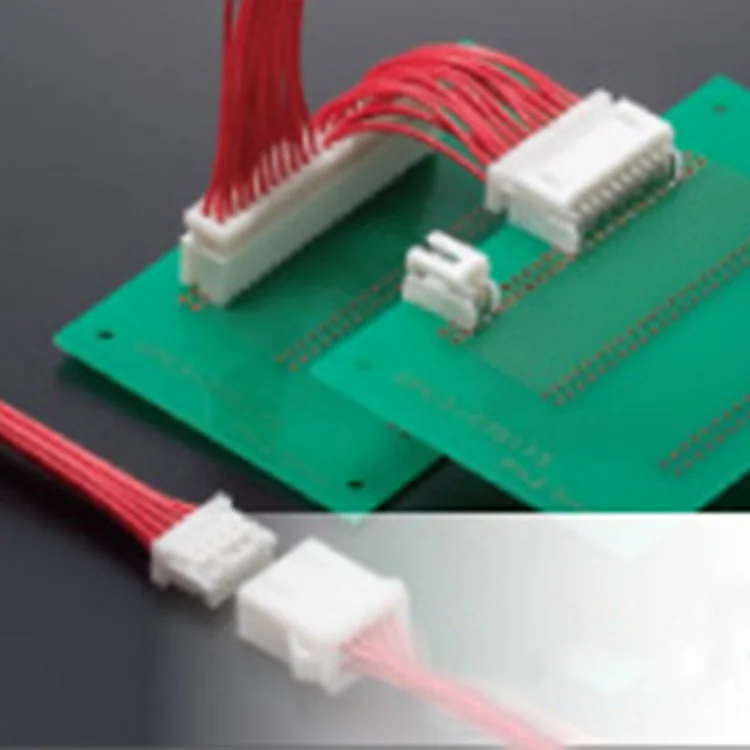

HRS Df1B 2.5mm Pitch Connector hrs DF1BA 6EP 2.5RC Cable assembly for Discrete Wire Connection
- Category: >>>
- Supplier: Shenzhen Sino-Media Technology Co. Ltd.
Share on (62057393458):
Product Overview
Description
HRS Df1B 2.5mm Pitch Connector DF1BA- 6EP-2.5RC for Discrete Wire Connection
| Item | Specification | Condition |
| 1. Insulation Resistance | 1000Mø Min | 500V DC |
| 2. Withstanding voltage | No flashover or insulation breakdown. | 650V AC/1 minute |
| 3. Contact Resistance | 30mø Max | 100mA |
| 4. Insertor/Extraction Force | MIN0.44N (45gf), MAX4.4N(450gf) | Measure at the square steel pin of 0.635±0.002mm |
| 5. Vibration | No electrical discontinuity of 1μs or more | Frequency : 10 to 55Hz, single amplitude of 0.75mm, 2 hours in each of the 3 directions. |
| 6. Humidity (Steady state) | Contact resistance : 30mø max. resistance : 1000Mø min. | 96 hours at temperature of 40±2ç and Insulation humidity of 90% to 95% |
| 7. Temperature Cycle | Contact resistance : 30mø max. resistance : 1000Mø min. | (-55ç : 30 minutes 5 to 35ç : 10 minutes Insulation (-85ç : 30 minutes 5 to 35ç : 10 minutes) 5 cycles |
| 8. Operating Life | Contact resistance : 30mø max. | Tin plating : 30 cycles Gold plating : 50 cycles |
| 9. Resistance to Soldering heat | No deformation of components affecting performance. | Flow : 250ç for 10 seconds Manual soldering : 300ç for 3 seconds |
Produst Show

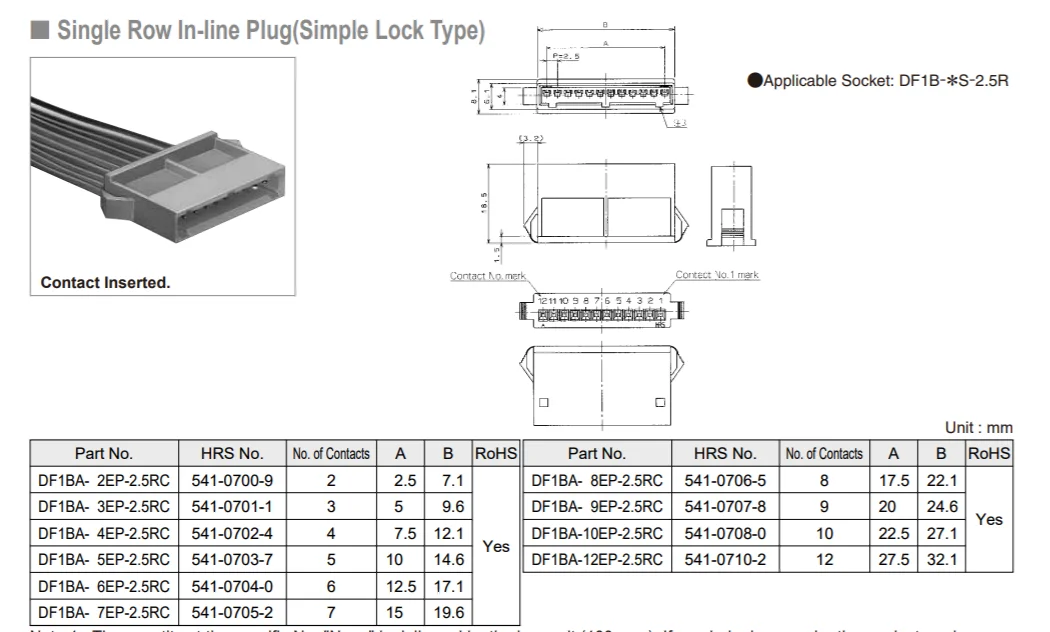

| Part No. | |
| DF1BA- 2EP-2.5RC | DF1BA- 8EP-2.5RC |
| DF1BA- 3EP-2.5RC | DF1BA- 9EP-2.5RC |
| DF1BA- 4EP-2.5RC | DF1BA-10EP-2.5RC |
| DF1BA- 5EP-2.5RC | DF1BA-12EP-2.5RC |
| DF1BA- 6EP-2.5RC | |
| DF1BA- 7EP-2.5RC |
Company show
Delivery Service
Faq
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A:We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq 1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delivery, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this procedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, and finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market and promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3% to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 1003pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
