LED FR 4 Aluminium FPC Flex connector PCB board

Share on:

Price in USD:Details


Product Overview



1-20 layer
Material Type
FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
Board Thickness
0.21mm to 7.0mm
Copper Thickness
0.5 OZ to 6 oz
Max. Board Size: 580mm×1100mm
Min. Drilled Hole Size: 0.2 mm (8 mil)
Min. Line Width: 4mil (0.1mm)
Min. Line Spacing: 4mil (0.1mm)
Surface Finishing
HASL / HASL lead free, HAL, Chemical tin,
Immersion Silver / Gold, OSP, Gold plating
Solder Mask Color
Green / Yellow / Black / White / Red / Blue
Shape tolerance: ±0.13
Hole tolerance: PTH: ±0.076 NPTH: ±0.05
International Certification Standards
Special Requirements
Buried and blind vias+controlled impedance +BGA
Punching, Routing, V-CUT, Beveling

Product Description

Recommend Products

Application Field

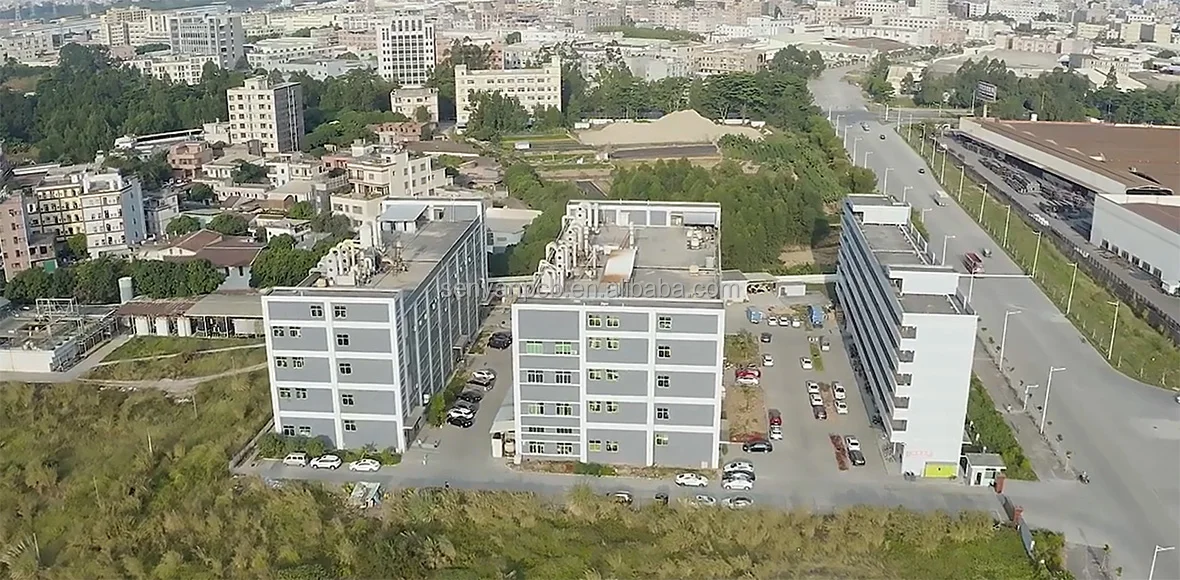

Company Profile

Our principle for management is "providing the clients with excellent products, making them satisfied with our services." "Trustworthiness, responsibility, profession and innovation" is the operation philosophy that we always stick to. We will win the trust of clients by our professional manufacturing management, stable quality, exquisite technology and the improvement of the services.

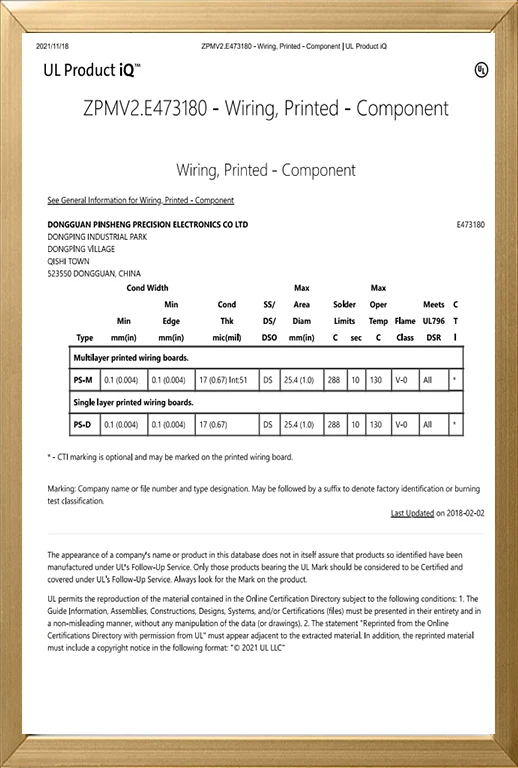

Our Certification

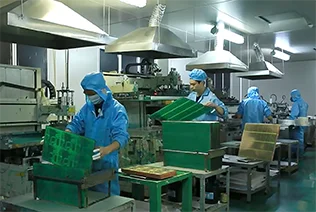

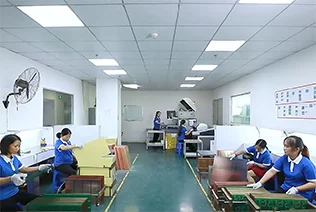

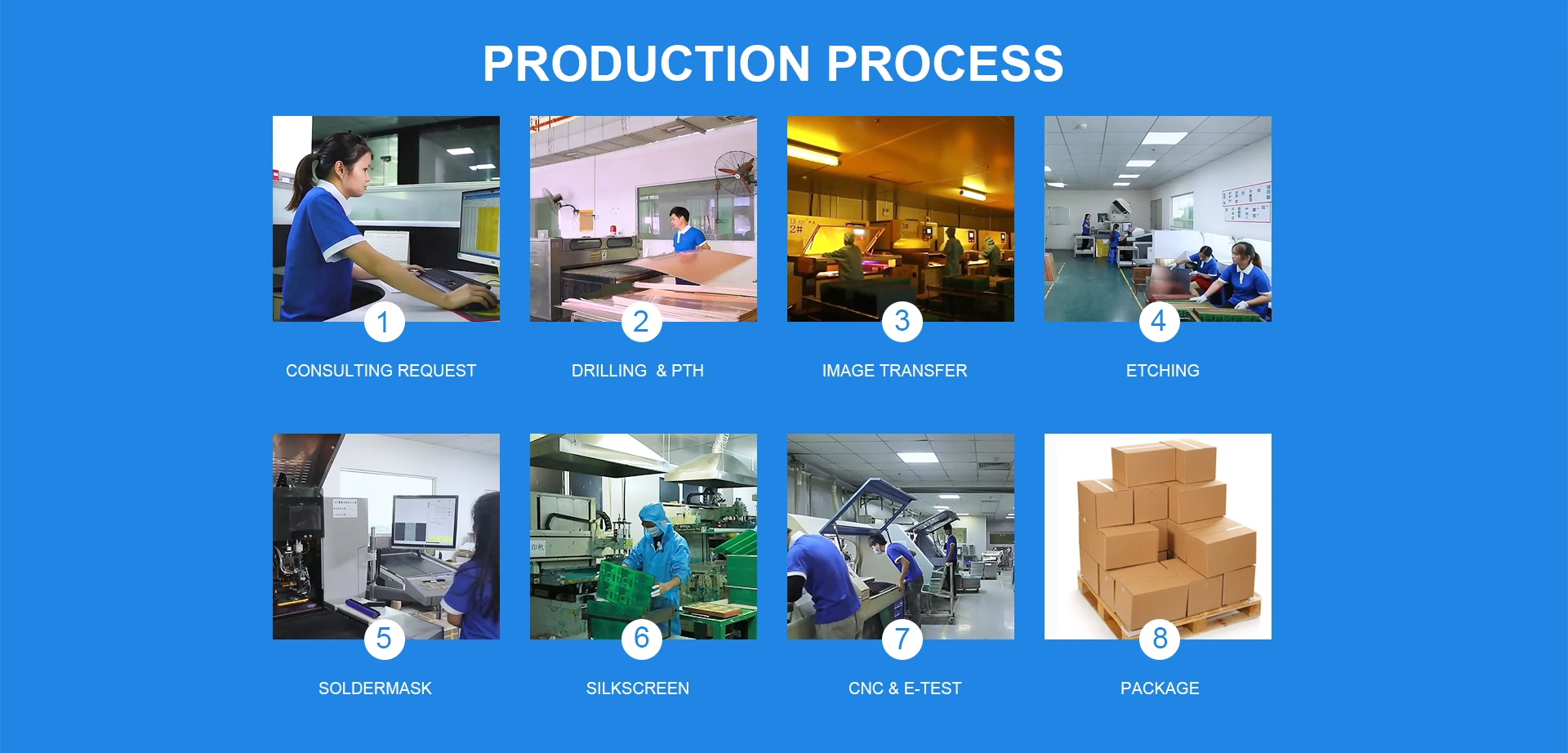

Production Process

Packing & Delivery

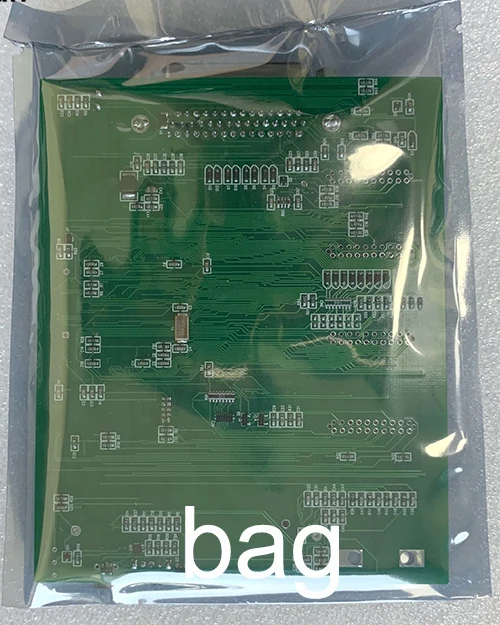

Inner vacuum package, outer with carton box


1. who are we ?
We are based in Guangdong, China, start from 2011,sell to North America(30.00%),Southern Europe(30.00%),Domestic Market(20.00%),Southeast Asia(5.00%),Western Europe(5.00%),Eastern Europe(2.00%),South Asia(2.00%),South America(00.00%),Africa(00.00%),Oceania(00.00%),Mid East(00.00%),Eastern Asia(00.00%),Northern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality ?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us ?

4. why should you buy from us not from other suppliers ?
Our company has a modern production workshop, imported professional production equipment and testing equipment from the European countries and the United States, We have advanced production technology.The geographical position is superior.

5. what services can we provide ?
Accepted Delivery Terms: FOB,CIP,Express Delivery;
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese
