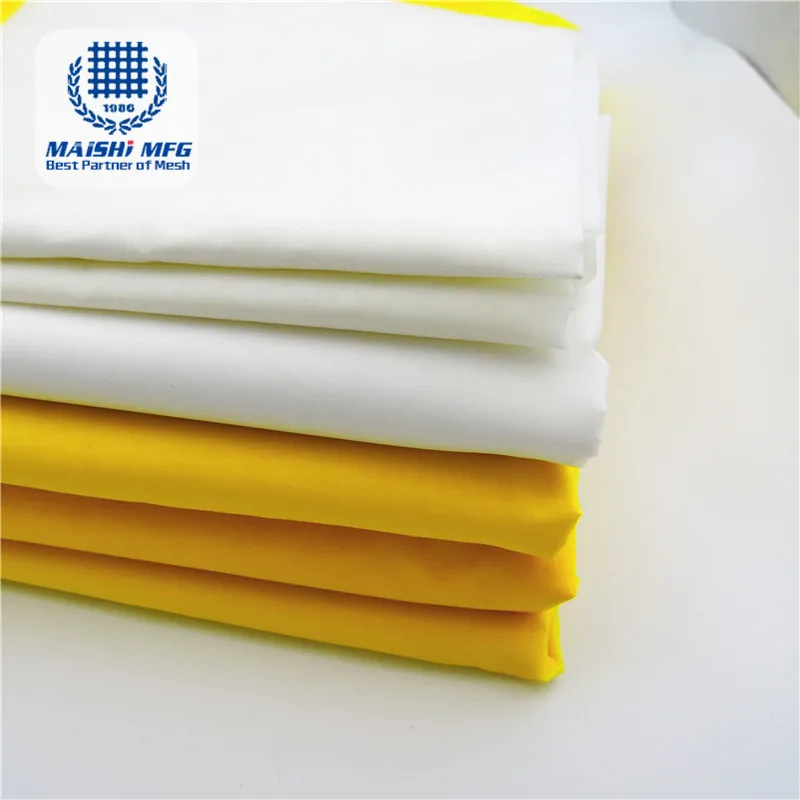

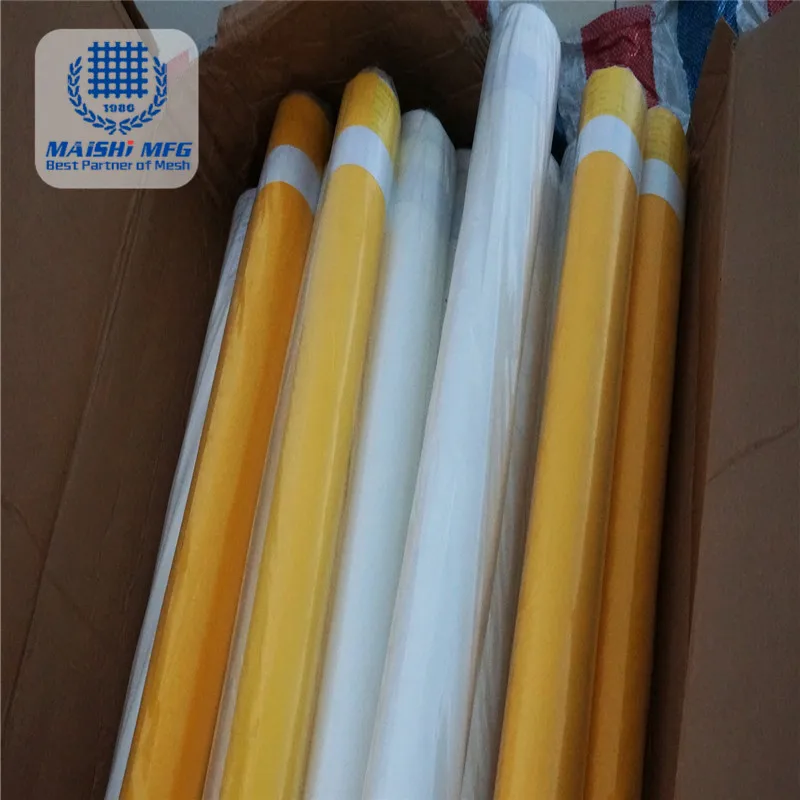

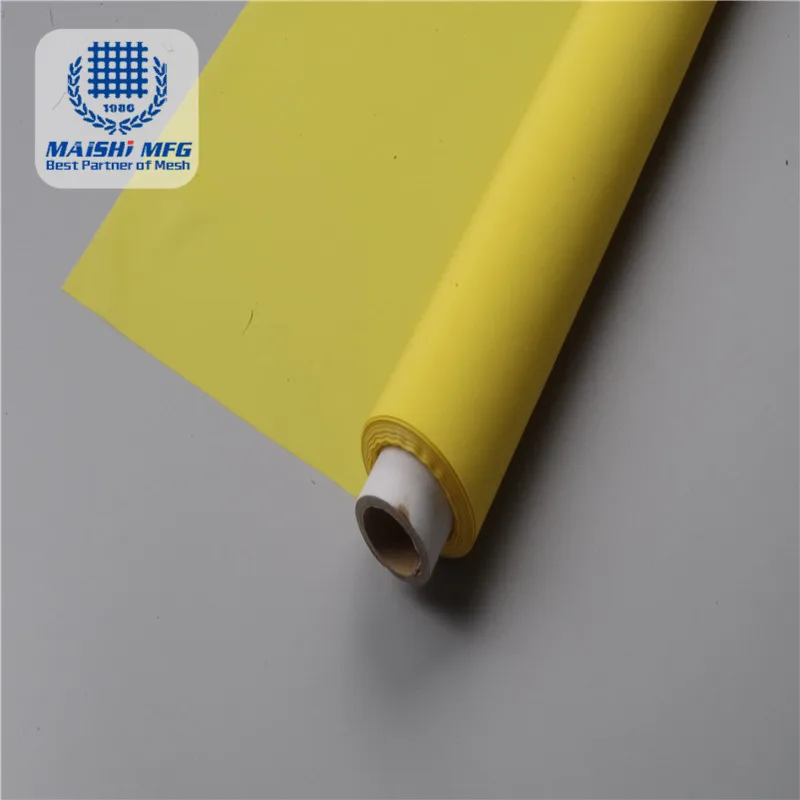

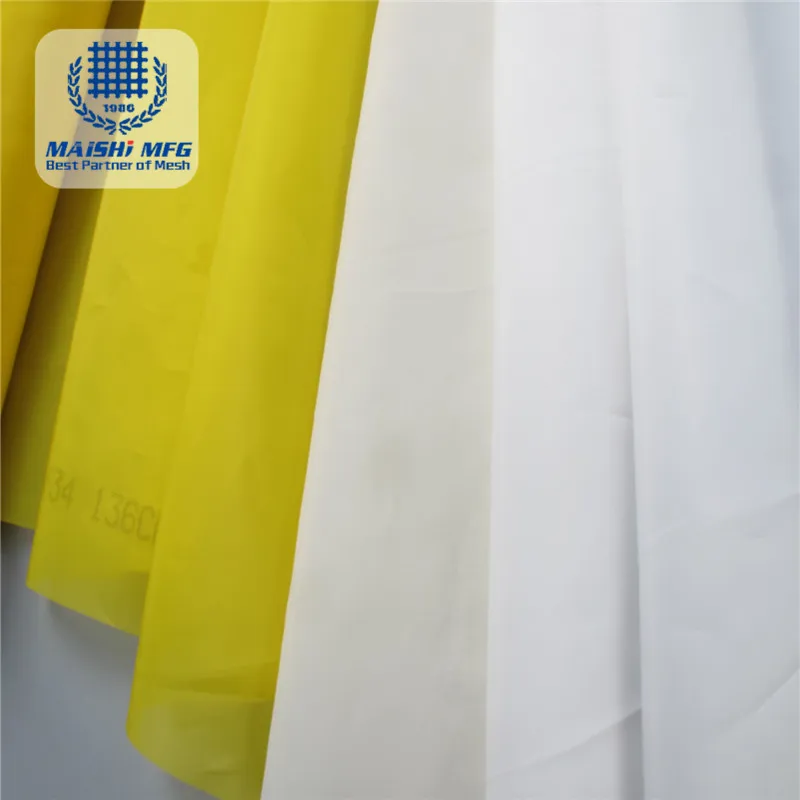

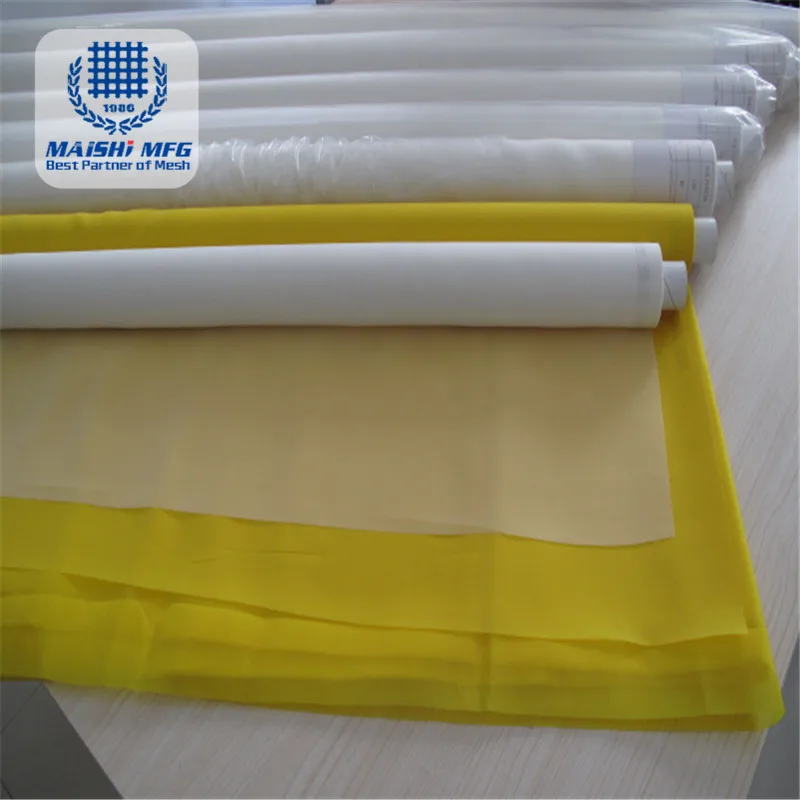

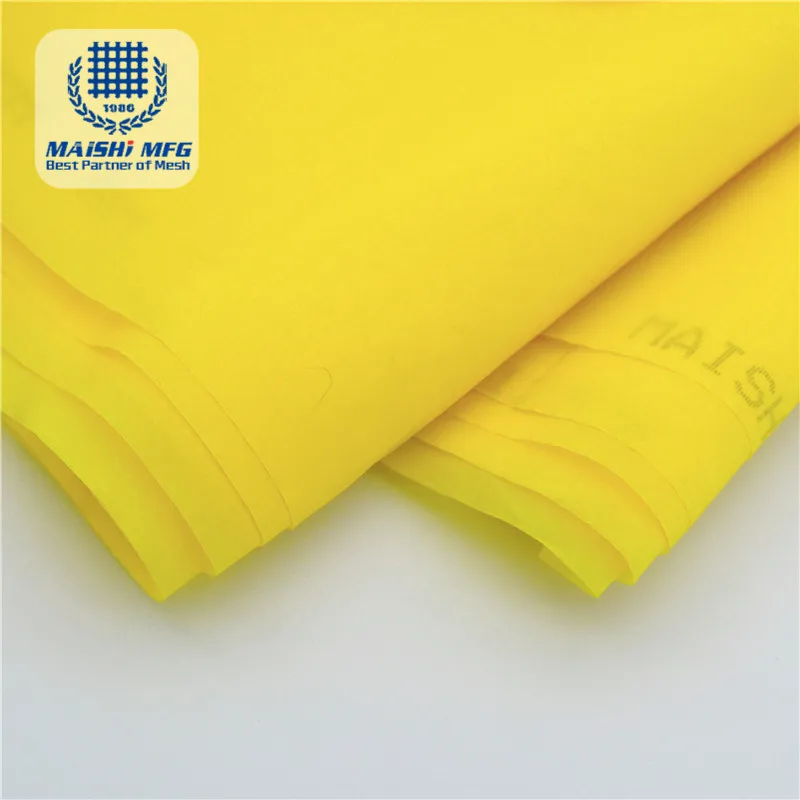

100% polyester mesh silk printing mesh for machine printing
With more than 30 years' experience of polyester printing mesh, MAISHI Wire Mesh Manufacture Group has been one of the leading manufacturers in China, our polyester mesh use best jintong yarn to ensure the mesh quality and is widely used for printing, If you have any inquiry for polyester printing mesh please kindly let us konw. We will do our best to support you.
1. Material: 100%Polyester
2. Shape of the hole: square
3. Function: Printing
4. Mesh count: 15mesh-420mesh
5. Size available: standard and custom sizes
6. Characteristic :high tensity,low elongation,excellent dimensional stability

| TYPE | MESH COUNT | APERTURE | THREAD DIAMETER | OPENING | THICKNESS | INK THROUGH VOLUME THEORETICALLY | TENSILE STRENGTH |
(mesh/inch) | (micron) | (micron) | (%) | (micron) | (cm³/m²) | TENSILE STRENGTH (N/CM) | |
| 6-400 | 15 | 1300 | 400 | 65 | 780-810 | 560 | 110 |
| 7-350 | 18 | 350 | 1067 | 55 | 585-598 | 389 | 110 |
| 8-300 | 20 | 970 | 300 | 58 | 550-580 | 406 | 100 |
| 10-250 | 25 | 700 | 250 | 49 | 508-518 | 355 | 85 |
| 12-140 | 30 | 685 | 140 | 68 | 273-275 | 189 | 65 |
| 12-150 | 30 | 696 | 150 | 67 | 270-274 | 180 | 50 |
| 12-250 | 30 | 610 | 250 | 53 | 495-505 | 305 | 85 |
| 15-250 | 38 | 467 | 250 | 49 | 489-501 | 213 | 83 |
| 16-120 | 40 | 515 | 120 | 65 | 225-230 | 147 | 62 |
| 16-140 | 40 | 461 | 140 | 58 | 230-238 | 139 | 65 |
| 16-150 | 40 | 485 | 150 | 58 | 282-292 | 164 | 65 |
| 16-200 | 40 | 403 | 200 | 44 | 329-341 | 151 | 70 |
| 16-250 | 40 | 356 | 250 | 34 | 420-425 | 145 | 85 |
| 18-150 | 45 | 410 | 150 | 53 | 255-275 | 138 | 50 |
| 20-80 | 50 | 399 | 80 | 69 | 132-142 | 92 | 36 |
| 20-100 | 50 | 380 | 100 | 62 | 165-172 | 105 | 50 |
| 20-150 | 50 | 358 | 150 | 50 | 252-257 | 126 | 55 |
| 21-80 | 55 | 378 | 80 | 68 | 125-140 | 125 | 36 |
| 21-150 | 55 | 330 | 150 | 46 | 260-280 | 123 | 55 |
| 24-80 | 60 | 343 | 80 | 65 | 132-136 | 86 | 42 |
| 24-100 | 60 | 316 | 100 | 57 | 188-195 | 109 | 49 |
| 24-120 | 60 | 303 | 120 | 51 | 230-240 | 104 | 51 |
| 24-150 | 60 | 273 | 150 | 42 | 249-255 | 100 | 60 |
| 28-80 | 70 | 80 | 262 | 58 | 130-138 | 79 | 40 |
| 28-100 | 70 | 100 | 243 | 50 | 165-174 | 85 | 45 |
| 30-120 | 75 | 213 | 120 | 41 | 235-245 | 102 | 52 |
| 32-64 | 80 | 236 | 64 | 60 | 105-110 | 68 | 31 |
| 32-80 | 80 | 237 | 80 | 55 | 120-130 | 110 | 40 |
| 32-100 | 80 | 212 | 100 | 46 | 145-155 | 69 | 48.5 |
| 34-100 | 85 | 198 | 100 | 44 | 165-172 | 71 | 50 |
| 36-80 | 90 | 202 | 80 | 51 | 145-150 | 70 | 45 |
| 36-90 | 90 | 185 | 90 | 45 | 155-165 | 65 | 49 |
| 36-100 | 90 | 182 | 100 | 41 | 175-185 | 60 | 51 |
| 39-55 | 100 | 195 | 55 | 56 | 88-96 | 55 | 24 |
| 39-80 | 100 | 176 | 80 | 48 | 148-153 | 73 | 31 |
| 39-100 | 100 | 154 | 100 | 37 | 168-173 | 60 | 42 |
| 43-80 | 110 | 147 | 80 | 40.8 | 125-131 | 53 | 31 |
| 47-55 | 120 | 152 | 55 | 51 | 88-96 | 47.6 | 29 |
| 48-70 | 120 | 135 | 70 | 41 | 108-120 | 45.5 | 30 |
| 51-55 | 51 | 134 | 55 | 50 | 92-98 | 47 | 28 |
| 53-48 | 135 | 139 | 48 | 55 | 85-90 | 48 | 26 |
| 53-55 | 135 | 128 | 55 | 47 | 88-96 | 44.5 | 29 |
| 54-64 | 137 | 115 | 64 | 38.5 | 88-105 | 38.9 | 30 |
| 54-70 | 137 | 108 | 70 | 34 | 108-120 | 40 | 31 |
| 58-55 | 145 | 118 | 55 | 38 | 89-94 | 39.5 | 30 |
| 59-45 | 150 | 124 | 45 | 54 | 83-87 | 29 | 31 |
| 59-48 | 150 | 121 | 48 | 51 | 85-89 | 43 | 29 |
| 59-55 | 150 | 114 | 55 | 45 | 85-90 | 38 | 30 |
| 59-64 | 150 | 105 | 64 | 36 | 103-108 | 39 | 25 |
| 61-48 | 155 | 115 | 48 | 49 | 76-83 | 41 | 30 |
| 62-64 | 155 | 105 | 64 | 42 | 98-107 | 33 | 31 |
| 64-45 | 160 | 105 | 48 | 43 | 73-82 | 36.5 | 30 |
| 64-53 | 160 | 105 | 53 | 44 | 78-86 | 34 | 30 |
| 64-55 | 160 | 98 | 55 | 38 | 85-95 | 36.1 | 30 |
| 64-64 | 160 | 88 | 64 | 30 | 95-105 | 30.7 | 31 |
| 68-55 | 175 | 85 | 55 | 34 | 85-95 | 29.2 | 30 |
| 68-64 | 175 | 78 | 64 | 29 | 108-110 | 32.0 | 32 |
| 72-48 | 180 | 90 | 48 | 36 | 75-84 | 33.1 | 28 |
| 72-55 | 180 | 80 | 55 | 33 | 89-95 | 31 | 29 |
| 77-48 | 195 | 81 | 48 | 34 | 80-85 | 29 | 28 |
| 77-55 | 195 | 75 | 55 | 28 | 86-92 | 26.6 | 29 |
| 80-48 | 200 | 72 | 48 | 33 | 75-84 | 28.7 | 27 |
| 90-48 | 230 | 56 | 48 | 25 | 77-85 | 23.5 | 25 |
| 100-40 | 250 | 58 | 40 | 37 | 66-73 | 21.3 | 28.5 |
| 110-40 | 280 | 52 | 40 | 33 | 78-85 | 20.5 | 29.6 |
| 120-31 | 305 | 49 | 31 | 36 | 50-55 | 19.5 | 29 |
| 120-34 | 305 | 45 | 34 | 30.5 | 52-57 | 18.4 | 30.5 |
| 120-40 | 305 | 37 | 40 | 21 | 65-67 | 13.5 | 32 |
| 130-34 | 330 | 42 | 34 | 30 | 50-55 | 16.5 | 31 |
| 130-40 | 330 | 31 | 40 | 17 | 63-68 | 12 | 32 |
| 140-31 | 355 | 34 | 31 | 25 | 48-53 | 13 | 29 |
| 140-34 | 355 | 31 | 34 | 19.5 | 56-62 | 14.4 | 31 |
| 150-31 | 380 | 36 | 31 | 29 | 43-47 | 13.1 | 30.5 |
| 150-34 | 380 | 30 | 34 | 20.5 | 56-62 | 14.9 | 30.5 |
| 165-31 | 420 | 31 | 31 | 22.5 | 52-58 | 12.5 | 28.9 |
Application:



Maishi ensure the quality for polyester printing mesh.
We buy yarn from Jintong, we inspect the yarn when they unloaded in our factory. (tolerance, tensile strength, physics test etc.).
After that, we put the warp wire on beam, draw the warp wire into heddle and reed. Then our experienced weaver will start weaving according to orders.
Initial survey will be done after weaving. Then start heat setting treatment and physical properties inspection, before we get tentative finished rolls(60-500 meters big rolls).
In the end, we’ll cut the small rolls(20m-50m) according to customer orders after a final inspection.
HEBEI MAISHI dostrictly tested before the goods dispatched from our factory to ensure the quality of polyester printing mesh.Make sure customers get perfect quality.


Factory show
Hebei Maishi Wire Mesh Manufacture Factory is one of the top manufacturers and exporters of wire mesh.Our company was connected with production of metal wire mesh since 1986 and monofilament polyester screen mesh(bolting cloth) and nylon mesh since 1995, in China. The machinery( Width 3900mm from Switzerland Sulzer and WJ1300/1600 A, B, D) and apparatus used in production process fully based on the high computer technology.
· Dedicated and experienced weavers.
· Consistent quality products.
· On-time delivery.
· We have 15 R&D technical staffs,with more than 10 years experience.
· 80% repeat customers.
· Reasonable claim refund system.
