Product Overview

Description


Product Description

1.  PLC automatic refueling system.

2.  Automatic lifting system.

3.  Card bottle clutch system.

1.  All 304/316 stainless steel.

2.  capping head Torque can be            adjusted/not hurt the capper paint

1.  All 304/316 stainless steel.
2.  capping mould material:ceramic.
      /not hurt the capper paint

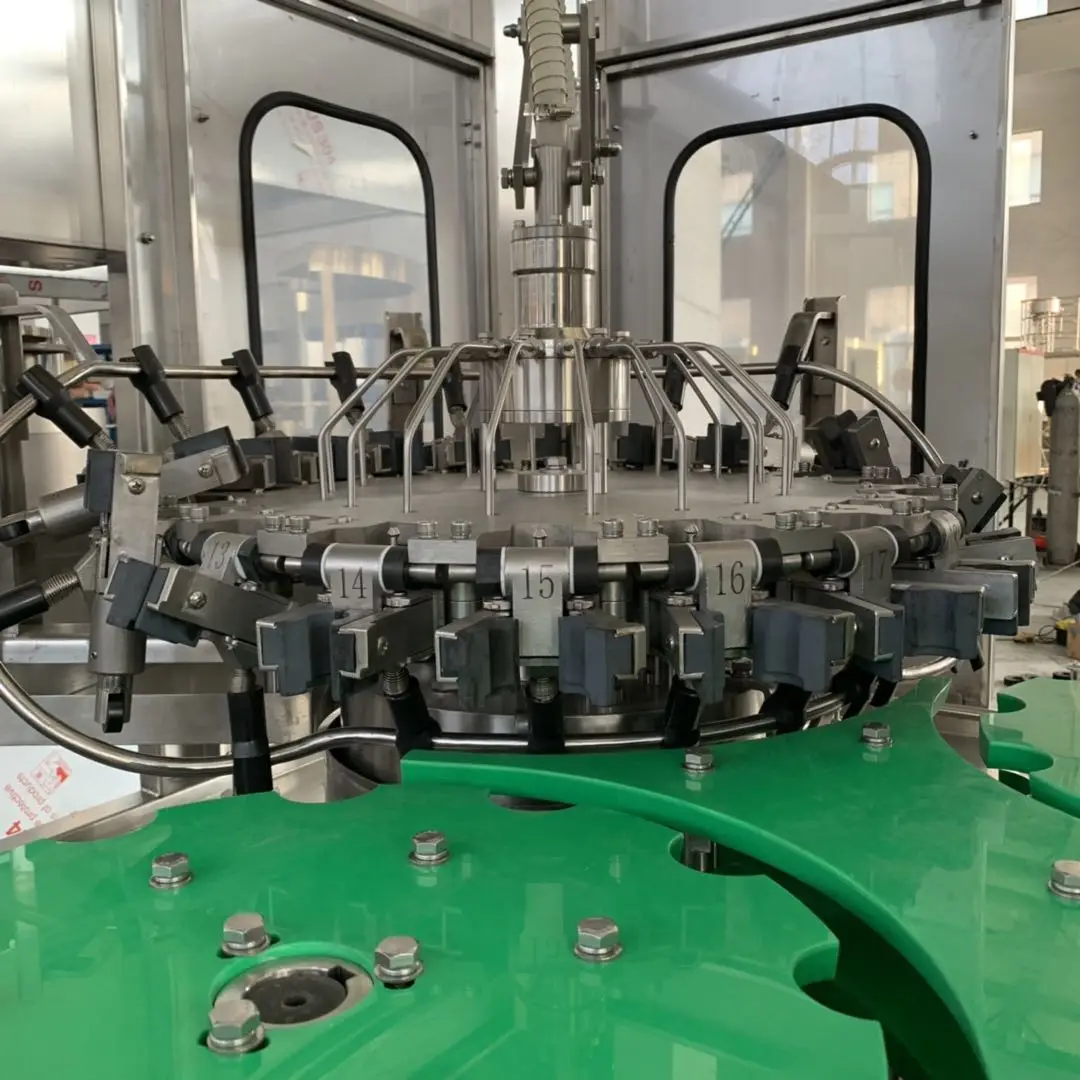

Washing Parts :

 <1>360 degree cleaning inside and outside of the bottle,no dead Angle.

<2>All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
<3>The flushing pressure can be adjusted.
<4> 304/316 stainless steel washing pump make the machine more durable .

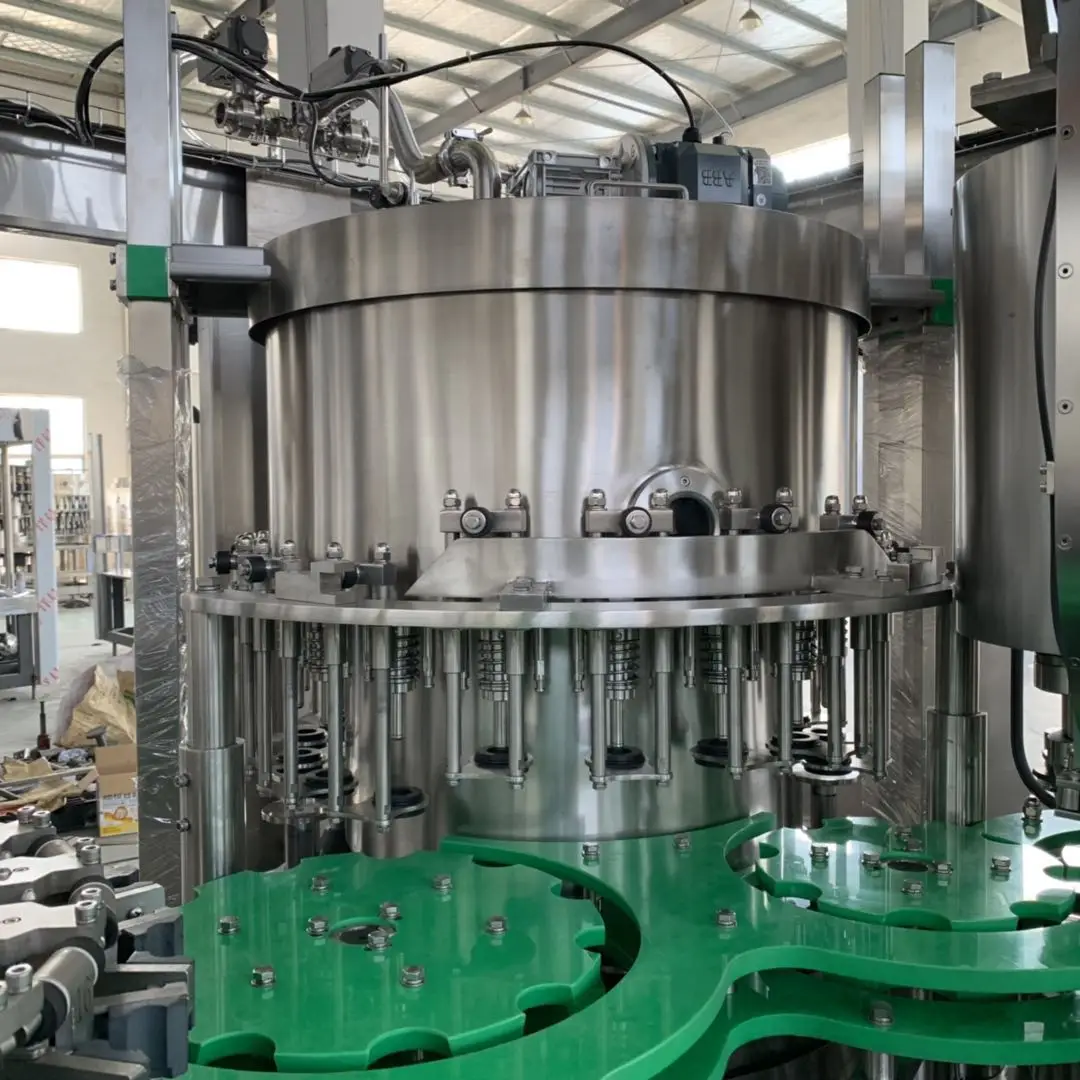

Filling parts :

<1> 304/316 Stainless steel high precision filling nozzle.
<2> Filling volume adjustable in fine rank, same liquid level after filling.
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean,Auto 360 degrees cleaning ball washing.
<4> 304/316 stainless steel filling pump.

Plastic capper capping machine parts :

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5> Italy ROAL capping hard,capping effect is stable and reliable,Defective rate ≤0.1%

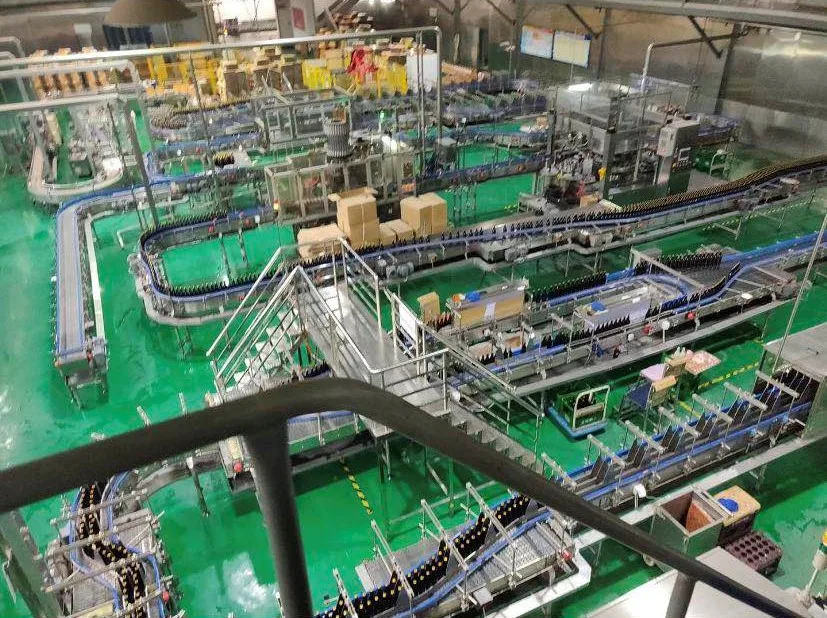

Flat conveyor :

<1> Adapt to customer factory layout.
<2> Special lubrication system, keep products clean, health, safety,extended service life
<3> Electric eyes design keep whole line running safety and quickly,Energy saving. High efficient.
<4> Overload protection mechanism to effectively ensure the safe of the machine
<5>All Stainless steel 304 support, hygienic/firm

Air conveyor :

<1> Air conveyor is fixed on the floor, with fan installed on the top.
<2> Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
<3> All are made of stainless steel SUS 304 /316.

\t
Automatic bottled liquor filling machine packaging line specifications
\t
material:SS304/316
\t
           Bottle material
\t
       Shape
\t
    Filling volume
\t
   Filling level(mm)
\t
        Neck type
\t
          Pet/Glass Bottle
\t
Square/Round   /Falt Bottle
\t
      100-2000ml
\t
 According request
            ±1mm
\t
        As request
\t
Adjustable specifications of the bottle type
\t
Bottle Size:Bottle diameter ≤120mm Bottle Height≤350mm
\t
If using square bottles, then bottle separating system will be added.
\t
 Level control
\t
Float ball and pneumatic butterfly valve   /   high precision filling part
\t
                    Bottle labeling type
\t
   Packing system                   Min, Spec.
\t
  Palletizing system
\t
                   Manual  / Automatic
                     Hot Melt Roll-Fed
                     PVC Shrink Label
                   Full Label/ Half Lable
\t
     Film shrinker
   Robert Packing
   Carton packing
\t
        2*3 2*4 3*4
    3*5 4*4 4*5 4*6
      6–30Bag/Min
\t
      Low position         gantry palletizer
    Robot Palletizer
      High position
\t
User Ambient Conditions
\t
Temperature:2~40℃;Humidity:No dew
\t
bottle feed-in
\t
conveyor with screw for glass bottles
\t
adopt air-conveyor for PET bottle.
\t
Motor
\t
All Explosion-proof motor
Auxiliary Equipments
\t
Liquor fermentation systems/CIP Washing equipment/Watment Treatment
\t
Material:SS304/316
\t
     Heating system
\t
       Available Capacity
\t
       pump
\t
      CIP washing
\t
   Water Treatment
\t
     Electric heating            steam heating
   direct fire heating
\t
           100L-20000L
            1bbl-150bbl
\t
    Nanfang,        Grundfos
        ABB
\t
    Acid and alkali
pure water cleaning
  temperature 80ºC
\t
     2-30Ton/Hour
Pure water cleaning
\t
Agitation
\t
Stirring moter adopts variable frequency stepless speed control, improve preparation time
\t
Control system
\t
PLC control /Float ball/solenoid valve/solenoid valve/pneumatic butterfly valve.
\t
Fermenting system
Pipe welding
\t
Fermentation tank, inner tank adopts international standard food grade SUS.304
All welding us double-sided welding argon gas protection, double-sided forming can improve the weld ability if under pressure.
\t
Motor
\t
 All Explosion-proof motor

Blow molding system :

    Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

PET Bottle Unscrambler :

<1> Don't change the mould can arrange similar size different shape bottles.
<2> High speed and lower rate of waste.
<3> small occupied area. machine is arranged      flexibly placement saving the area of factory.
<4> automatic intelligent design,The function of preventing bottle.photoelectric detection to run more smoothly.


Automatic labeling machine:
<1> Heat shrink sleeve labeling machine.
<2> OPP Hot melt labeling machine
<3> Adhesive label stick labeling machine(picture)
       The machine is widely used for Plastic bottle and glass bottle.the round bottle, squre bottle , stick one side, two sides or wrap aound are different capacity.Glass bottle/Plastic bottle stick labeling machine.

Bottle packaging machine :
<1> PE film/Half-tray shrink wrapping machine
<2> Carton box packaging machine(picture)
       Combined use with filling machine, to complete the back-end packing line. the products can be automatically arranged and packed into the carton according to the carton filling.Glass bottle/Plastic bottle carton packaging machine.



Carton palletizer :
    The high level palletizer is suitable for cartons, plastic crates, shrink wrapped packs and five gallon bottles etc palletizing.With inspection device to check the storage of cartons on conveyor and regulate the speed according to inspection data. With safety device to stop machine and alarm in emergency.
