26ton Large Crawler Excavator Hydraulic Digger Medium 1.3m3 Bucket Wholesale XE270DK
- Category: >>>
- Supplier: Qingdao Sinocentum Machinery Co. Ltd.
Share on (62057553967):
Product Overview
Description
Product Description
26ton Large Crawler Excavator Hydraulic Digger Medium 1.3m3 Bucket Wholesale XE270DK
Medium-size hydraulic Excavator.
High-end Configuration and Excellent Performance.
Cummins egine, more powerful.
Low oil consumption and environmental friendly.
Optimize the comprehensive performance.
SPECIFICATIONS FOR 25 TON XCMG HYDRAULIC CRAWLER EXCAVATOR | ||||||
Engine | Engine model | - | QSB7 | |||
Rated power | kw/rpm | 150/2050 | ||||
Max. torque | N.m/rpm | 825/1250 | ||||
No. of cylinders | - | 6 | ||||
Displacement | L | 6.7 | ||||
Main performance | Walking speed | km/h | 6.1/3.8 | |||
Rotary speed | r/min | 11.4 | ||||
Climbing ability | ° | 35 | ||||
Ground pressure | kPa | 52.1 | ||||
Bucket digging force | kN | 185 | ||||
Arm digging force | kN | 129 | ||||
Max. traction | kN | 205 | ||||
Hydraulic system | Main pump rated flow | L/min | 259*2 | |||
Main safety valve pressure | MPa | 34.3/37 | ||||
Travel system pressure | MPa | 34.3 | ||||
Rotary system pressure | MPa | 25 | ||||
Pilot system pressure | MPa | 3.9 | ||||
Oil capacity | Fuel tank capacity | L | 400 | |||
Hydraulic tank volume | L | 220 | ||||
Working dimensions | Max. digging height | mm | 10095 | |||
Max. digging depth | mm | 6925 | ||||
Max. digging radius | mm | 10240 | ||||
Min. turning radius | mm | 3510 | ||||
Boom length | mm | 6000 | ||||
Arm length | mm | 2964 | ||||
Detailed Images
Machine Parts
Name: Engine
Brand: Cummins
Model: QSB7
It adopts a new generation of high-pressure common rail engine and is tailored according to the excavator working conditions. It has the characteristics of low speed, high torque, strong power, large power reserve, low fuel consumption and low noise.
Name: Hydraulic system
The imported hydraulic parts with high-level configuration are of rational and high quality match and excellent performance.

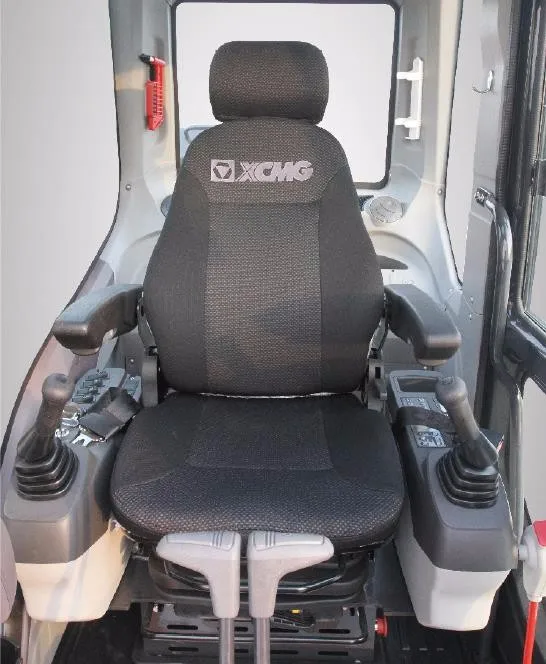

Name: Cabin
The seat designed on the basis of ergonomics concept considerably enhances the comfortable sensation. The suspension bag can adjust the height of seat according to the weight adjustment,making the operation more comfort.
Name: Filter
By use of an up-to-date fuel filter,the filtration performance has been improved,the oil-taking quality guaranteed and the operation reliability of engine under severe operation conditions enhanced.
Certifications
Packing & Delivery
Packaging | ||
Size | 10165 (L) * 3190(W) * 3175(D) | |
Weight | 24870kg | |
Packaging Details | Packed and shipped by RO-RO | |
