Литиевая батарея Солнечная Панель Светодиодная Солнечная уличная лампа

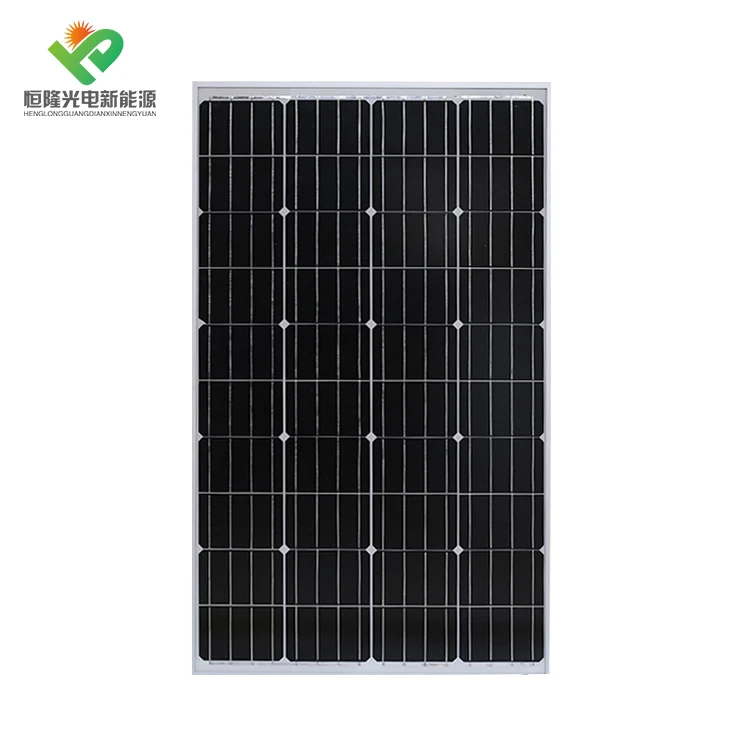

A. Solar Panel

● Monocrystalline solar panel from 30W to 310w, efficiency of more than 19%.
● High efficient, Aluminum frame, tempered glass.
● 10 years warranty for solar panels: 20 years power generation capacity.

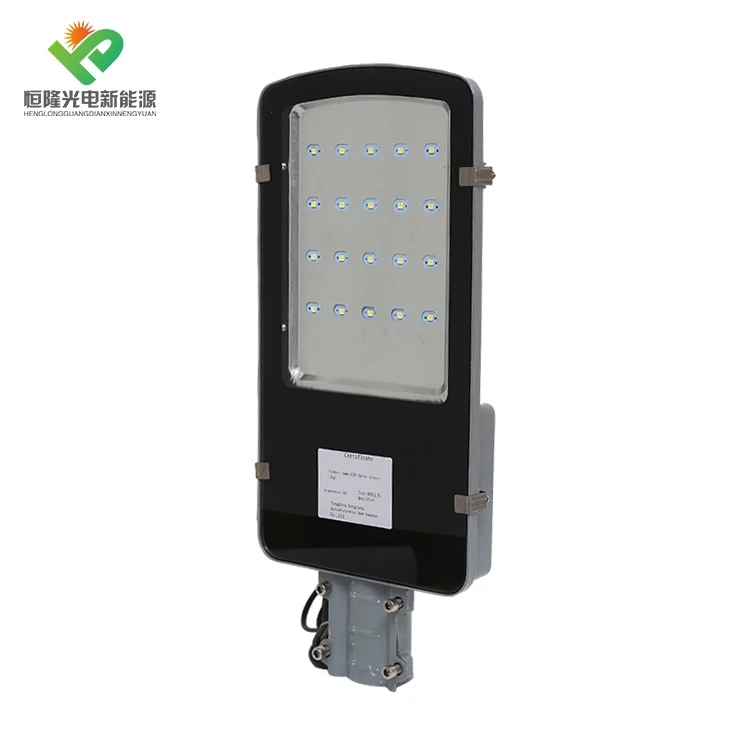

B. LED Lamp

●High power LED light source from 20W to 200w, with more than 80000 hours lifespan
●Lamp housing: die-casting aluminum, glass
cover, IP65, lifespan: more than 20 years
●Over-charging/discharging protection,
reverse-connection protection

C. Light Pole

● Pole height from 3M to 12M and thickness: 1mm to 4mm.
● Hot dip-galvanized(HDG)only, HDG plus powder coated.
●With Arm, Bracket, Flange, Fittings.

D. Intelligent Solar Controller
(PWM/MPPT Type)

●LCD display
●Dual USB charging port
●Display battery voltage and power
●12V/24V automatic adaptation
●Adjustable light control time control

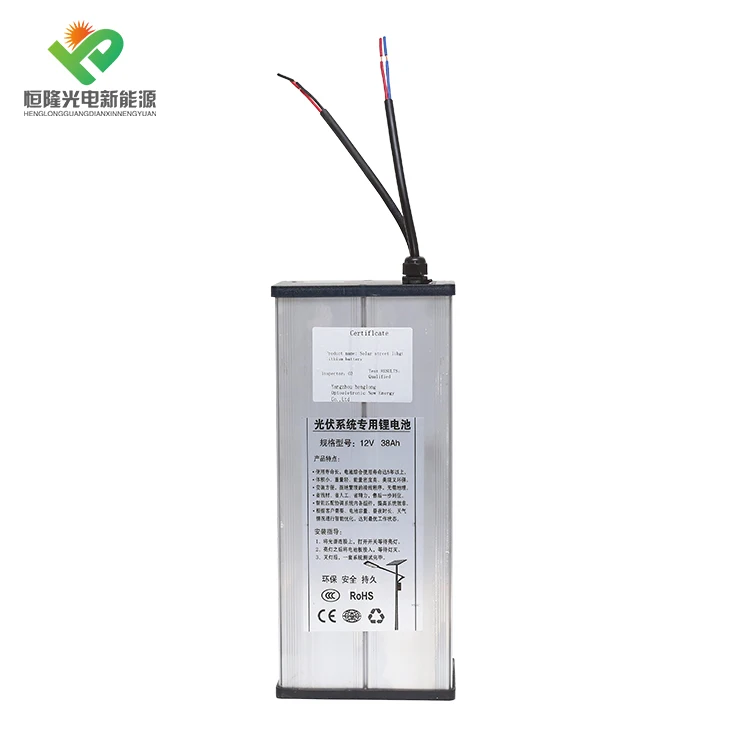

E1. Lithium battery

( For good Sun Condition Area like Africa)
●Long service lifespan, with charge and discharge cycle over 1500 times.
●Fast charging speed, 1.5times than the normal battery.
●High depth-of-discharge, depth-of discharge of 95%(DOD of 95%)
●Large battery capacity, storage battery is 5 times than the normal battery.

E2. Gel Battery

(For bad Sun Condition Area In winter like Canada)
●Top grade lead materials, purity near 100%.
●Contains nano-scale gel electrolyte.
●Sealed without electrolyte leakage.
●Superior performance in high and cold environment

F. Base Foundation& Fittings

● Assemble Design M20*1.2m J bolts.
●Suitable for Pole Flange Size.
