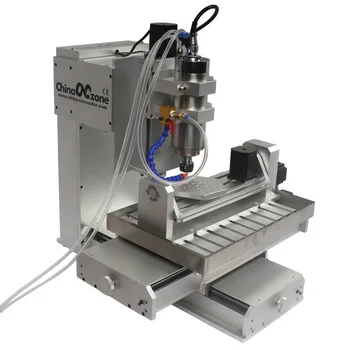

Small DIY 5 Axis HY3040 CNC Milling Machine
- Category: >>>
- Supplier: Shenzhen Scotle Technology Ltd.
Share on (62057714600):
Product Overview
Description
Product Description
Highlight for this 5 axis cnc milling machine HY3040 5axis cnc wood carving machine
We are different from other sellers who have no idea what real 5 axis machine is. New Upgrade
We are different from other sellers who have no idea what real 5 axis machine is. New Upgrade
HY-3040 5axis engraving machine | ||||
Effective working travel | 300(X)mmx400(Y)mm*150(Z)mm | |||
Shape dimension | 655(L)mm,604(W)mm,550(H)mm | |||
Frame materials | Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles, let counterfeiters dwarfs | |||
acceptable material thickness | <145mm | |||
Driving units | X/Y/Z axis | SFUR1605-DFC7-PC ballscrew | ||
Sliding units | X axis | Dia.20mm chrome plate shafts | ||
Y axis | Dia.16mm chrome plate shafts | |||
Z axis | Dia.13mm chrome plate shafts | |||
X,Y, Z Axis Stepping motor type | 57 two-phase 3A 180N.cm 76mm length | |||
4th ,5th Axis Stepping motor type | 57 two-phase 4A 180N.cm 112mm length | |||

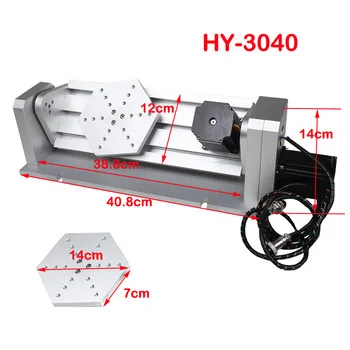

4“ Axis size and precision | 136*116*92mm, 9kg, Height of centre: 32mm, 0.1 degree | |||
5th axis working travel | 155(X)mm*155(Y)mn*105(Z) 360 degree 30-90 degree suggested Plate dia, 180mm | |||
Spindle motro | Brand new 2200W water cooling spindle, 24000RPM | |||
Principal axis collet | ER-20 1-13mm | |||
Repeat accuracy | 0.05mm | |||
Spindle precision | radial beat accuracy 0.03 mm | |||
Operating system | WinXP/7/8/10 | |||
Maximum speed | 0-4000mm/min | |||
Control unit | nMotion USB motion sard, higher accuracy, better quality | |||
Computer connection | USB port | |||
1.Independent driver for each axis.
2.Speedy heat dissipation.
3.Stable and efficient signal transmission.
4.Higher Accuracy.
1. USB Port
2. Supporting Win7
3.Better than LPT Port
CNC Engraver Suitable User
Advertising&Design staff, PCB Engineer, Woodwork fans, Model fans, Metal mold, 3D design
Feature:
1.Easy operating , can work with 3axis/4axis/5axis,just as you like.
2.Micro computer controller, 3.Independent driver
4.Mach3 software.
5.More stable structure. 6.Frequency converter and without controller box.
7.Higher precision.
8.Cross slippery platform.
9.Aluminum base sheet make sure less vibration.
10.Auto-checking function, 11.1500/2200W water- cooled spindle,
12.Ball screw
13.Stainless steel sink for bits cooling.
Buy this machine without any worry
1.CE approved.
2.Video support
3 English manual available
4.Mach3 software send with the machine as a CD
5.Can engrave material which hardness below 45HRC.
Detailed Images

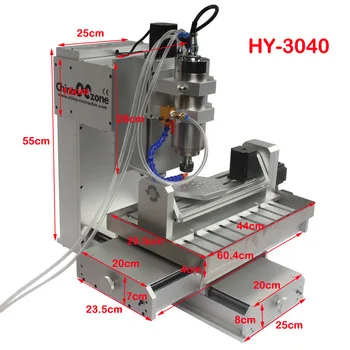

Size Information
Package size
Packing size | L | W | H |
80 cm | 74 cm | 90 cm |
Finished Products
Related Products
Packing&Shipping
Our customer use the woodbox package
Company Introduction
Shenzhen Scotle technology limited is a professional supplier of Mini CNC machiine , laser machine and engrave machine, It has more than 8 years export experience , professional presales service and aftersale service, and professional reliable technical support, 2 factories locate in Shenzhen China. Cnczone is one of the branch of the scotle, which is specialised in CNC machine. Through 8 years development , It has already formed perfect managment system and standard opperating procedure , Products exported to the world, more than 100 countries and regions. Company always adhereing to "meeting and exceeding customer need " business phynosophy, Helping customer save money and time. To be the best Mini CNC supplier is our beautiful vision.
Our Services
1.Prompt reply, any problem , Please contact us by email / skype / phone / trademanager online service.
2. We provied picture and video support.
3.Free parts send to you in 1 yeas warranty period, although it rarely occurs.If the parts less than 0.5KG,we pay the postage for you.
Why Choose Us
1. We joined Alibaba Trade Assurance to make sure the buyer’s benefit. and we are the high-quality supplier,which has been assessed by Alibaba and SGS.
2. As a professional manufacturer, we have 10 years factory experience for Mini cnc Machine. We are devoting to researching and manufacturing different models of Mini CNC machine .
3. All Self-developed products have been passed certification of CE, FCC, FDA.
4. We have been cooperated with many customers from 100 countries and region, and more and more customers in the world are using our machine, we also received many good feedbacks and reviews.
FAQ
1. Easy operate
We will send you a english manual with the machine.
If still have any question ,please contack us by email / skype / phone / trademanager online service.
2. Video support
In after-sale service, we can also provede video support.
3. Warranty
Free parts send to you in 1 yeas warranty period, although it rarely occurs.
If the parts less than 0.5KG,we pay the postage for you.
4. MOQ
1 set welcomed, it will be a nice try.
5. Accessories & tools
Will send you a tool box as picture.
6.Software & Interface
If use parallel port, use Mach3 software.
If use USB port, use USB CNC software.
If you have more questions, Please contact us as below:
