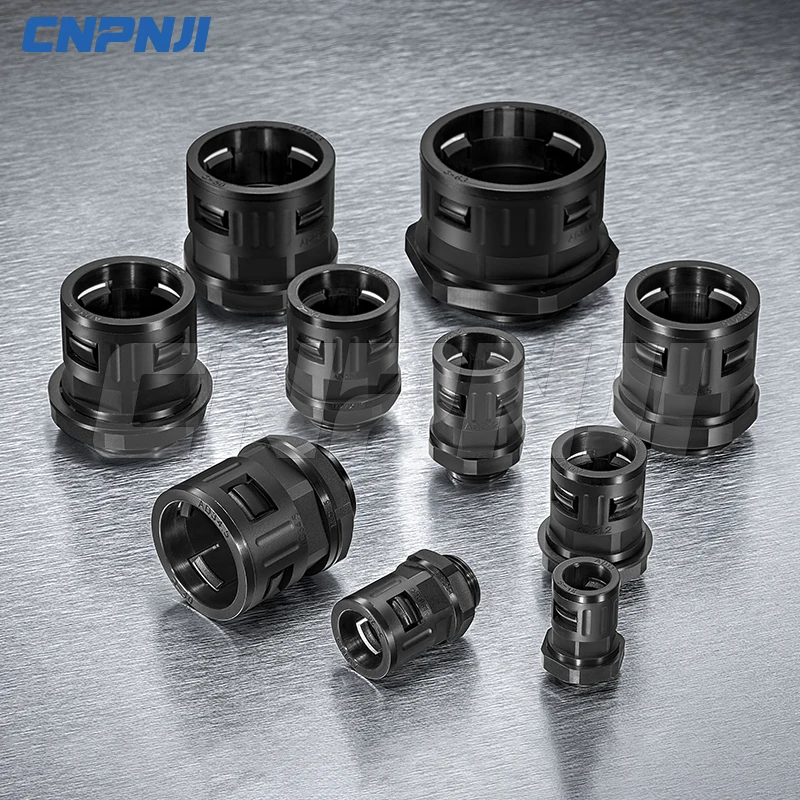

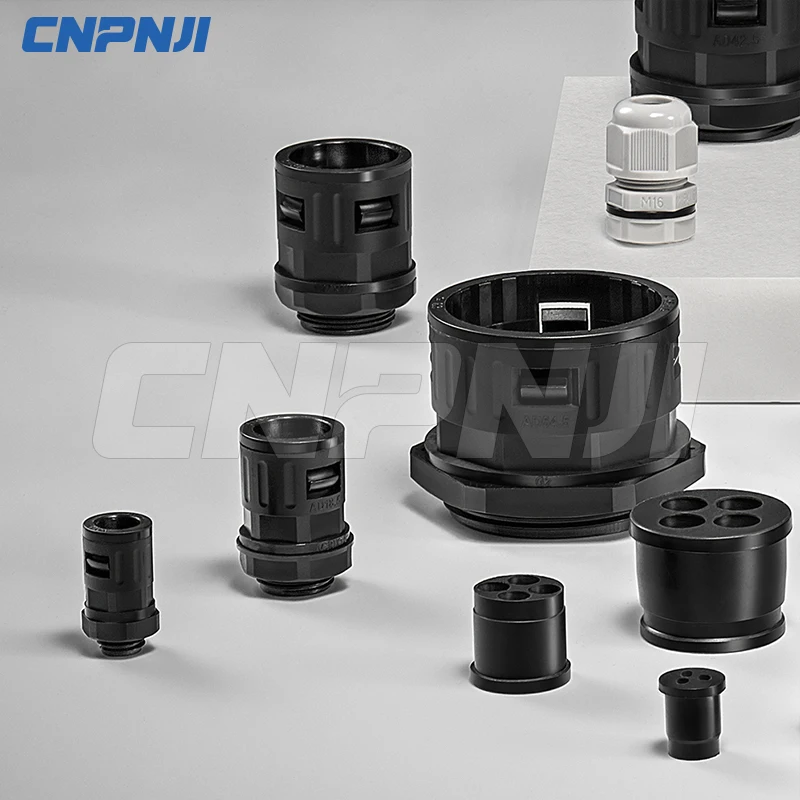

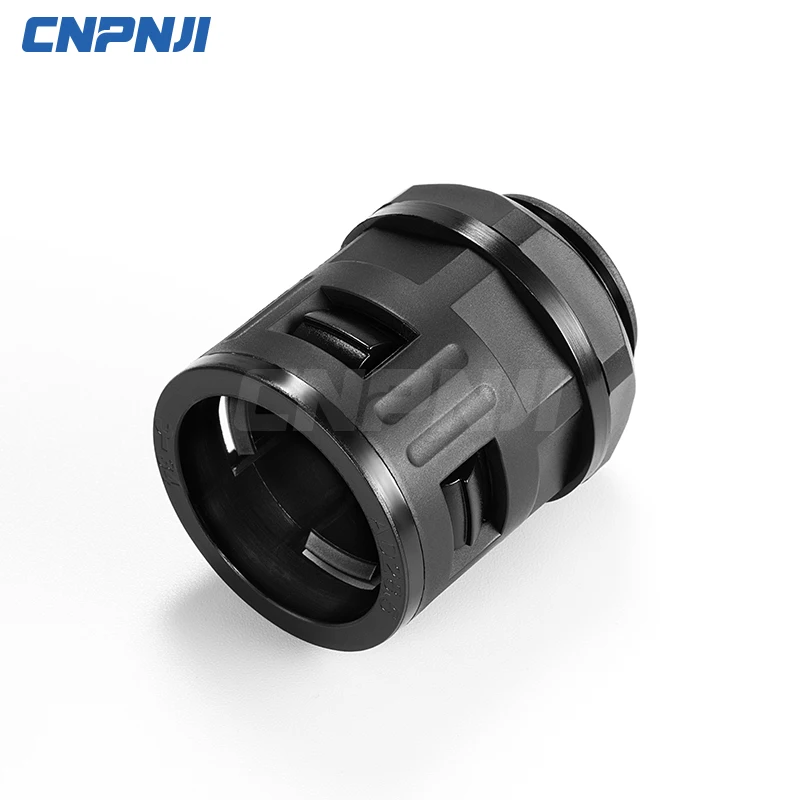

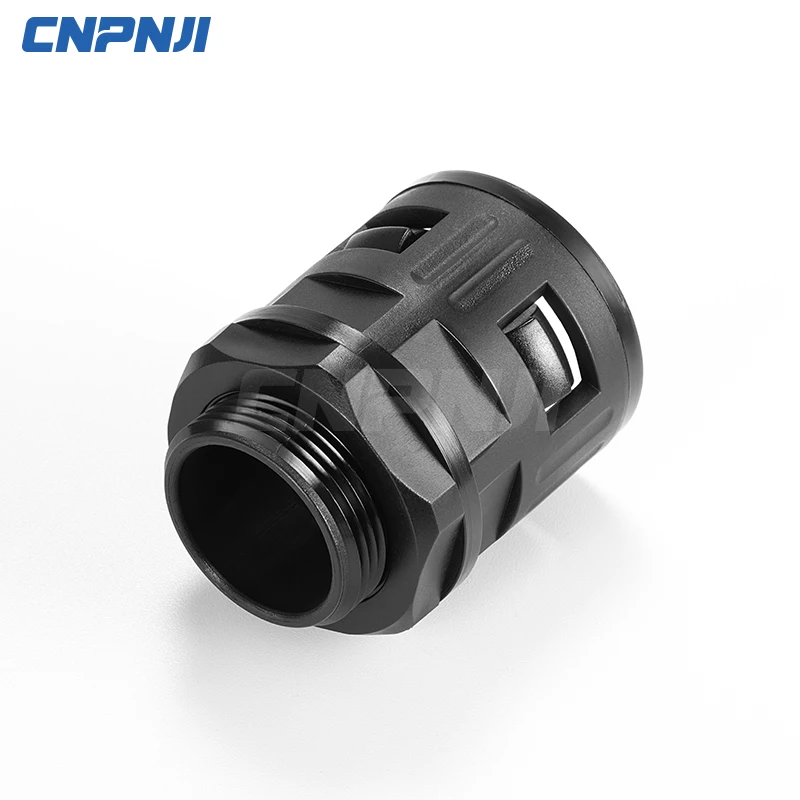

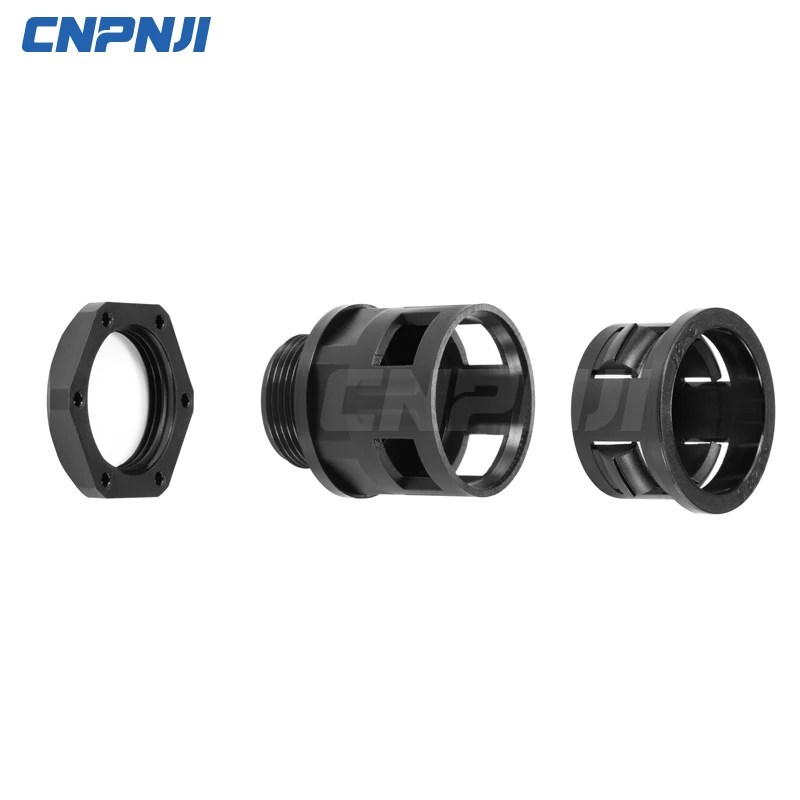

AD15.8 quick connector for flexible pipes
- Category: >>>
- Supplier: Shanghai Pinji Electronic Technology Co. Ltd.
Share on (62057738409):
Product Overview
Description
AD15.8 quick connector for flexible pipes

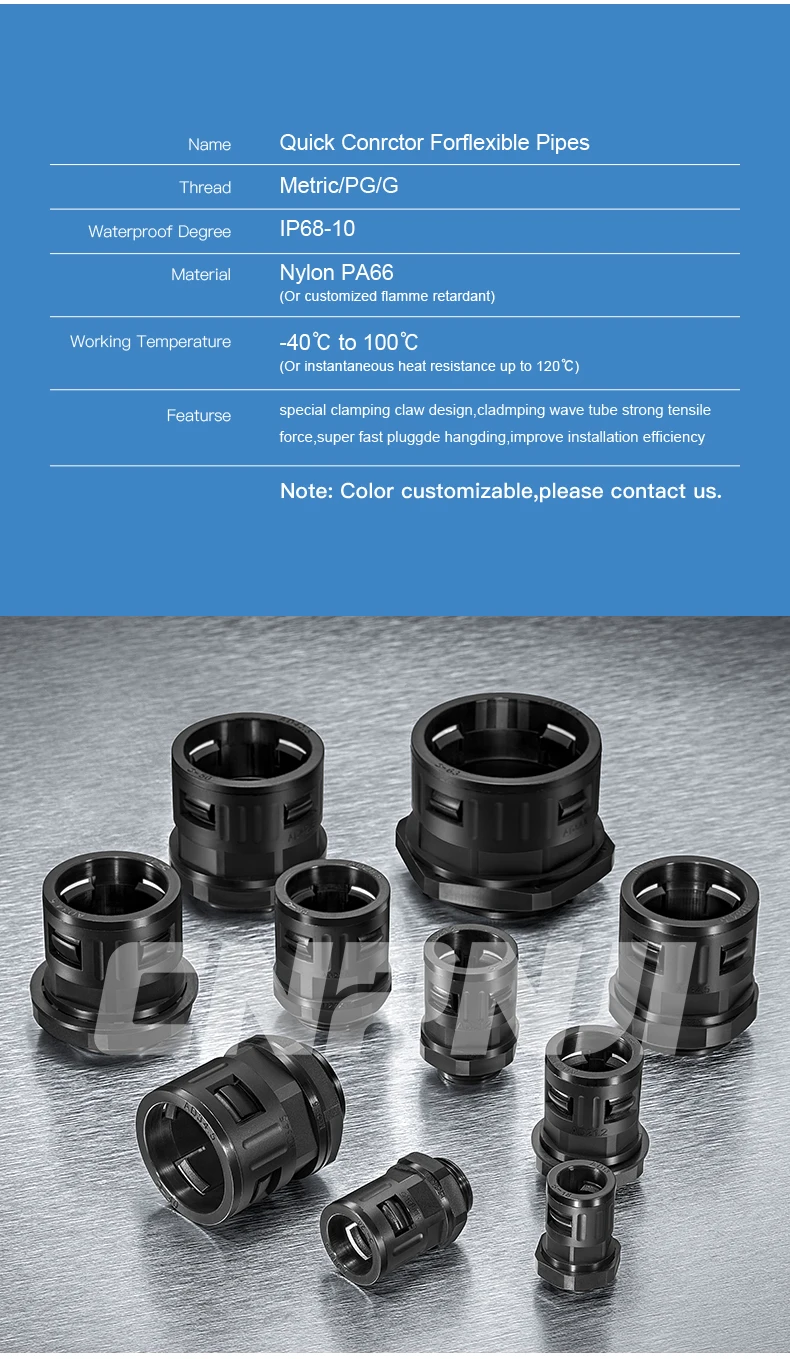

1. Specification
| Standard Thread | PG, Metric, NPT, G(PF) |
| Meterials | nylon PA66(Flammability 94V-2) for A,C,E,F parts; EPDM rubber for B,D parts |
| Protection Level | IP68 |

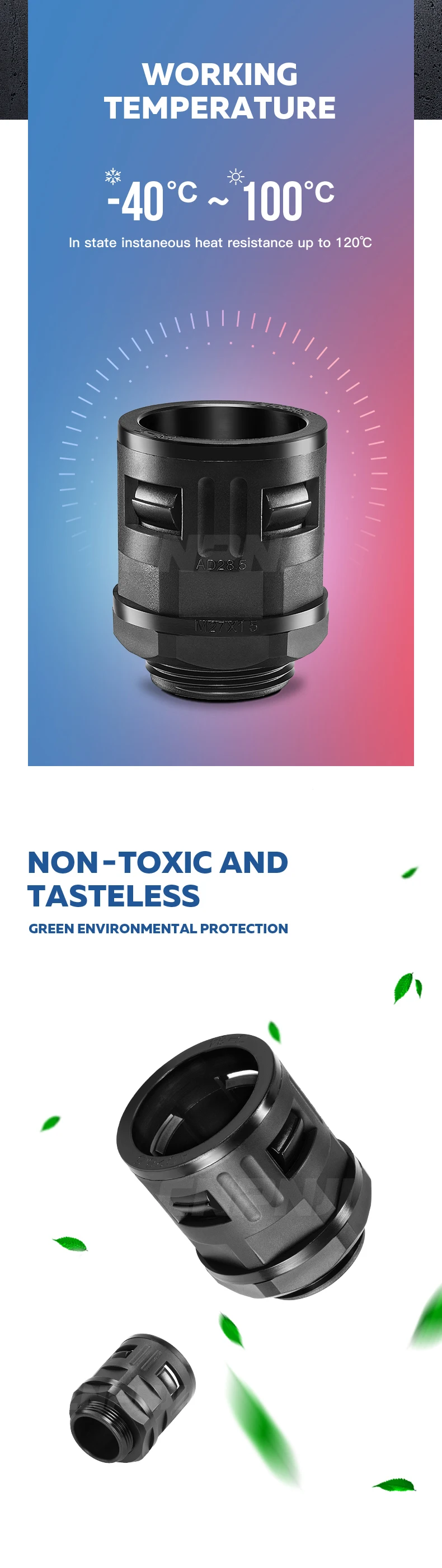

| Working Temperature | EPDM Rubber: -40 to +100 °C Silicon Rubber: -50 to +200 °C |
| Feature | Different cable range for different cable diameter Different thread length for different junction box |
| Color | Black, Gray, White, Blue, Red (Special colorscustomizable) |
| EPDM Rubber | More waterproof; more durable; more weather resistant |
| Certificates | CE,ROHS,SGS,IP68,Halogen-free,UV Resistant |

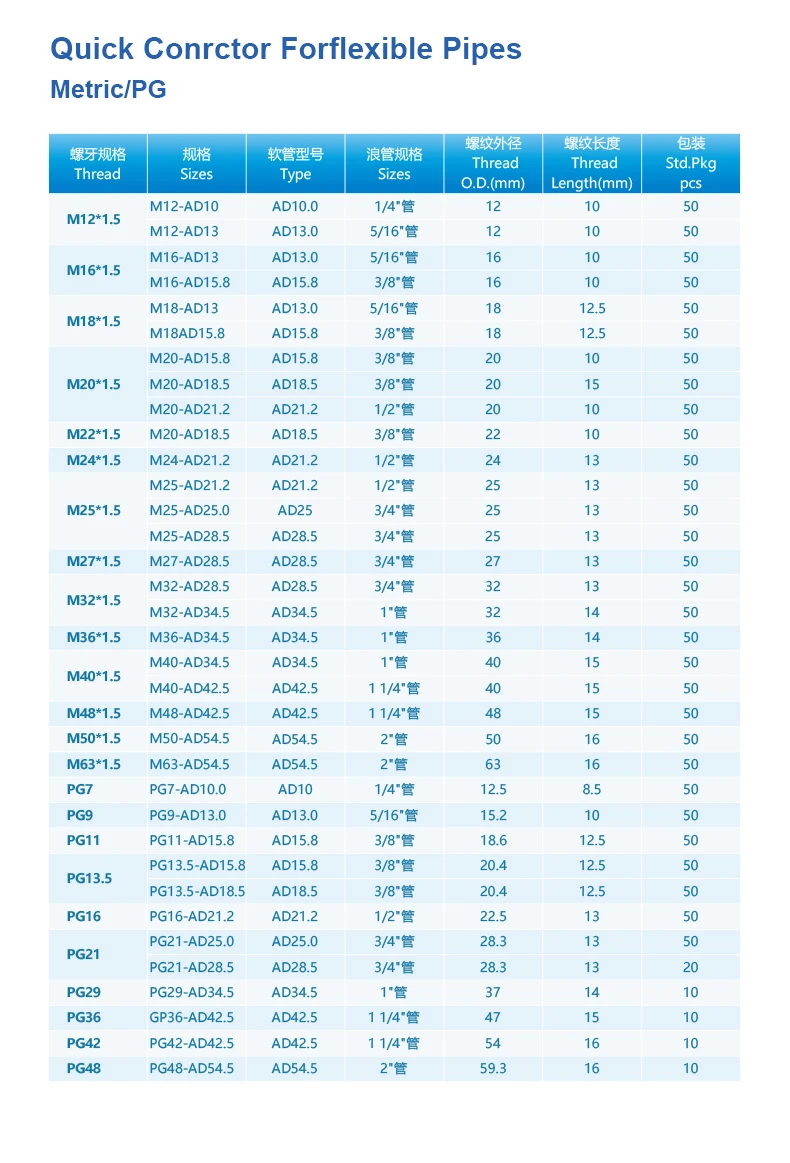

2.Type
| Accommodated | Item | Standard | Outer Diameter | Thread Length |
| Pipes | No | Thread | C1(mm) | C1(mm) |
| AD10.0 | STF-M12-10.0 | M12 | 12 | 9 |
| AD13.0 | STF-M16-13.0 | M16 | 16 | 15 |
| AD15.8 | STF-M16-15.8 | M16 | 16 | 15 |
| STF-M20-15.8 | M20 | 20 | 15 | |
| AD18.5 | STF-M16-18.5 | M16 | 16 | 15 |
| STF-M20-18.5 | M20 | 20 | 15 | |
| AD21.2 | STF-M20-21.2 | M20 | 20 | 15 |
| STF-M25-21.2 | M25 | 25 | 15 | |
| AD25.0 | STF-M25-25.0 | M25 | 25 | 15 |
| AD28.5 | STF-M25-28.5 | M25 | 25 | 15 |
| AD34.5 | STF-M32-34.5 | M32 | 32 | 15 |
| AD42.5 | STF-M40-42.5 | M40 | 40 | 15 |
| STF-M50-42.5 | M50 | 50 | 15 | |
| AD54.5 | STF-M50-54.5 | M50 | 50 | 22 |
| STF-M63-54.5 | M63 | 63 | 25 | |
| AD10.0 | STF-PG7-10.0 | PG7 | 12.5 | 9 |
| STF-PG9-10.0 | PG9 | 15.2 | 9 | |
| AD13.0 | STF-PG11-13.0 | PG11 | 18.6 | 10 |
| AD15.8 | STF-PG13.5-15.8 | PG13.5 | 20.4 | 10 |
| STF-PG16-15.8 | PG16 | 22.5 | 10.8 | |
| AD18.5 | STF-PG13.5-18.5 | PG13.5 | 20.4 | 10 |
| STF-PG16-18.5 | PG16 | 22.5 | 10.8 | |
| AD21.2 | STF-PG16-21.2 | PG16 | 22.5 | 13 |
| STF-PG21-21.2 | PG21 | 28.3 | 13 | |
| AD25.0 | STF-PG21-25 | PG21 | 28.3 | 13 |
| AD28.5 | STF-PG21-28.5 | PG21 | 28.3 | 13 |
| AD34.5 | STF-PG29-34.5 | PG29 | 37 | 13 |
| AD42.5 | STF-PG36-42.5 | PG36 | 47 | 13 |
| STF-PG42-42.5 | PG42 | 54 | 15 | |
| AD54.5 | STF-PG48-54.5 | PG48 | 59.3 | 16 |
| AD10.0 | STF-PF1/4-10.0 | PF1/4'' | 13.1 | 9 |
| AD13.0 | STF-PF3/8-13.0 | PF3/8'' | 16.6 | 15 |
| AD15.8 | STF-1/2-15.8 | PF1/2'' | 20.9 | 15 |
| AD18.5 | STF-1/2-18.5 | PF1/2'' | 20.9 | 15 |
| AD21.2 | STF-PF1/2-21.2 | PF1/2'' | 20.9 | 15 |
| STF-PF3/4-21.2 | PF3/4'' | 26.4 | 15 | |
| AD28.5 | STF-PF3/4-28.5 | PF3/4'' | 26.4 | 15 |
| AD34.5 | STF-PF1-34.5 | PF1'' | 33.2 | 15 |
| AD42.5 | STF-PF1 1/4-42.5 | PF1 1/4'' | 41.9 | 15 |
| AD54.5 | STF-PF1 1/2-54.5 | PF1 1/2'' | 48 | 15 |
| AD54.5 | STF-PF2-54.5 | PF2'' | 60 | 15 |
