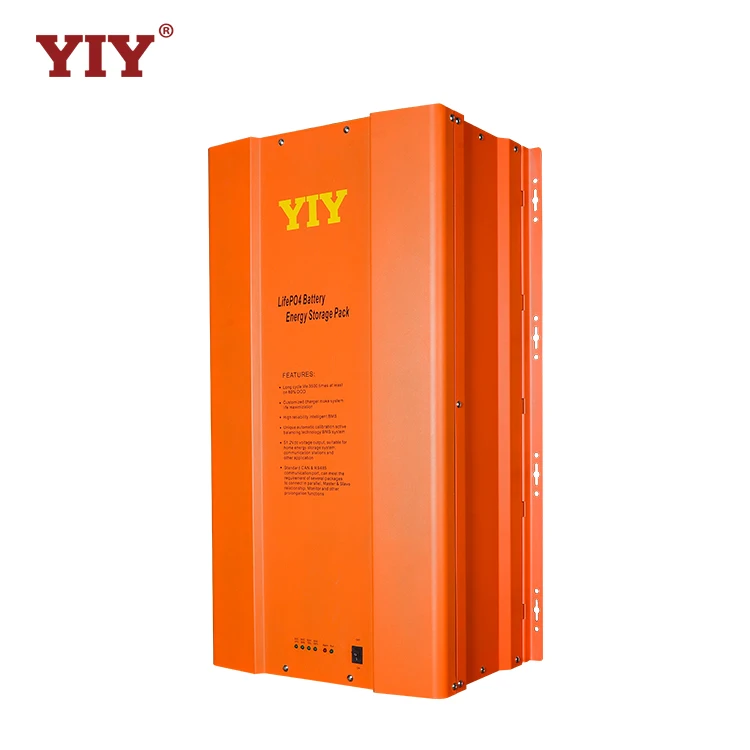

10kwh Lifepo4 battery power wall 48v 100ah lifepo4 battery pack for solar power systems
Product Description
LiFePO4 Battery
(Prismatic Lithium Phosphate Battery)

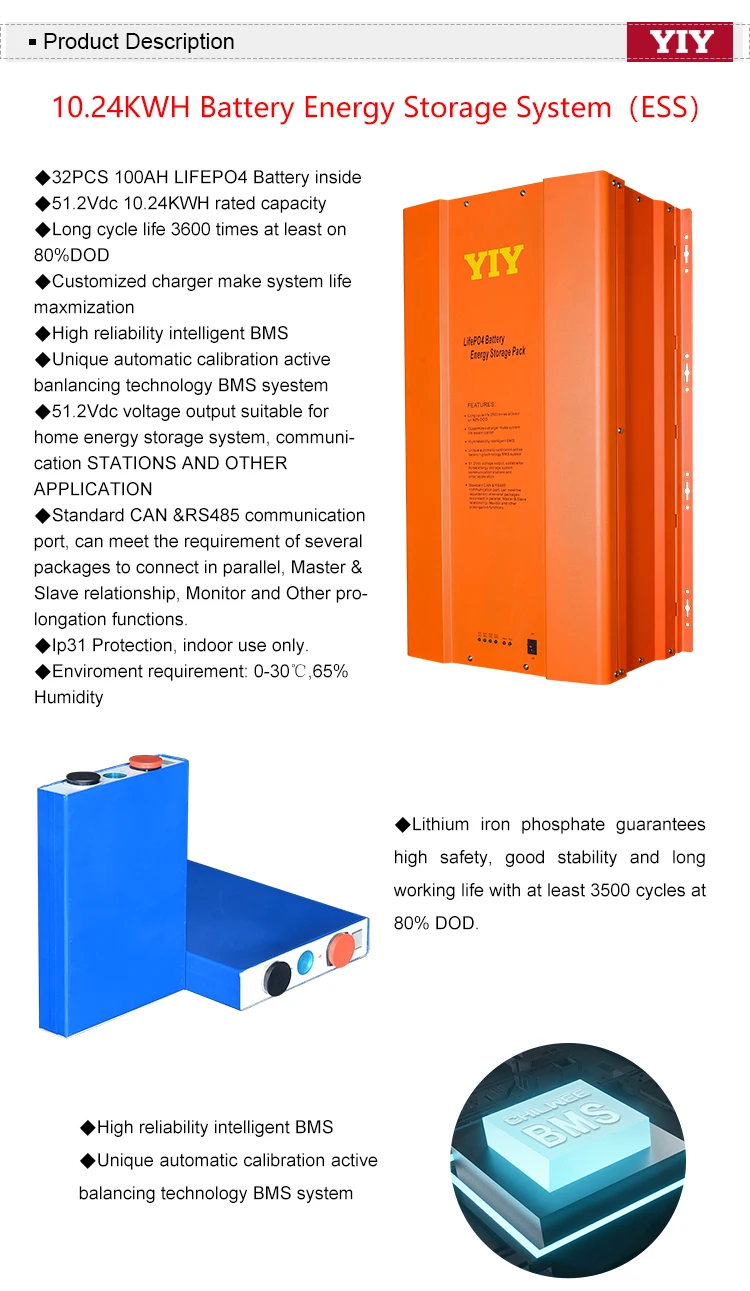

Adopt 3.2V 100Ah LiFePO4 Battery Cell , with 12.8V/25.6V/51.2V rated DC voltage, High stability, high security, green and eco-friendly
LPF capacity : 2.56kwh,5.12kwh,10.24kwh
Longer cycle life : More than 3500 times cycle lifes on 80% DOD
Superior safety :Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .No lead, no heavy metal, no toxic element
Flexible deployment:10 pieces in parallel connection max.
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
Product Dominance
NO
Item
Description
Normal specfication
1
Rated Voltage
51.2v
2
Rated Capacity
200AH
3
Rated Energy
10.24KWH
4
battery configuration
16S2P
5
battery cell
3.2V 100AH 32PCS
Standard Charge
1
Battery operation temperature range @charging
0~45°C
2
Max charge voltage
56.8±0.4v
3
Rated charge voltage
56±0.4v
4
Allowed MAX charge current
120A
5
Recommend charge current
100A
6
Over charge Protection Release
Restart the battery
Standard discharge
1
Battery operation temperature range @charging
—20~60°C
2
Output Voltage Range
40~56v
3
Allowed MAX discharge current
200A
4
Peak discharge current
240A 5S
5
Recommend discharge current
200A
6
Discharge Cut-off Voltage
40V
7
Over doscharge Protection Release
charging or release load and restart

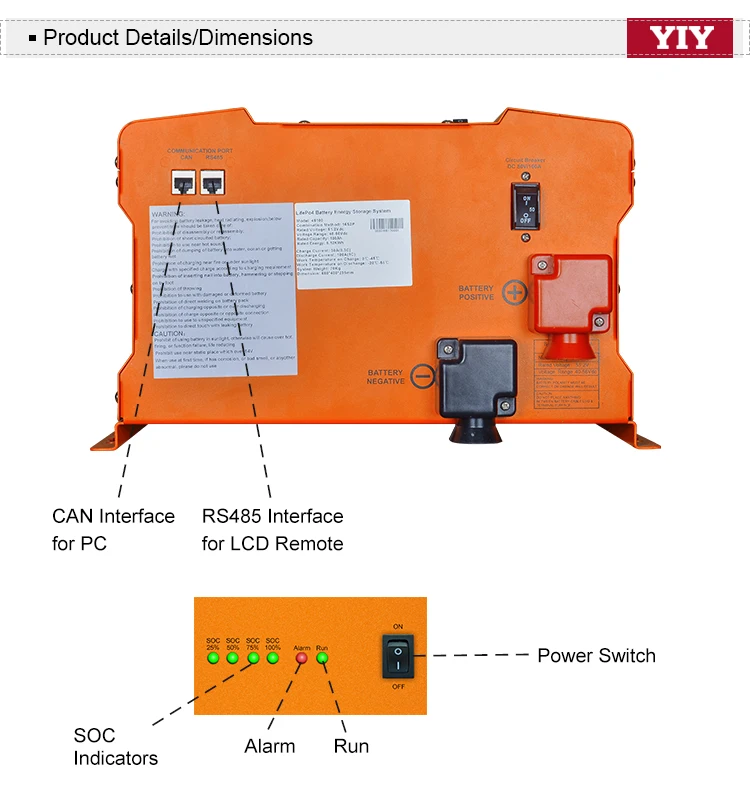

Operation and Indicator
1
Power Switch
ON: all function start
OFF: all function shut down
2
Run LED (green)
lighting: system working normal
Flash: suystem warning
3
Alarm LED (red)
Lighting: system fault
Flash: suystem warning
4
SOC LED (4 pcs green)
Charging:
SOC<25%
LED1. LED2. LED 3. LED flah 4 in turn
25%<SOC<50%
LED1 lighting, LED2 . LED3. LED4 flash in turn
50%<SOC<75%
LED1. LED2 lighting,LED3. LED4 flash in turn
75%<SOC<95%
LED1 LED2 LED3 lighting, LED4 flash
Discharging:
SOC>75%
LED1.LED2. LED3. LED4 lighting
50%<SOC<75%
LED1 LED2 LED3 lighting, LED4 off
25%<SOC<50%
LED1 LED2 lighting, LED3. LED4 off
10%<SOC<25%
LED1 lighting,LED2. LED3. LED4 off
SOC<10%
LED flash, LED2. LED3.LED4 off

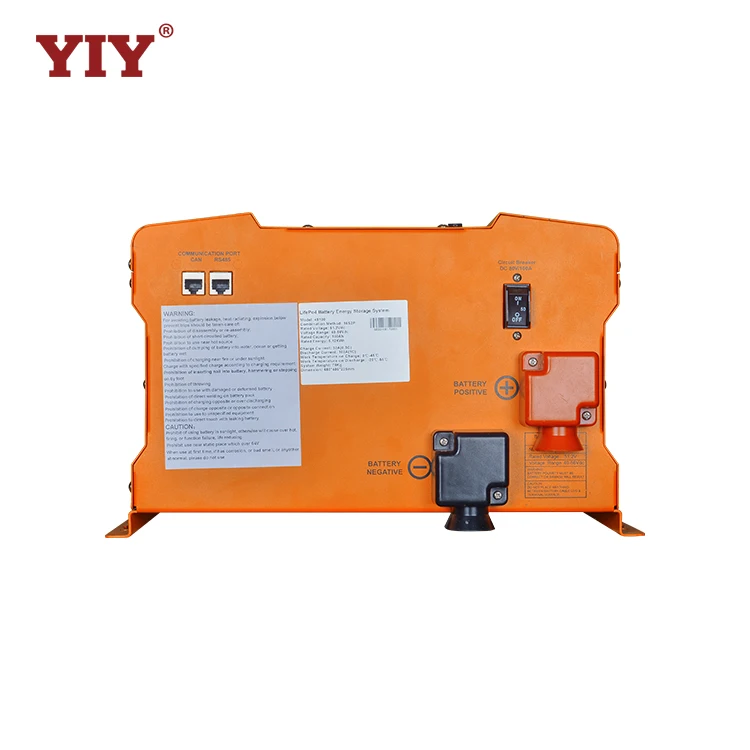

communication
1
RS485
for LCD remote control (option)
2
CAN
PC control and monitor( one communication CAN card support ten packs parallel
Mechanical Characteristics
1
dimension

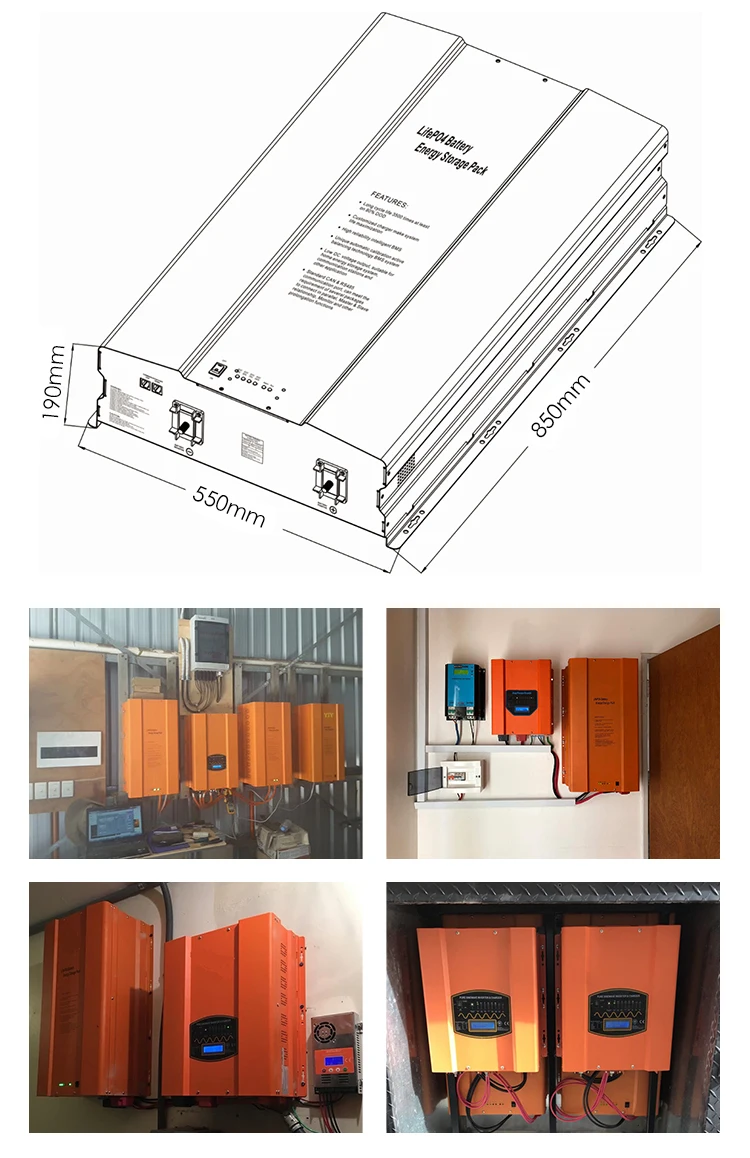

L*W*H (unit)=850*550*190mm
2
weight
N.W 105kg
G.W 115KG
Storage and transportation requirements
1
storage temaperature
less than 1 month
—20~35°C
less than 6 month
—10~30°C
2
storage humidity
45~75% RH
3
SOC
storage
60~75% SOC
transport
45~55% SOC
Product Dominance
Features for YIY Lithium battery
* Due to the demand for energy saving strategies, YIY delivers a full range of battery power systems with multiple nominal voltages (12V/24V/48V etc.). It is smaller in size and lighter in weight, but it has longer cycle life, temperature durability is stronger, and energy storage is more efficient. With the accurate and reliable battery management system (BMS), our lithium battery power system is a better solution for achieving highest efficiency and reliability. After years of practice, we have the most extensive experience in backup power supply in the industry, and we will continue to provide the best battery products.
* YIY high-quality cell brings higher conversion efficiency of the energy, the common performance of the B Level batteries which are most common in the market will only have 75% percentage capacity left, however, we will remain 99%.
Advantages for YIY LiFePO4 Battery
* Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity. Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.
*Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
*Cycle durability for a single cell is 3500 cycles, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
*Higher discharge rate, faster charging and dischargingWhen there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
*High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
*Optional LCD digital display. The optional LCD digital display can be installed at any location and displays battery voltage, capacity, current information, etc.
Our Services
OUR SERVICE
1) OEM Service :
We can customize battery system and provide OEM branding designs for your need. 2) Pre-Sales Service: * Salesmen with 3 months of product training. * Your technique questions will be forwarded to the engineer for solution. * Sample order support . * Visit our factory. 3) After-sales Service : * Warranty: 3500 times cycle life or 3 years warranty * After-sales team keep track of usage and provide timely feedback * Engineers maintenance on the damaged part for free. 4) Batter Service :
We always offer what our clients need. Reply client's questions in time. Supply best projects solution for clients. We ship out the products on time. 5) Rich Experience :
We have more than 5 years experience in manufacturing battery pack and assemble battery cells as per customer’s design and requirement.
Packaging & Shipping
FAQ
Q 1.Does YIY battery include BMS?
A.Yes, our battery pack include BMS system
Q 2. tell me the standard of package?
A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.
Q 3.Do you accept OEM/ODM?
A. It totally not a problem. We can prepare relative documents to the foreign affairs office or other offices to apply for this certificate.
Q 4. Would you accept to use our logo?
A.Yes,it is available. But we have MOQ for that.For details, pls talk to the customer service.
Q 5.Where is your market?
A. Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q 6.What kind of certificates do you have?
A.We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 as customer requires.But for details and fee, we need to talk in detail with the sale manager.
