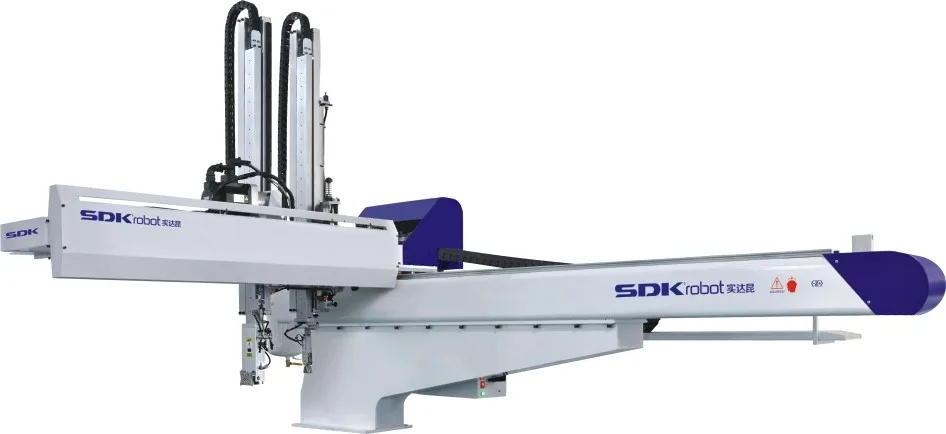

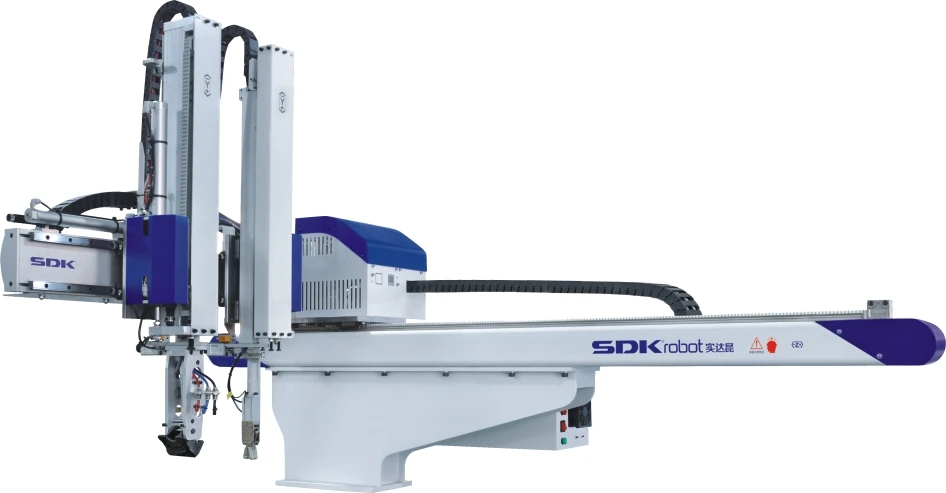

mechanical industry double arm double stage industrial robot arm
- Category: >>>
- Supplier: Dongguan Shi Da Kun Automation Technology Co. Ltd.
Share on (62057832742):
Product Overview
Description
Product Description

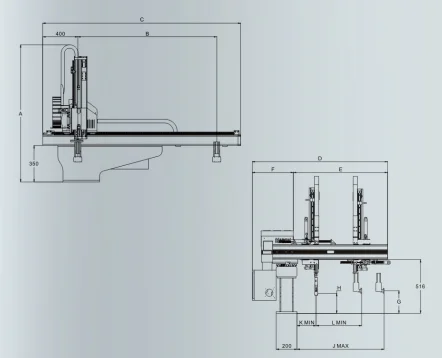

MAIN SPECIFICATIONS | ||||||||||||||
Model | ADII-1100+S1 1 axis double arm double stage robot arm | |||||||||||||
Single axis servo series:Horizontal Servo is driven by Motor acquiescently. Vertical,Crosswise,Side Group are driven by Cyliders. | ||||||||||||||
Applicable injection molding machine | 250~450 | |||||||||||||
vertical stroke | 1100mm | |||||||||||||
crosswise stroke | P:300mm, R:200mm , customizable | |||||||||||||
horizontal travel | 1750 | |||||||||||||
gripper rotation angle(degree) | 90degree | |||||||||||||
max load(including ceiling fixture) | 5kgs, customizable | |||||||||||||
Take-out | 10 sec | |||||||||||||
cycle time | 2.5 sec | |||||||||||||
PRODUCT SERIES:

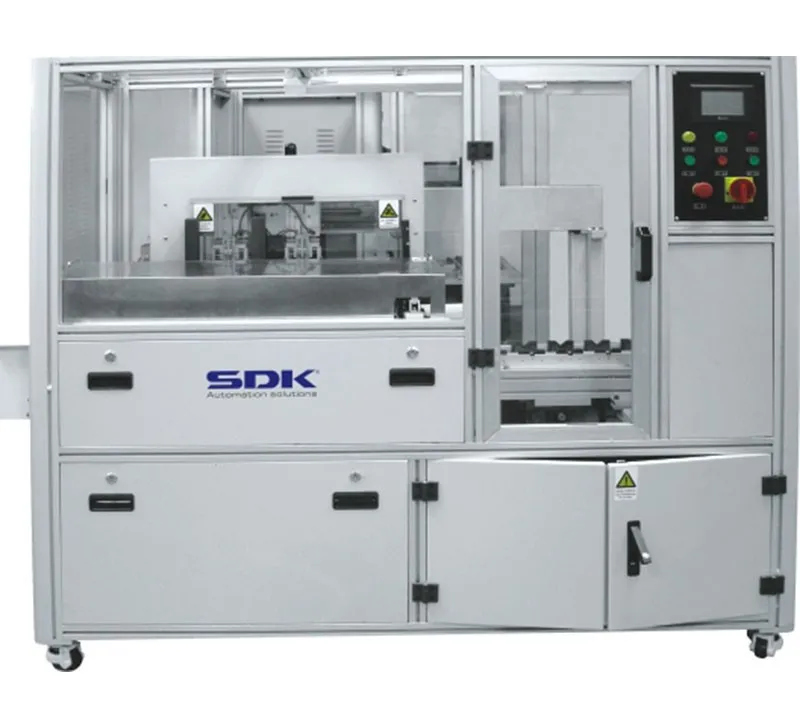

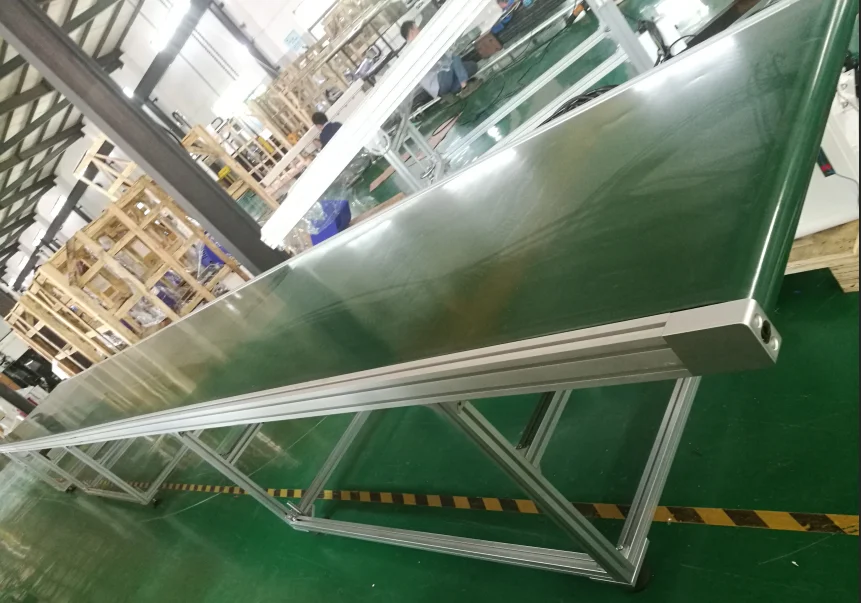

SDK produces oblique arm robot, horizontal robot, high-speed tau robot, large five-axis servo manipulator, conveyor belt, receiving station and other peripheral, fully meeting the demands of injection molding machine from 50 to 4,000 tons.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
Certifications
Detailed Images
All the spare patrs are high-end.
Panasonic motor, Panasonic driver, Japanese sliders(bearing), etc
One Axis robot arm - Accessory
Name: Control System
Brand: SDK
Original: China
-Color screen, single-sheet multi-line display, making it easy for users to set parameters and signal monitoring
-32-bit double-CPU control, fast action response, smoother page switching
-Open program teaching mode, easy to learn, provide common fixed programs, users can also self teach a variety of complex mold processes.
-Ac servo direction can have multi-point placement, up to 99 sets.
Our Service
Your satisfactory, our pursuit.
Pre-Sales Service
* Your inquiry will be replied in 24 hours
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 2100(L) * 1400 (W) * 1700(D) | |
Weight | 200 | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2100(L) * 1400 (W) * 1700(D) | |
Weight | 100 | |
Packaging Details | ||
Our Company
Dongguan Shidakun Automation Technology Co., Ltd. was established in 2003 with years of manufacturing experience of automation equipment. We specialize in the production of more than three axis linkage injection molding special robot arm and peripheral automation equipment, focusing on product design, manufacturing, sales service, etc.
Related Products
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q: How long is your delivery time?
A: Generally it is 15-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No. Customers can visit our factory and view samples.
Q: What is your terms of payment ?
A: 50% T/T in advance. balance before shippment.
If you have another question, pls feel free to contact us.
WHY CHOOSE US?
1.The robot arm can be labeled as specified by the customer.
2.Color can follow the requirements of customers.
3.The consignee and consignor on the B/L can be decided by the customer.
4.Follow the principle of mutual benefit, all prices can be accommodated.
5.If you intend to wholesale manipulator, then please come to me, wholesale prices are very attractive.
