Computer keyboards letters 1 color pad printing machine calculator buttons pad printer HP 300A

Product Overview

Description

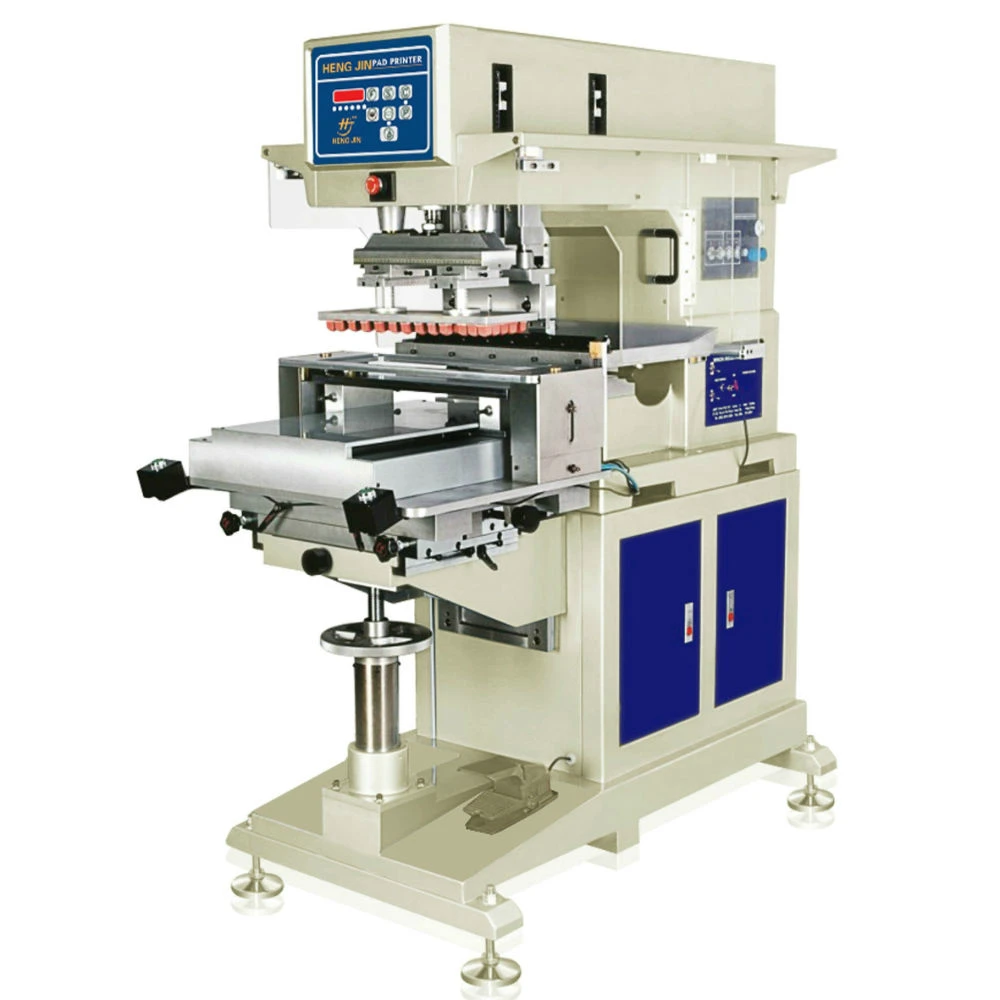

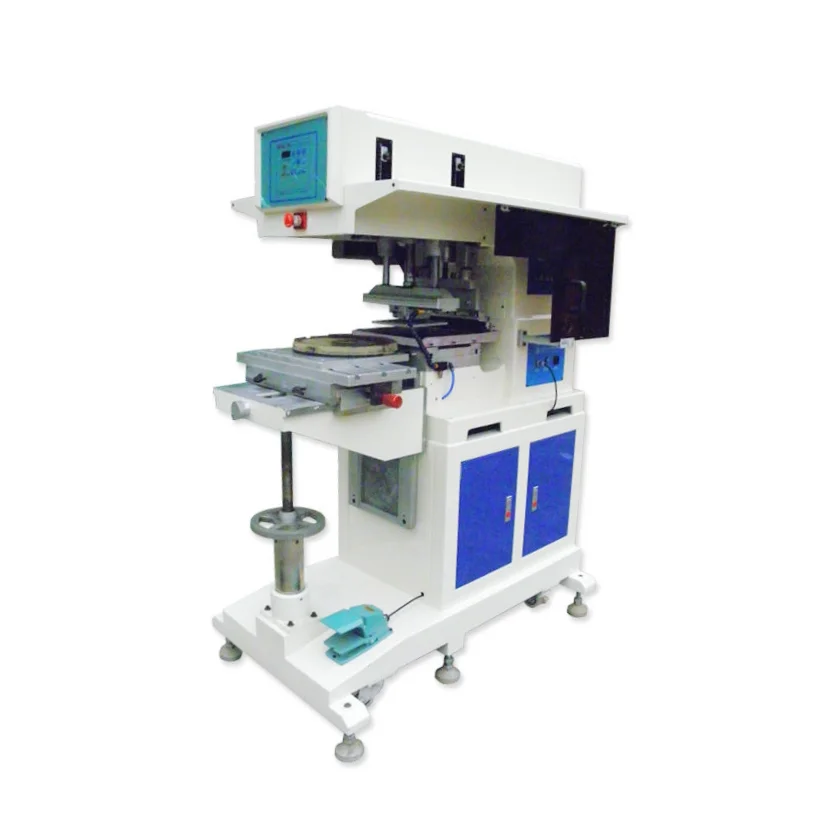

HP-300K Computer keyboard letters 1 color  pad printing machine calculator buttons pad printers





one color pad printer Features:

1 All positions are electric induction, the position is accurate, which has the optimal performance

2 Accurate location, front and back, left and right, angle can fine-tune and fixed, accuracy and stability;

3 This machine is controlled by the most advanced microcomputer systerm, performance steady;

4 According to customer needs,pre-program two functions, single cycle of printing and automatic printing;

5 The cylinder of Machine is imported from Germany FESTO, which power is smoother and strong durabling;

6 Special shock absorbers ,machine operation is very smooth, scraper speed is adjustable which has superior performance;

7 The body is Alloy Cast Aluminium, then it is lighter and durable. The color of body is by prowder spraying, which is precise and more nice;

8 The opeartion panel is touch sensitve system, can be use the printing function directly ,which is react quickly and conveniently



one color pad printer Parameter:

Item Number:	HP-300K	Printing colors:	Single
Printing Speed	800pcs/ hour	Distance of U tray	177.8mm
Max metalic plate:	250*600mm(10’’*24’’)	Max printing Size:	200*500mm(8’’*20’’)
Control systerm:	microcomputer	Track of pad	300mm
Adjustabe to pads size on target products	10-90mm	Adjustabe to pads size on the metallic plate	10-90mm
Voltabe of source	220 VAC/ 1 Phase 20W	Air supply	6 Bar
Dimention:	850mm X 1650mm X 1670mm	Net Weight	450KGS



one color pad printer advantage:

1 Machine material: Cast Alloy Aluminum which is lighter and more stable.

2 PLC control panel or server motor can design as your request.

3 printing result accuracy can reach to +-0.03mm.

4 The screw on the machine which hardness is 12.9 grade more durable.

5 Parts process by CNC or worker. Then accuracy.





Key Components:

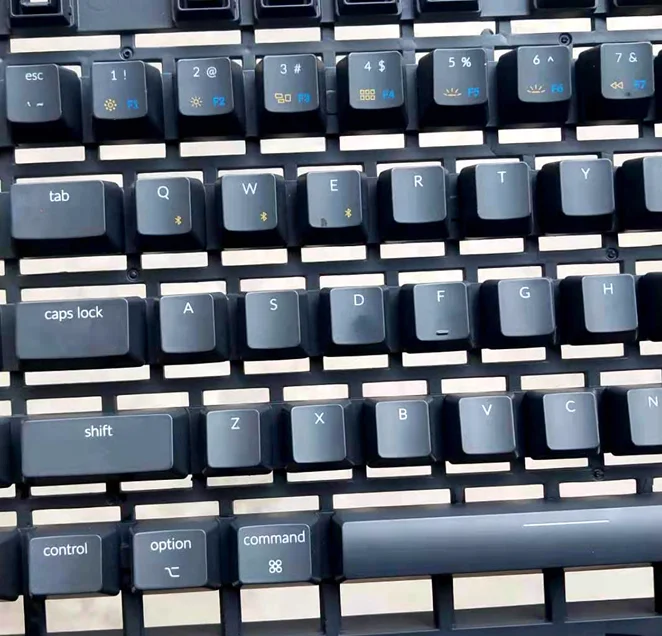

 Pad printing samples as reference:





Standard package: one color pad printer/ 1.Outside package: standard export wooden cases, 2. Inner package: stretch film.

Business Item: FOB/ CIF/ CFR/ EXW

Shipping term: by sea or by air according to your request

1.Professional engineer to choose suitable machine according to your requirements

2. One year guarantee for whole machine except of consumable

3.24 hours technical support by e-mail

4. Calling or door-to-door service if need

5. Elaborate English manual and detailed Videos/ CD



dongguan pad printing factory hengjin is professional China-based manufacture and supplier of high speed and precision pad printing machine and screen printer.

We have had over 10 years manufacturing experience and over 8 years international marketing experience.





FAQ

1. What types of products can I Pad Print?

-      You can pad print a very wide range of substrates, including plastics, metals, glass, ceramic, vinyl, rubber, polypropylene, leather, acrylic, cotton, even food items and more. A pad printer is NOT a documentation printer but it can be used for printing on paper products, for instance paper cubes or napkins.



2. How does Pad Printing work?

It is simple:

- Image is etched in a plate.

- The plate is flooded with ink and wiped clean, leaving ink in the etched area only.

- The surface of the ink becomes tacky causing in to cling to the printing pad and sealing that side of the ink film.

- Pad lifts the ink and exposes the other side of the ink film; ink becomes tacky and sticks to the part.



3. How do I choose a type of pad printing machine?

- Select a machine type based on the required image sizes and number of colors.



4. What is the maximum number of colors for a pad printer?

Commonly pad printers print in 1 to 6 colors. We have machines to print in up to 8 colors.



5. How do I choose a type of pad printing machine?

- Select a machine type based on the required image sizes and article size



6. What accessories need for working the pad printer:

Steel plate with design, rubber pads, Ink. Mold of the products. Which can provided by us.
