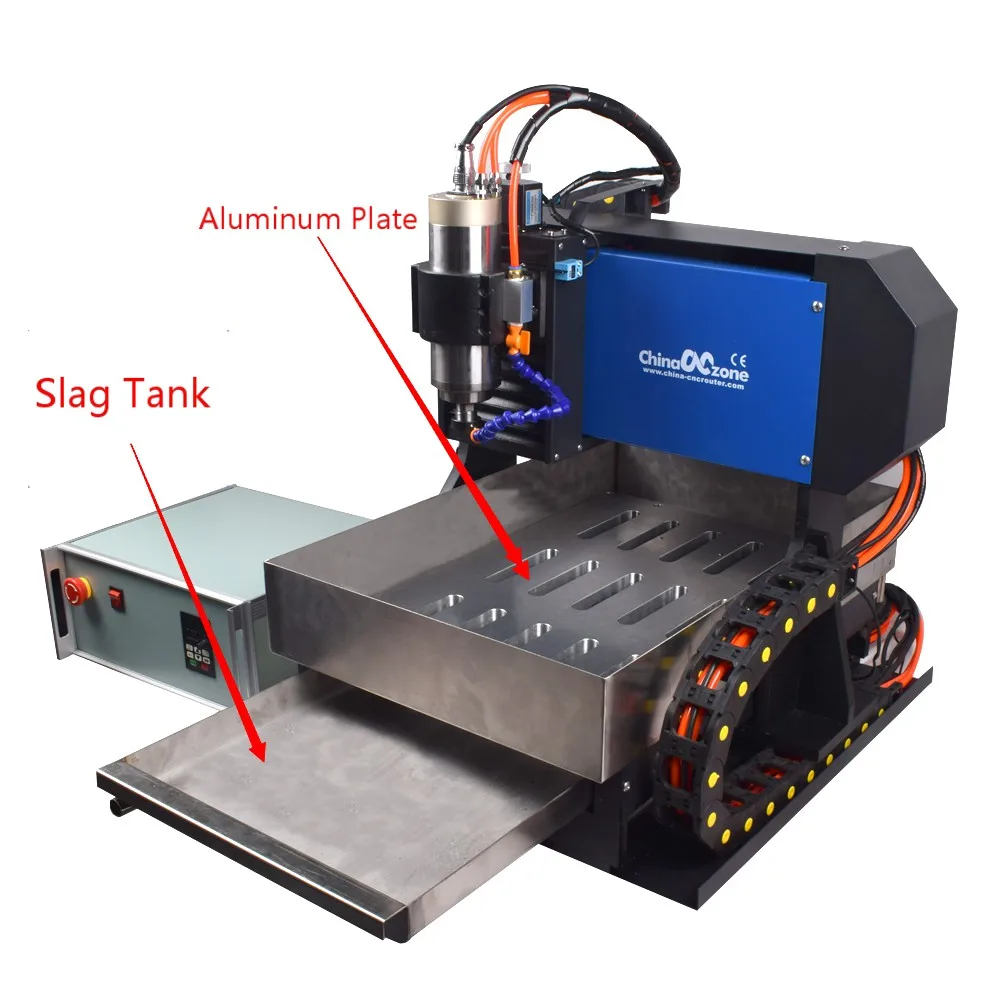

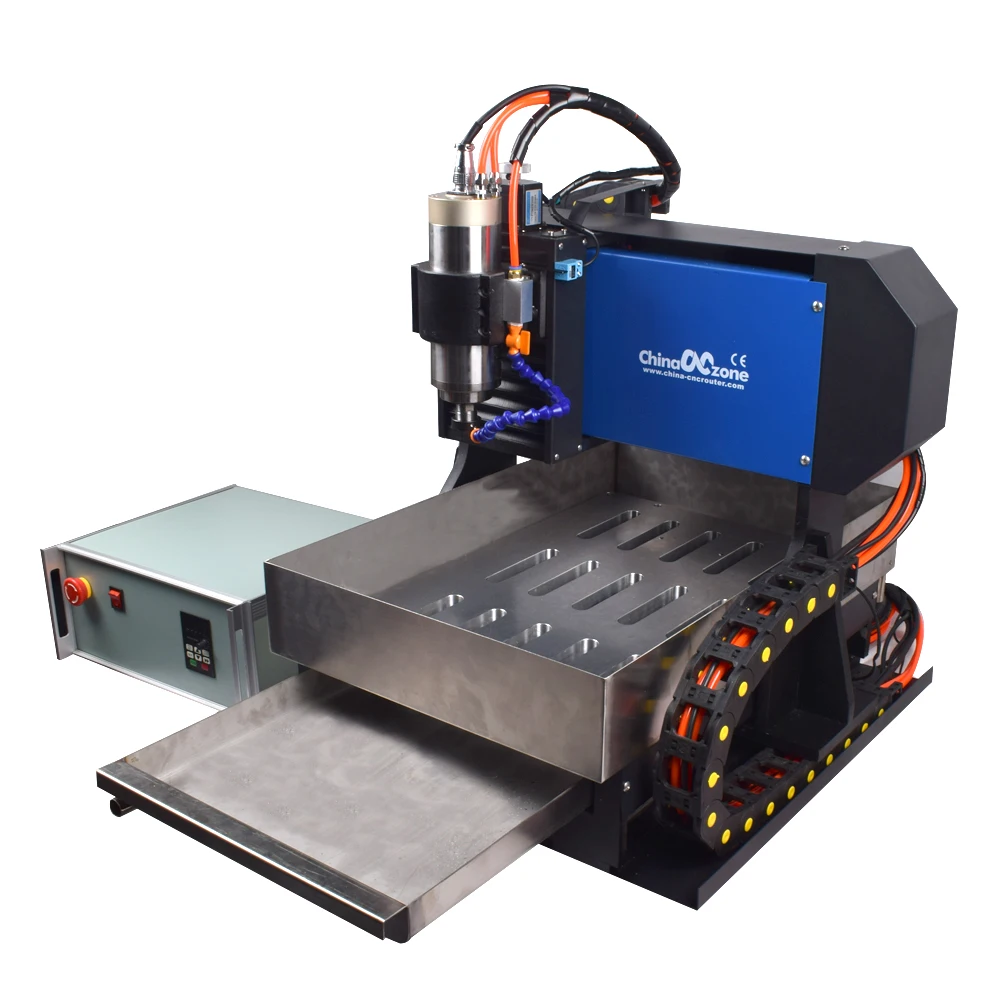

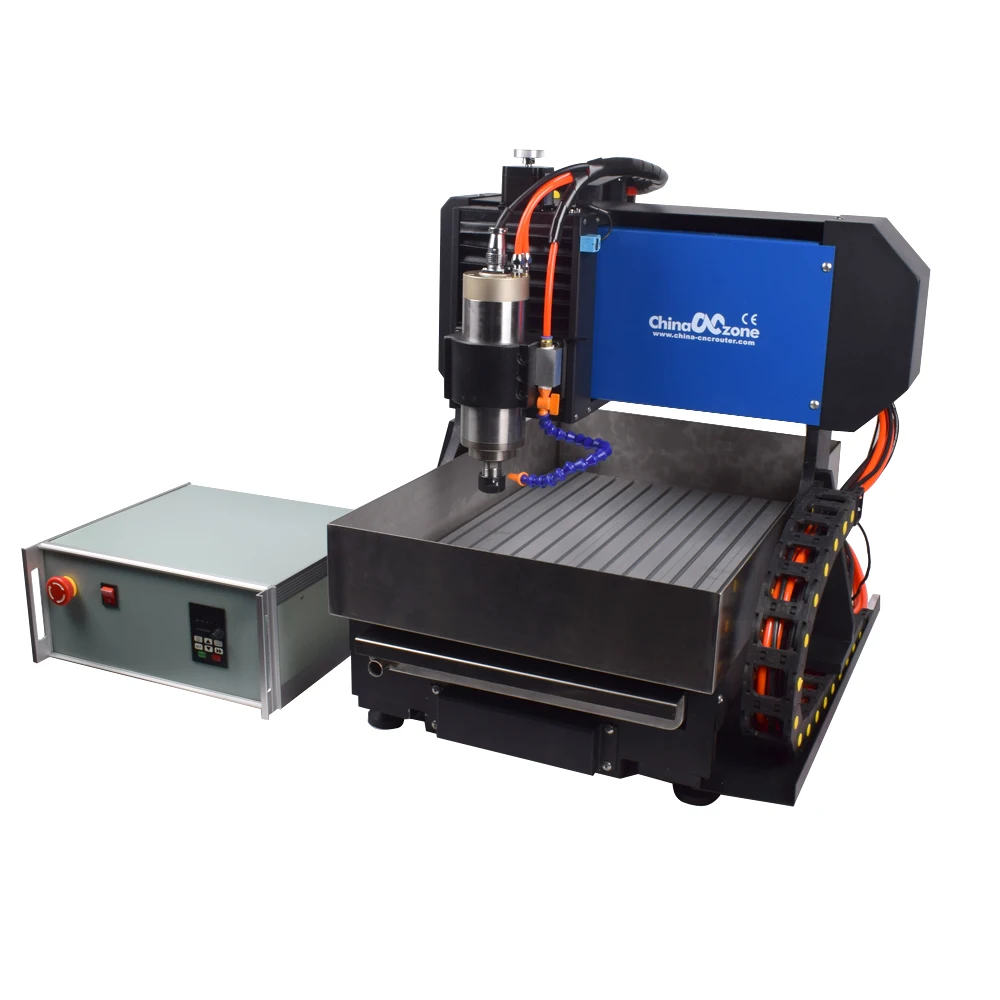

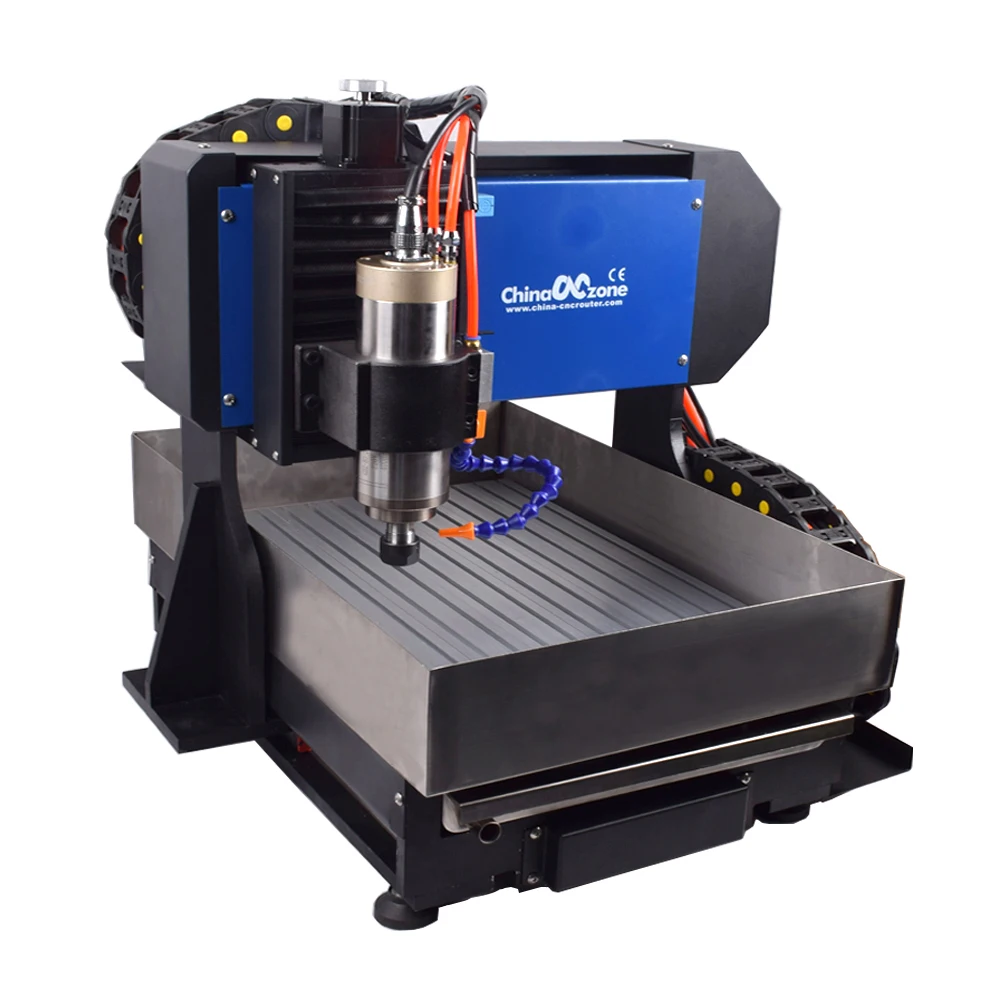

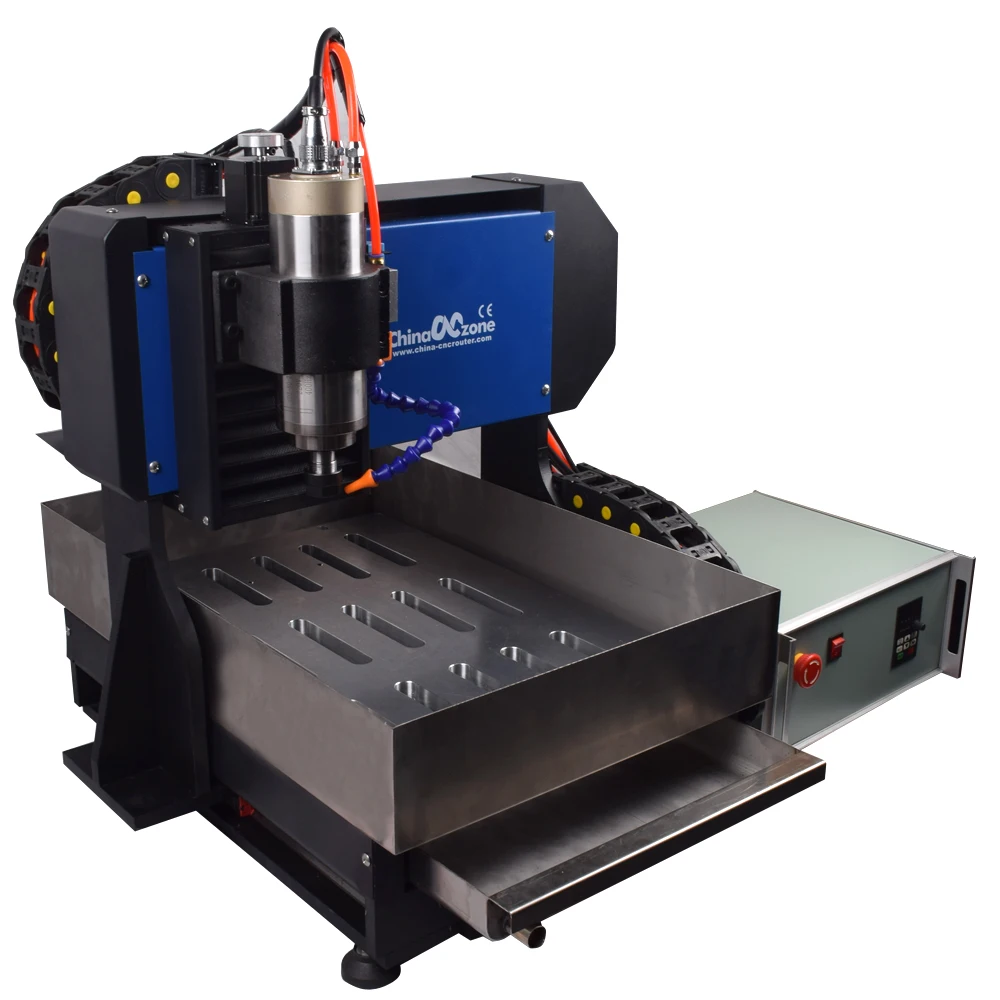

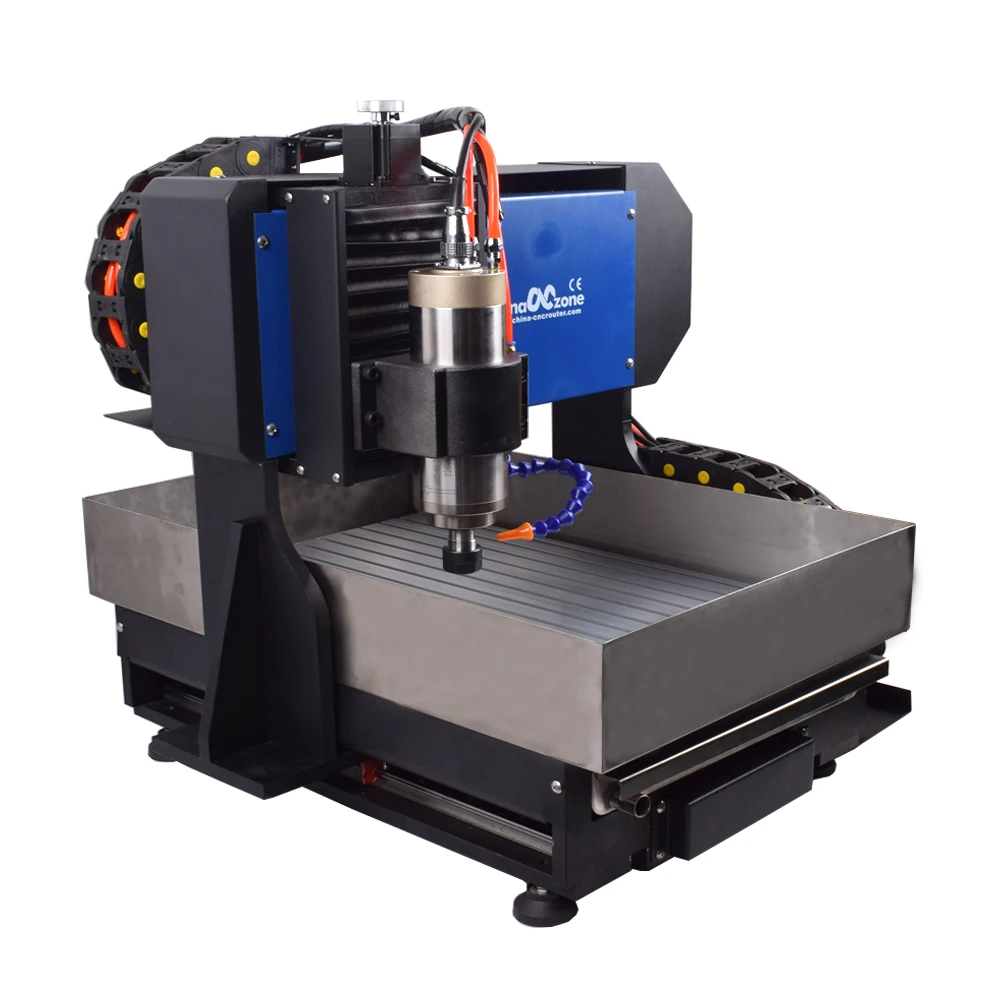

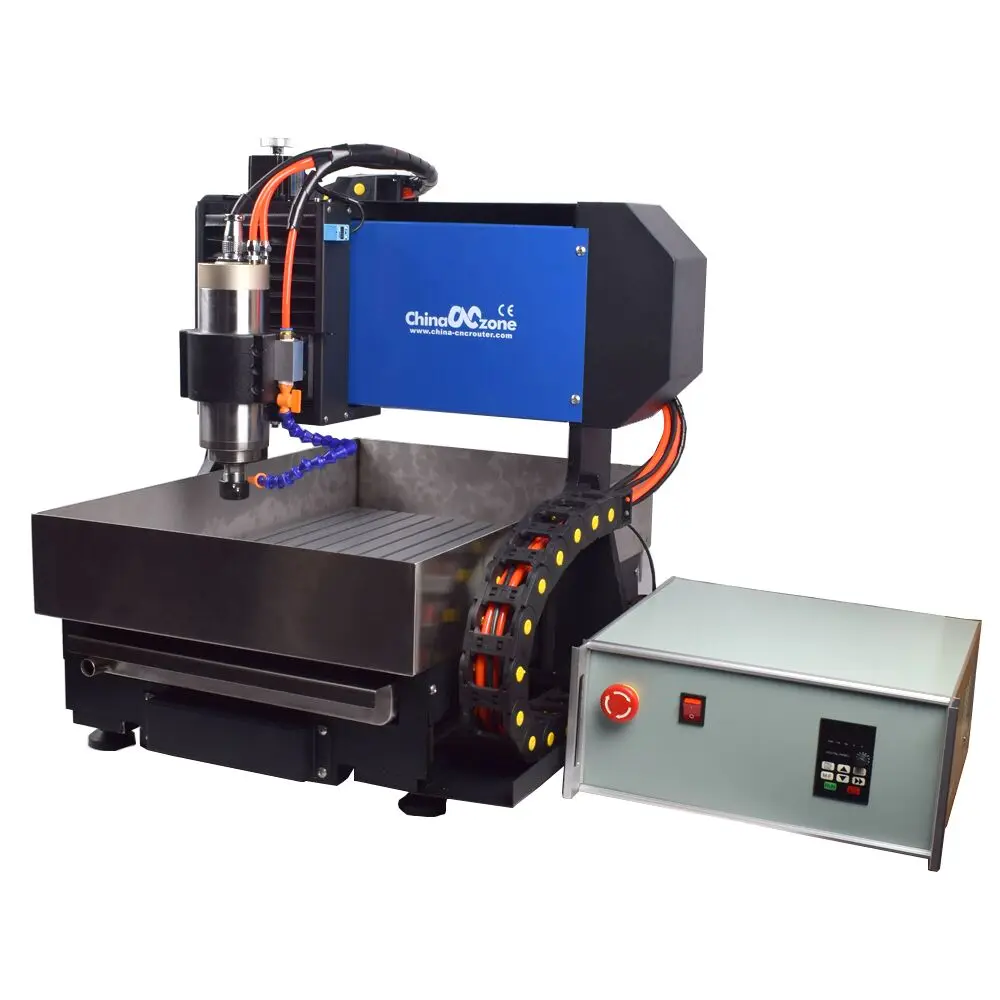

mini desktop 3/4 axis 2200W water cooling spindle cnc 3040 engraving router machine for steel copper aluminum
- Category: Metal Engraving Machinery >>>
- Supplier: Shenzhen Scotle Technology Ltd.
Share on (62057894501):
Product Overview
Description
Steel body Mini CNC 3040 engraving machine for copper ,aluminum and stone material | ||||||
Effective working travel | 300(X)mm*400(Y)mm*145(Z)mm | Stepping motor type | 57 two-phase 2.5A 55N.cm | |||
Shape dimension | 510*620*570mm | Spindle motor | Brand new 2200W water cooling spindle, 24000RPM | |||
Work table dimension | 570*420mm | Principal axis collet | ER20 1-13mm, | |||
Frame materials | #45 steel | Repeat accuracy | 0.05mm | |||
acceptable material thickness | ≤100mm | Spindle precision | radial beat acuities 0.03 mm | |||
Driving units | X/Y/Z axis | SFUR1605-DFC7-P0 ball screw | ||||
Sliding units | X axis | Dia.30mm chrome plate shafts | ||||
Y axis | Dia.20mm chrome plate shafts | |||||
Z axis | Dia.16mm chrome plate shafts | |||||
Software environment | MACH3 Support windows 10 | Protection | Emergency stop button | |||
Maximum speed | 0-4000mm/min | Operating Voltage | AC220V/110V | |||
Control unit | XHC mainboard | Warranty | 1 Year for the whole machine, 3 months for the spindle | |||
Computer connection | USB port | Package size | One wooden box, 67*78*71cm | |||
Command code | G code, tap, NC, ncc etc. | Gross weight | 3axis 103KG 4axis 113KG | |||
In Industry,Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs, Artwork,Crafts, Aircraft Models, RC Model parts, etc.
This machie have two rail types for option: cylindrical Guidel and Linear Guide
Features:
1. It can work with 3 axis / 4 axis
2. Integrated high-speed micro computer intelligent control chip.
3. USB port ,Mach 3 software, supports Winxp,7,10
4. Built in frequencey converter
5. Applicable to steel, aluminum, brass, copper, stone, granite etc.
Higher Pricision :
1.Linear guide2. Heavier steel strucutre
3. XHC control board
4. With auto-checking function
5. 2200W water-cooled spindle
6. Ball screw
The x, y, Z axis motors all are stepper moters. For the 4th Axis motor, We have two options available, One is stepper moter, the other is servo motor.
The 4th axis specification (Stepper Motor) | ||||||
The 4 axis size (mm) | Center height | Hold diameter | Reduction ratio | |||
220(L)*116（W）*105（H） | 65mm | 80mm | 1:3 | |||
The 4th aixs specification (Servo moto) | ||||||
The 4 axis size (mm) | Center height | Hold diameter | Reduction ratio | |||
210(L)*90（W）*105（H） | 65mm | 80mm | ||||
Below form is our testing data , displayed the different perfomance of use stepper motor and servo motor respectively.
Test material | Cutter | Parameter setting | 57 setpper motor Time consumption of processing (m/s) | 400W servo motorTime consumption of processing (m/s) | ||||
Copper | Spindle Speed (RPM) | Feed speed (mm/min) | ||||||
Aluminum | 2 Fluts milling cutter , Shank diameter :6mm | 0.5mm | 10000 | 1500 | 2：42 | 1：06 | ||
1mm | 9000 | 800 | 4：45 | 2：00 | ||||
1.5mm | 8000 | 500 | 7：38 | 4：00 | ||||
Copper | 4 Fluts milling cutter,Shank diameter :6mm | 0.5mm | 10000 | 1000 | 2：23 | 1：30 | ||
1mm | 9000 | 800 | 3：32 | 2：06 | ||||
1.5mm | 8000 | 500 | 6：11 | 3：26 | ||||
45#steel | 4 Fluts milling cutter,Shank diameter :6mm | 0.3mm | 9000 | 900 | 2：00 | 0：50 | ||
0.5mm | 9000 | 800 | 3：10 | 1：15 | ||||
Packing size | L | W | H |
67 cm | 78 cm | 71 cm |
Applications of this 3040 4Axis Mini CNC Router Engraver
Can engrave metal material like aluminum , copper , stainless steel and some hard material like stone ,jade and so on .
1 | 1 water pump* 2 | 6 | USB connect cable * 1 | ||
2 | water pump fixed feet * 8 | 7 | Spanner * 2 | ||
3 | Water pump inlet * 2 | 8 | water sink outlet pipe * 1 | ||
4 | clamp tool * 6 | 9 | Engraving bits * 5 4F*6*6*19*63mm White steel bit * 1 4F*6*6*15*50mm Tungsten steel milling bit * 1 3.175*20°*0.1 * 1 3.175*20°*0.2 * 1 3.175*20°*0.3 * 1 | ||
5 | Power Cable * 1 | ||||
