Product Description
PTZ camera feature
PTZ camera parameter
Model | NDR-305D-2MP | NDR-305D-5MP | |
Camera | |||
Image Sensor | 1/2.8" CMOS(Sony IMX307) | 1/2.8" CMOS(Sony IMX335) | |
Minimum Illumination | Color: 0.001Lux, B/W: 0.001Lux,0 Lux with IR | ||
3D NDR | Support | ||
DWDR | Support | ||
Electronic Shutter | 1/1s—1/30000s, AUTO | ||

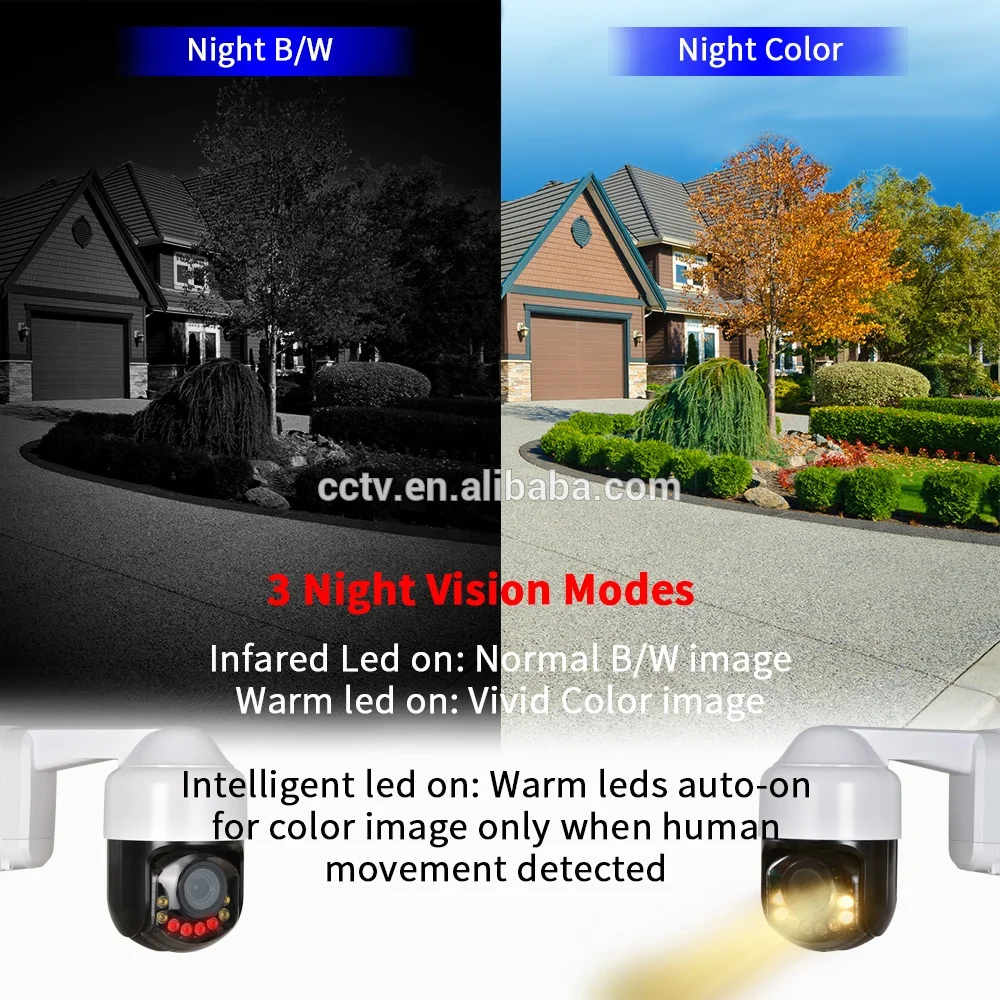

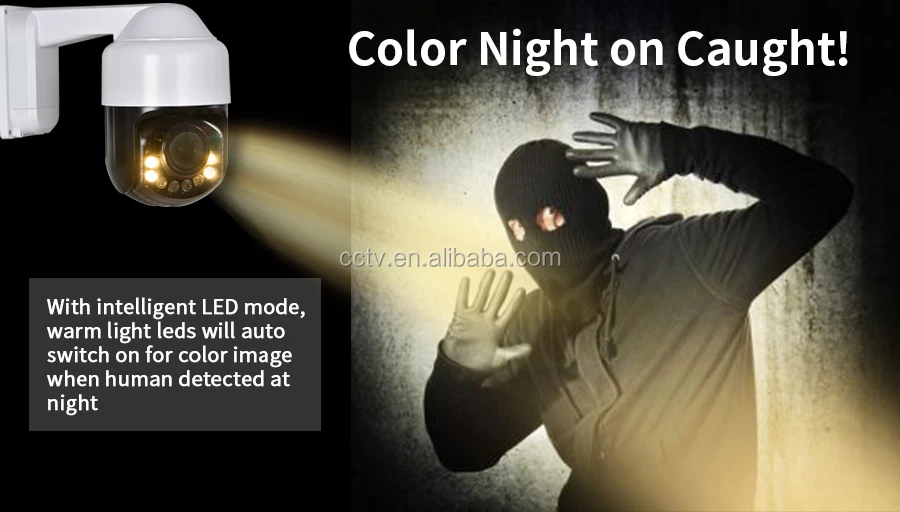

Night vision mode | Full color or B/W or Intelligent Switch mode | ||
Focal Length: | 4MM LENS / 2.8-12mm,4X Optical Zoom (F1.6 to F2.7) | ||
Resolution | 1920(H)x1080(V) | 2592(H)x1944(V) | |
Main Stream | 25fps: (1920×1080) | 25fps: 2592×1944, 2592×1520, 1920×1080 | |
Sub Stream | 25fp: (704×576), (640×480), (648×360) | 25fps: (704×576), (640×480), (648×360) | |
Video Compression | H.265, H.264, MJPEG | ||
Network protocol | HTTP ,FTP,SMTP,UPnP,SNMP, DDNS,NTP,RTSP,RTP,TCP,DHCP, PPPoE | ||
Interface protocol | ONVIF 2.4 | ||
PTZ Control | |||
IR Distance | 50m | ||
Warm light distance | 40m | ||

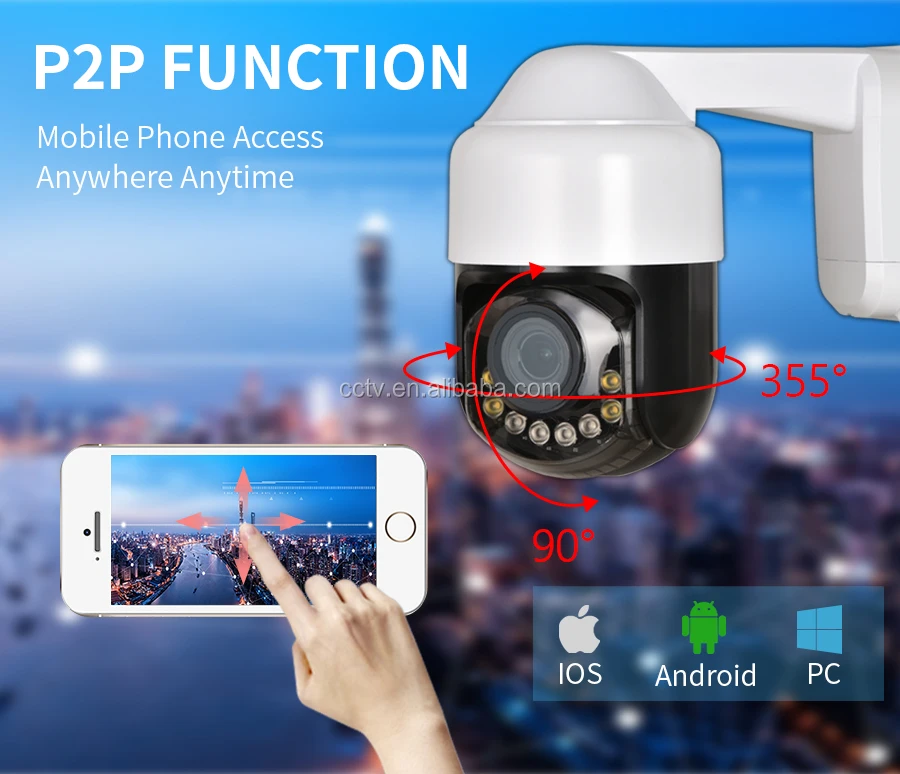

Horizontal Range | 0°~355° | ||
Vertical Range | -5°~90° | ||
Horizontal Speed | 0.5°~40°/s | ||
Vertical Speed | 0.5°~40°/s | ||
Max Speed | 40°/S | ||
Preset | 128 | ||
POE function(Optional) | |||
POE supply voltage | DC48V | ||
POE supply PIN | 1,2(+),3,6(-) / 4,5(+),7,8(-) Auto adaptation | ||
General | |||
Power | 12V/2A | ||
Consumption | <15W | ||
work environment | temperature : -20~60℃;humidity<90% | ||

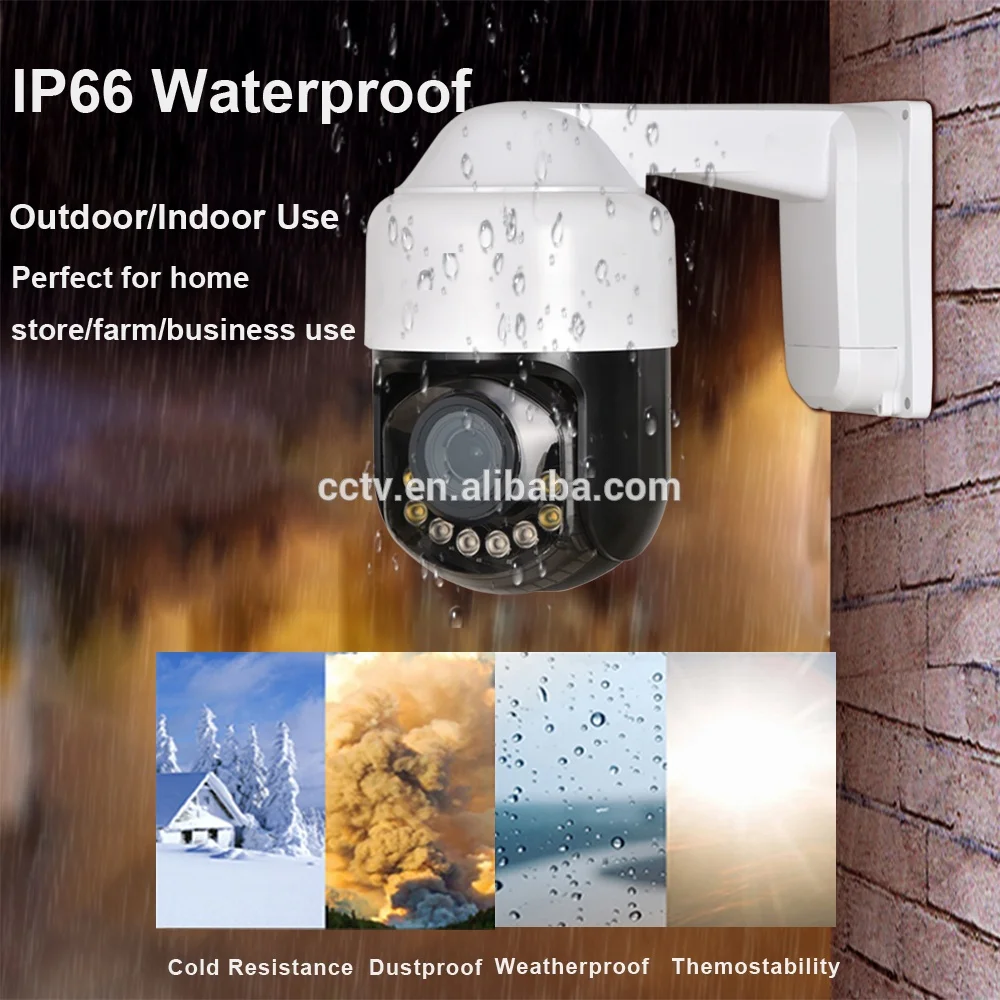

Protection level | IP66 waterproof, 4000V lightning protection | ||
GW | 1.3KG | ||
Package Include
