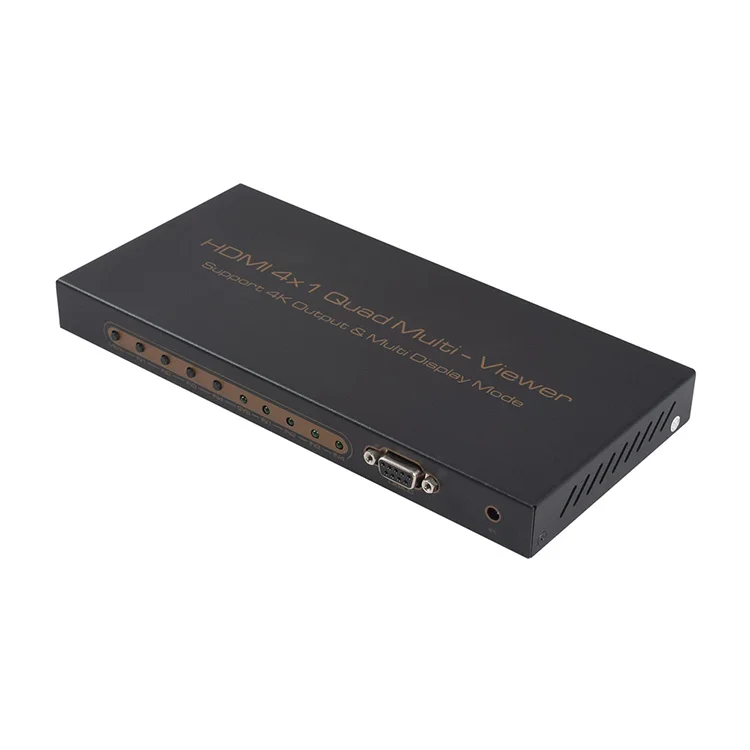

Multiswitch 4k HDMI 4x1 Quad Multi viewer 4 in1 Out HDMI Quad Screen Splitter/Multiviewer with RS232
- Category: >>>
- Supplier: Ask Technology Co. Ltd.
Share on (62058288231):
Product Overview
Description
hdmi Multiswitch 4k HDMI 4x1 Quad Multi-viewer 4 in1 Out HDMI Quad Screen Splitter/Multiviewer with RS232
Introduction:
Our series of HDMI Converter, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.
Hdmi 4x1 Quad Multi-viewer With Seamless Switcher

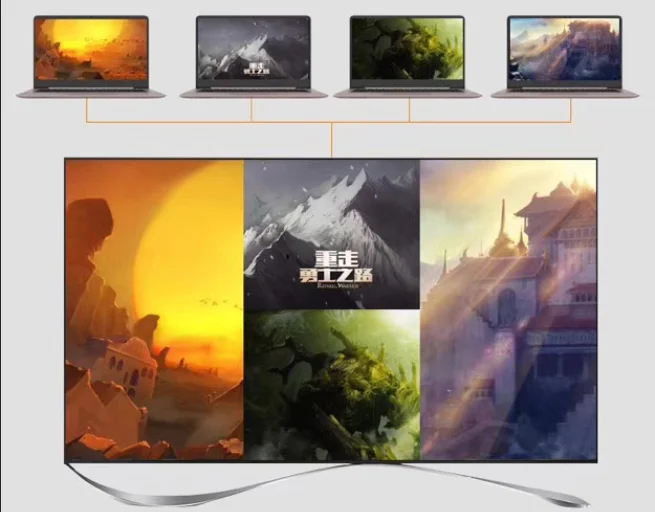

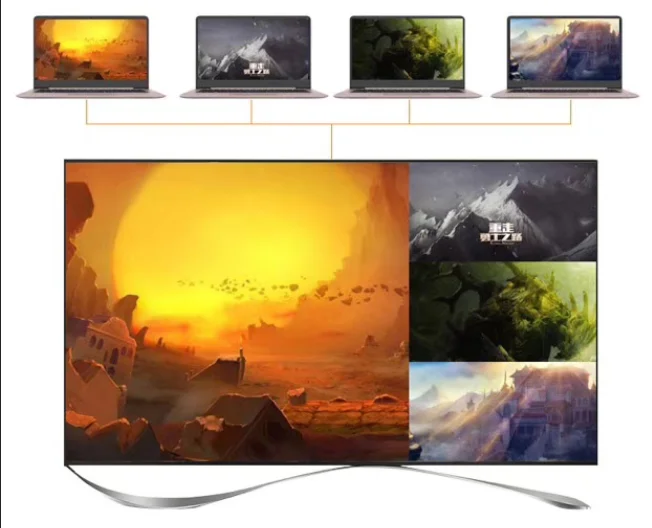

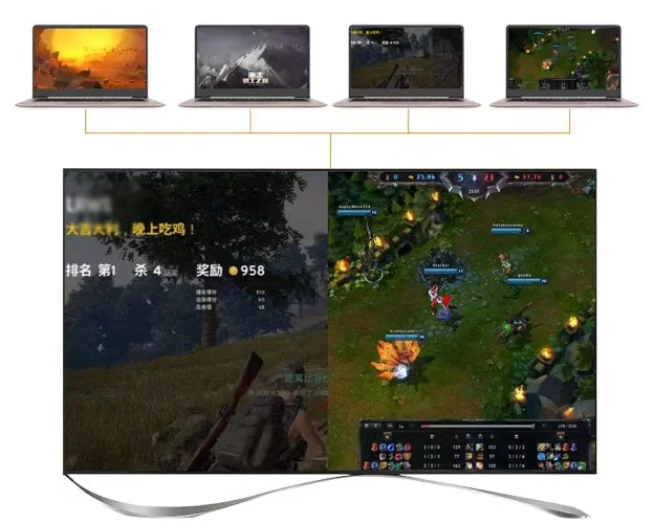

is one high-performance 4x1 Quad Multi-Viewer with seamless switcher, which can let four HDMI inputs to show at one HD Display simultaneously and support multi type of video splitter effect. It can switch seamless four HDMI inputs to one HD Display. The device can be controlled by front panel button, IR Remote and RS232. It can be used for the situation like Large AV Project, Conference Meeting Room and others.
Product Description
1080P HDMI 4x1 Quad Multi-viewer 4 in1 Out HDMI Quad Screen Splitter/Multiviewer with RS232
hdmi 4x1 Key Feature
- Four HDMI input signals switched to one single HDMI sink devices

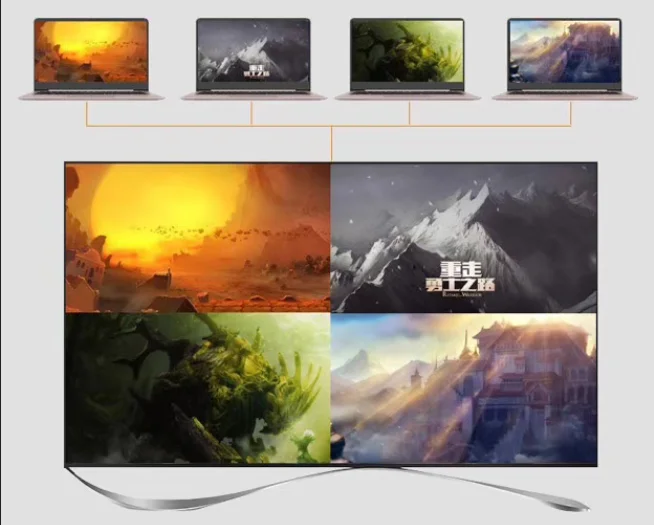

- Support Four HDMI Input to one Quad Multi-Viewer
- Support Four HDMI Input Switch Seamless
- HDMI input resolution highest support: 1080P @60Hz resolution
- HDMI output resolution:720P/ 60Hz. 1080P/ 60Hz;
- Support SPDIF Coaxial digital audio format: Dolby digital (AC3), DTS and LPCM2.0
- Support IR Remote Control and Push Button at device control.
- Support RS232 Control and the device can do software upgrade by the PC.
- LED indication: when source or sink is working, LED related will go bright.
- Led Status Light allows the user to know the working status easily.
- No loss of quality
- Installs in minutes
- Need DC12V/1.5A power supply
hdmi 4x1 Technical Specification
| Port | |
| HDMI IN | 4 input |
| HDMI out | one Quad Multi-Viewer |
| Coaxial | SPDIF/ Coaxial output ports |
| R232 | RS232 communication port |
| Power | |
| Voltage | DC 1V |
| Amps | 700mA |
| Power Consumption | 8.4 Watts (max) |
| Resolution | |
| Data Rate | 6.75Gbps |
| Max transmission bandwidth | 225MHz |
| HDMI Input Resolution | 1080P @60Hz resolution |
| HDMI output resolution | 720P/ 60Hz. 1080P/ 60Hz |
| Cable Connections | |
| Input | HDMI |
| Output | HDMI |
| Connectors (Input) | 4 x HDMI Type A 19 Pin Female |
| Connectors (Output) | 1 x HDMI Type A 19 Pin Female |
| Environment | |
| Operation Temperature | 0 to +40℃ |
| Humidity | 5 to 90%RH (No Condensation) |
| Storage Temperature | -15 to +55℃ |
| Storage Humidity range | 5 to 95%RH (No Condensation) |
| Case | Metal |
| Package Contents | |
| 1,Main unit 1pcs 2,12V power adapter 1pcs 3,Remote 1pcs 4,1 x CD (Driver) 1pcs(RS232 control program) 5,User manual 1pcs | |

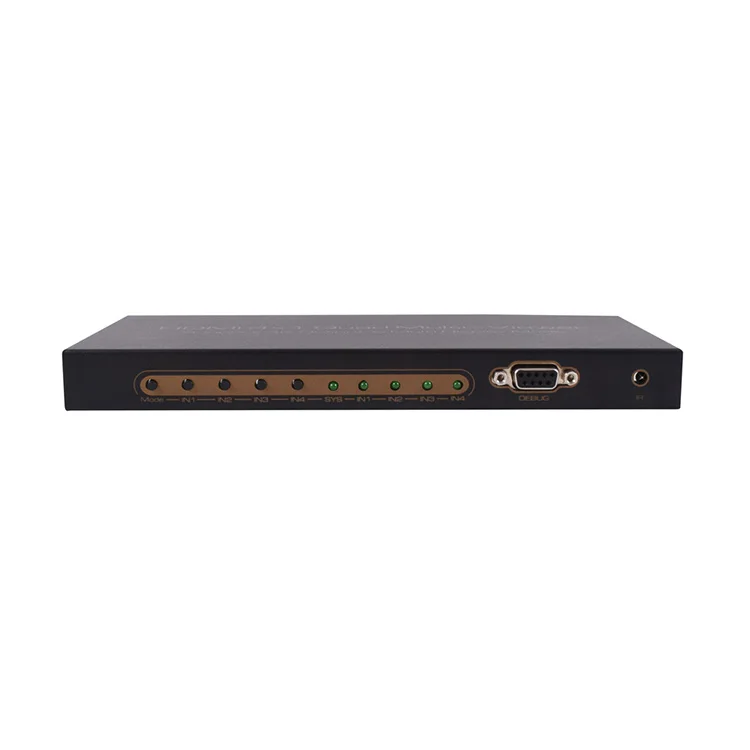

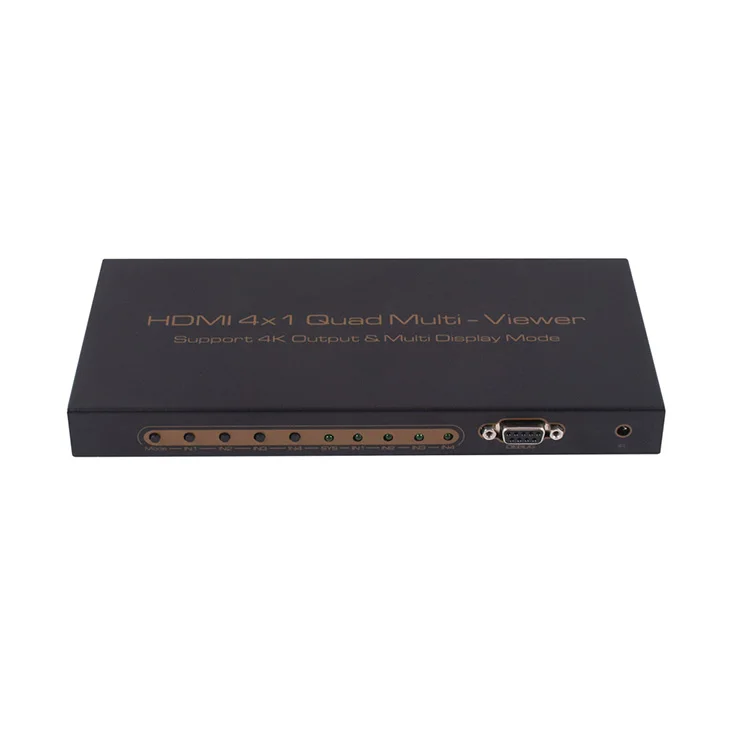

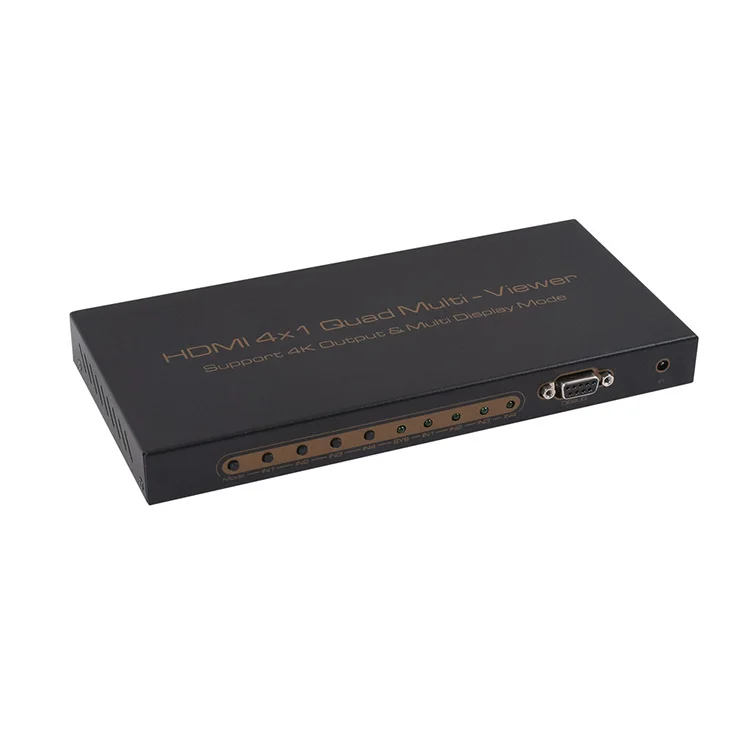

hdmi 4x1 Picture Detail

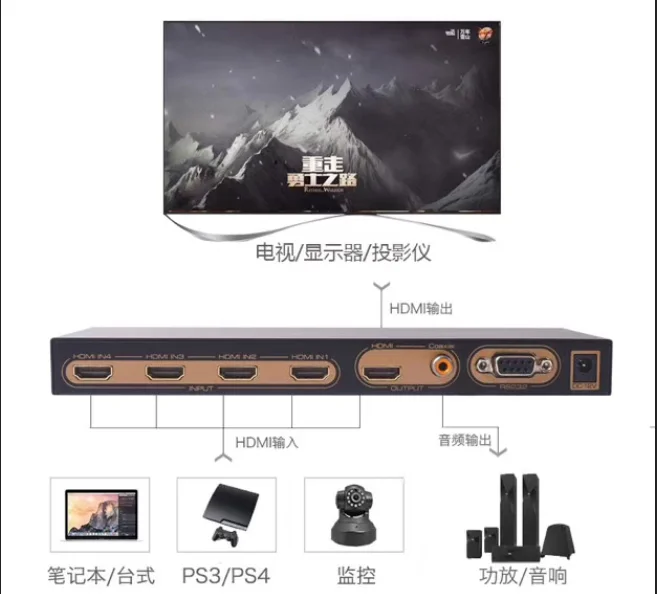

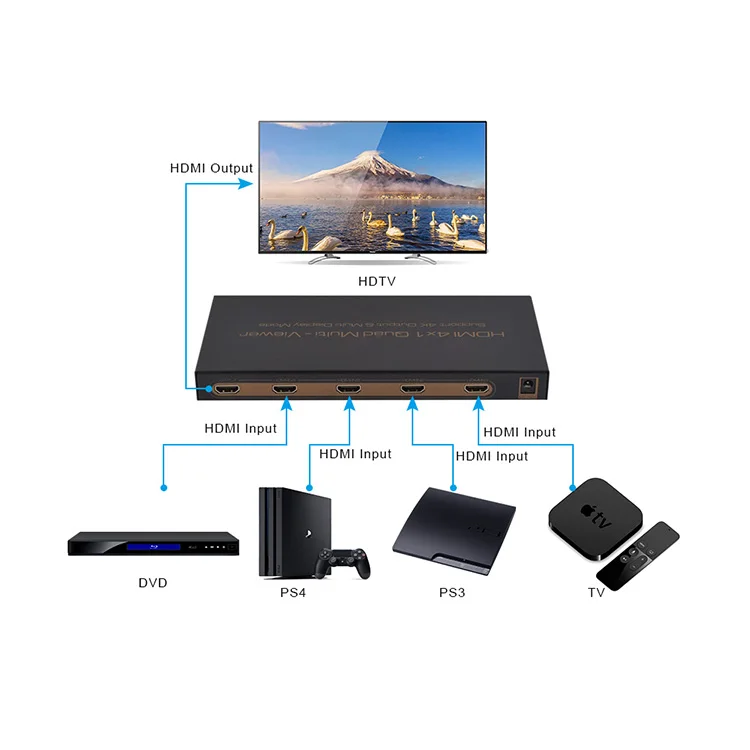

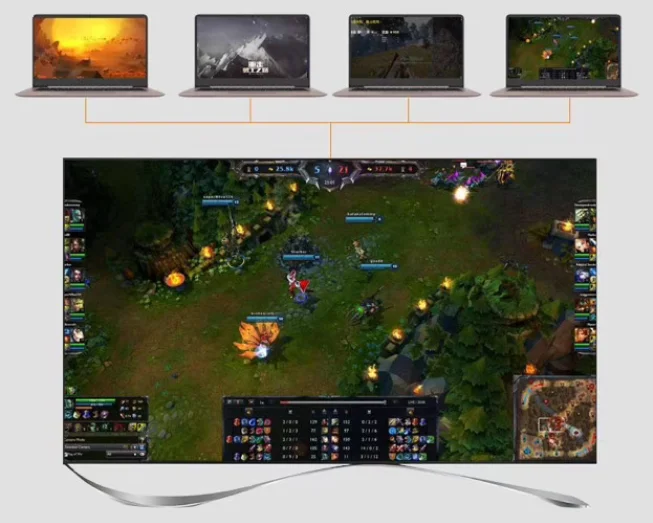

hdmi 4x1 Connection
