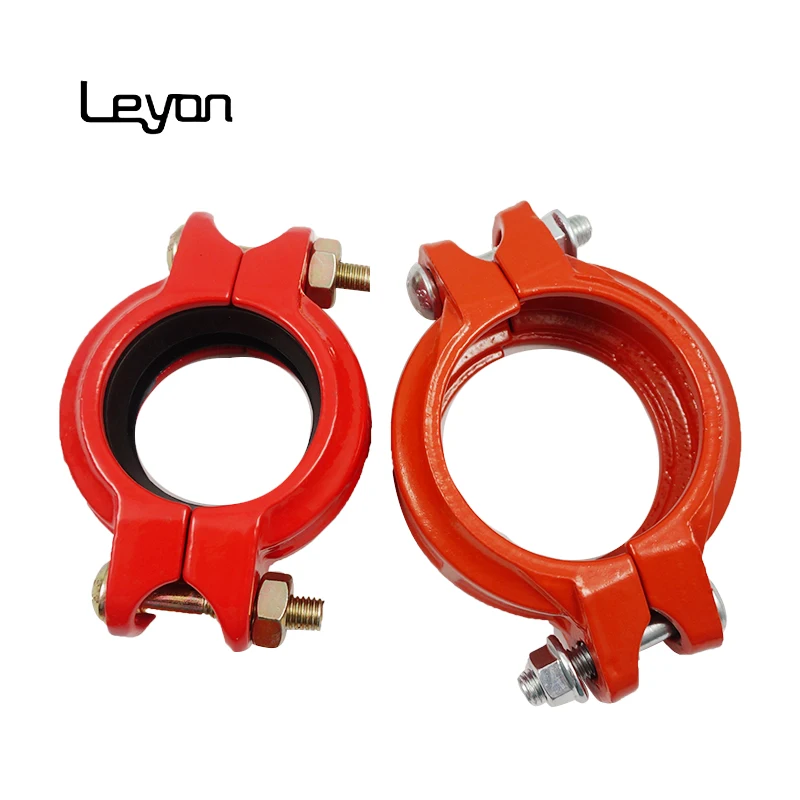

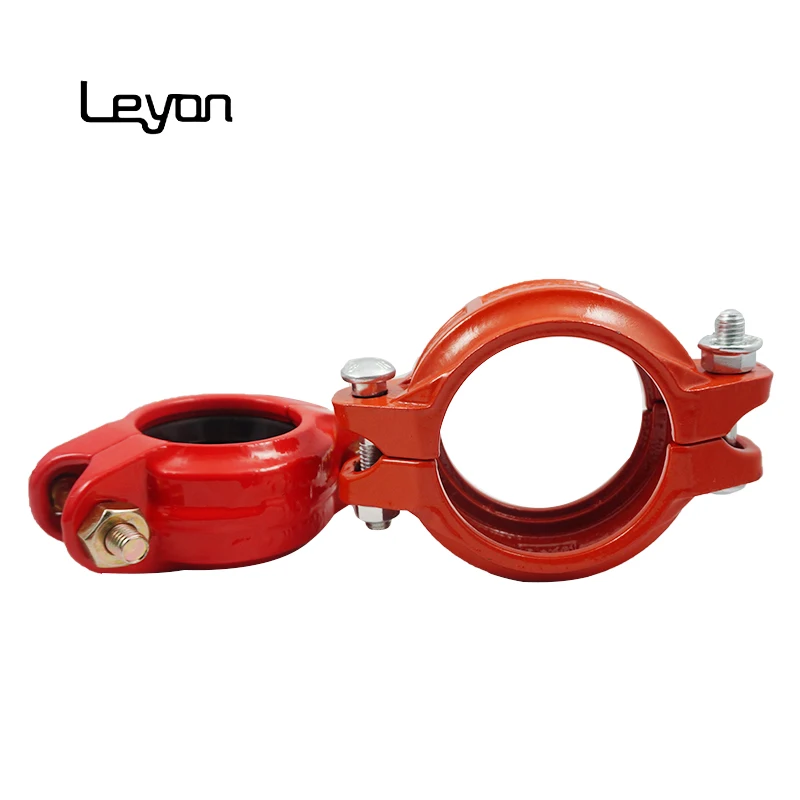

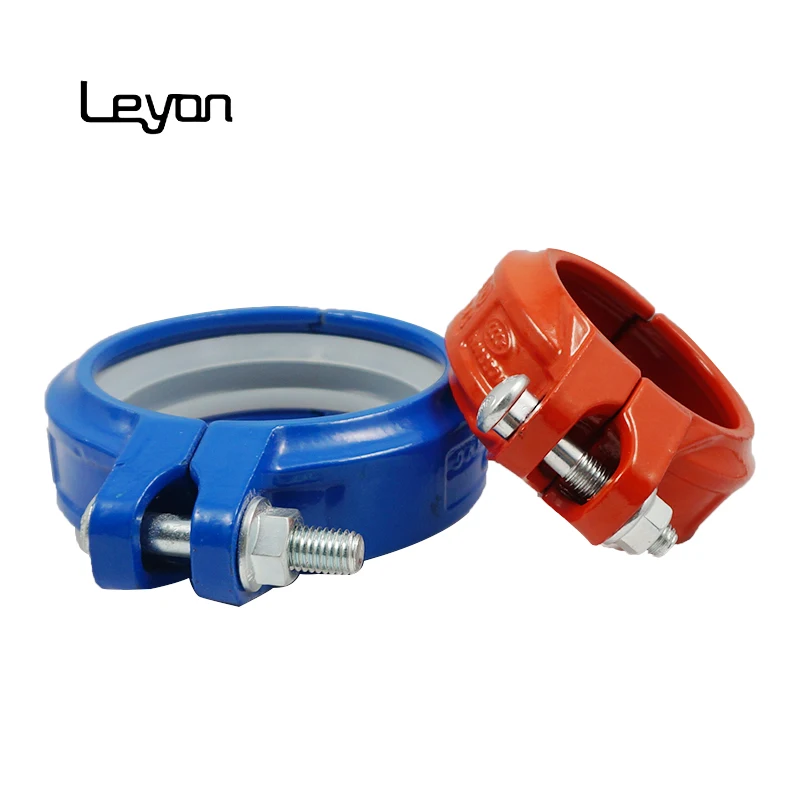

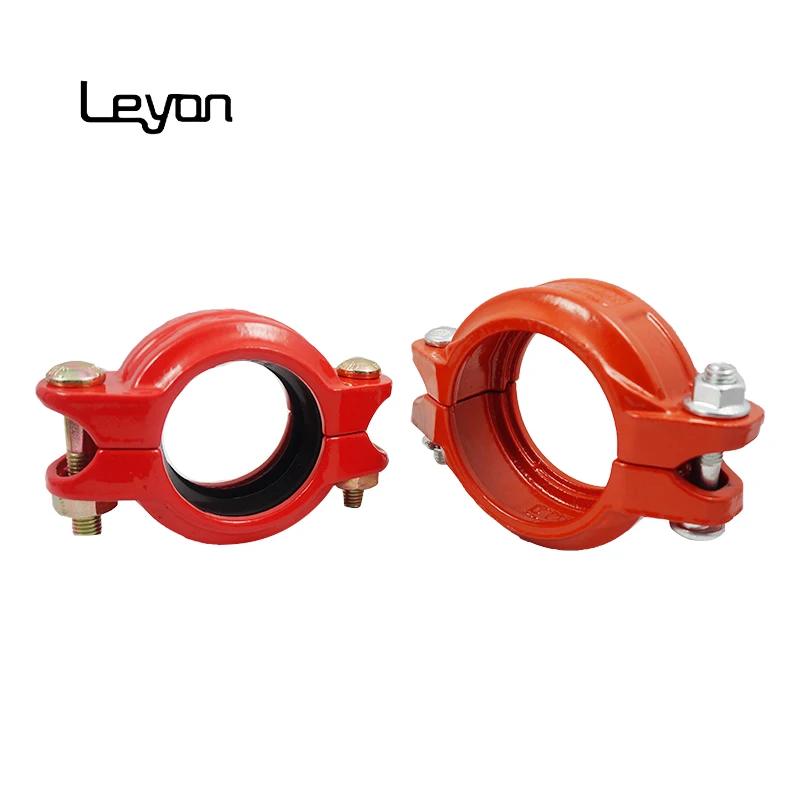

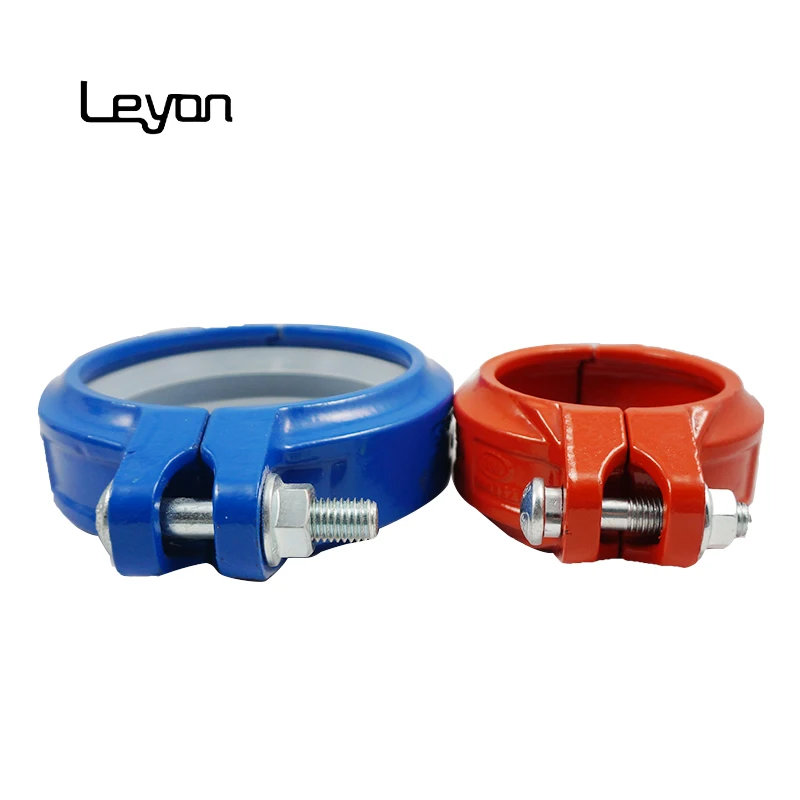

Chinese pipe fittings ductile cast iron grooved flexible coupling rigid coupling for fire fighting pipe fitting
Chinese pipe fittings ductile cast iron grooved flexible coupling rigid coupling for fire fighting pipe fitting
Chinese pipe fittings ductile cast iron grooved flexible coupling rigid coupling for fire fighting pipe fitting
Chinese pipe fittings ductile cast iron grooved flexible coupling rigid coupling for fire fighting pipe fitting
Chinese pipe fittings ductile cast iron grooved flexible coupling rigid coupling for fire fighting pipe fitting
Chinese pipe fittings ductile cast iron grooved flexible coupling rigid coupling for fire fighting pipe fitting
Chinese pipe fittings ductile cast iron grooved flexible coupling rigid coupling for fire fighting pipe fitting

Chinese pipe fittings ductile cast iron grooved flexible coupling rigid coupling for fire fighting pipe fitting

Share on (62058477610):


Price:$4.50 - $7.00

Quantity:


Product Overview

Description




















AWWA size fittings are supplied with rigid radius grooves in accordance with ANSI/AWWA C-606
Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall
thicknesses
Available with a wide variety of coatings and linings
Unwelded fittings can supply tapped fittings that meet ANSI B16.1 dimension locations
Sizes from 3 – 36″ | DN80 – DN900
Pressure rated up to 350 psi | 2413 kPa | 24 bar


Material
Ductile iron Malleable iron
Standard
Grooved Ends
ANSI/AWWA C606; NAPF 400
Physical property
Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Work Pressure
ANSI/AWWA C151/A21.51; NAPF 100. Suitable class thickness pipe is rated at the pipe foundry according to the tables contained
therein
Surface
RAL3000, Epoxy,Red paint
Color
Red. Origin,Blue,Black
Model
Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges
,Side Outlet Tees, Side Outlet Elbows and etc
Shape
Equal, Reducing
Certificate
BSI,ANAB,ISO9001,UL,FM,ANSI/AWWA C606
Size
Fittings available from 3/4 – 24″ | DN20 – DN600
Application
Suitable for air, water, sewage, oil, and other liquids where owners, specifiers, and contractors express a preference in lieu of flanged fabrication.
Buyer’s drawings or designs are available
Package
Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details
According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
