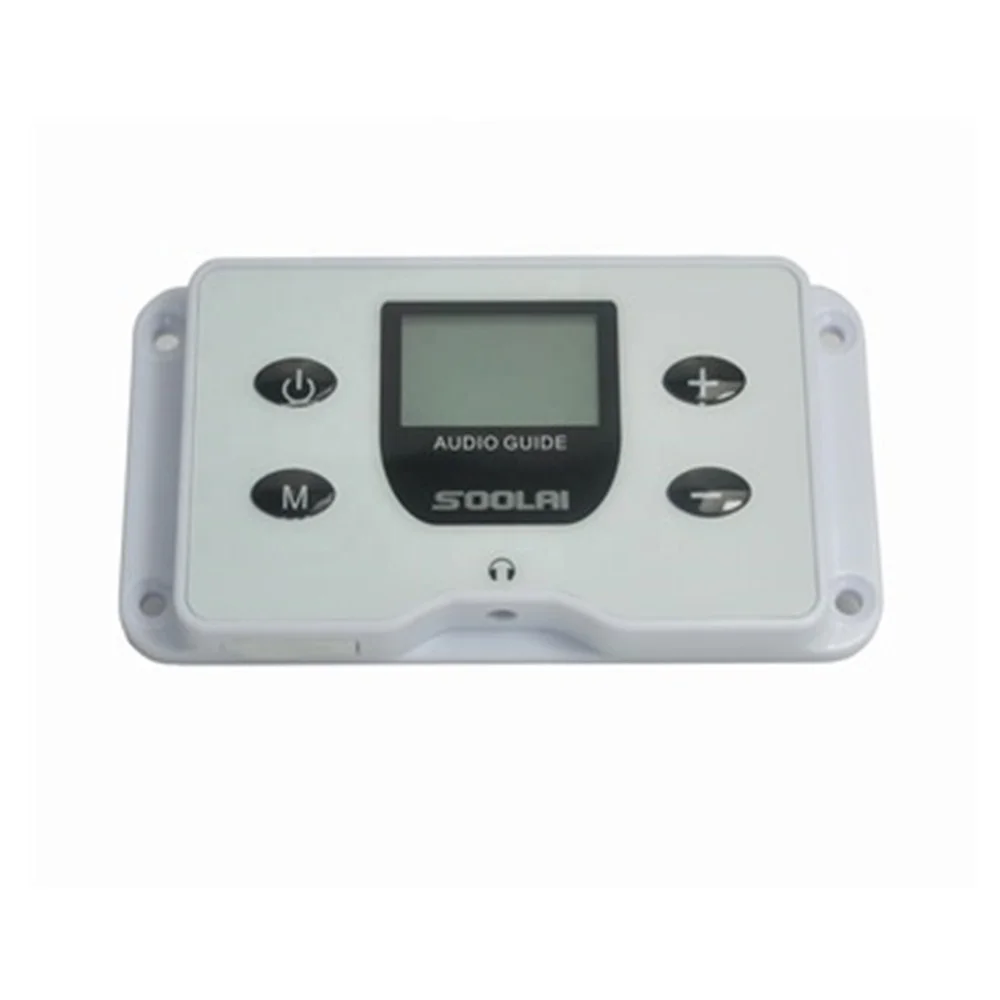

Practical vehicle GPS audio guide system BAG 1000 series

Share on (62058571574):


Price:$69.00 - $89.00

Quantity:


Product Overview

Description

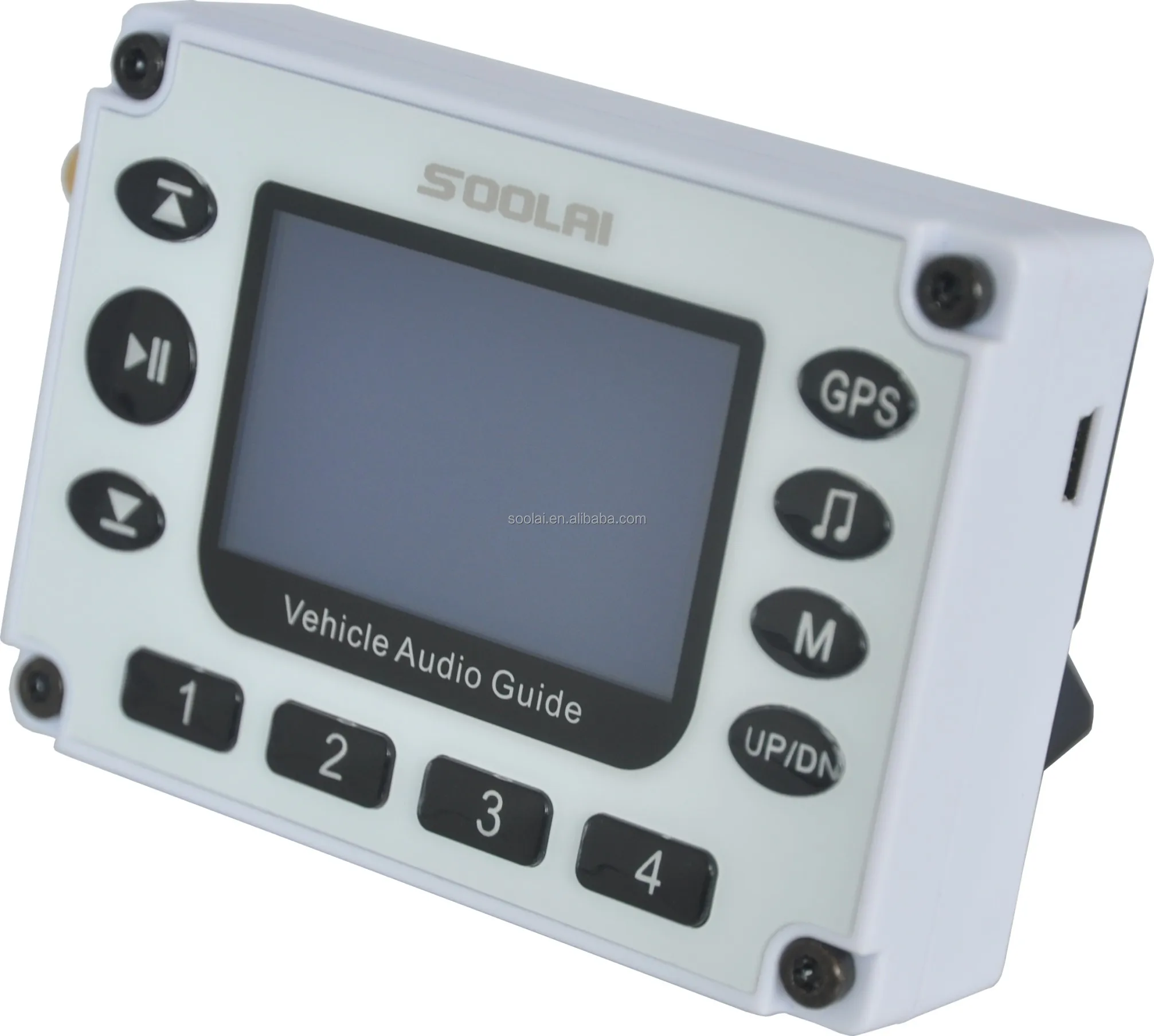

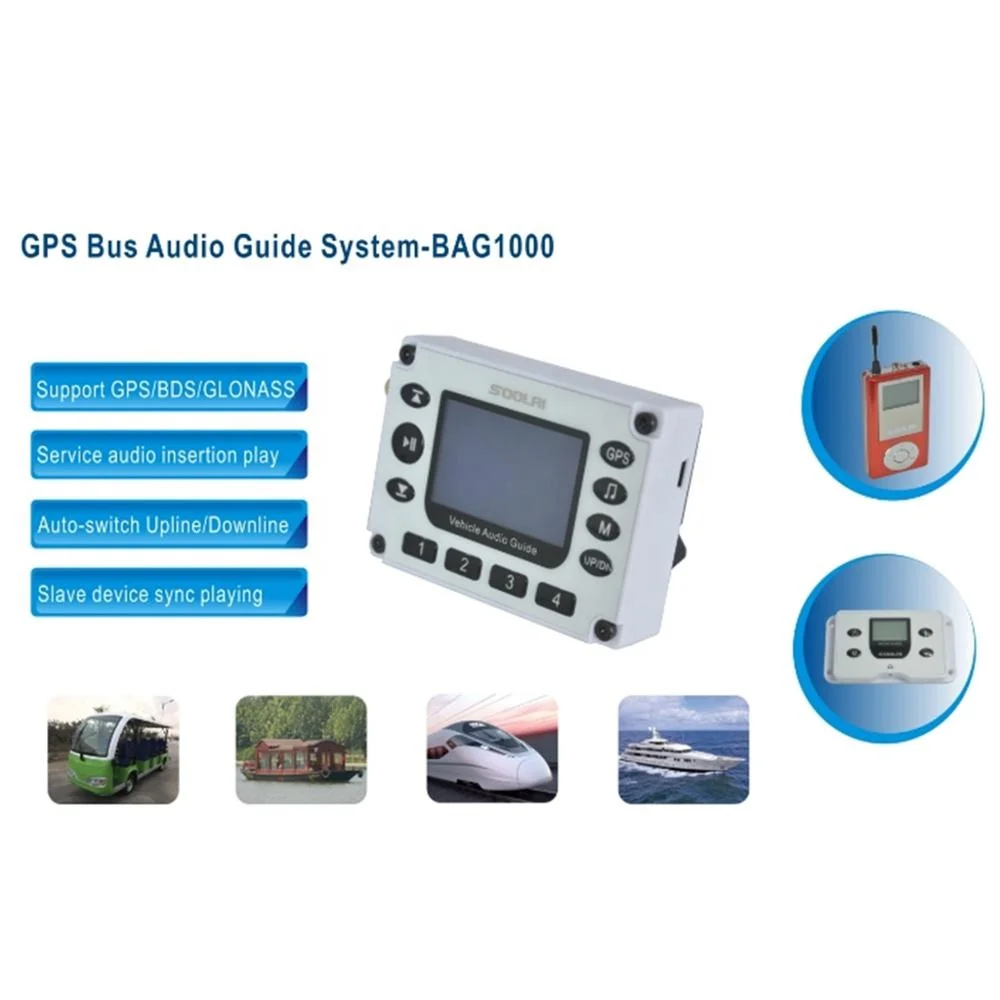

GPS Vehicle Audio Guide System BAG-1000


BAG-1000_01


----------------------------------------------------------------------------------------------------------------------------------------------------------------


Main Features of GPS Vehicle Audio Guide System



  • Support RFID signal trigger playback.

  • Support GPS, GLONASS and BDS satellite positioning playback.

  • GPS data wireless synchronization function, the data in GPS collector can be transmitted to the vehicle audio guide by wireless.

  • 128*64 dot matrix LCD display.

  • Support audio files of MP3 format, 8-48KHz sample rate, 8-320kbps bit rate and VBR.

  • Multi-languages available, 4096 audio files in each language.

  • Object name display, support multi-language characters.

  • With function of auto-switch Upline and Downline.

  • To turn on/off Music function by button.

  • To turn on/off GPS function by button.

  • Point replay function and service audio insert playback.

  • External GPS antenna interface.

  • 3.5mm Audio stereo plug connected output.

  • Automotive power supply, wide range work voltage 5~36V DC.

  • With over current, over voltage multiple protection circuit, safe and reliable.

  • Support RF wireless remote control.

  • It has fixed installation, bracket installation and embedded installation.

  • It has the function of synchronous playback, the contents played by the sync slave audio guide are automatically synchronized from the GPS vehicle audio guide.

  • It has the function of leaving alarm,Portable sync slave audio guide away from the GPS vehicle audio guide when prompted alarm.

  • It has the function of recall, the vehicle audio guide can call the sync slave audio guide remotely to return.

  • It has synchronous shutdown function, the portable sync slave audio guide will shutdown automatically after the GPS vehicle audio guide is off for three minutes.


----------------------------------------------------------------------------------------------------------------------------------------------------------------


Application of GPS Vehicle Audio Guide System




















BAG-1000_02BAG-1000_03BAG-1000_04BAG-1000_05
Sightseeing BusTourist BoatHigh-speed trainCruise ship




GPS vehicle audio guide system is unique product which new R&D by Soolai, it can be placed on tourist vehicles, just like





sightseeing bus, tourist boat. It could position automatically by receiving the GPS satellite signals, and play the corresponding





audio automatically. Tourists could also choose the language to listen to themselves by slave device, and do not interfere with





other tourists, providing a very good tourist experience.





----------------------------------------------------------------------------------------------------------------------------------------------------------------

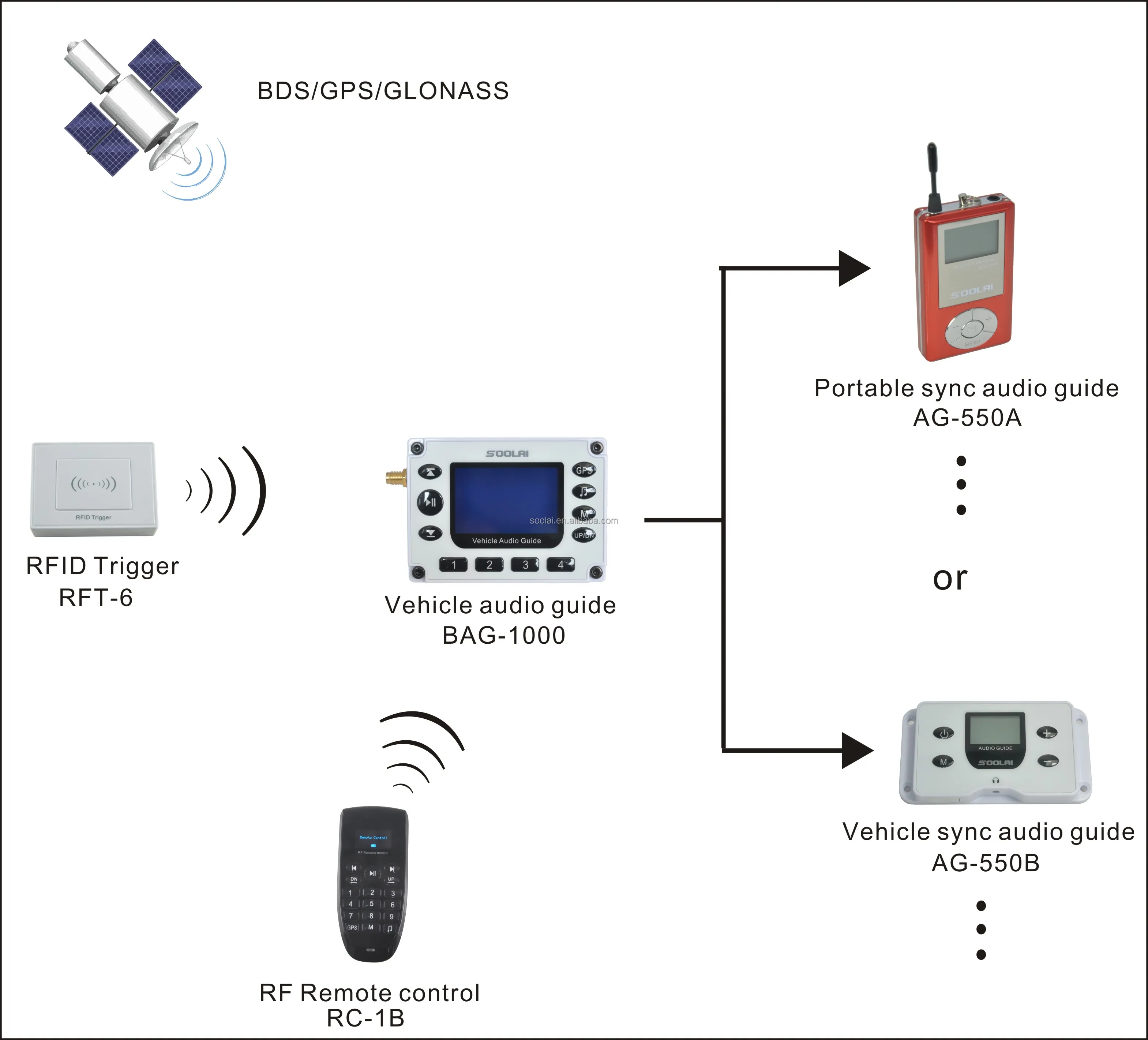

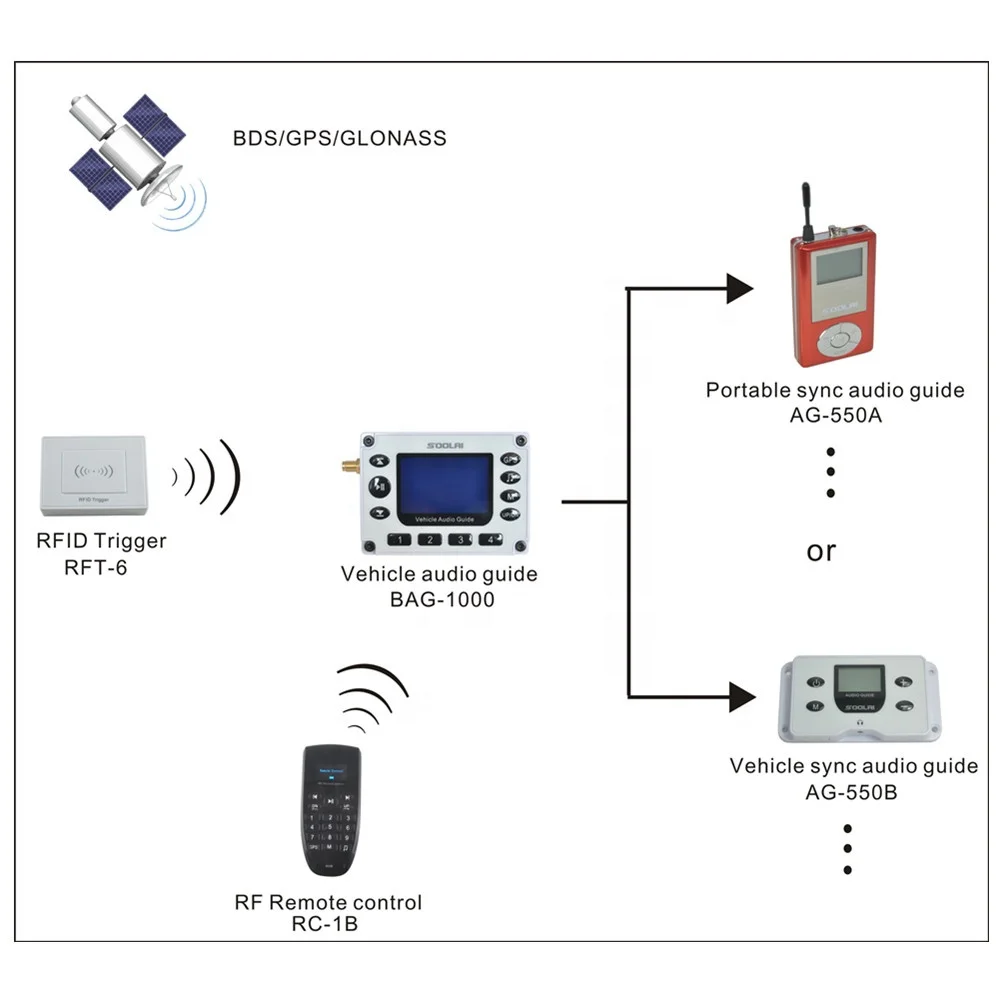

Composition of GPS Vehicle Audio Guide System


BAG-1000_06



  • Simple system configuration, it is composed of the vehicle audio guide and sync audio guide units.

  • The vehicle audio guide receives GPS, GLONASS and BDS satellite signals, Realize automatic trigger playback.

  • The vehicle audio guide receives RFID signal, realize automatic trigger playback.

  • The vehicle audio guide supports wireless remote control operation.

  • The sync audio guide supports visitors to choose a language to listen to.

  • The sync audio guide automatically plays the content of the vehicle audio guide synchronously.

  • The sync audio guide has two models to choose from:


             AG-550A: Portable design, carry it conveniently, no installation required, built-in polymer ion polymer battery.


             AG-550B: Fixed to seat, easy to install, automotive power supply, waterproof design.


----------------------------------------------------------------------------------------------------------------------------------------------------------------

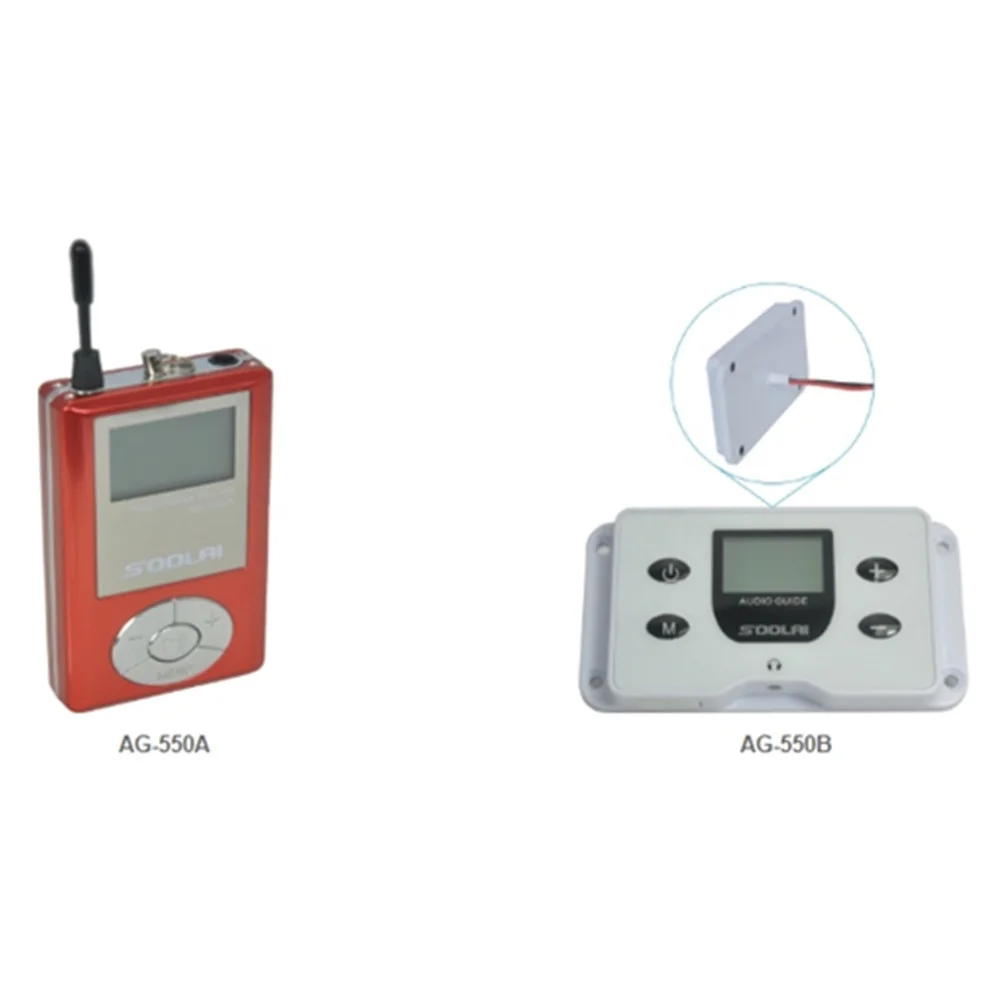

Sync audio guide

















BAG-1000_07BAG-1000_08

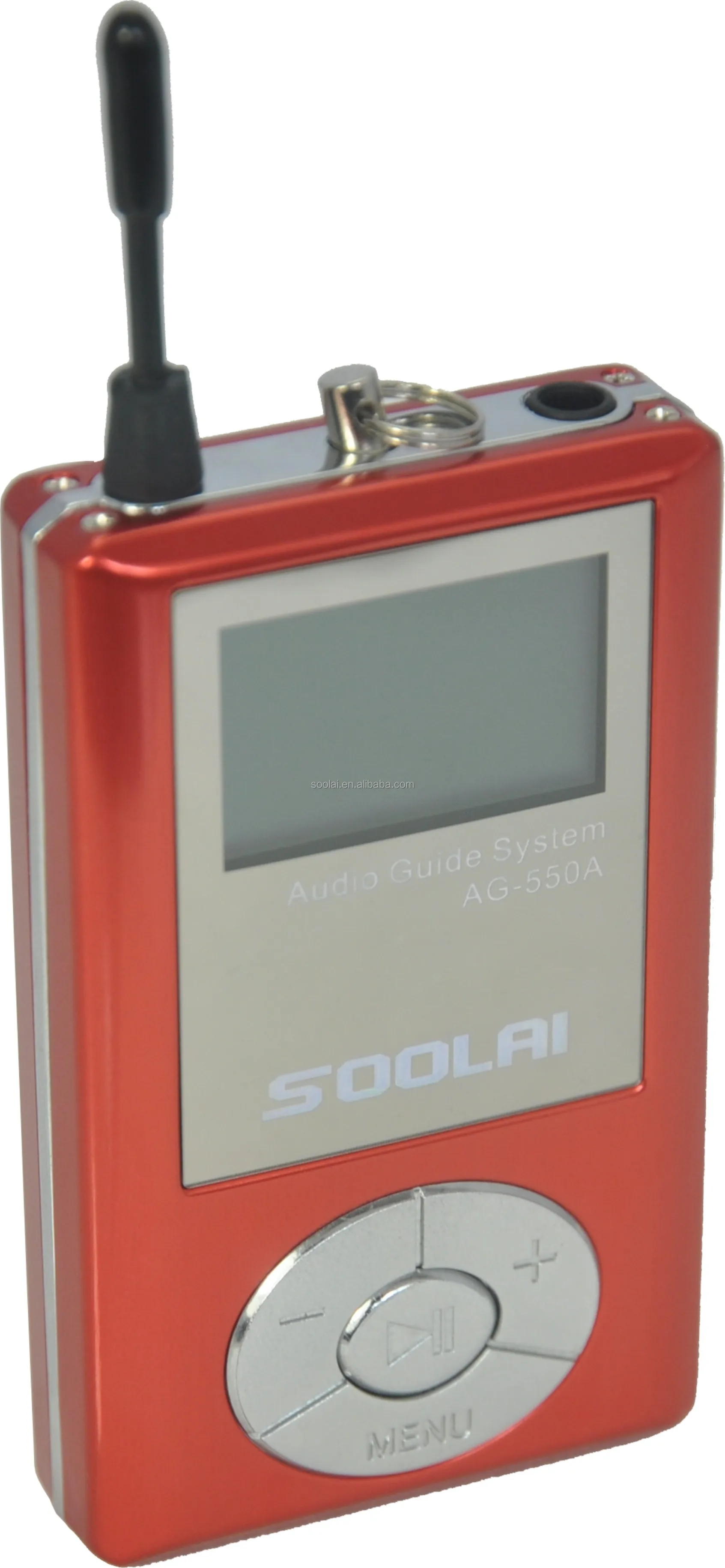

AG-550A


Portable SYNC Audio Guide

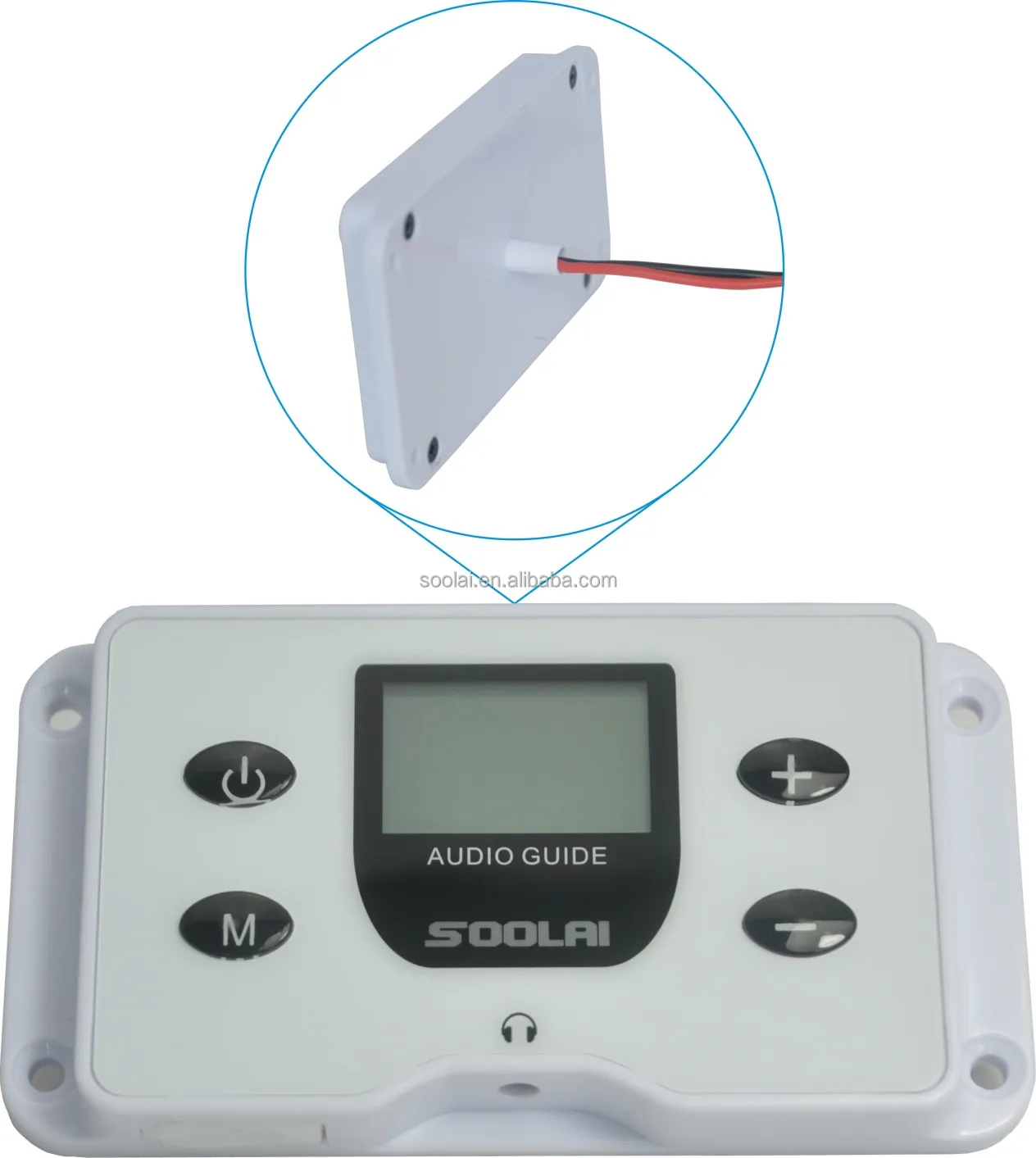

AG-550B


Vehicle sync audio guide




  • Portable design, no installation required.

  • Support multinational language selection.

  • Automatically and synchronously play the contents of the vehicle audio guide.

  • Support free time music playback.

  • Built-in polymer ion polyer battery.

  • It has the function of leaving alarm

  • It has the function of synchronous shutdown




  • Fixed to seat, easy to install.

  • Support multinational language selection.

  • Automatically and synchronously play the contents of the vehicle audio guide.

  • Support free time music playback.

  • Automotive power supply, DC input 5~36V

  • Waterproof









----------------------------------------------------------------------------------------------------------------------------------------------------------------


Specification of GPS Vehicle audio guide system





Vehicle audio guide specification: BAG-1000

























































































 Satellite Positioning GPS/BDS/GLONASS
 Area of GPS Positioning 2-100 meters adjustable
 RFID Signal Receiving 2.4GHz
 Area of RFID Triggering 0-100 meters adjustable
 Synchronize channel number/frequency range 88/2.4GHz
 Display 128*64 dot matrix, LCD display
 Audio File Format MP3 Format (8-48KHz sample rates, 8-320kbps bit rate)
 Memory Capacity 4GB (Optional 8G/16G/32G)
 Language Number 99 (max)
 Audio files Number 4096 (per language)
 Service Audio files Number 9 (per language)
 Music Number 4096 (per language)
 Audio Output 3.5mm Plug audio stereo output, 1.5m cable
 Audio Frequency Response 50~18000HZ
 Distortion <0.02%
 S/N ratio >96dB
 Power Input5~36V DC, 1.5m cable
 GPS antenna interfaceSMA Type
 Operating Temperature-20~60℃
 DimensionDimension
 Weight300g










Sync audio guide specification
























































































































  AG-550A AG-550B
 Installation Method Portable, no installation required Fixed to seat
 Synchronize Frequency 2.4GHz 2.4GHz
 Synchronize Channel Number 88 88
 Synchronize range 0-100 meters adjustable 0-100 meters adjustable
 Display 96*64 dot matrix, LCD display 96*64 dot matrix, LCD display
 Audio File Format MP3 Format (8-48KHz, 8-320kbps) MP3 Format (8-48KHz, 8-320kbps)
 Memory Capacity 4GB 4GB
 Language Number 99(max) 99(max)
 Audio Files Number 4096 (per language) 4096 (per language)
 Service Audio Files Number 9 (per language) 9 (per language)
 Music Number 4096 (per language) 4096 (per language)
 Audio Output 3.5mm Stereo Headphone Jack 3.5mm Stereo Headphone Jack
 Audio Frequency Response 50~18000HZ 50~18000HZ
 Distortion  <0.02%  <0.02%
 S/N Ratio  >96dB  >96dB
 Power Input  Built-in polymer ion polymer battery   5~36VDC, 1.2m cable
 Operating Temperature -20~60℃  -20~60℃
 Dimension  69*42*14mm  93*50*17mm
 Weight  50g  70g
 Waterproof  -  Support
 Away From The Alarm  Support  -
 Automatic Shutdown  Support  -







----------------------------------------------------------------------------------------------------------------------------------------------------------------


Optional accessories of GPS Vehicle audio guide system

































S-GPSdataRFT-6RC-1BSC-02ASCB-24AD

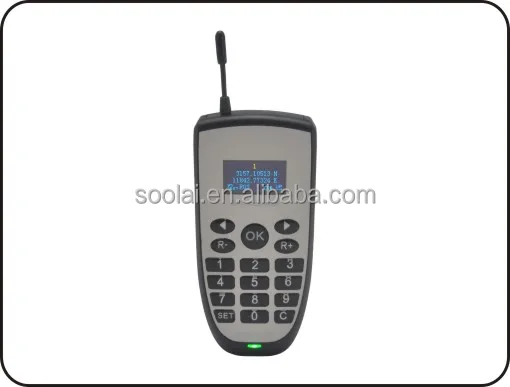

S-GPSdata


GPS Collector



RFT-6


RFID Trigger

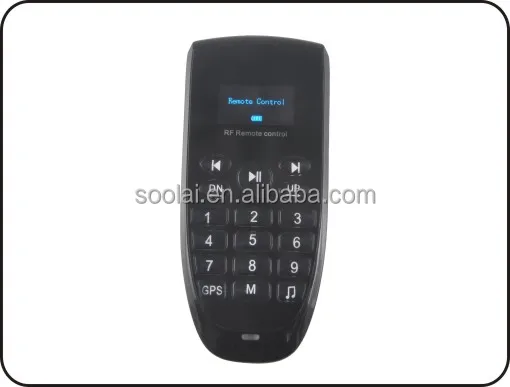

RC-1B


RF Remote control



SC-02A


2-slots charger



SCB-24AD


24-slots charging/ disinfection case


SCB-24ADSA-62SA-51SA-72SA-91

SA-215


Single-side Earphone



SA-62


Earphone



SA-51


Headphone

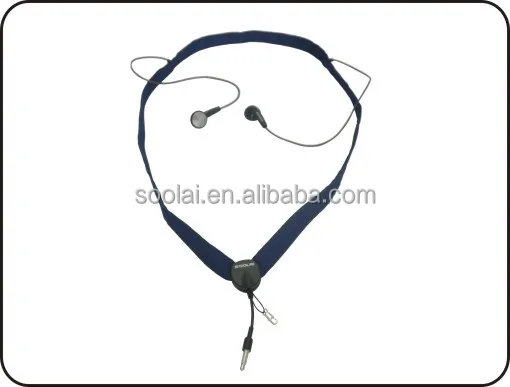

SA-72


Lanyard Earphone

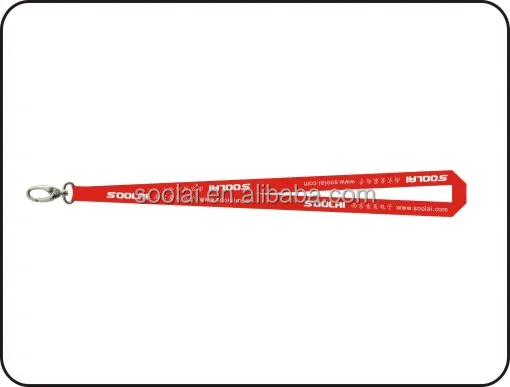

SA-91


Lanyard
