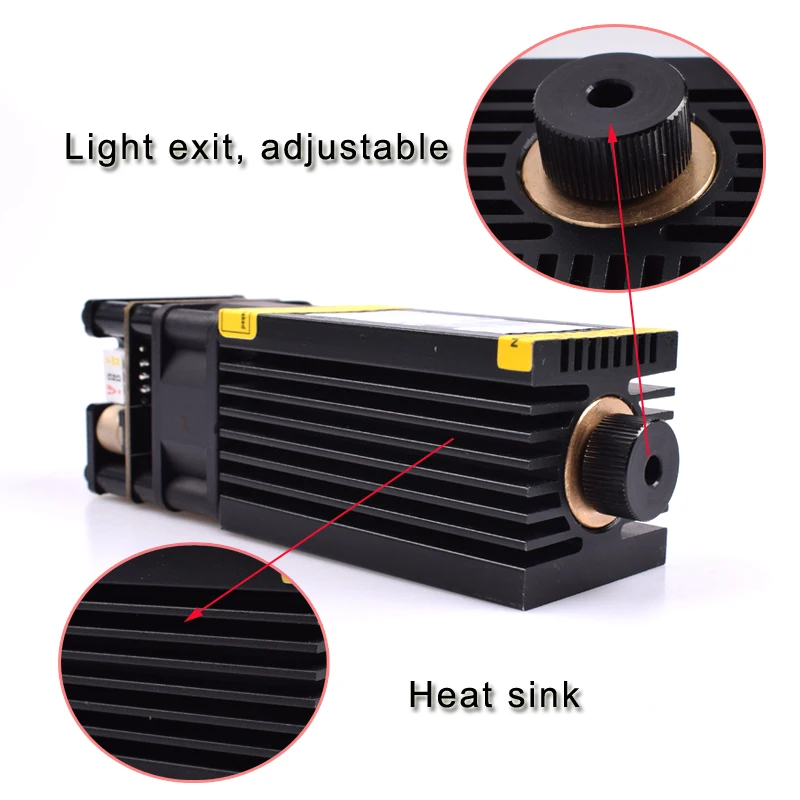

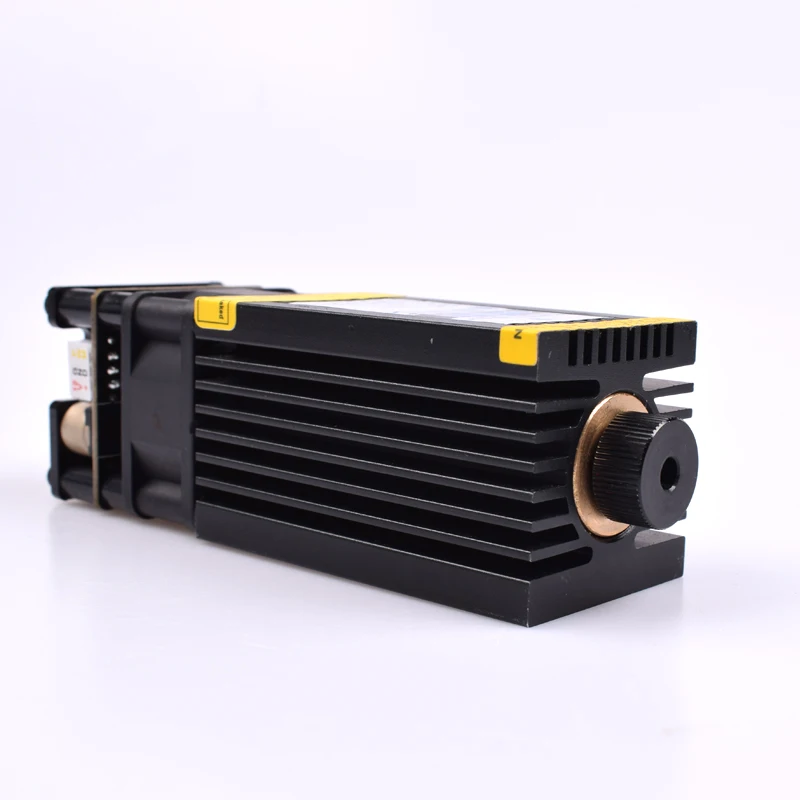

mini laser module 5.5w Laser Head with PWM

Share on (62058818972):


Price:RUB 2,274.54 - RUB 7,417.28

Quantity:


Product Overview

Description

Laser head 500mw2.5w3.5w/5.5w/7w 405nm 12V Blue Laser module Modulation For DIY CNC Laser engraver Adjustable Focus laser cutter
                  Laser Parameter
2500mw parameter
3500mw parameter
model
YPS-P3370-2.5
model
YPS-P3370-3.5
wavelength
445-450nm
wavelength
445-450run
Output Power
2. 5W
Output Power
3.5W
Working current
1800ma
Working current
2000jna
Voltage
12V
Voltage
12v
Optical part
Focusing lens
Optical part
Focusing lens
Spot mode
Point shape
Spot mode
Point shape
temperature
±50° C
temperature
±50° C
Dimensions
33*100mm
Dimensions
33*100mm
life span
8000h
life span
8000h
Material
Aviation aluminum
Material
Aviation aluminum
5500mw parameter
7000mw parameter
model
YPS-P3370-5.5
model
YPS-P3370-7
wavelength
445-450nm
wavelength
445一 450run
Output Power
5500mw
Output Power
7w
Working current
3600ma
Working current
4500ma
Voltage
12v
Voltage
12v
Optical part
Focusing lens
Optical part
Focusing lens
Spot mode
Point shape
Spot mode
Point shape
temperature
±50° C
temperature
±50° C
Dimensions
40*115mm
Dimensions
40*115mm
life span
8000h
life span
8000h
Material
Aviation aluminum
Material
Aviation aluminum
Feathers

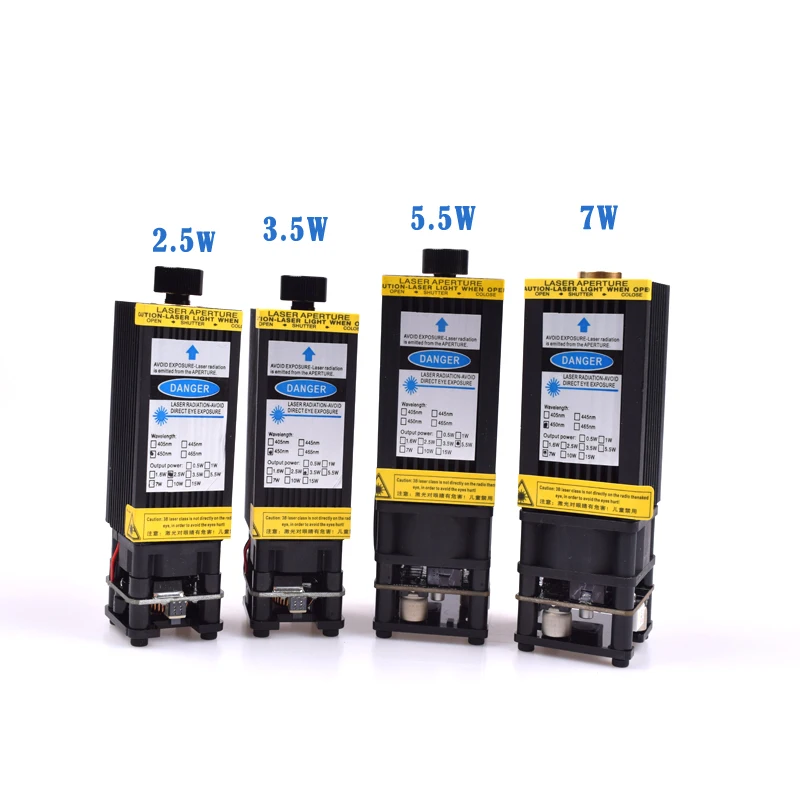

1.  Products range,  2.5W, 3.5W, 5.5W, 7W. 15W

2. 2.5W, 3.5W, 5.5W auto-focusing.  7W, 15W fixed focus.
3. Conpetitive price.
4. 8000h long life span.
5.Contrast with other laser head , It is easy to use.
6.smaller volume and more favorable logistics.
2.5W laser head for leather, wood and plastic finish work.
3.5 W laser head for leather and acrylic finish work
Metal Proofing
7W laser head for metal and metal iphone case .
Why choose us
1. Where is the TTL port? I can only see the PWM?

TTL and PWM is compatible and you can only choose one of them. It means that you can connect this module's PWM port

 to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.


2. How can I connect this module to the my engraver?

If you don't need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on Eleksmaker board

and leave the PWM port unconnected.

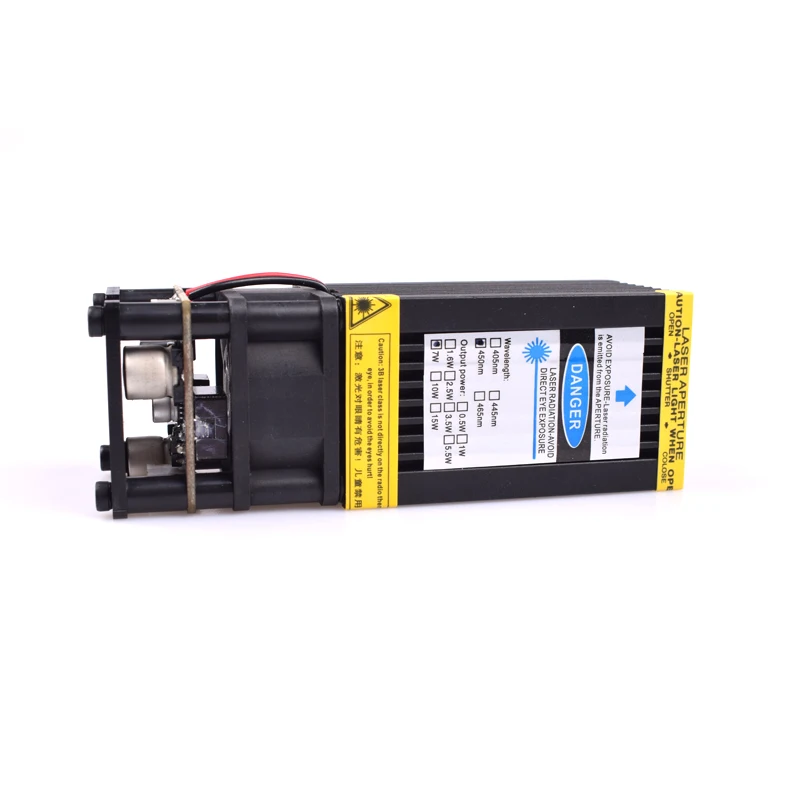

User must read:

1. Laser module power is relatively large, only for industrial use, to prohibit the exposure of the

eye, otherwise it will cause permanent blindness, the consequences at your own risk.

2. Do not use in flammable and gas atmospheres to avoid fire and explosion.

3. Prohibit children from exposure to this laser product.

4. Do not open the module to avoid damage.

Can not processed metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent material.

Carving wood / bamboo / paper / plastic / leather / rubber / horn.

Can cut paper-thin / light wood / sponge paper / felt / fabric / sticker.

Detailed Images
Size Information
Package size
Packing size
L
W
H
15cm
15 cm
15 cm
Related Products
Packing&Shipping

LASER*1

3PIN CABLE*1

3PIN TO 4PIN CABLE*1

SAFETY GLASSES*1
