thhn/thwn electrical wire nylon cable with nylon cover outside ningbo factory best supplier thhn/thwn electrical wire
Product Description
1.Product Features:
THHN wire is the most common type of single conductor electrical wire used in the industry. You could possibly buy THHN, THWN, THW, THHW or THWN- 2. Years ago each type was made for each specific installation, but nowadays the standard way to manufacture and purchase it is to buy the multi-rated THHN/THWN-2 version as a universal building wire.
T - Thermoplastic insulation F - Flexible F - Fixture N - Nylon coating
T - Thermoplastic insulation H - Heat resistant (up to 75°C) H - High Heat resistant (up to 90°C) W - Water, gas and oil resistant N - Nylon coating
2.Specification Size and Technical Data:
THHN Cble TECHNICAL DATA SHEET
Size of sectional area
Reated Voltage
Conductor Material
No.& Diameter of strands
Wall thickness (mm)
Cable Inner Diameter
Cable Diameter
Approx.Weight
mm2
AWG
V
Type
(mm)
PVC
Nylon
(mm)
(mm)
(kg/km)
2.0mm2
14AWG
450/750
Pure Copper
7/0.6
0.8
0.15
3.4
3.7
30
3.5mm2
12AWG
450/750
Pure Copper
7/0.8
0.8
0.15
4
4.3
47
5.5mm2
10AWG
450/750
Pure Copper
7/1.0
0.8
0.15
4.6
4.9
68
8.0mm2
8AWG
450/750
Pure Copper
7/1.2
0.8
0.15
5.2
5.5
93
14mm2
6AWG
450/750
Pure Copper
7/1.6
1
0.15
6.8
7.1
161
22mm2
4AWG
450/750
Pure Copper
7/2.0
1.2
0.15
8.4
8.7
249
30mm2
2AWG
450/750
Pure Copper
7/2.3
1.2
0.15
9.3
9.6
320

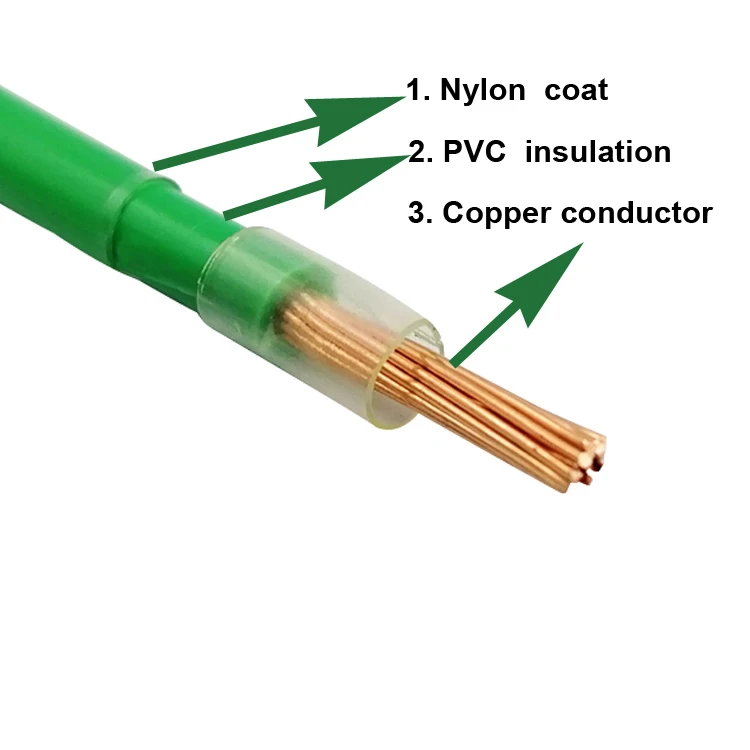

3. Cable Structure

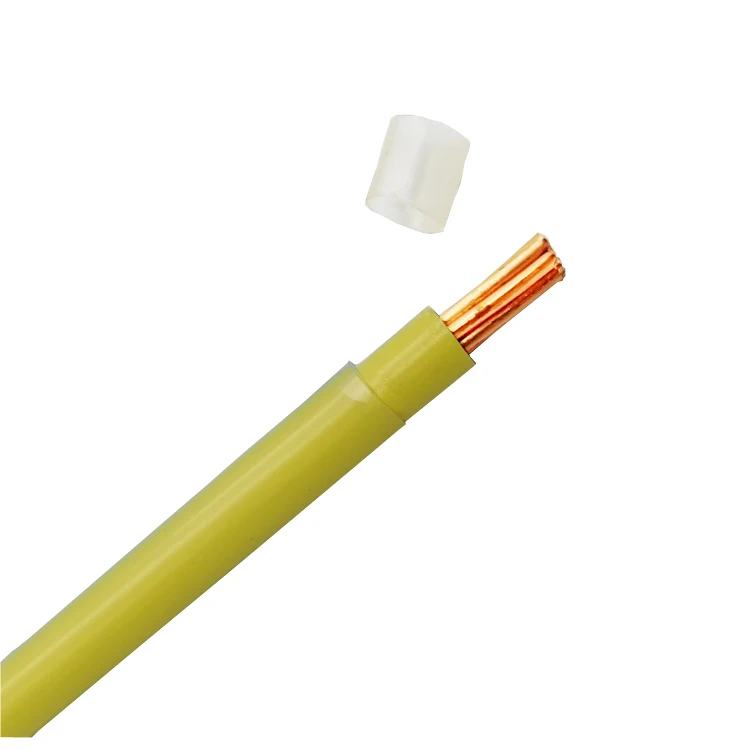

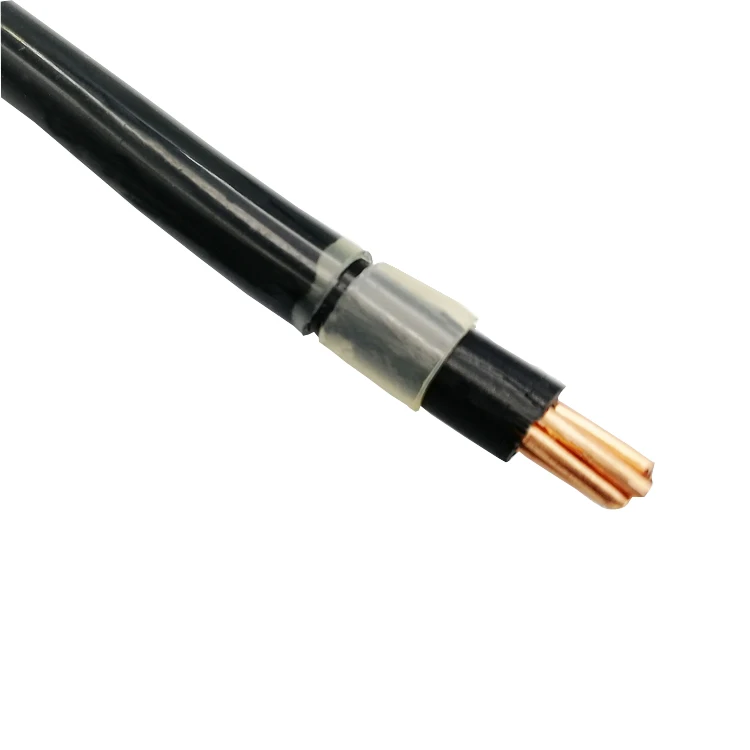

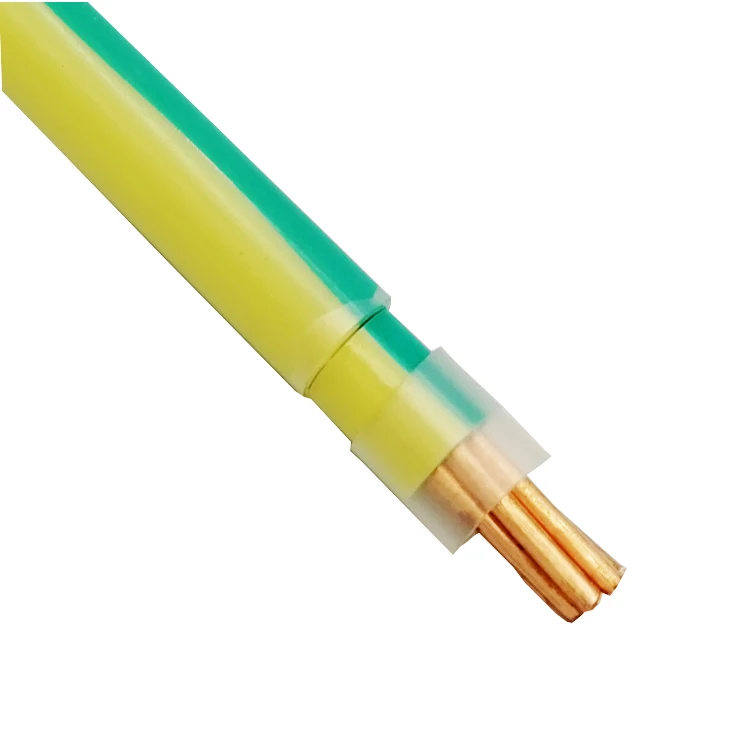

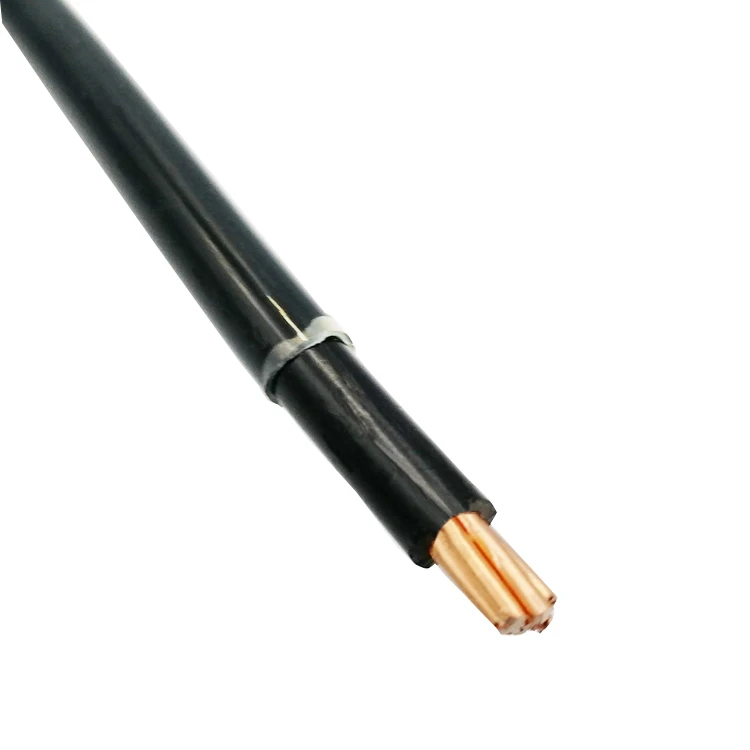

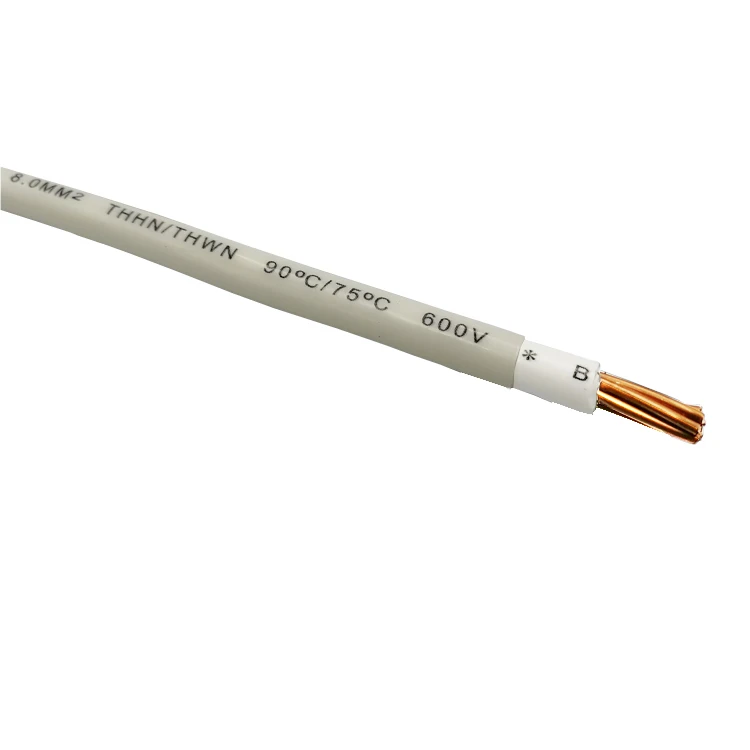

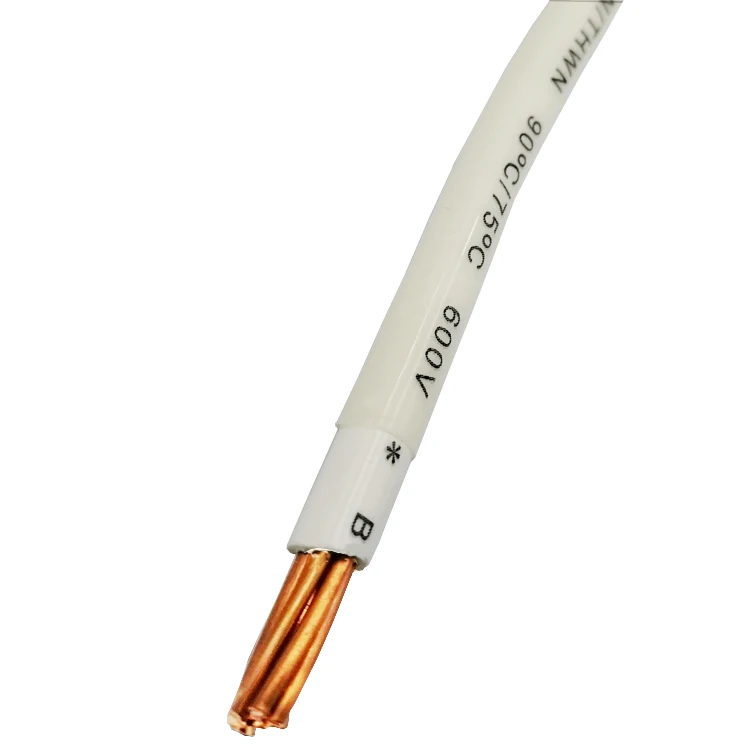

4. Cable Picture
4.Details of Transaction:
(1) Minimum order quantity: 10 kilometers at least
(2) Sample: Free sample is available for you
(3) Price: FOB, CIF, DA, DP at any port in China
(4) Lead Time: Within 20 days or according to your quantity
(5) Packing: 100m/roll or 500m/roll in bag, box, pallet or drum
(6) Individual Service: We can print your logo or brand name on cable
(7) Payment: 30% Deposit by T/T, the Balance paid before shipment by T/T
Our Main products

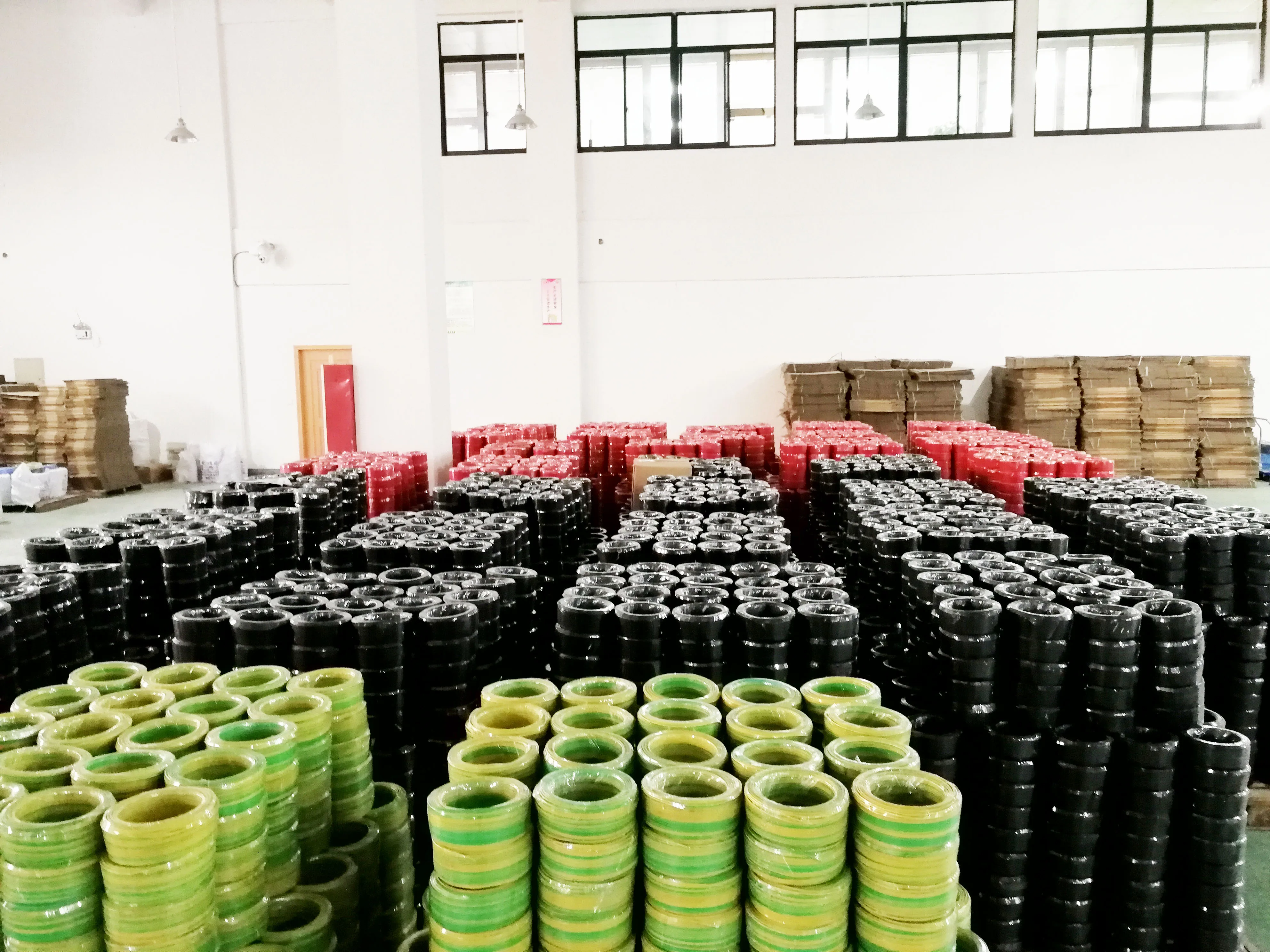

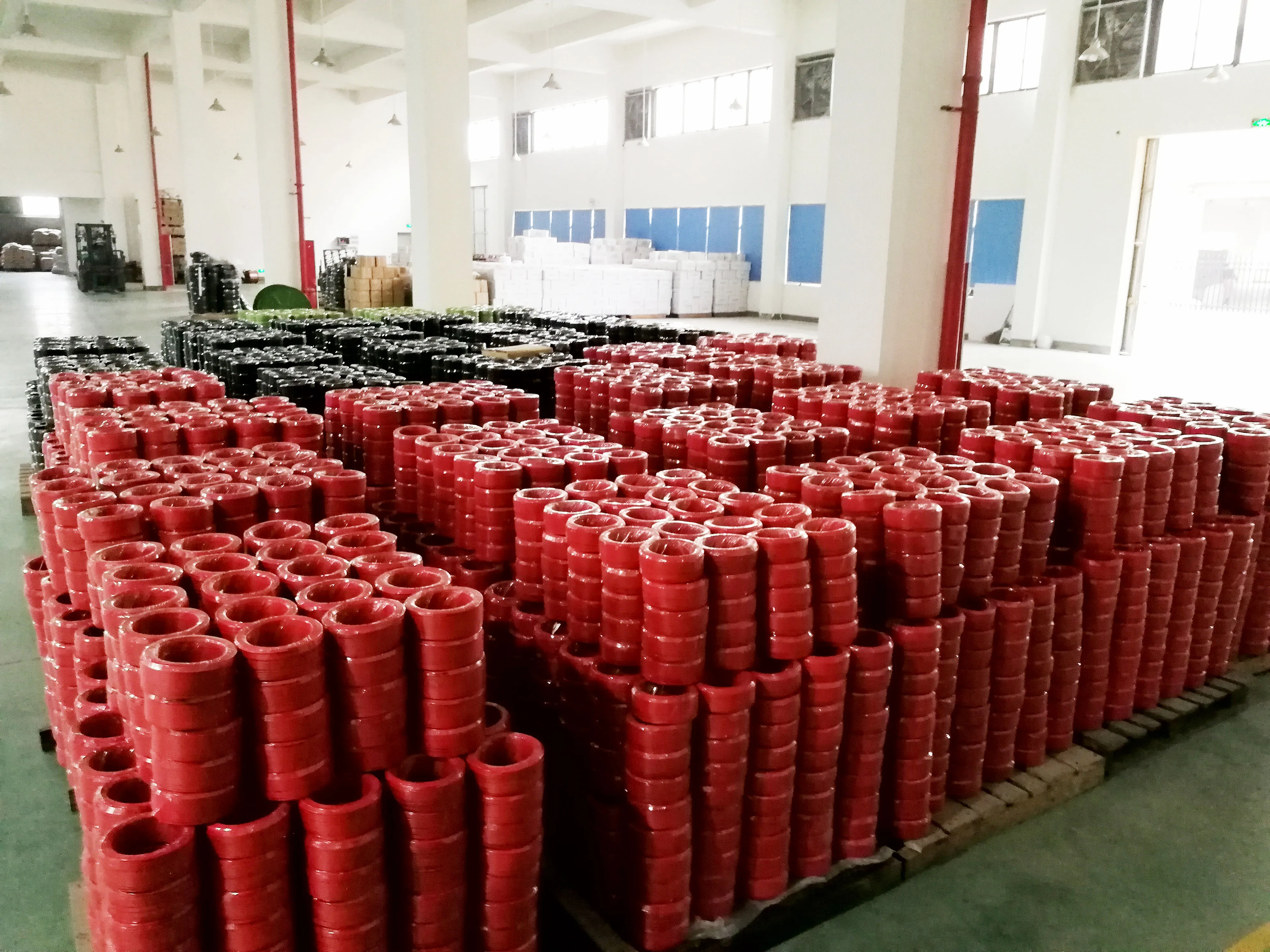

Our equipment

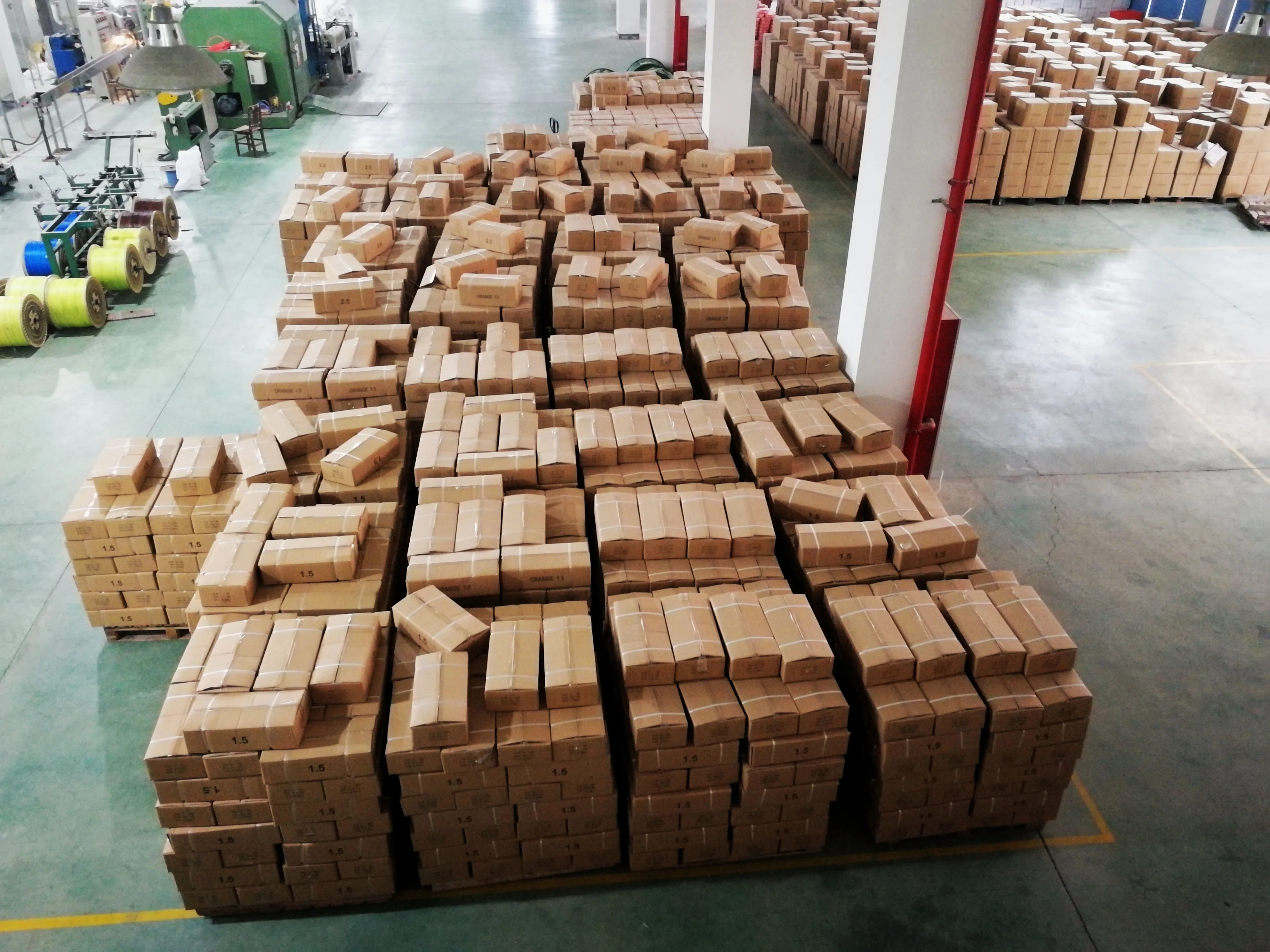

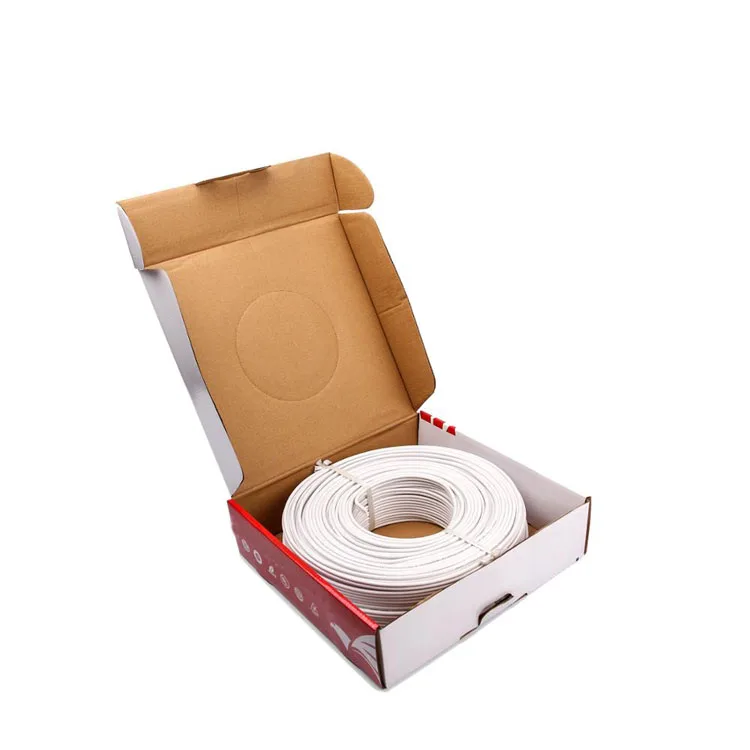

Packaging & Shipping
Packaging Details:
coil,plastic reel or wooden drum
Delivery Detail:
according to total quantity
Delivery Port:
Shanghai or Ningbo Port
Name card
♥ If you want to know more information about our products welcome to contact us in any time, And welcome to our company! We display more new design in our showroom.
