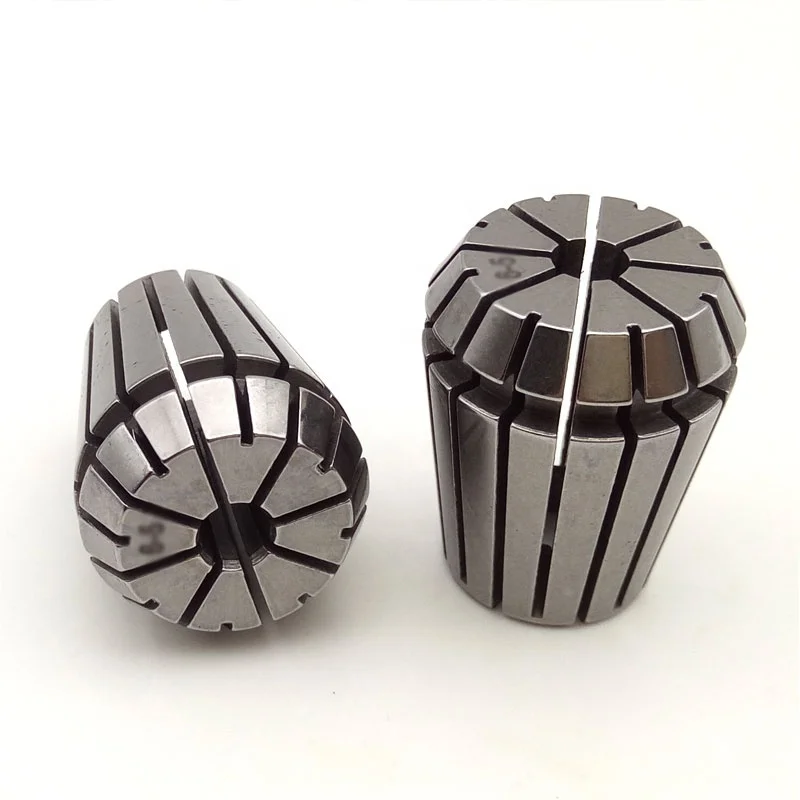

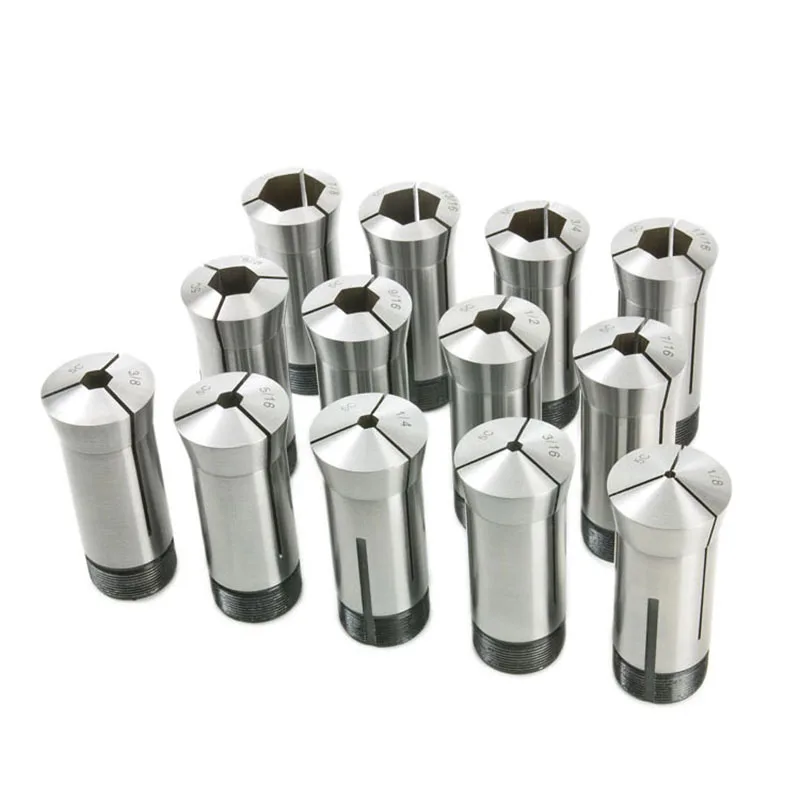

CNC spring /ER collets chuck ER 11/25/32/40 collets er milling collets
- Category: Machine Tools Accessory >>>
- Supplier: Dezhou Haotian Imp & Exp Co. Ltd.
Share on (62058849602):
Product Overview
Description
HT-TOOLS
We can Provide NON-standard custom

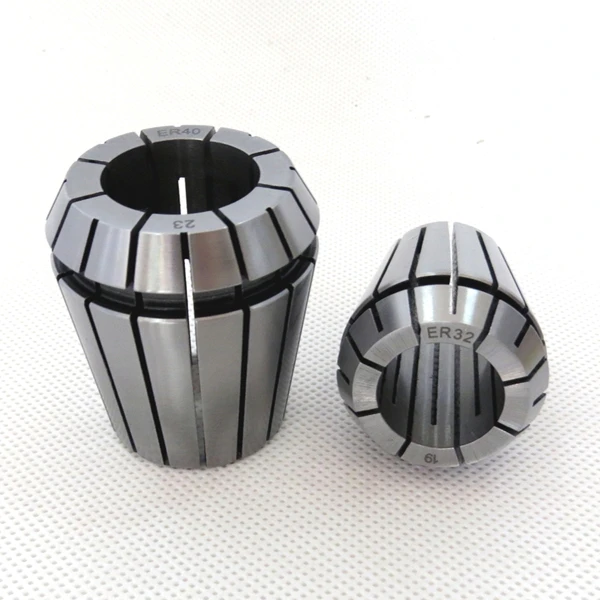

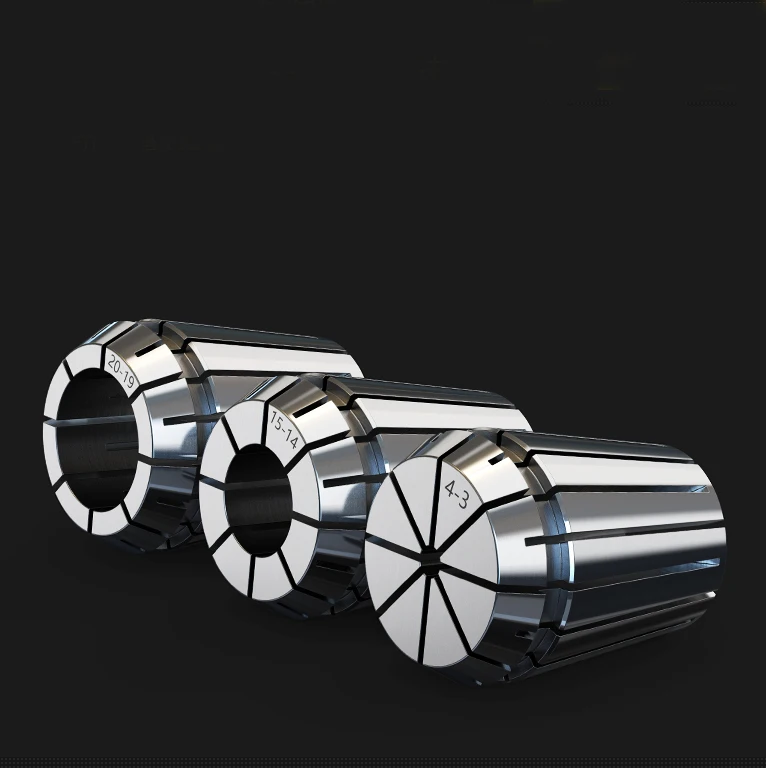

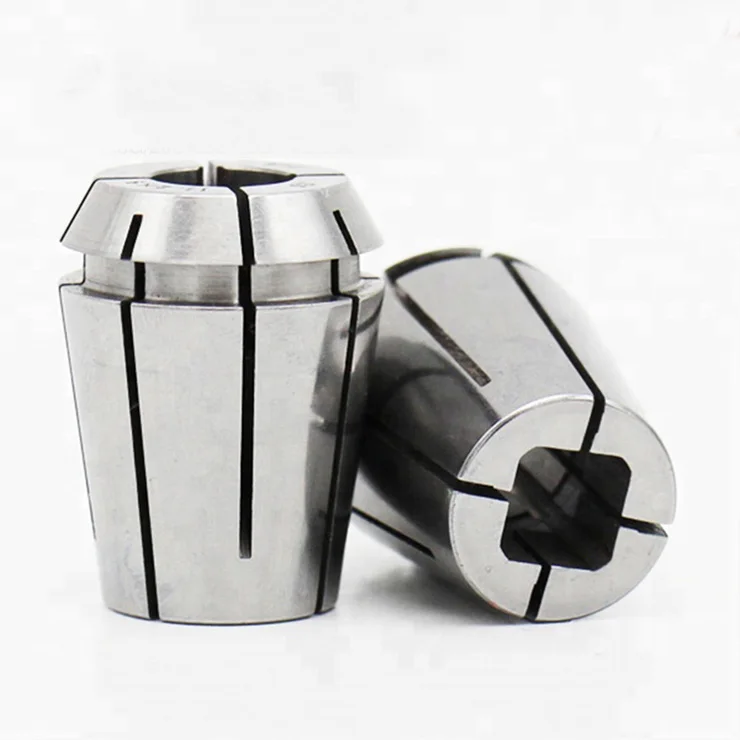

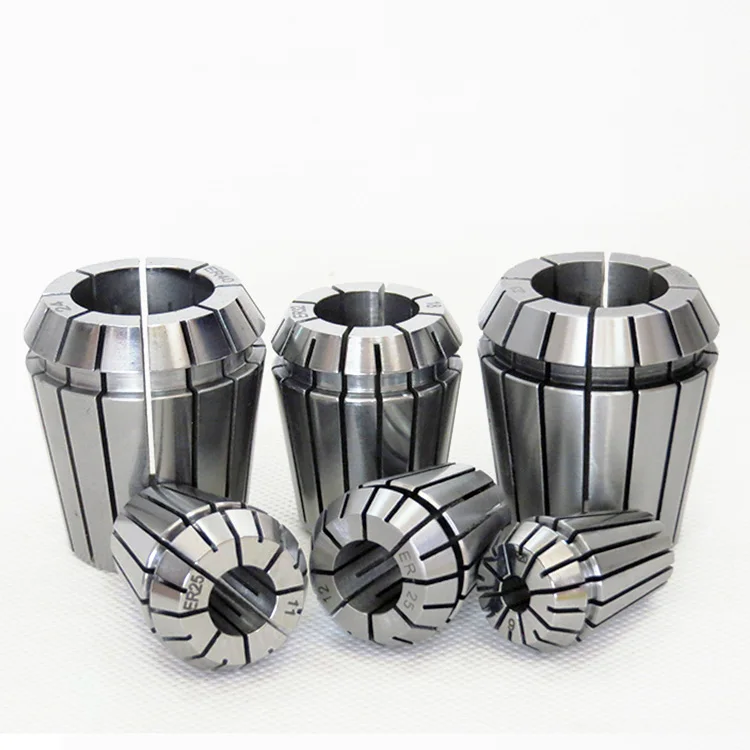

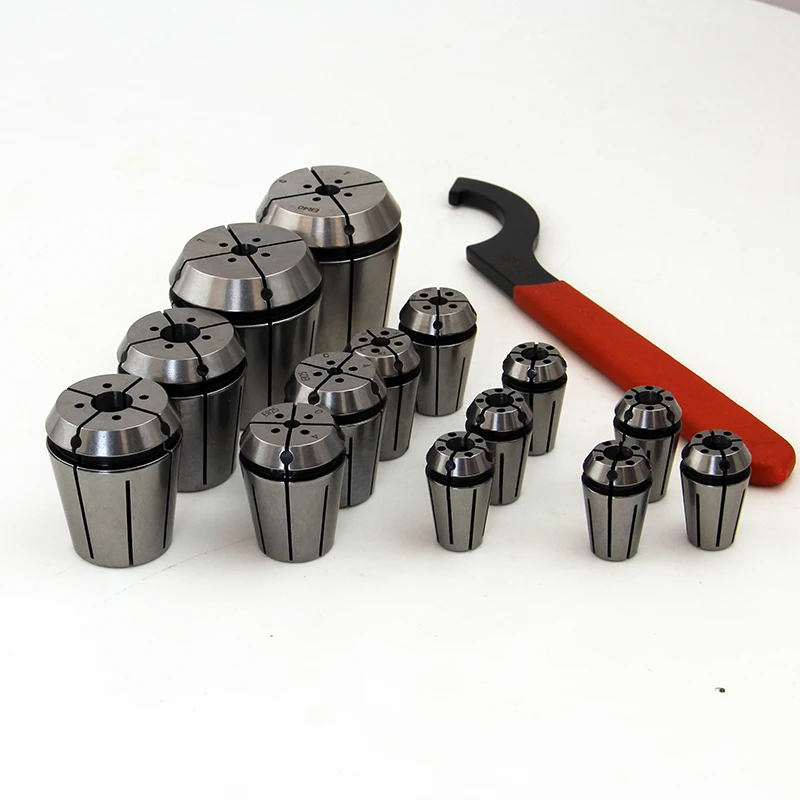

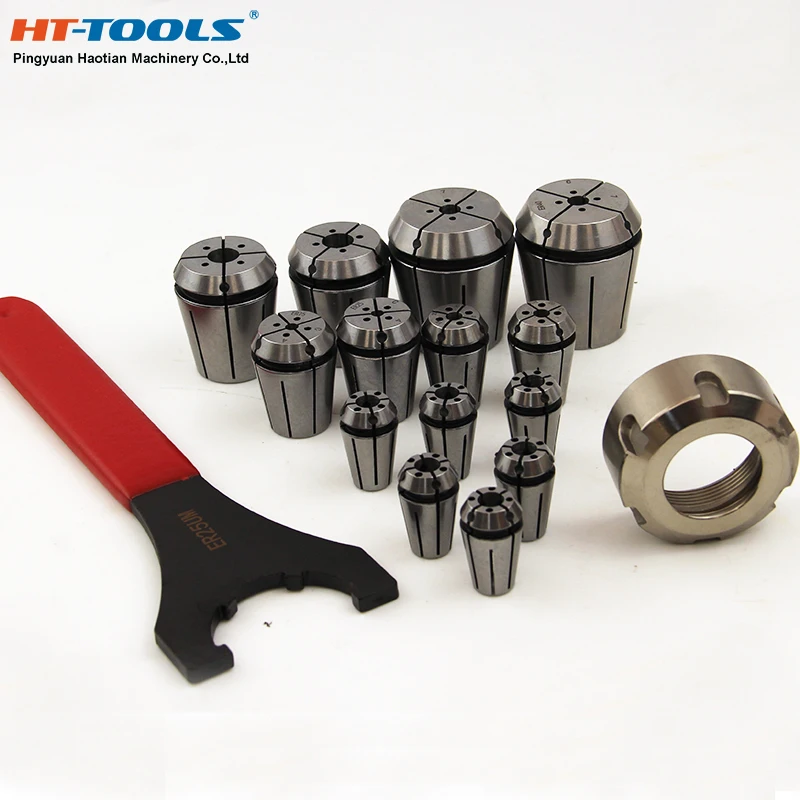

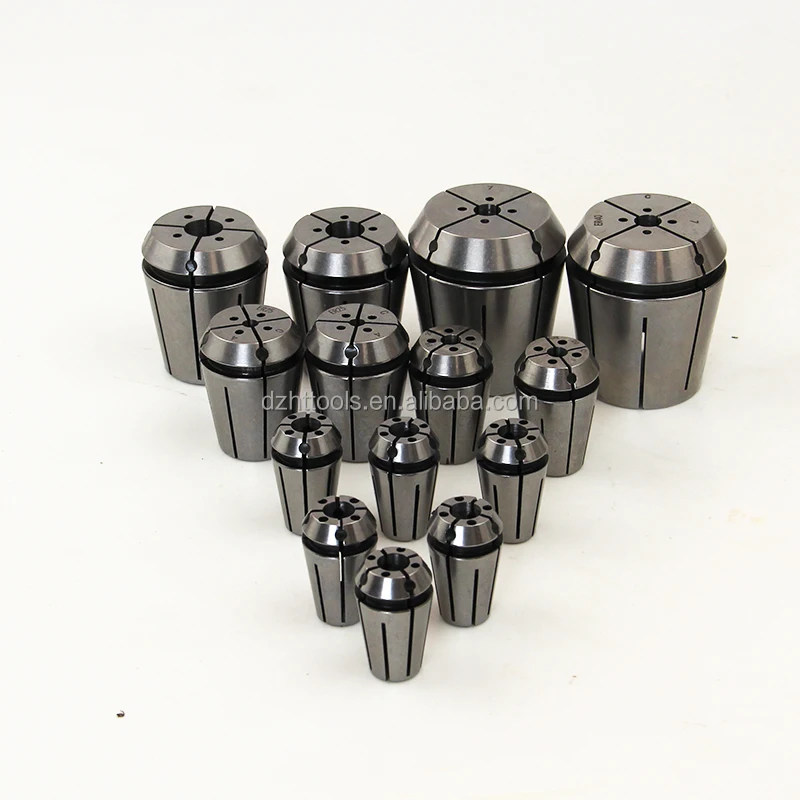

CNC plastic/pneumatic collets chuck kress ER 11/25/32/40 collets
1. All types of ER collets conform to the DIN 6499B StandardSturdy construction
2.Made of special elastic steel:65Mn
3.Hardness:HRC44-48
4.Mode:ER8-ER50
5.Accuracy:0.01mm, 0.015mm

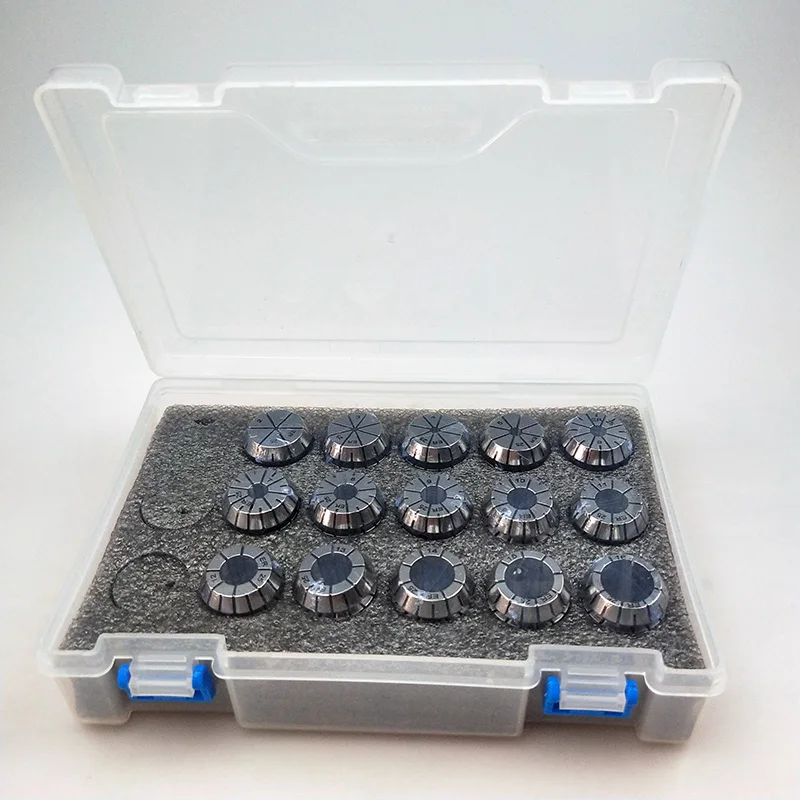

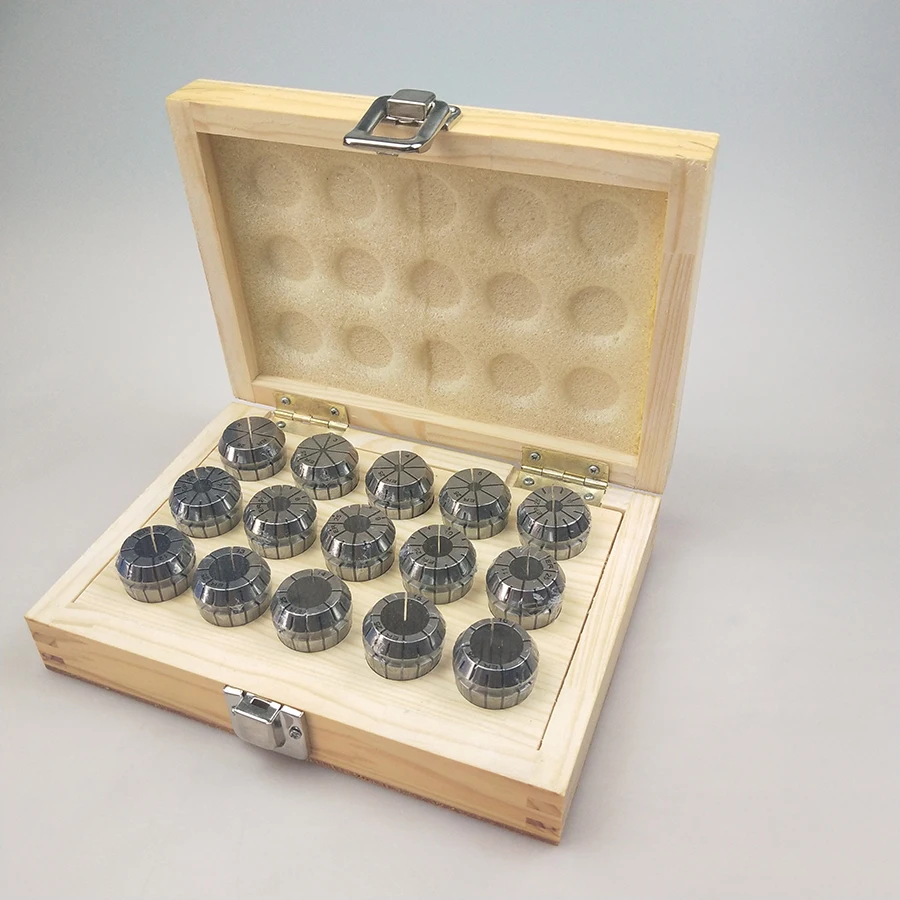

6.Packaging:Paper case or plastic case
7. Used for boring, milling, drilling, tapping, grinding and engraving operation etc.

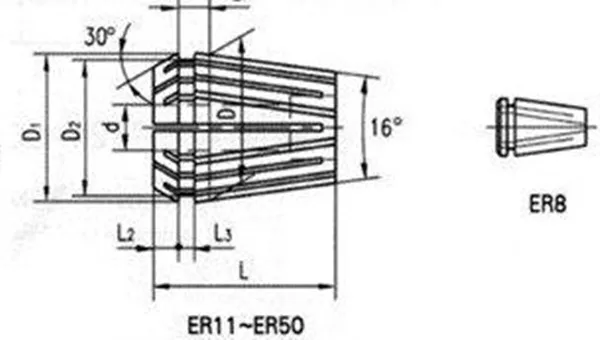

| HT-0001 | ER SERIES COLLETS WITH STANDARD DIN6499B | ||||||||
| Model | d H7 | D | D1 | D2 | L | L1 | L2 | L3 | Collapsible capacity |
| ER8 | ≥1.0-5.0 | 8 | 8.45 | 6.5 | 13.5 | 2.98 | 1.5 | 1.2 | 0.5 |
| ER11 | ≥1.0-7.0 | 11 | 11.5 | 9.5 | 18.0 | 3.8 | 2.5 | 2.0 | 0.5 |
| ER16 | ≥1.0-2.5 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 0.5 |
| >2.5-10.0 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 1.0 | |
| ER20 | ≥1.0-2.5 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 0.5 |
| >2.5-13.0 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 1.0 | |
| ER25 | ≥1.0-2.5 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 0.5 |
| >2.5-16.0 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 1.0 | |
| ER32 | ≥2.0-2.5 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 0.5 |
| >2.5-20.0 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 1.0 | |
Machine tool Accessories, please check below to know our
main items:
Tool Holder Shanks: BT Tool Holders, DIN69871 SK Tool Holders, NT Tooling, CAT30 CAT40 CAT50 Tool Holders,
HSK Tool Holders, DIN 69880 VDI Tool Holders, Morse Taper, Straight Shank Tool Holders, etc.
Tool Holders: Collet Chucks, Milling Chucks, Face Mill Holders, Weldon End Mill Holders
Morse Taper Adapters, Drill Chucks, Tapping Chucks, Shrink Chucks, Thread End Mill Tool Holders, Screw in Milling
Cutter Holders, etc
.
Collet: ER Collets, ERC Collets ERG Collets,Milling Chuck set ,Straight Collets, OZ Collets, etc.
Accessories: Tool Holder Bushing, Nut and Spanner, Pull Stud,
Tool Holder Locking Device,Machine Vise,Live Center etc.
1.Are you factory or Trade Company?
We are Industry and trade integration.
2.Could you supply samples?
Yes, we can supply.
3.Where do you export?
The whole world.
4.Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.
5.What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.
6. What are the shipping ways?
By international express, by air, by sea are all ok.
7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.
8. What’s your payment way?
T/T, Pay pal, Western Union and so on.
9. What’s your delivery time?
5-20 days after order confirmed
