Product Overview

Description

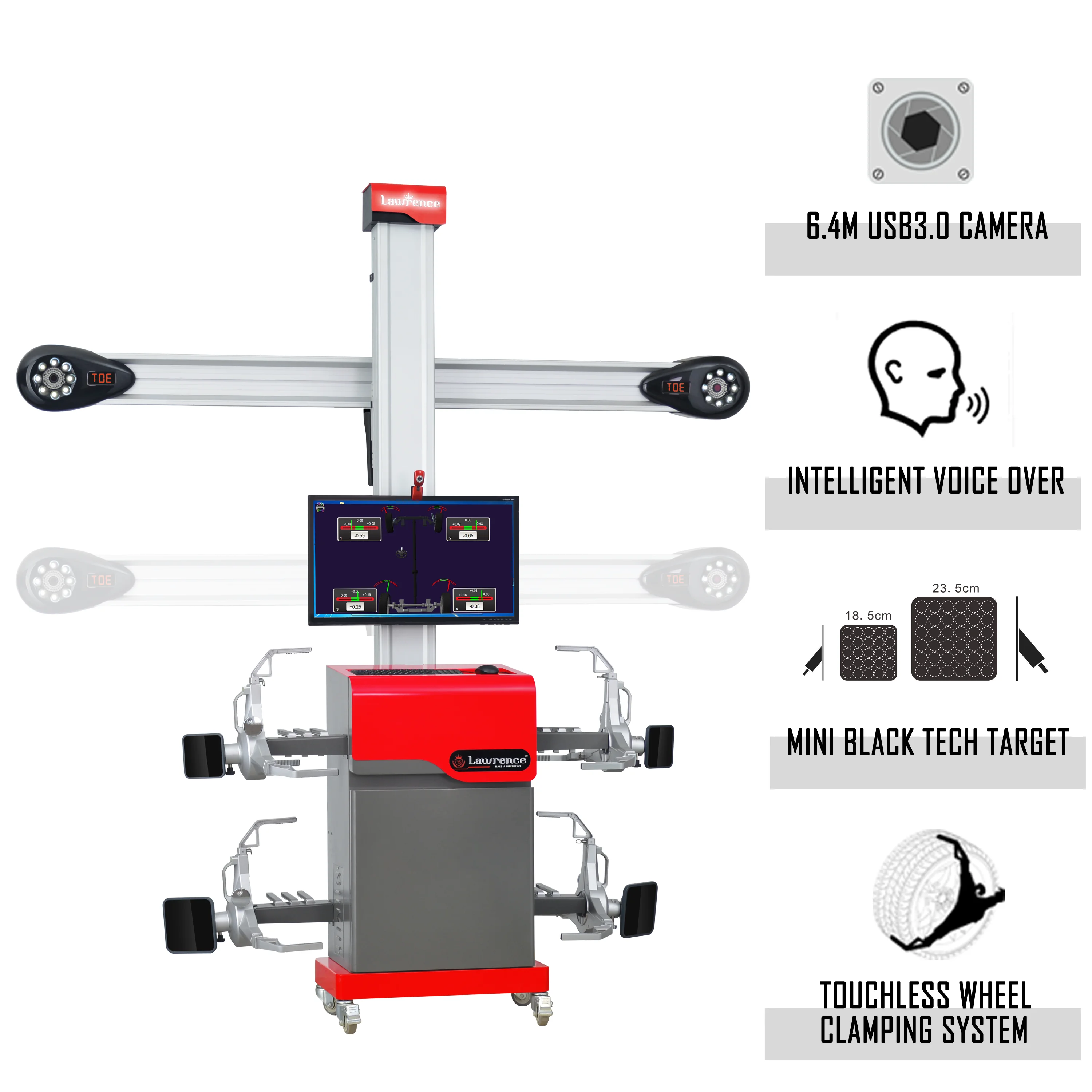

  LS6 High precise 3D Wheel Alignment, Lawrence 3D vehicle Garage Equipment, Lawrence Automatic Workshop Machinery, Smarter series 3D Wheel Alignment with competitive Price and promotional models for sale



Outstanding functions

1. Four wheel alignment system


2. Auto 3D wheel aligner system Intuitive


3. Simple and easy to operatePushing cars back/forth to measure high precision and quality


4. 3D dynamic simulation measurement


5. technology, leading both in China and abroad.





 Standard Configuration

• Movable Small Cabinet"


• Height-fixed Pole


• Canon Computer


• 19' LCD Monitor


• Unique Target Disks


• Standard Clamps


• Steering Wheel Lock


• Brake Lock


• Wedge-shaped Pads


• Turntables


• Transition Blocks of Turntables


• Canon Printer





Software Futures



1. 3D Measurement: The 3D measuring techniques which is based on real running surface of wheels is more specific and precision

2. Shooting System: Composed of high-performance cameras and four target disks, the camera

system can measure the vehicle’s running posture vividly.

3. Target Disk: The solid-state target disks made of special materials are sturdy and durable

 without any electronic components.

4. Pushing Measurement: None of any wheel compensation is needed. Only one pushing can complete the measurement.

5. Calibration System: Only one simple calibration is needed after the initial installation without any repetitive calibration following





Technical Perameter

Measurement items	Accuracy	Measurement range
Show Precision	1´/
Camber	±1´	±45°
Caster	±1´	±40°
Kingpin Inclination	±1´	±40°
Toe	±1´	±30°
Set back	±1´	±5°
Thrust angle	±1´	±5°





Certificates: CE/Gost/ISO
