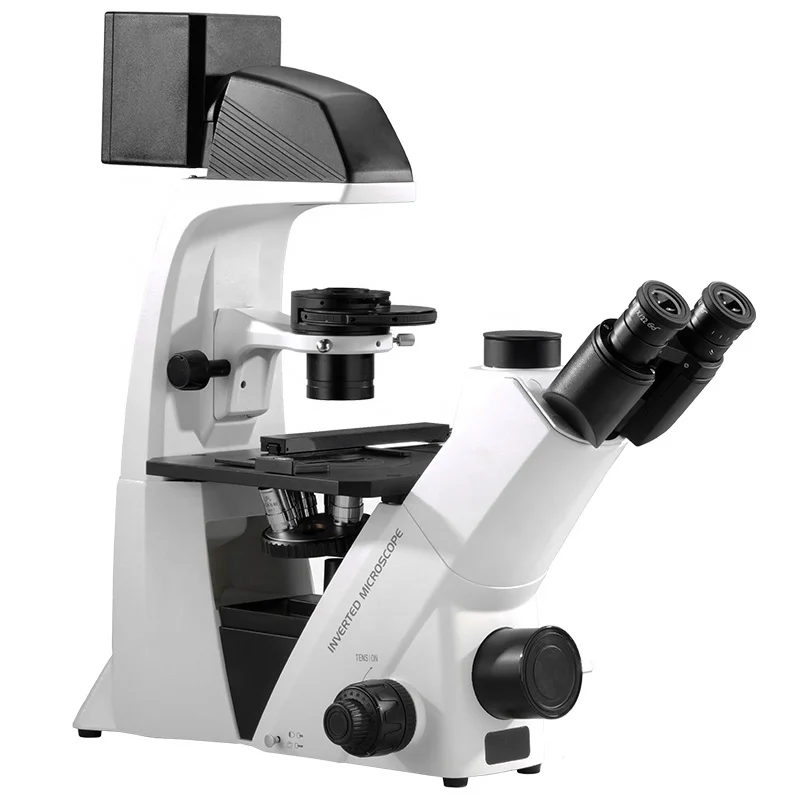

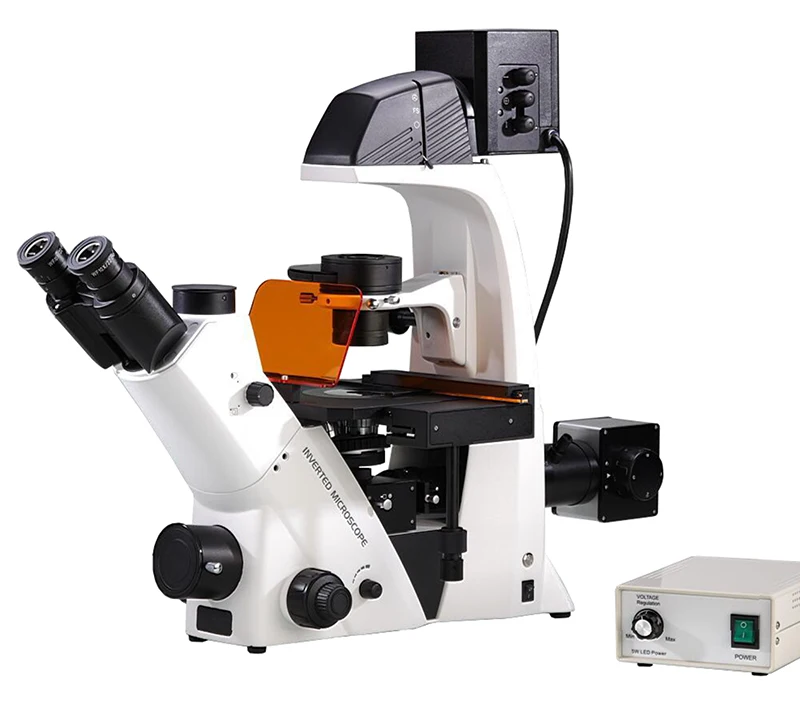

OPTO EDU A16.2615 L4 Microscopio BGUV fluorescencia inverted Microscope

Head

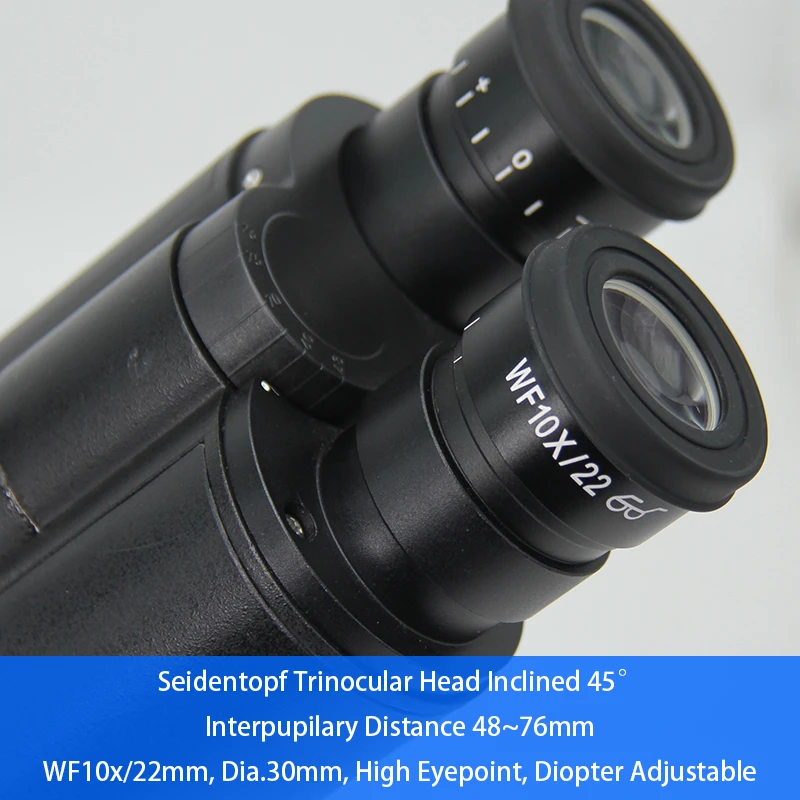

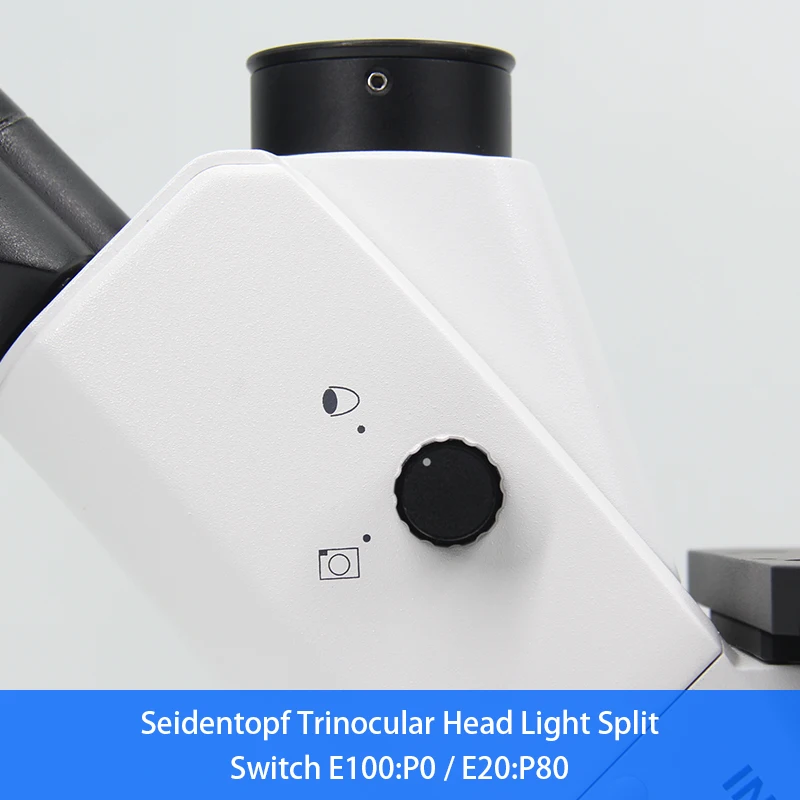

Seidentopf Trinocular Head Inclined 45°, Interpupilary Distance 48~76mm, , Light Split Switch E100:P0 / E20:P80

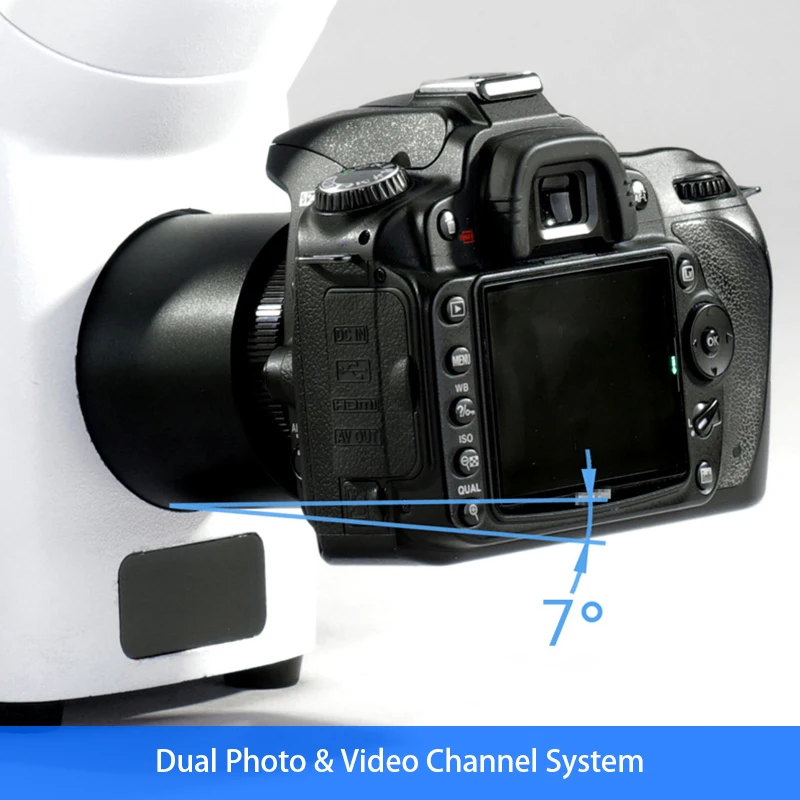

Dual Photo & Video Channel Support Eyepiece View / Digital Camera/SLR Camera Take Picture & Record Video At Same Time:
--Eyepiece View Has 100% Or 20% Light Switchable
--Digital Camera Port Has 0% Or 80% Light Switchable

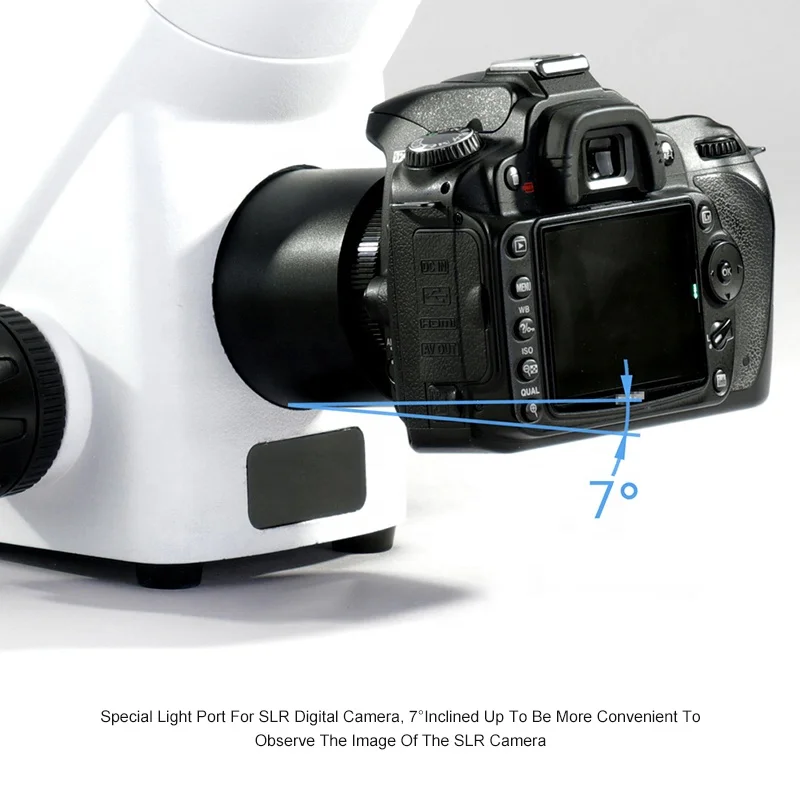

--Photography Port 100% Light For SLR Camera
(Standard Outfit Including SLR Camera Adapter 1pc, Canon or Nikon)

●

●

A53.2643

Eyepiece

WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable

●●

●●

A51.2621-1022

WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable

○○

○○

A51.2621-1516

WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable

○○

○○

A51.2621-2012

Nosepiece

Quintuple

●

●

A54.2610-N925

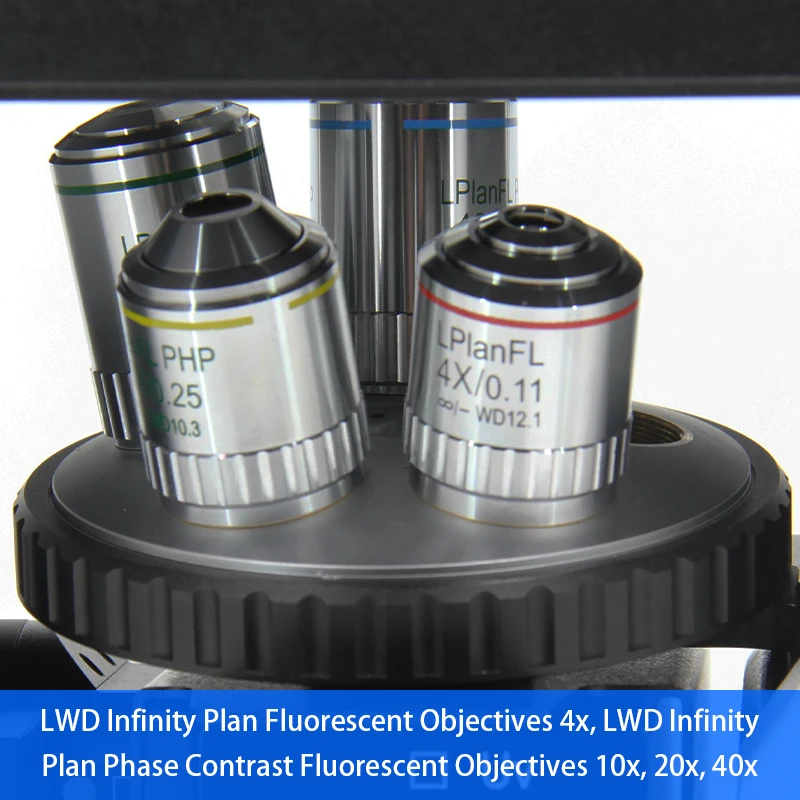

LWD Infinity Plan Objectives

LPL 4x/0.11, W.D.=12.1mm

●

●

A52.2609-4

LPL10x/0.25, W.D.=8.3mm

○

○

A52.2609-10

LPL 20x/0.40, W.D.=7.2mm

○

○

A52.2609-20

LPL 40x/0.60, W.D.=3.4mm

○

○

A52.2609-40

LWD Infinity Plan Phase Contrast Objectives

LPL Ph P 4x/0.10, W.D.=9.2mm

○

○

A5C.2630-4

LPL Ph P 10x/0.25, W.D.=8.3mm

●

●

A5C.2630-10

LPL Ph P 20x/0.40, W.D.=7.2mm

●

●

A5C.2630-20

LPL Ph P 40x/0.60, W.D.=3.4mm

●

●

A5C.2630-40

Phase Contrast

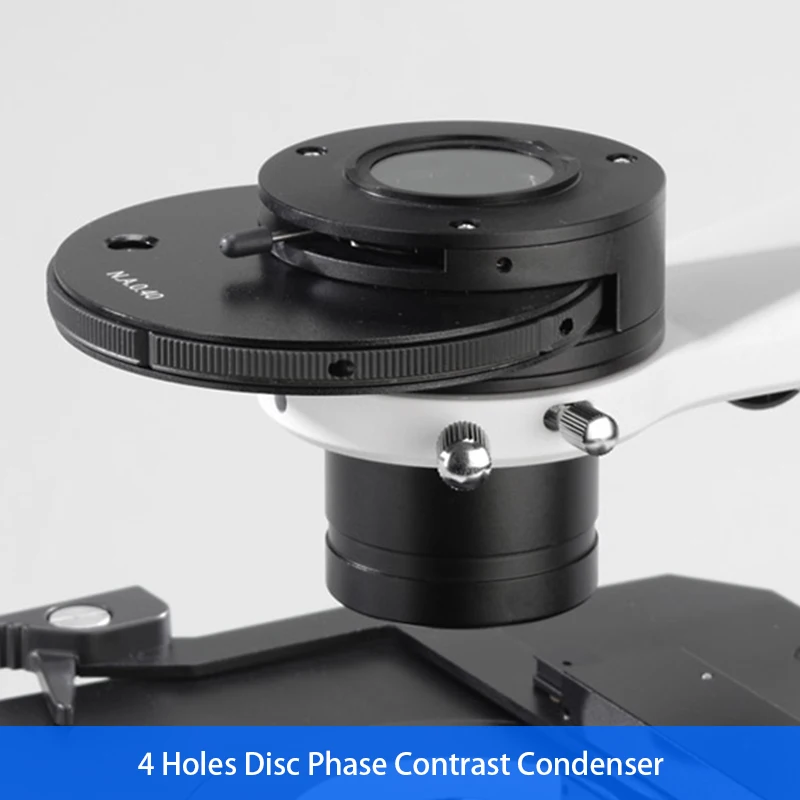

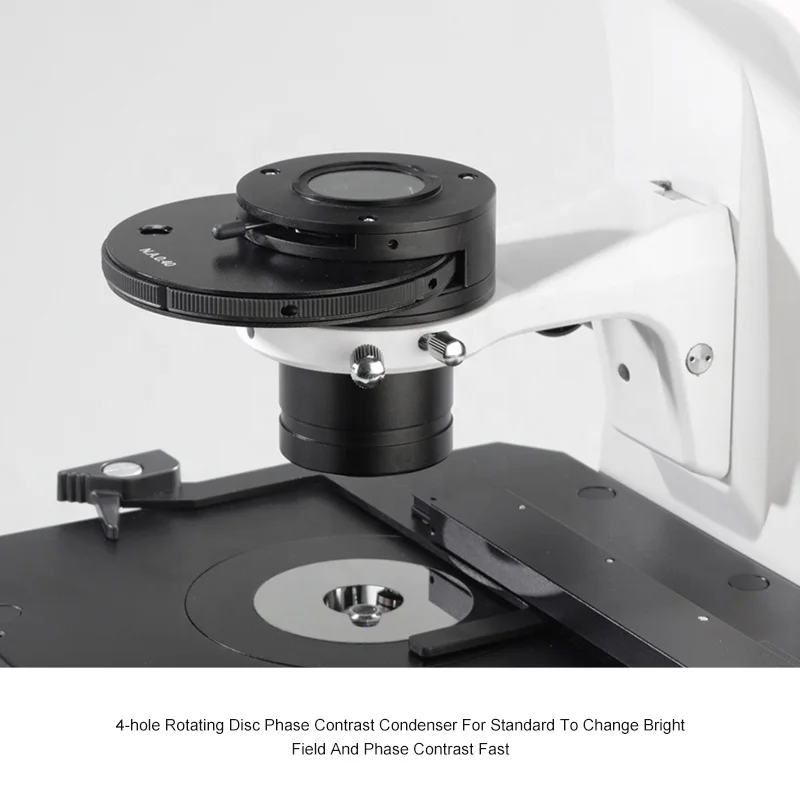

4 Holes Rotating Disc Phase Contrast Condenser
N.A.0.4, W.D. 45mm, Up/Down Adjustable

●

●

A56.2612

Centering Telescope 11x

●

●

A5C.2610

Annular Spot 4x

○

○

A5C.2611-4

Annular Spot 20x/ 40x

●

●

A5C.2611-10

Annular Spot 10x

●

●

A5C.2611-20/40

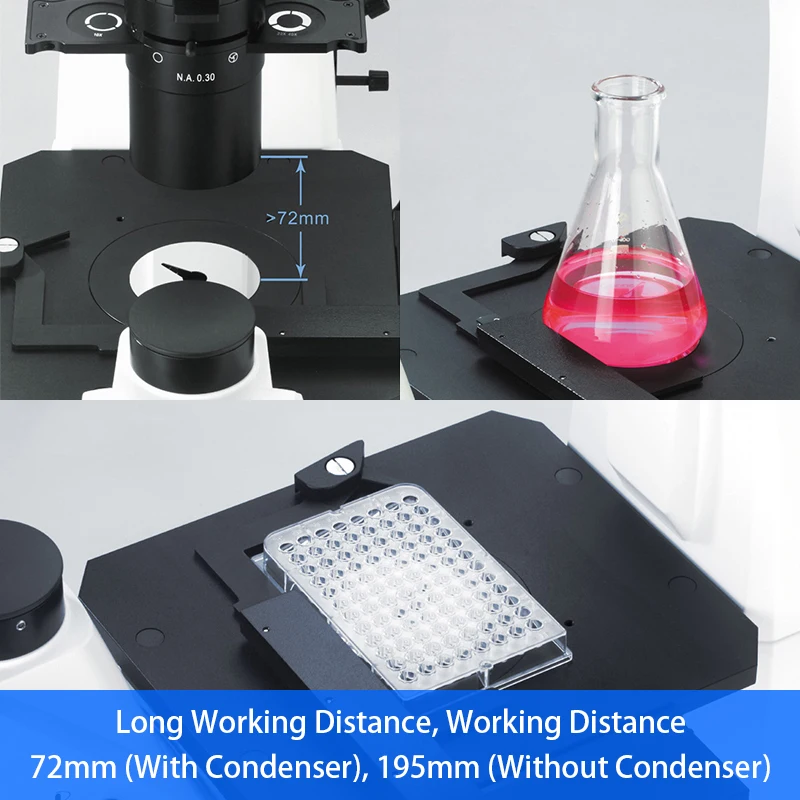

Working Stage

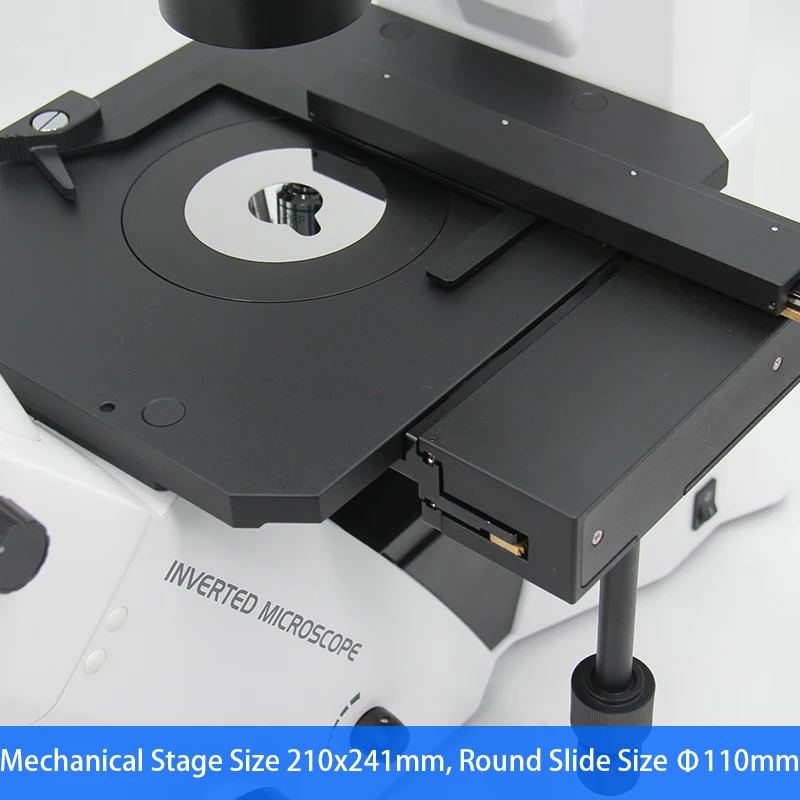

Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm

●

●

A54.2601-D4

Attached Mechanical Stage, Available For 96 Holes Plate, Moving Range 128x80mm

●

●

A54.2605

Culture Dish Holder 65mm

○

○

A54.2606-65

Culture Dish Holder 54mm

●

●

A54.2606-54

Culture Dish Holder 35mm

○

○

A54.2606-35

Holder For Blood Cell Counter

○

○

A54.2606-BC

Illumination

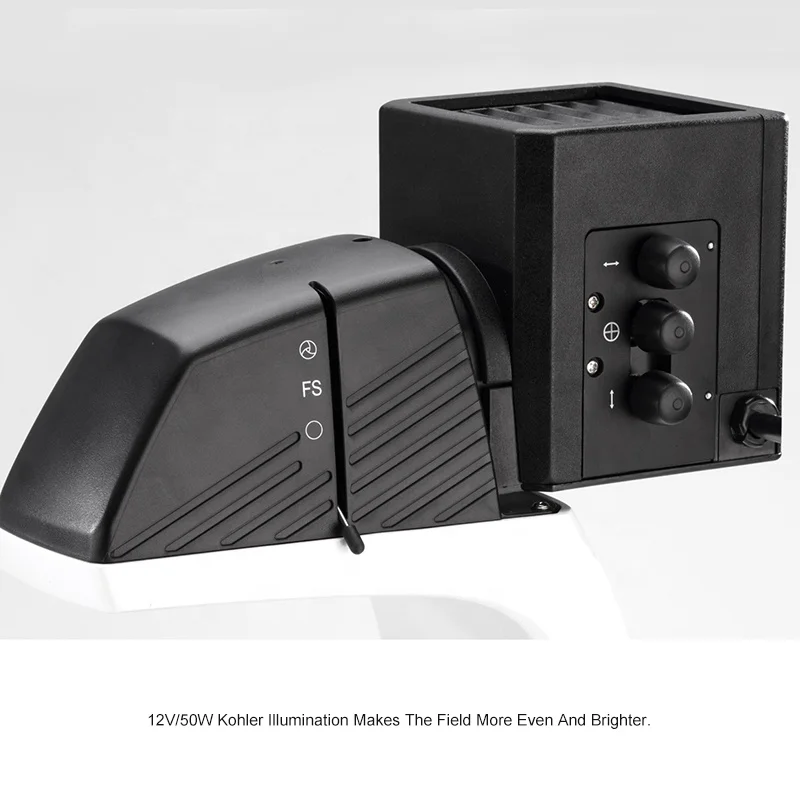

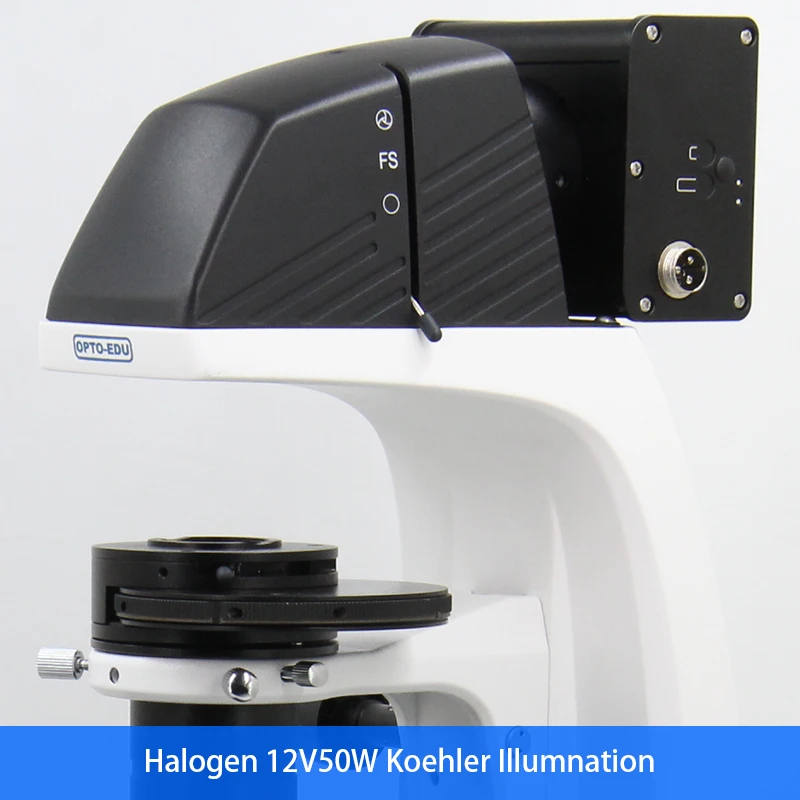

Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V

●

●

A56.2650-50W

Koehler Illumination 5W LED, Input Voltage 100V~240V

○

○

A56.2651-5W

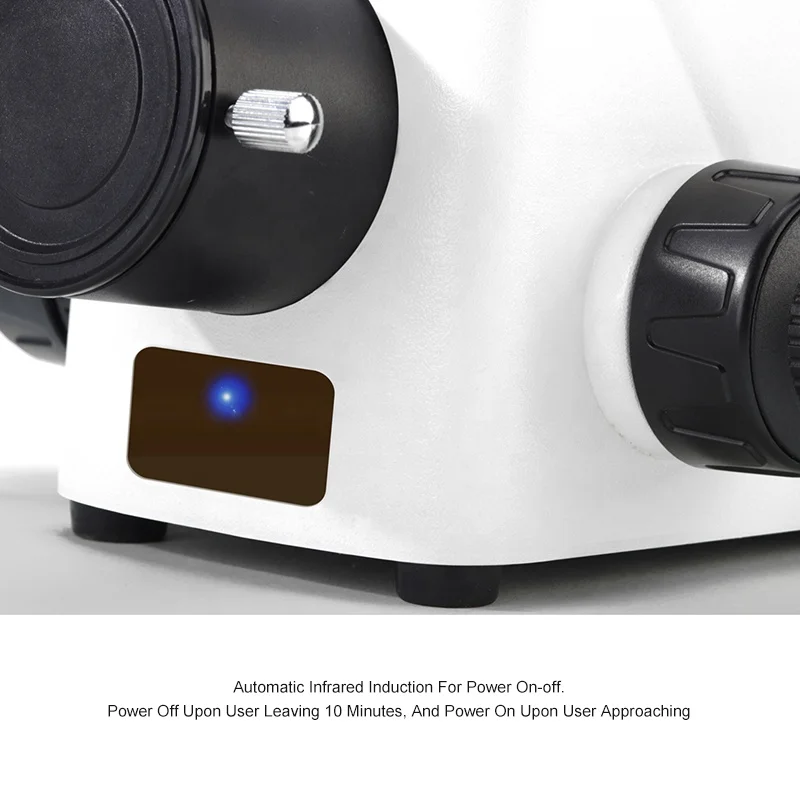

Power

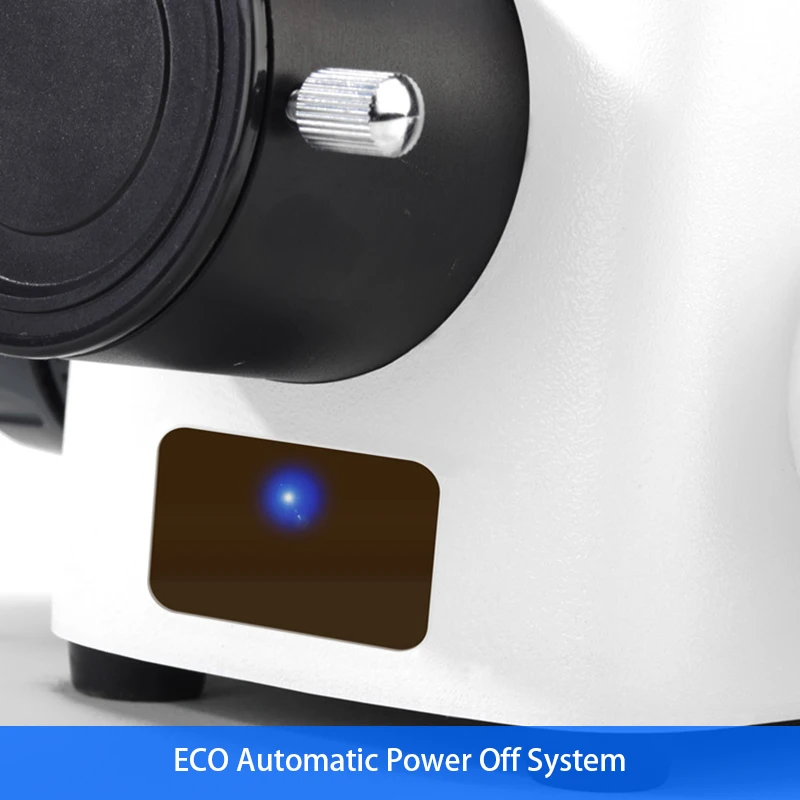

ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually

●

●

A56.2660

Filter

Blue, Dia.34mm

●

●

A56.2616-34B

Green, Dia.34mm

●

●

A56.2616-34G

Amber, Dia.34mm

○

○

A56.2616-34A

Grey, Dia.34mm

○

○

A56.2616-34N

Adapter

Photo Adapter With 1.7x Photo Eyepiece,100% Light For Camera Port,
For Canon SLR Digital Camera

●

●

A55.2622-BC17

Photo Adapter With 1.7x Photo Eyepiece,100% Light For Camera Port,
For Nikon SLR Digital Camera

○

○

A55.2622-BN17

Photo Adapter With 2.5x Photo Eyepiece,100% Light For Camera Port,
For Canon SLR Digital Camera With 1" CCD Sensor

○

○

A55.2622-BC25

Photo Adapter With 2.5x Photo Eyepiece,100% Light For Camera Port,
For Nikon SLR Digital Camera With 1" CCD Sensor

○

○

A55.2622-BN25

C-Mount 0.5x, Focus Adjustable

○

○

A55.2601-05

C-Mount 0.75x, Focus Adjustable

○

○

A55.2601-75

C-Mount1.0x, Focus Adjustable

○

○

A55.2601-10

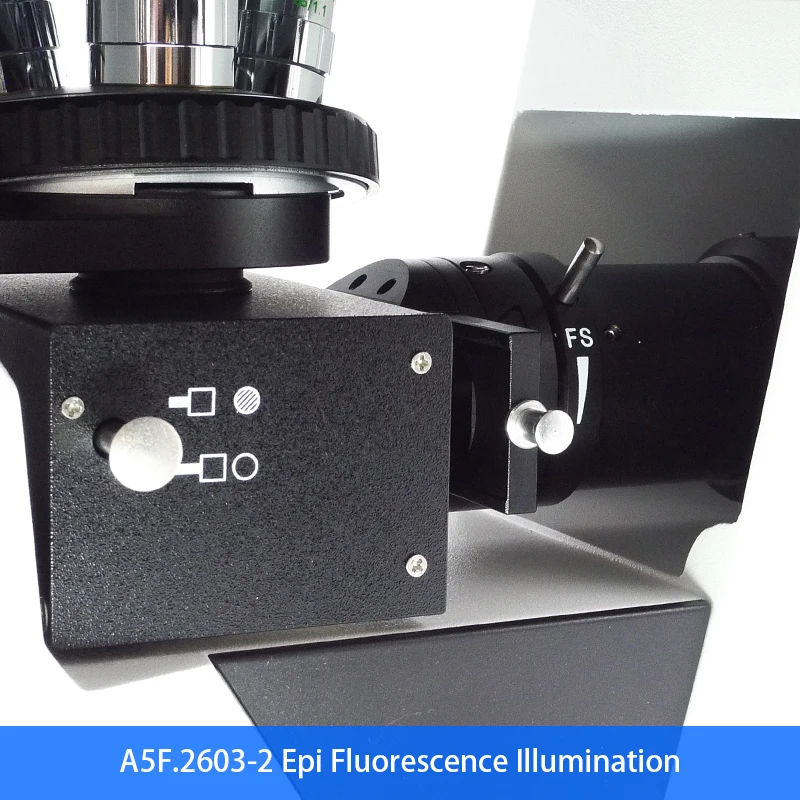

Fluorescence

Upgrade From A14.2605 Inverted Microscope With
B,G China Fluorescent Filter,

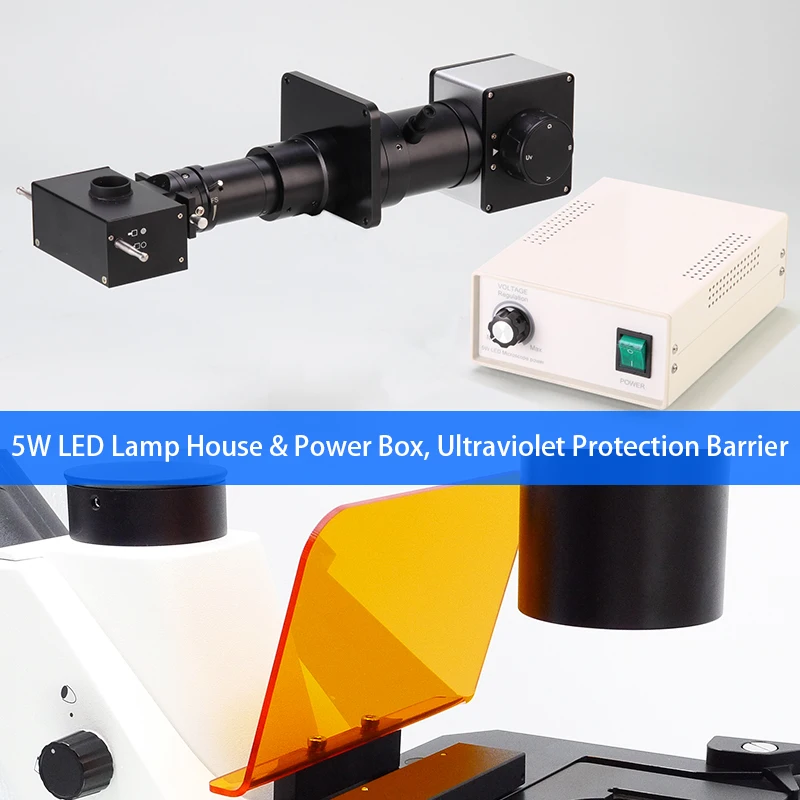

5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G Lamp Each 1 pc

●

○

A5F.2604-2

Upgrade From A14.2605 Inverted Microscope With
B,G,V,VU China Fluorescent Filter,
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G,V,VU Lamp Each 1 pc

○

●

A5F.2604-4

Package

Packing Size: 660mmx600mmx330mm

Weight

Gross Weight: 17 kgs, Net Weight: 13.5 kgs

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
