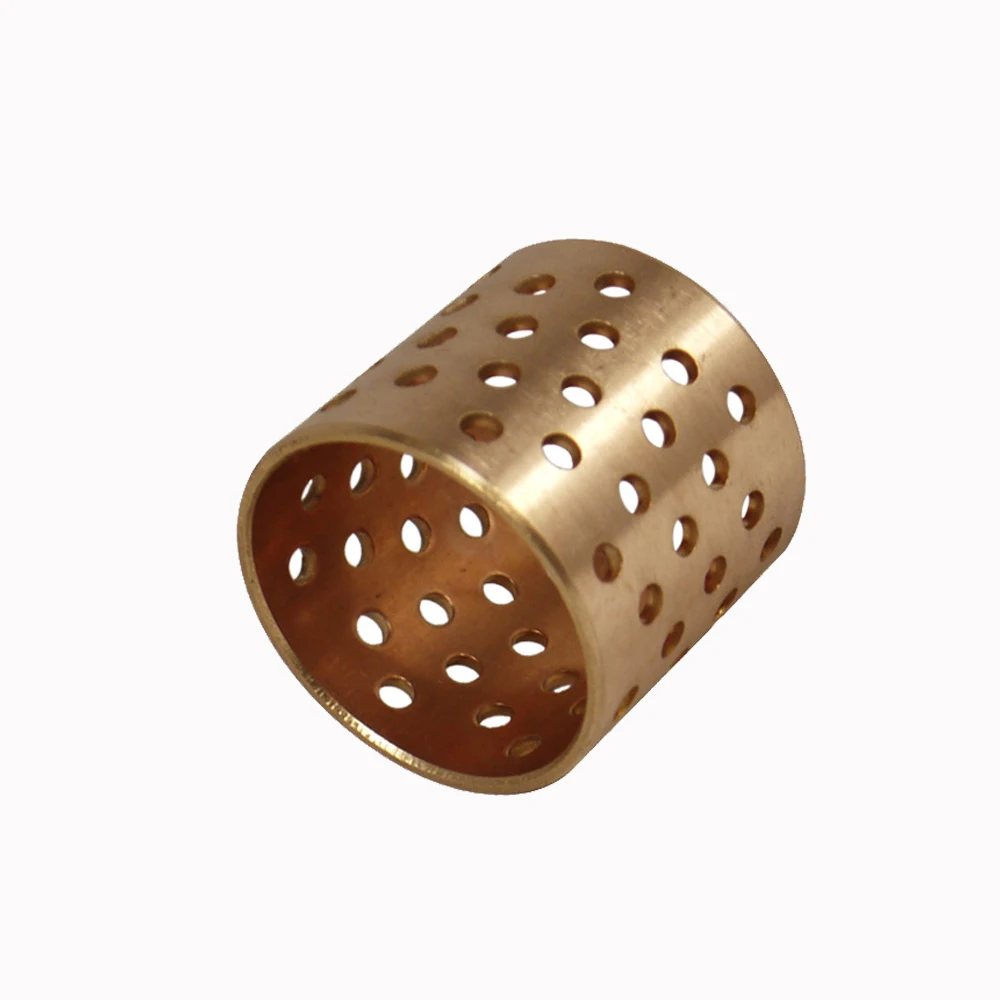

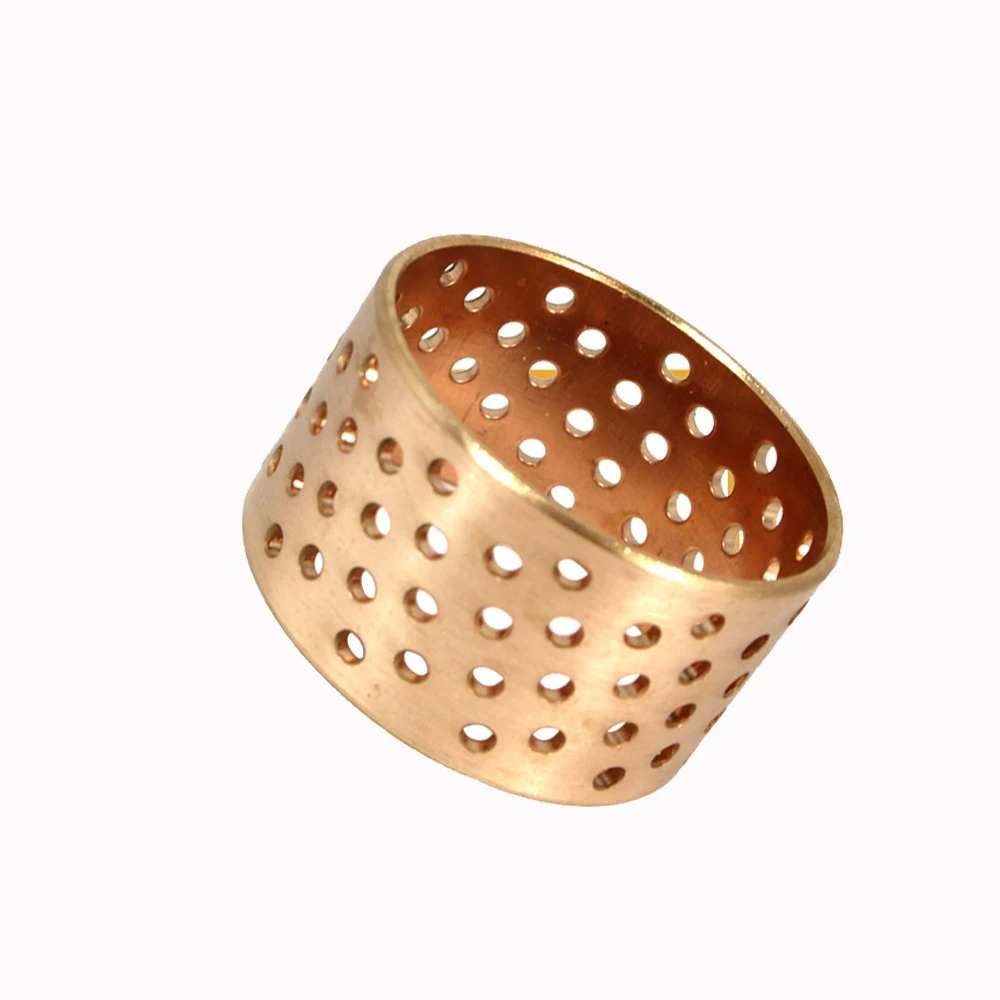

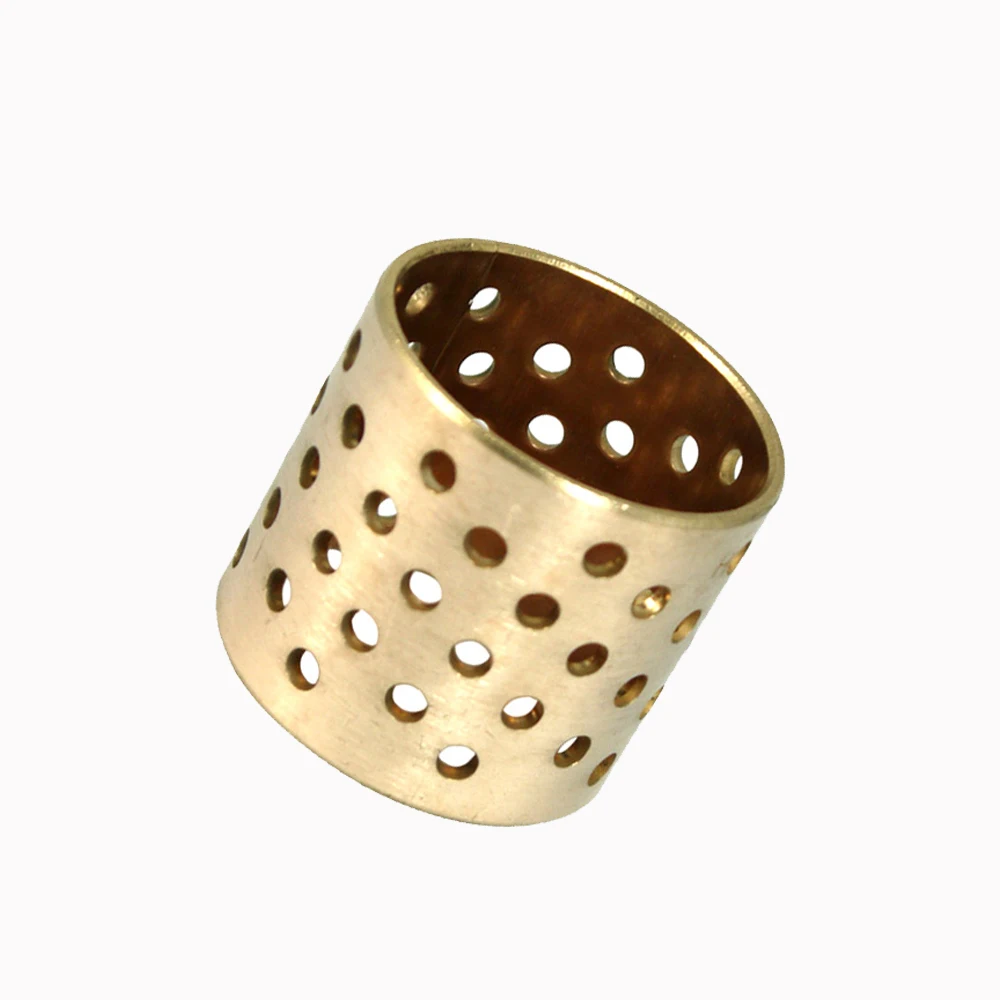

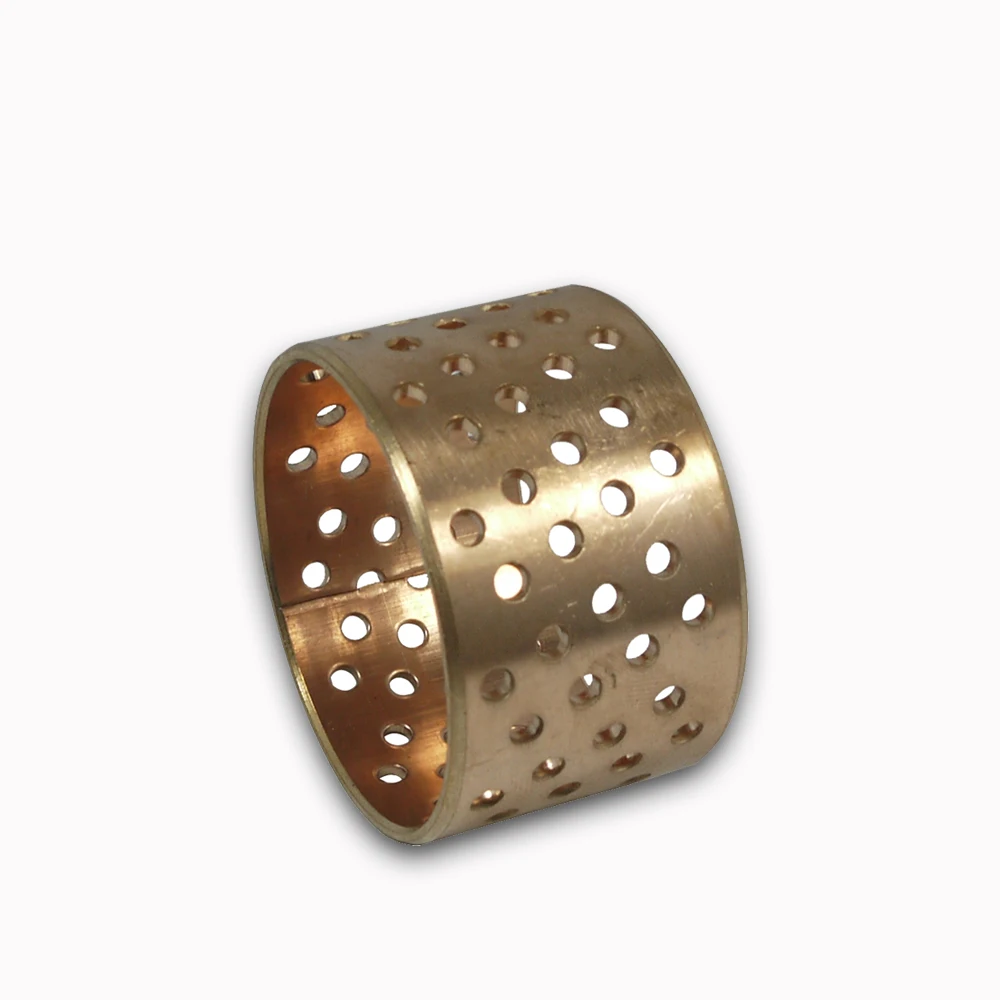

Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant

Product Overview

Description

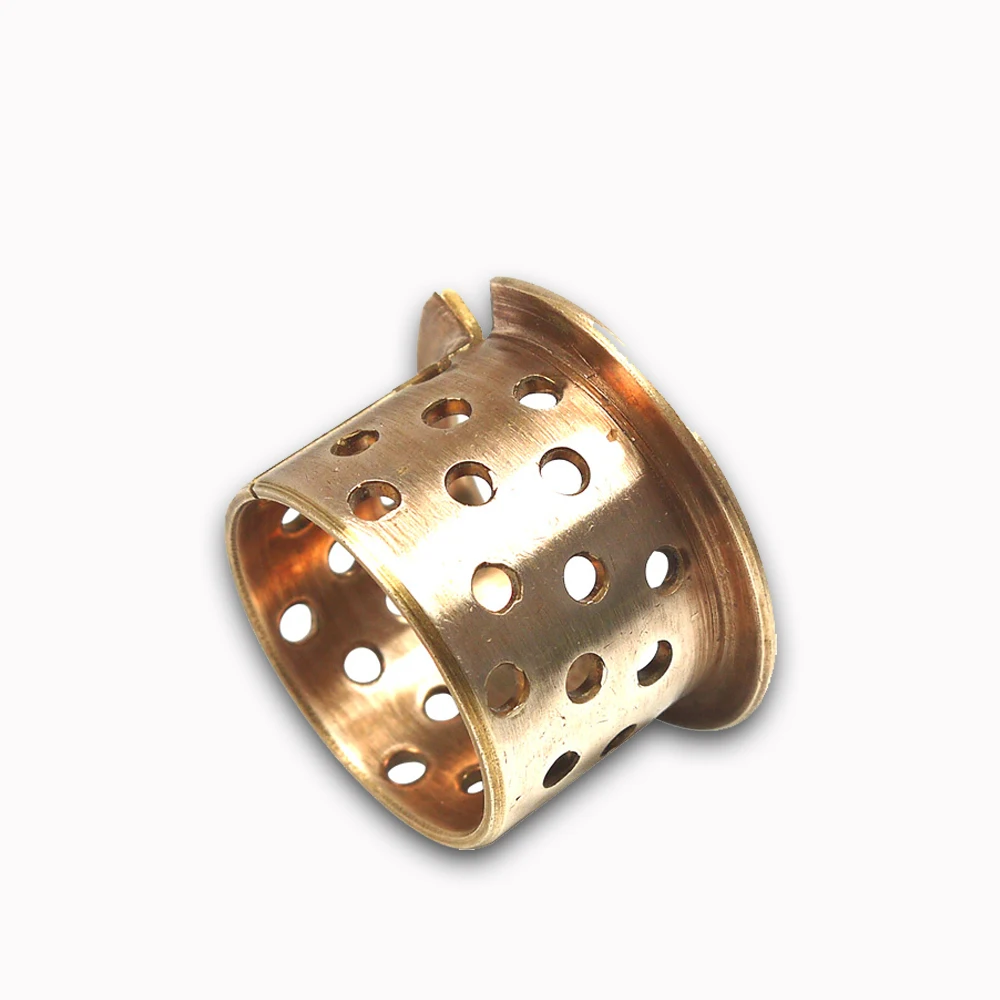

FB car parts flange bearing





Sintered bronze bushing and solid bronze bushing also available, please check the related products pages.



• Introduction

This series products are based on special high density homogenous copper alloy.The inner surface is rolled to diamond or half-ball shape lubrication grooves. They are in high density,good load capacity and wear-resistant.

The products are widely used in machinery industry, such as auto machines, pumps, plastic injection machines, lifting equipments, mining machinery, construction machines, etc.



• Features:

1.Minim oil lubrication, able to be applied in water-lubrication environment

2.Good anti-abrasion, low friction coefficient





• Specifications:

Material	FB090	Bronze(CuSn8Pb/ CuSn6.5Pb)
	FB091	Bronze(CuZn31Si)
	FB092	Bronze(CuSn8Pb/ CuSn6.5Pb)
	FB094	Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings
	FB090G	Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite
Load capacity		100N/mm2
Speed limit		2m/s
PV value limit		2.8N/mm2.m/s
Tensile Strength		460N/mm2
Yeild Strength		260N/mm2
Hardness		90~150HB
Mating axis required	Hardness	>=50HRC
	Roughness	Ra=0.4~1.0
Friction coef		0.05~0.2
Working temperature max.		150°C



•  Types:



• Sizes List

• Production Line

• Inspection

• Packings:



Other bushings:



 Sintered bushing / Solid bronze bushing / POM composit bushing / PTFE composit bushing





Our sliding bearings including:



SF-1(du) oilless bearing bushing

SF-2(dx) slide bearing bushing

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
