LED slit lamp microscope cheap price 2 step magnifications ophthalmic equipment optical slit lamps

Product Overview

Description

HS-S280C Professional quality LED slit lamp microscope Cheap Price





*Features

1. Converging stereoscopic microscope with excellent optical system

2. Ø14mm aperature

3. Powered by LED light source

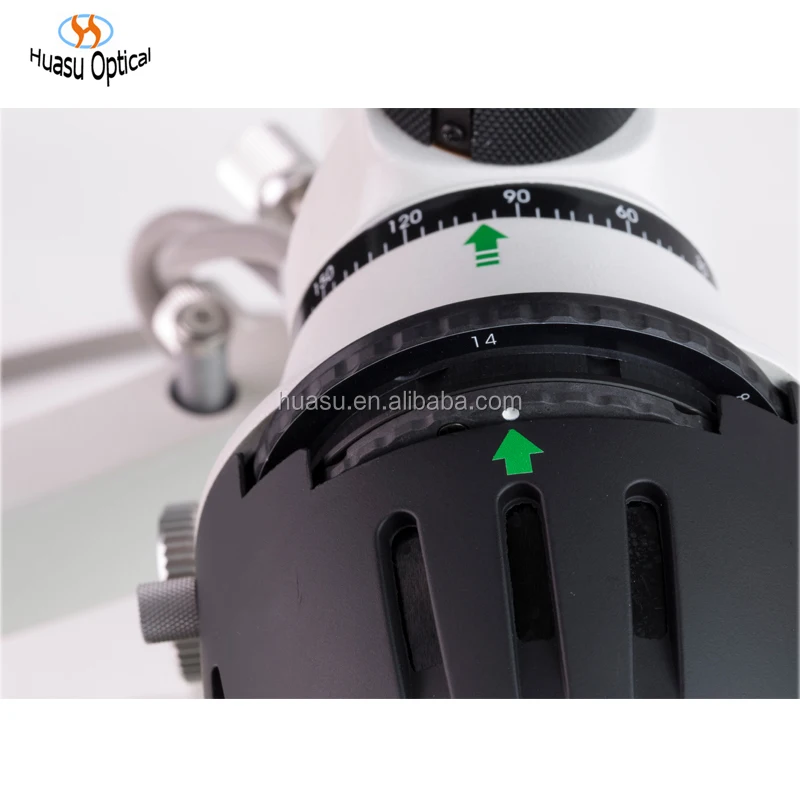

4. Slit angle is adjustable from 0° to 180°

5. Heat absorption filter, Red-free filter, Cobalt Blue filter



*Specification

Microscope:

Type:                                       converging stereoscope
Magnification change:         2 steps by objective lens rotation
Total magnification Ratio:   10X, 16X
Eyepieces:                              10X
Angle between eyepieces:  13°
Interpupillary adjustment:  52mm~78mm
Diopter adjustment:            ±6D
Field of view:                        16X (Ø14.5mm), 10X (Ø18mm)
Slit Illumination:
Slit width:                   Continuously variable from 0 to 14mm (at 14mm,slit becomes a circle )
Slit length:                  Continuously variable from 1mm to 14mm
Lamp:                          3V/3W LED Lamp
Slit angle:                    0~180 (continuously adjustable both vertical and horizontal)
Filters:                         Heat absorption, Red-free, Cobalt Blue
Aperture diameters: Ø14mm, Ø8mm, Ø3.5mm, Ø0.5mm
Illumination:              50KLX
Base:
Longitudinal movement:    90mm
Lateral movement:              100mm
Vertical movement:             30mm
Fine movement:                  15mm
Chin-Rest:
Vertical movement:            80mm
Fixation:                                RED LED
Power:
Input voltage:                      220V/110V~+-10%
Input frequency:                 50Hz/60Hz
Power consumption:         30VA(max)
Output voltage:                  Lamp 6V (continuously adjustable), Fixation 3V
Working environment
Temperature:          +5℃~+40℃
Relative humidity:  ≤80%
Air pressure:           800hpa~1060hpa
Storing environment:
Temperature:           -40℃~+55℃
Relative humidity:   ≤93%
Air pressure:            700hpa~1060hpa
Transporting environment
Temperature:          -40℃~+55℃
Relative humidity:  ≤93%
Air pressure:            700hpa~1060hpa
