Baner 30mm mount illuminated emergency stop push button for assembly line production line
- Category: >>>
- Supplier: Shenzhen Sophia Lighting Co. Ltd.
Share on (62058986795):
Product Overview
Description

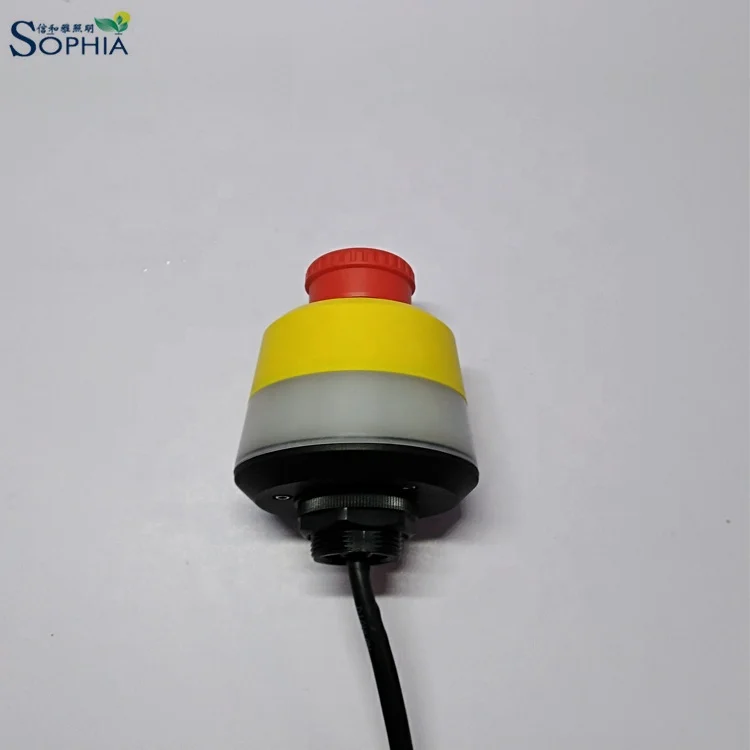

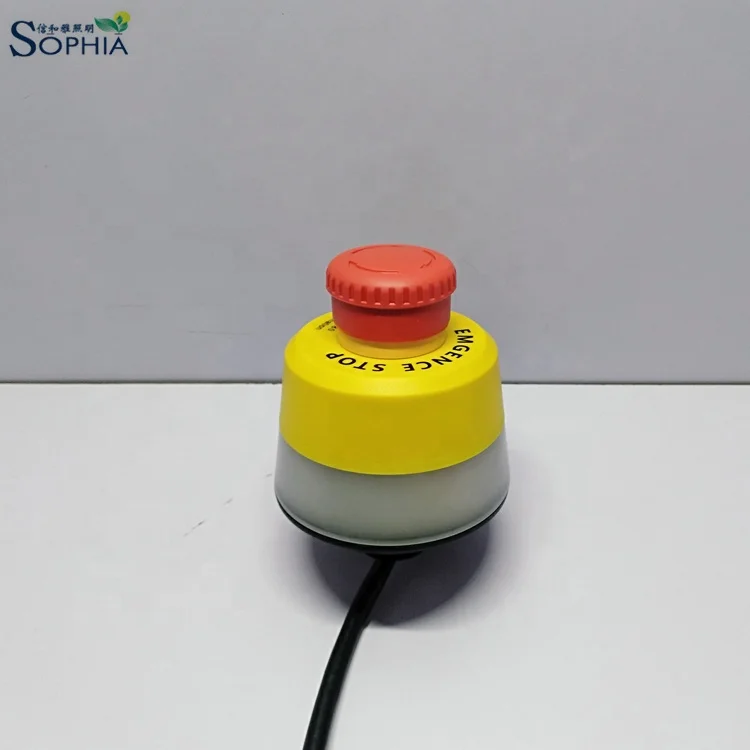

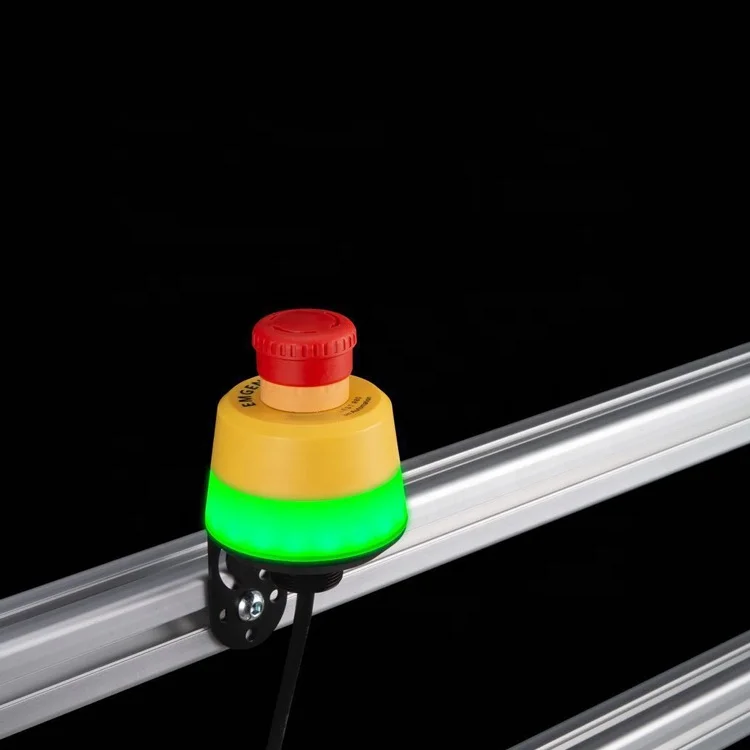

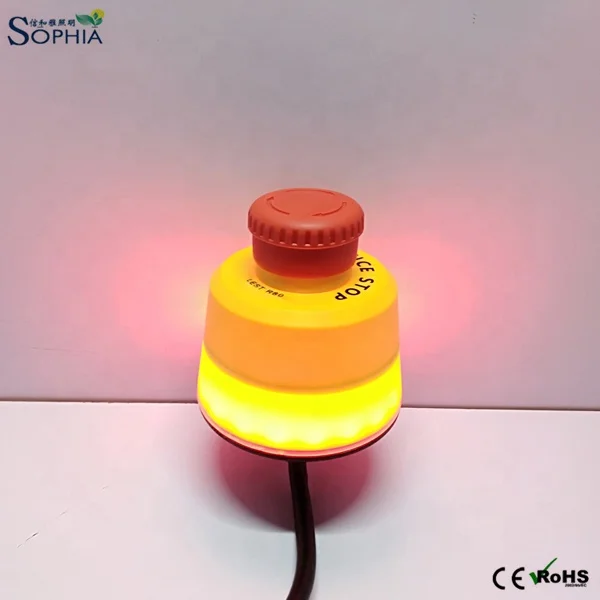

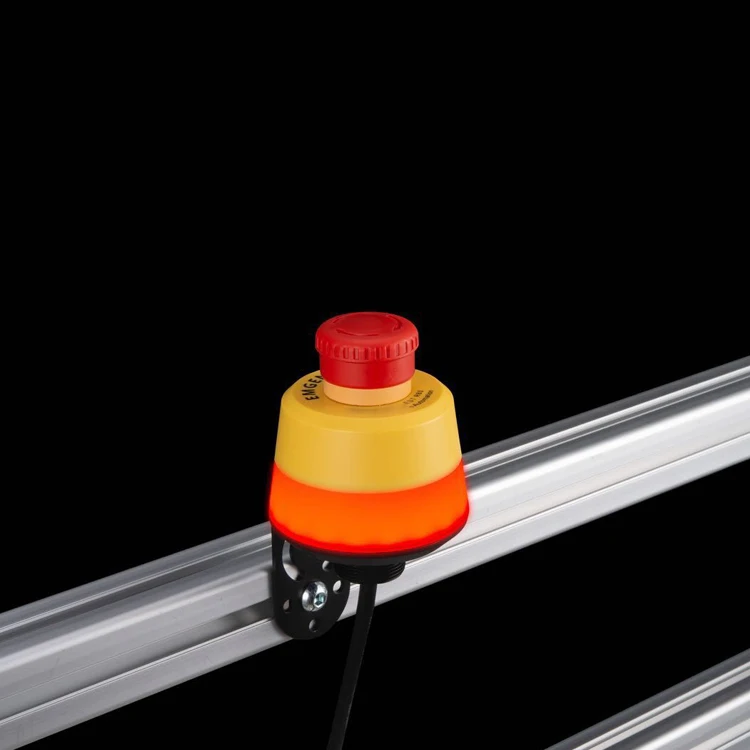

Sophia 80mm emergency stop button with LED indicator
Quick Spec
Stand by Indicating color: Non/ Yellow/ Green;
Push button indicating color: Red solid on or Red Flashing
R80 Series | |
Standard voltage | DC 12-30V |
Maximum current(LED color) | 150mA@12V dc, 80mA @24V dc, 60mA@30V dc |
Press button | Insulation resistance: >100MΩ; Impulse withstand voltage:2500VAC One minute Life cycle:>250,000 times |
Color options | Red Yellow or Red Green |
LED flash rate | 1.6Hz at 50% duty cycle |
| >7.2V, Input impedance 10K |
Electrical protection | Over current protection, Over voltage protection, Reverse connection protection |
IP rating | IP65, IP67 |
Vibration resistance | 10Hz to 500Hz, amplitude 0.35mm acceleration 50m/s² |
Shock resistance | 150m/s² |
Connection | 1meter cable or M12 QD with 30cm cable |
Working temperature (℃) | -20℃~50℃ |
Max Op. Relative Humidity | 95% at 50℃ |

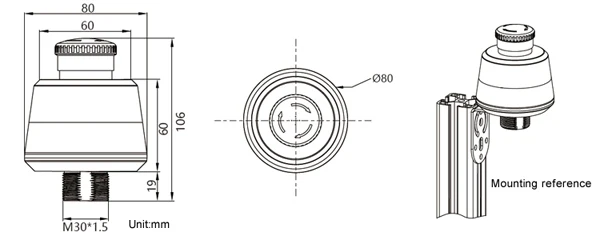

Dimension | 80mmx106mm(ODxH) |
Mounting thread | M30x1.5mm |
Material | ABS and Polyamide |
Approval | CE FCC |
Feature |
Combine Emergency stop and indication functions. More convenient M30x1.5 thread, Easy to install 40mm button diameter, industrial standard, TUV approval, safe and reliable Latest LED technology. Red, Yellow/ Red, Green optional |
More similar products
TL50 Tower Lights
Indicator Series
Indicator with buttons

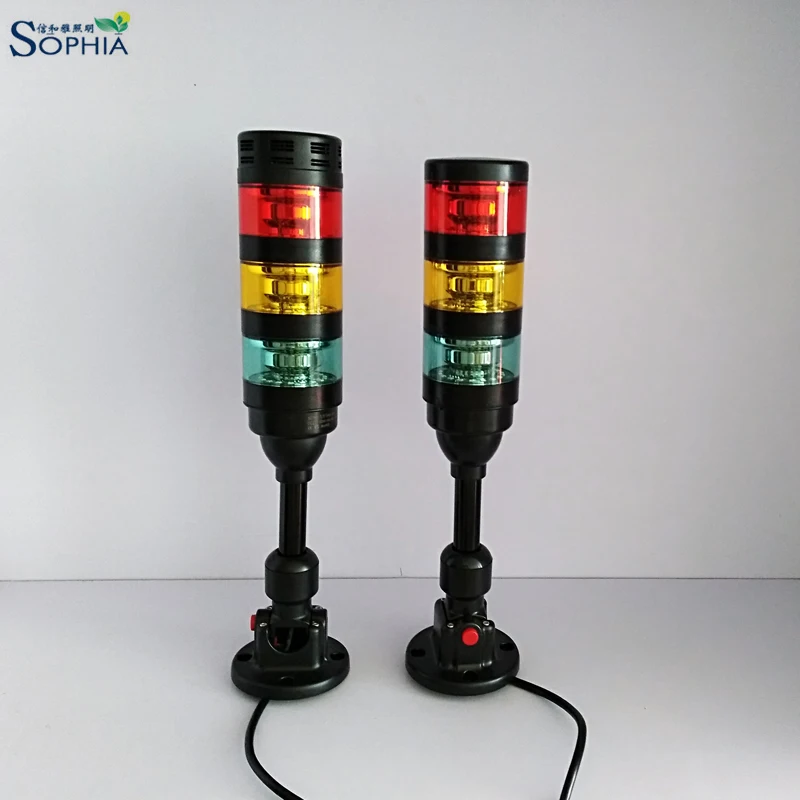

TL70 series signal lamp

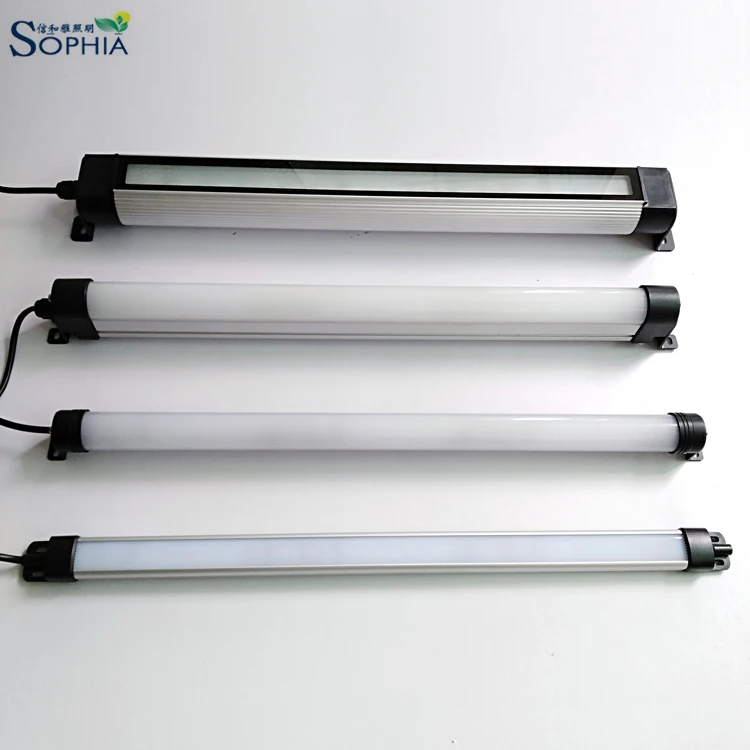

Industrial LED Lights
