herb chinese medicine pulverizer

Product Overview

Description

Product Description

 The material enters the crushing chamber through the hopper and the feed port.

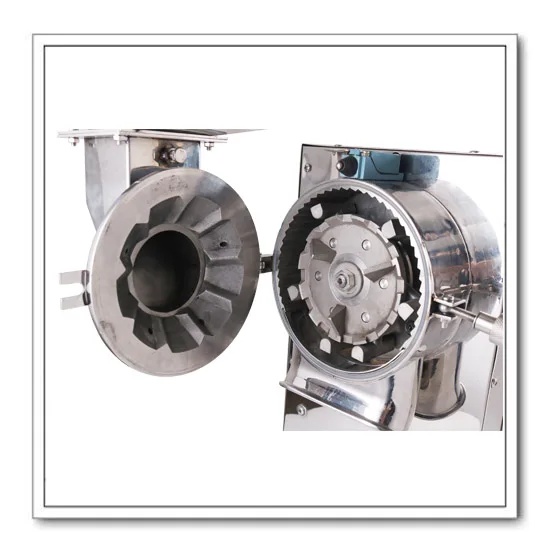

In the crushing chamber, the relative movement between the rotating toothed disc and the toothed disc is used for initial crushing.

The raw material is discharged to the second crushing chamber (the outer crushing chamber) through the discharge holes on the rotating disk.

The internal and external crushing chamber has a high-speed rotating hammer, a high-speed rotating hammer and powder.

The relative movement, internal impact, tear and rubbing between the inner rings of the inner cavity are broken down.

The material is crushed, and the crushed material passes through the screen under the action of centrifugal force.

Drain into the collection bag (or box).

Specifications



Model: XL-60C power: 2200W

Voltage: 220V motor speed: 4560r/m

Yield: 5-30kg/h fineness: 30-150 mesh.

Machine weight: 60kg size: 645*263*530mm

Feed particle size: 30mm

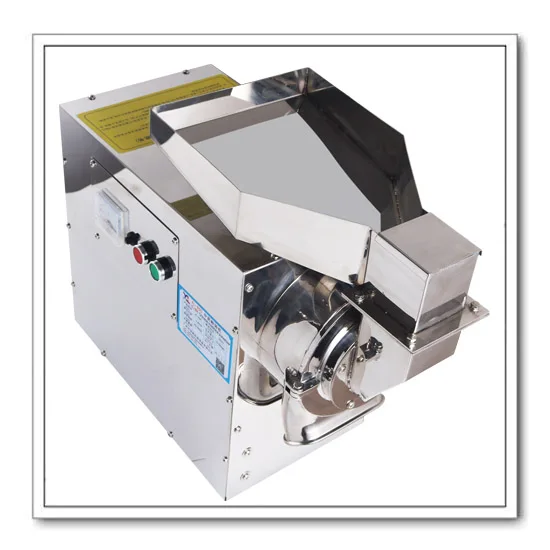

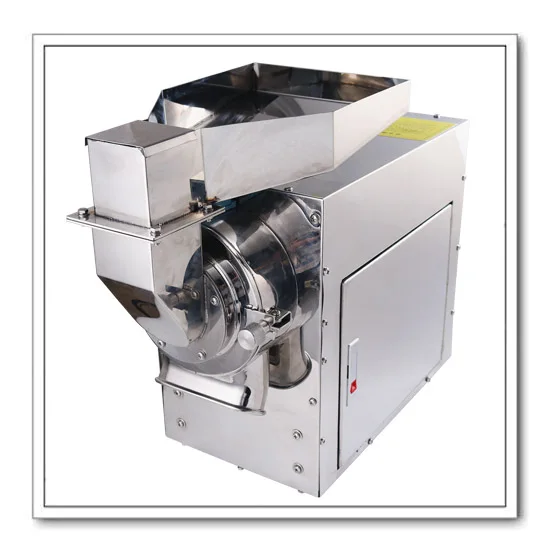

Product Image





Our services

This machine is guaranteed for one year, artificial damage, normal wear and tear are not within the scope of warranty.And we will use video or pictures to provide technical support at any time



Company Information

 Xulang machinery is a big mechanical comprehensive manufacturer which is committed to R&D and production in grinding equipmengts including whole grains mill machine,universal grinding machine.crusher machine,small grinding machine,traditional Chinese medicine herbs,turbine grinding machine etc.Xulang machinery has advanced level in pharmaceutical equipments and the design in producing press tablet machine,pill making machine,mixer machine,granulator,sugar coated machine got good comments from suppliers in the same field and proessional persons. In addition,the key products also include toasting equipments,high  efficiency toasting box,roaster machine.



FAQ

1. What about your  machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.
2. What about your  machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
